In Moscow Product Description

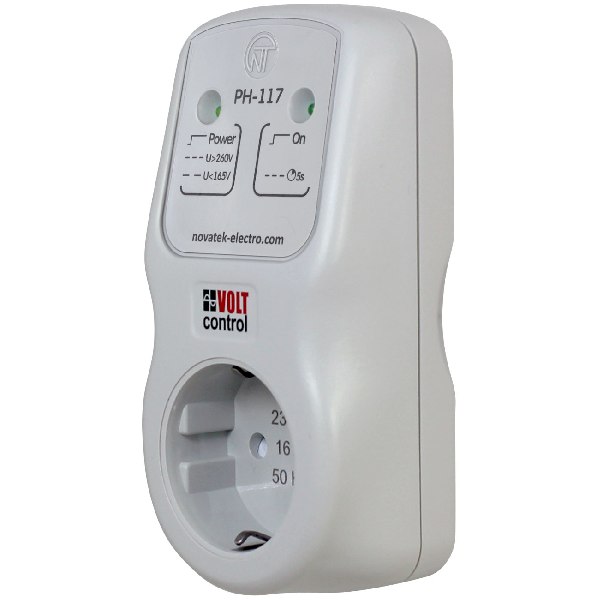

The pn-117 voltage relay is designed to turn off the household and industrial 1-phase load of 220, 50Hz with a power of up to 3,5 kW (up to 16 a) with unacceptable voltage fluctuations in the network with automatic re-activation (hereinafter AP) after restoring network parameters.
Pn-117 identifies the compliance of the electrical network voltage with current standards, the state of the accident and the state of the output relay.

Specifications:
Rated voltage:220 in
Network frequency:47-65Hz
Voltage Protection response time above 260 V:1 with
Voltage Protection response time above 285 V:0.03 off
Fixed response time with an impulse increase in voltage of more 295 at a pulse duration of more than 1,5 MS:0.015 off
Protection response time below 165 V:7 with
Protection response time below 145 V:0.15 off
Maximum switching current (active load):16 A
The accuracy of determining the U response threshold:Up to 3 in
Maximum voltage at which performance is maintained:400 in
Hysteresis (voltage return ratio), in:Not less than 4
Automatic reactivation time (AP):5 with
Operating temperature range:-25 to 40 s
Storage temperature:-45 to 70 s
Total consumption current from the network:Up to 15 mA
Switching resource output contacts:
-Under load 16A:Not less than 100 ths Times
-Under load 5A:Not less than 1 million Times

Overall dimensions:125 х58х87mm
Weight:Not more than 0.17 kg
Климатическое performance:Ухл 3.1
