S-993A S-995A S-997P S-998P Electric Vacuum Desoldering Pump Solder Sucker Desoldering Gun Soldering Iron 100W double suction pump 110V /220V

Feature：
 [2 in 1 Desoldering Gun:] Includes soldering iron and desoldering vacuum pump, which can quickly melt the tin and then remove it with a large suction.
[Fast heating + constant temperature:] It can quickly heat up to 350 ℃ in 60 seconds; constant temperature working mode, stepless temperature control knob, 350-450 ℃ precise temperature control, with transient temperature recovery function and fast heating function. Suitable for manual DIY and assembly line use.
[Ceramic heating core] makes the heating performance better and promotes the recovery of the nozzle gap.

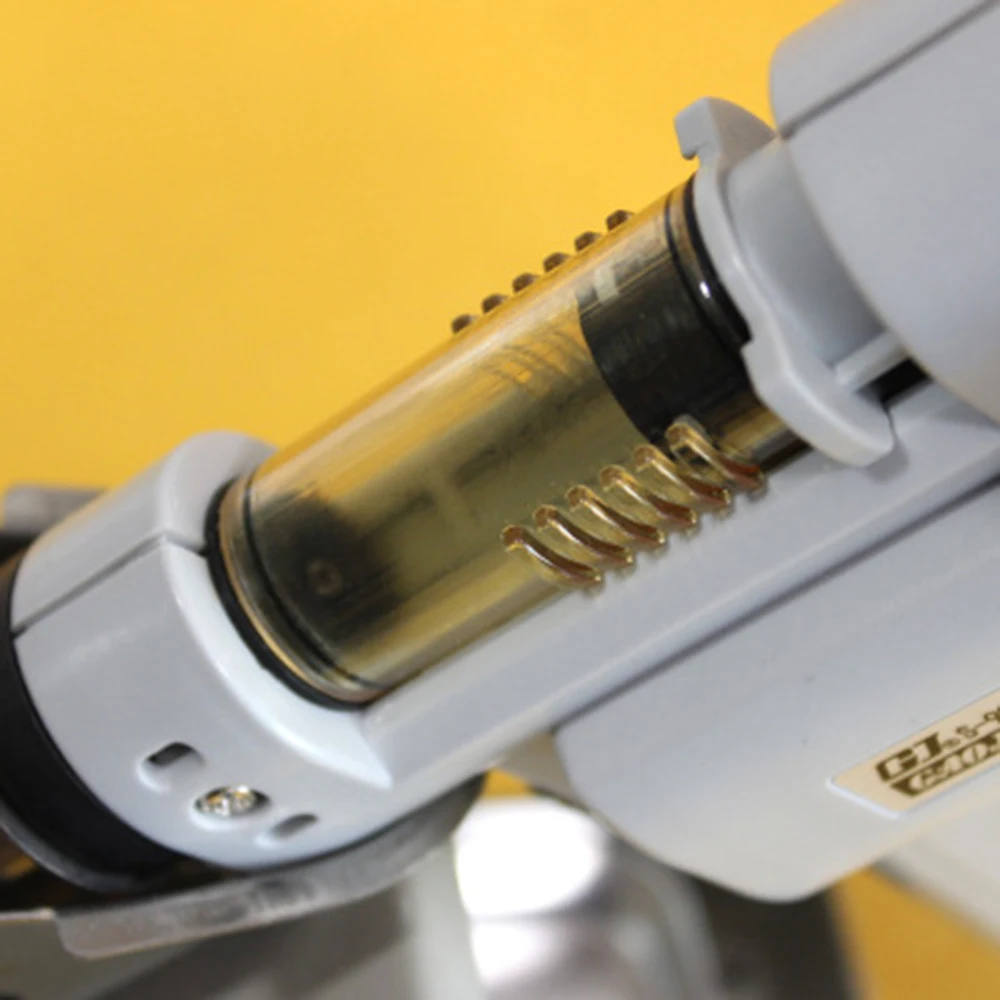

[Removable tin storage tube:] It is made of high-strength, high-temperature-resistant plastic, which is easy to disassemble and easy to clean. The entire process of removing tin is very convenient and clean.
[Anti-static design] Prevent circuit boards and electronic parts from being damaged by static electricity and leakage.


Product Description：

1.This gun is very easy for you to desoldering and remove the solder.
2.This device is 2 in 1 unit, including soldering iron and desoldering vacuum pump Stable working temperature and the instantaneous temperature function, suitable for continuous use Storage tin tube with heat-resistant glass, easy disassembly for easy cleaning Enhanced vacuum pumps, suction greater, removed tin easier
3.Rapid heating function, heating up to 350℃ in one minute
4.Stable working temperature and instantaneous temperature recovery function, suitable for continuous use
5.The tin storage tube is made of heat-resistant glass, which is easy to disassemble and clean

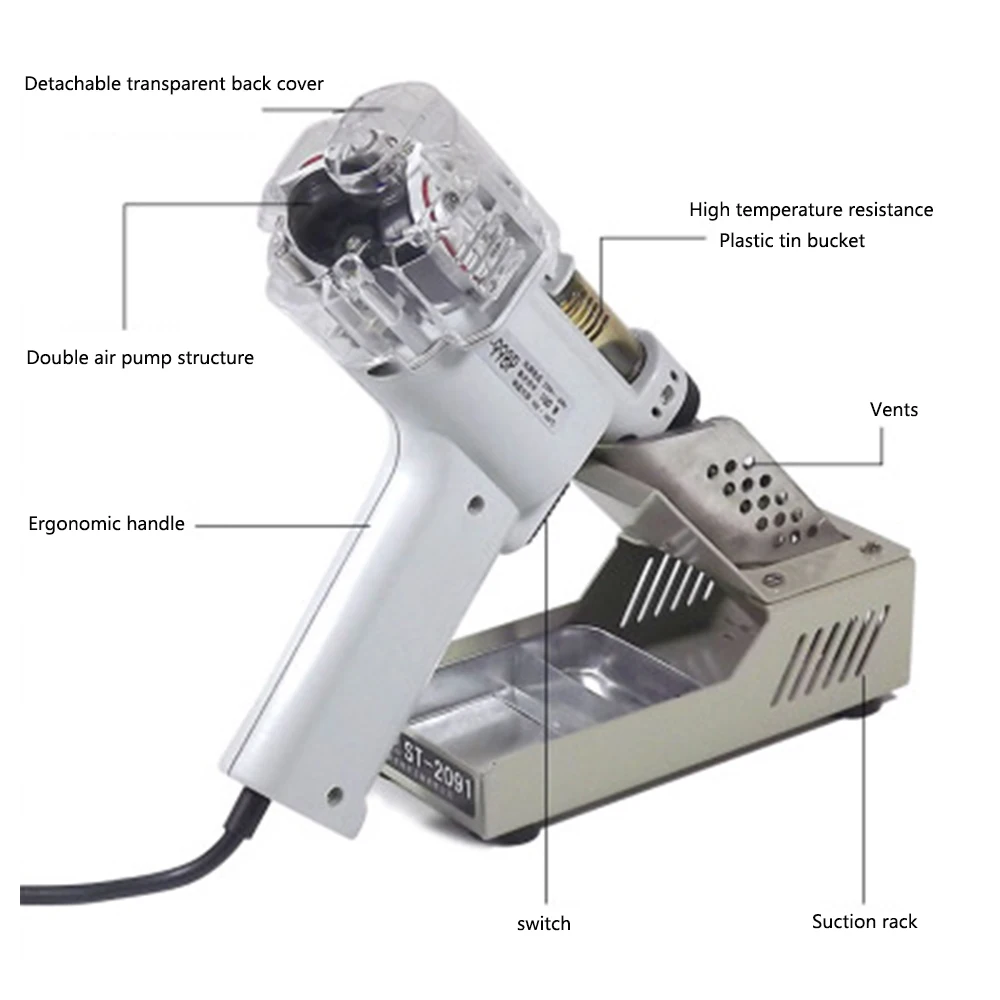

6.Enhanced double air pump, with greater suction, making tin removal easier
7.Transparent back cover, air pump work is clear at a glance
8.Horizontal motor design
9.The air pump is easy to clean and easy to maintain

 Advantages

        Adjustable constant temperature of  662℉ to 842℉
        Stable operating temperature ± 35.6℉
        Easy to clean and maintenance
        Suitable for double-sided and multilayer circuit boards
        High power heating with rapid heating functio


Specifications

            Vacuum: Vibrating membrane
            Power consumption:100W
            Power: ≤ 10W
            Heating Parts: 80W ceramic heating core
            Temperature: 662℉-842℉
            Temperature Accuracy: ± 35.6℉
            Arrival time of maximum pressure: 0.2 seconds
            Insulation resistance: ≥ 100MΩ
            Work: Continuous
            Circuit control system: Zero-interference, the new temperature controller
            Nozzle Specifications: 1.2mm


  Special Function

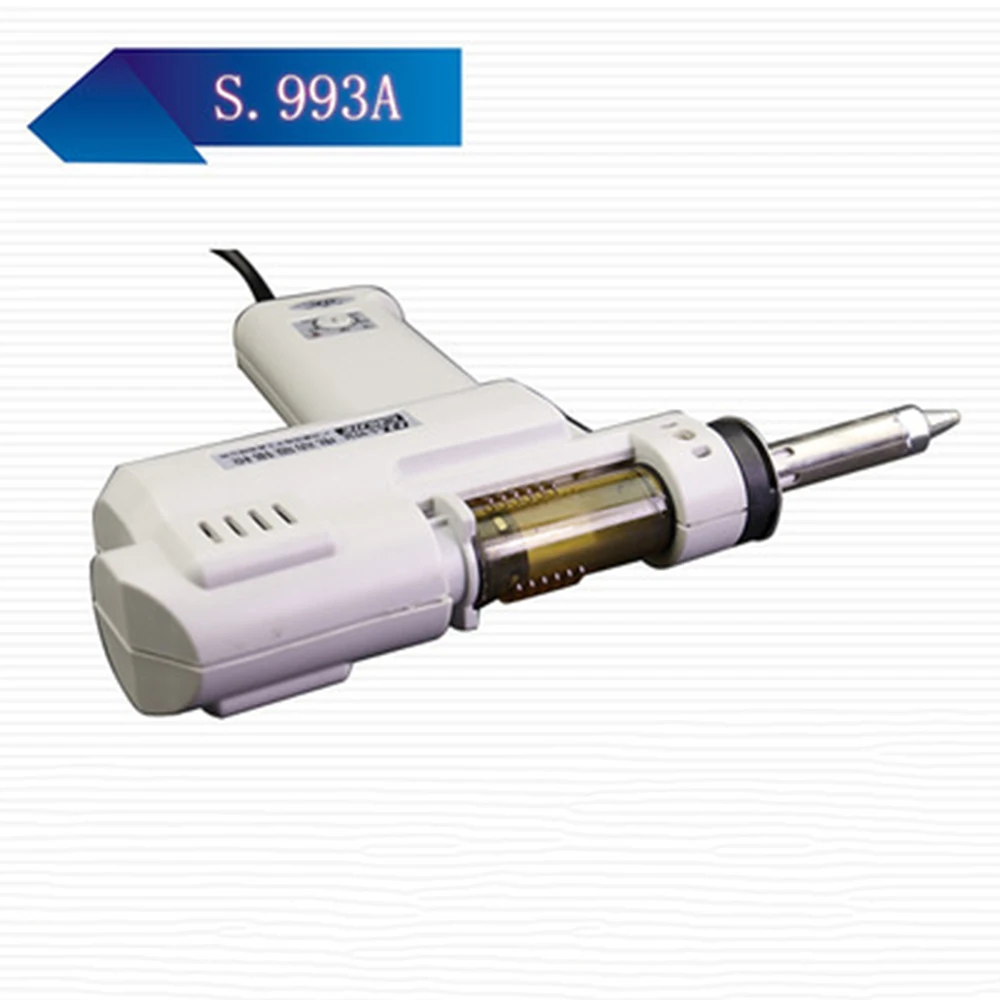

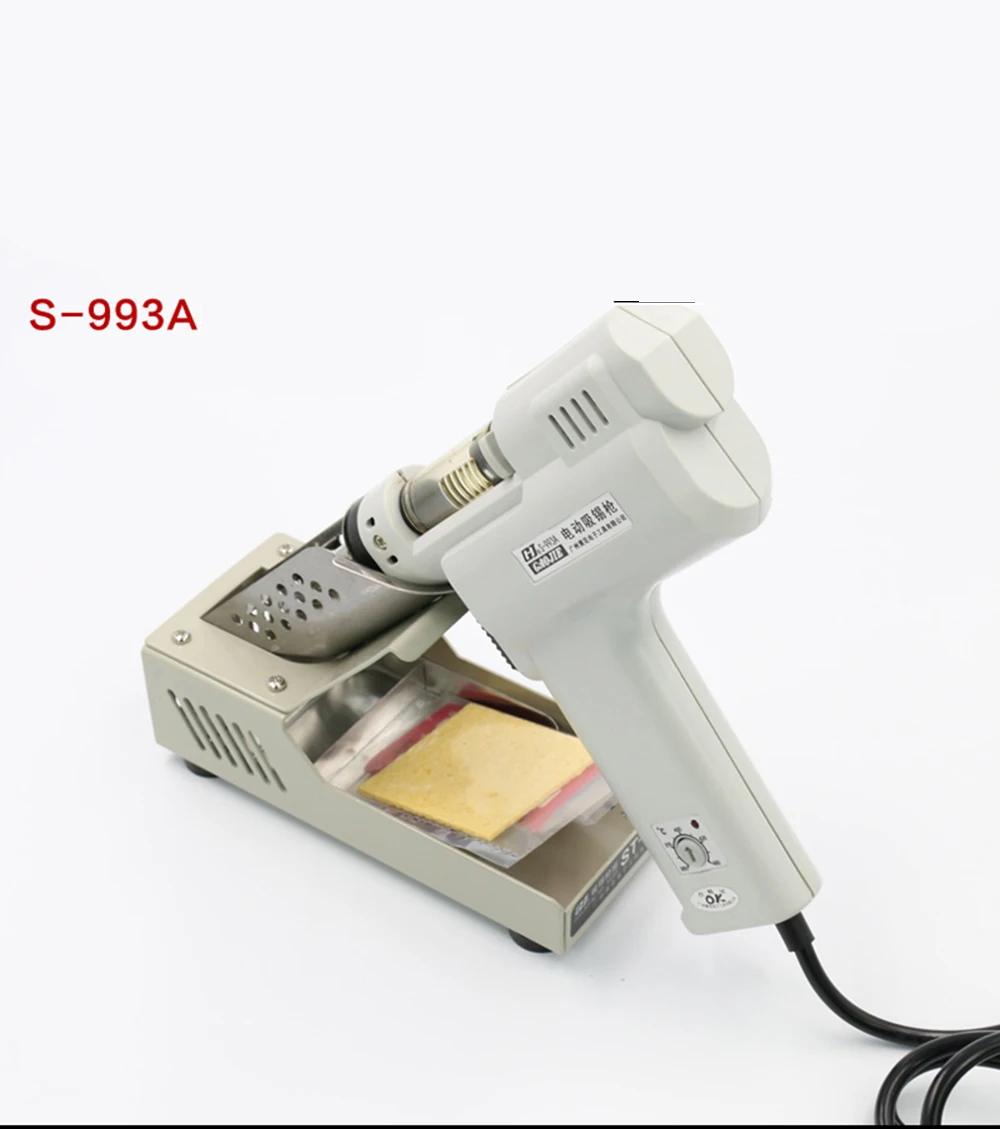

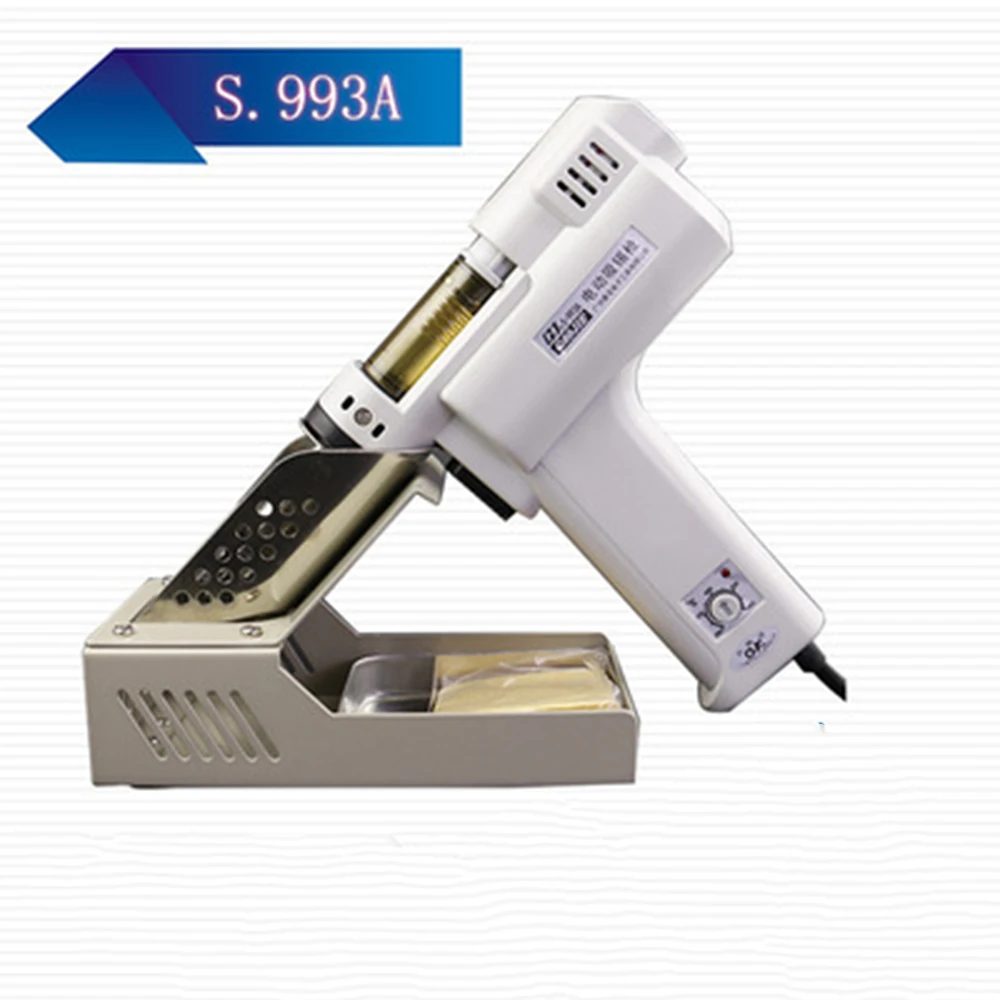

Model:S-993A
Motor design:horizontal arrangement
Heating component:Ceramic encapsulated heating core
Temperature range:350°c ~ 450 °c
Relative vacuum:80KPA(600mmhg)
Insulation resistance:≥ 100MΩ
Power consumption:100W
Power:≤ 10W
Temperature Accuracy:± 2 °c
Work:Continuous


  Model:S-995A
Motor design:vertical placement
Heating component:Ceramic encapsulated heating core
Temperature range:350°c ~ 450 °c
Relative vacuum:80KPA(600mmhg)
Insulation resistance:≥ 100MΩ
Power consumption:100W
Power:≤ 10W
Temperature Accuracy:± 2 °c
Work:Continuous

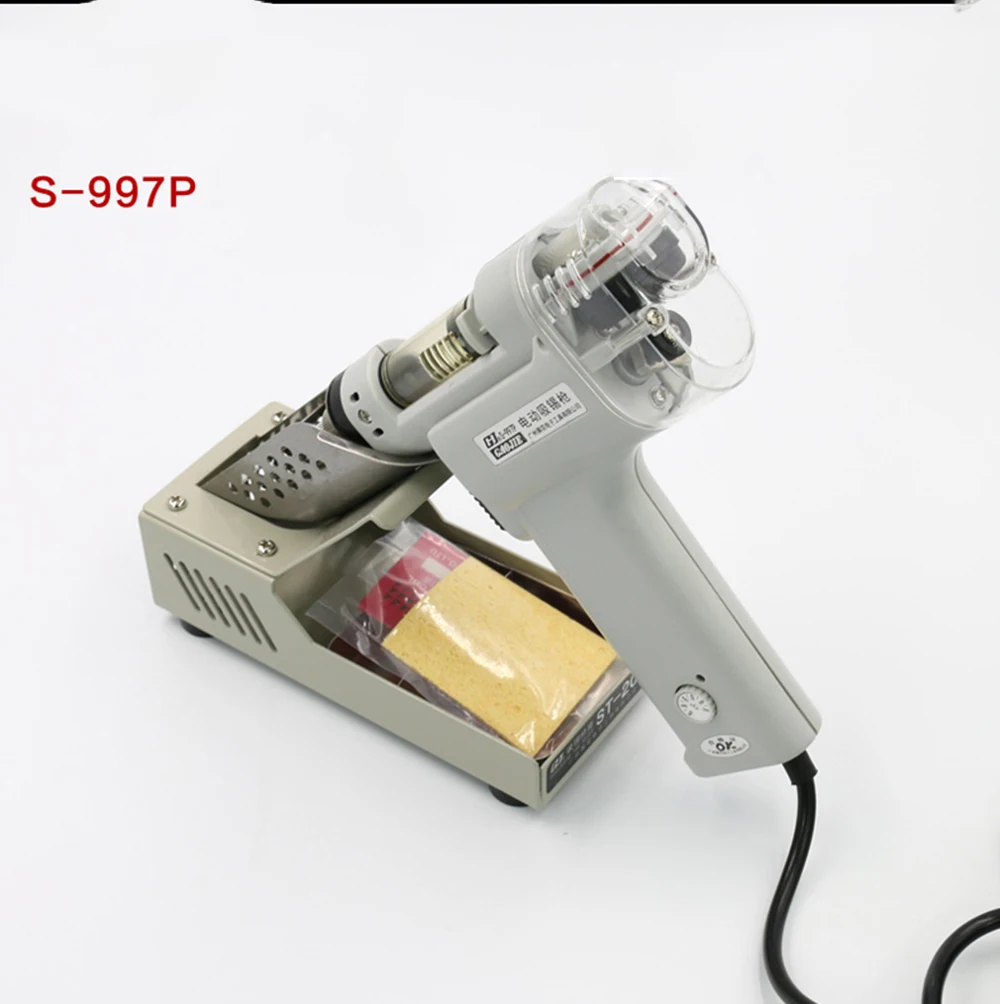

  Model:S-997P
Voltage:AC 220V ~ 240V 50Hz
Vacuum:Vibrating membrane
Power consumption:100W
Power:≤ 10W
Heating Parts:90W ceramic heating core
Temperature:350°c ~ 450 °c
Temperature Accuracy:± 2 °c
Arrival time of maximum pressure:0.2 seconds
Insulation resistance:≥ 100MΩ
Work:Continuous
Circuit control system:Zero-interference, the new temperature controller
