Product Description

fiber cutter fiber laser 2000 watt tube cutting machine 1500w fiber laser cutting machine

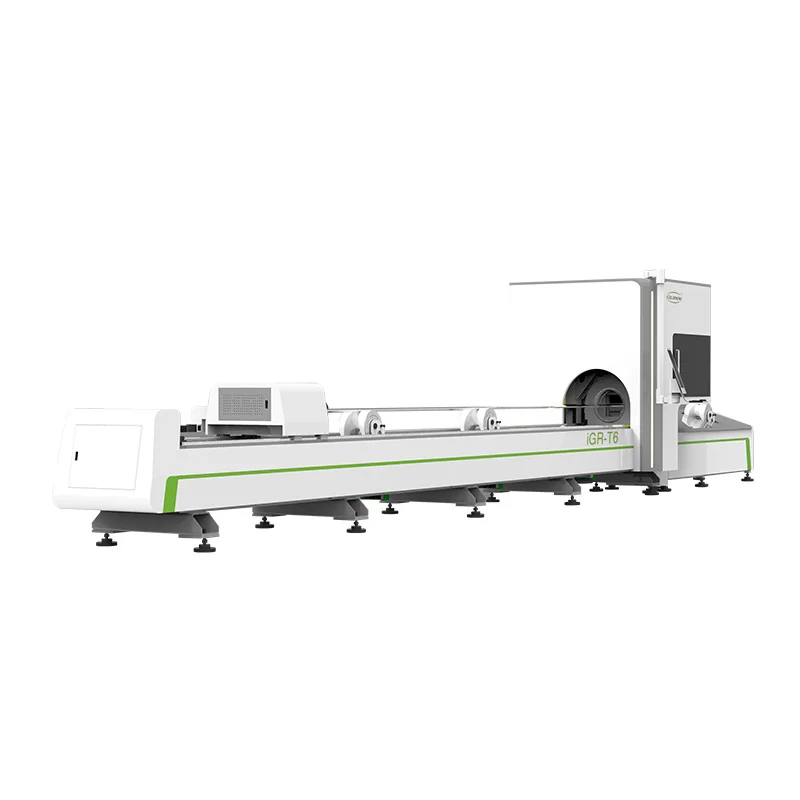

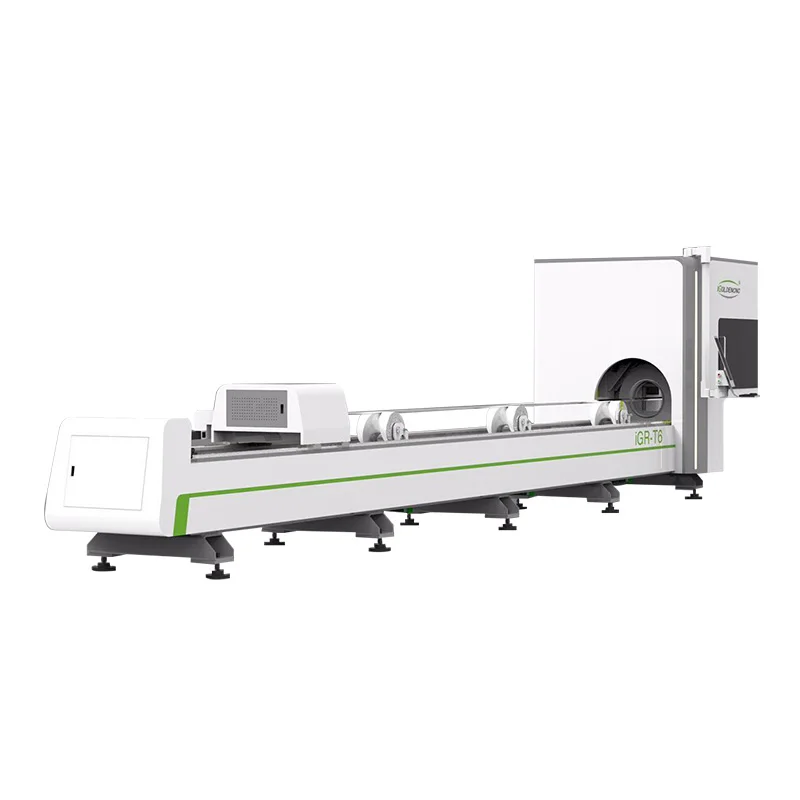

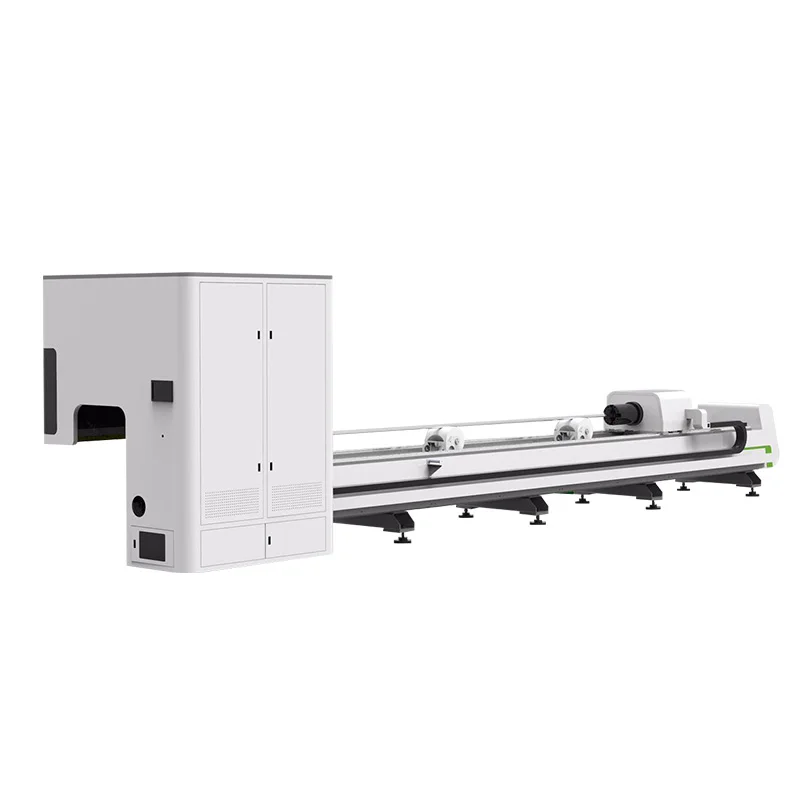

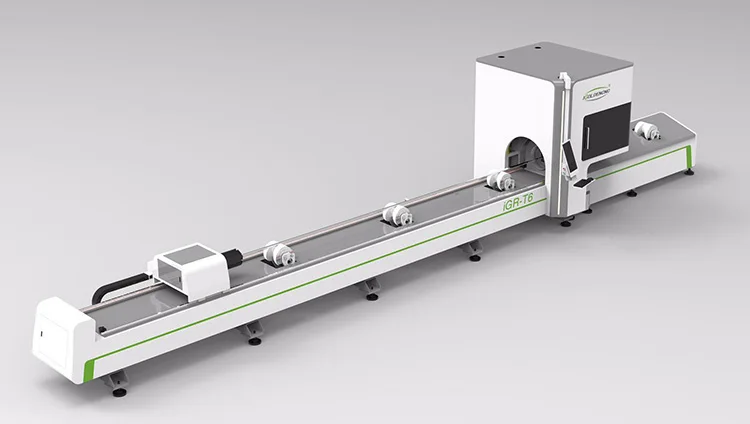

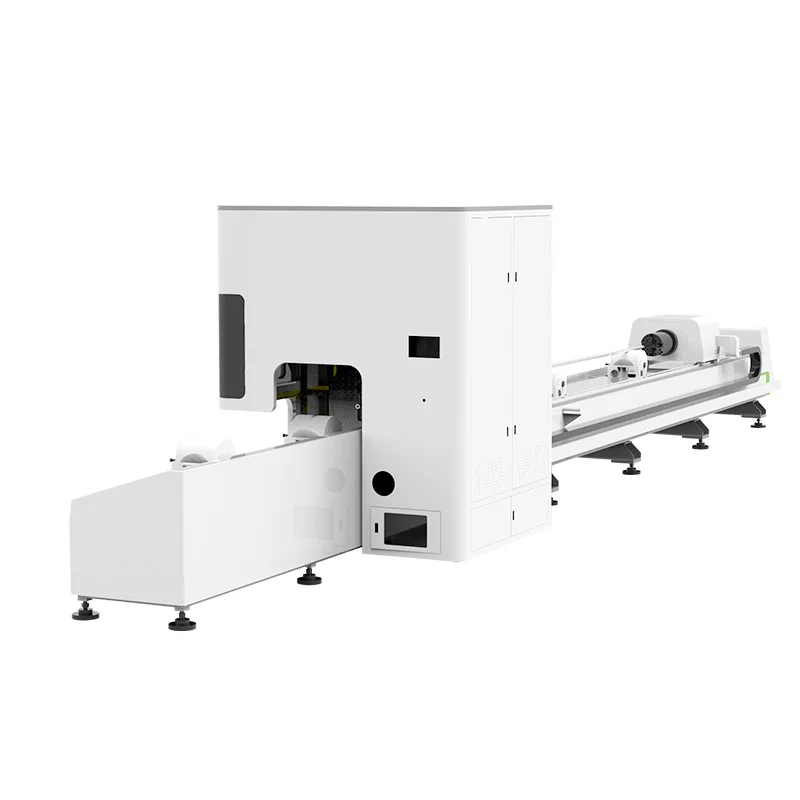

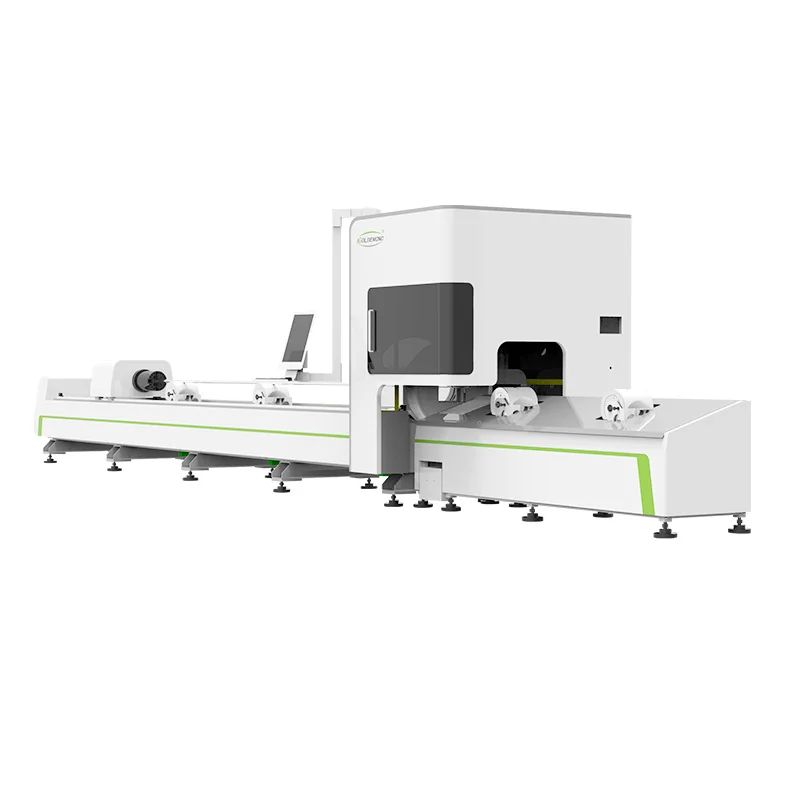

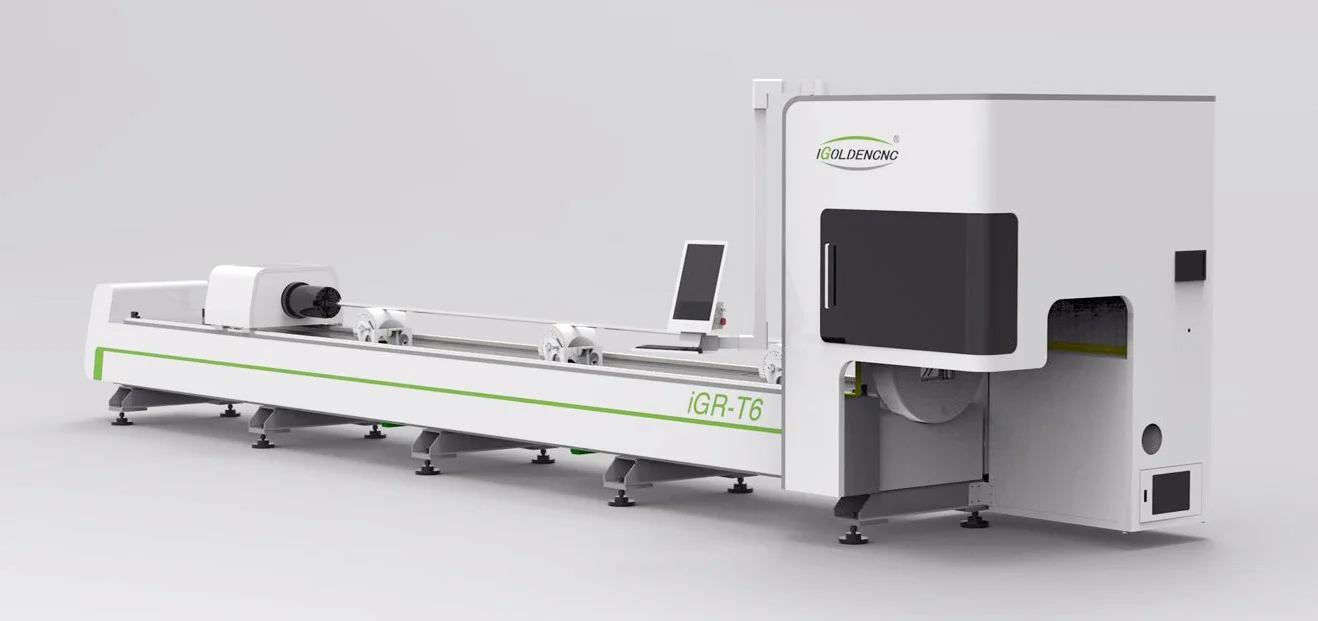

Metal tube laser cutter, specially designed for metal tube/pipe laser cutting. The double chuck structure can cut metal pipes with a diameter between 20-220mm. Equipped with 1000w-6000w fiber laser, the tube length can be 3m, 6m, 9m, 2000w and above power is equipped with an independent cabinet with built-in air-conditioning, and an automatic loading and unloading device can be installed to realize automatic processing.

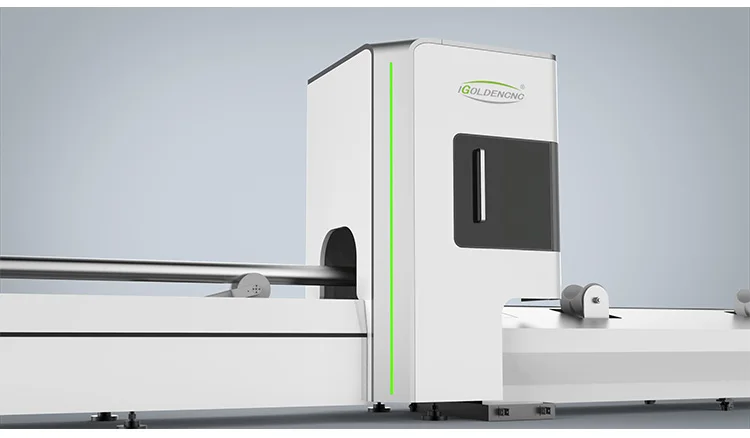

Protective Observation Window

Adopts laser protective glass, you can see all the whole process through the observation window, with safer and eco-environment, which confirm the European CE standard.

Combined with the ergonomics, the height of the metal handle is about from 1.3m to 1.8m, on the right-hand side of the operator.

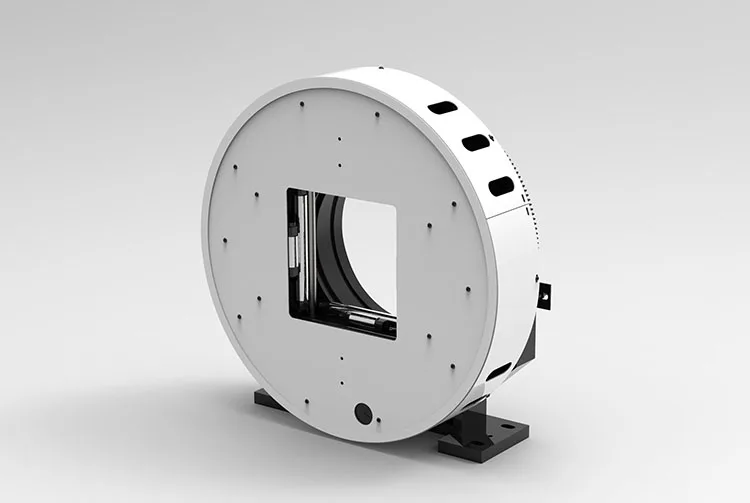

Chuck

Double pneumatic chuck, the diagonal adjustable range is 20-200mm, the servo motor and reducer are driven synchronously, and the smart tube bracket design is adopted, which can solve the deformation problem in the long tube cutting process.

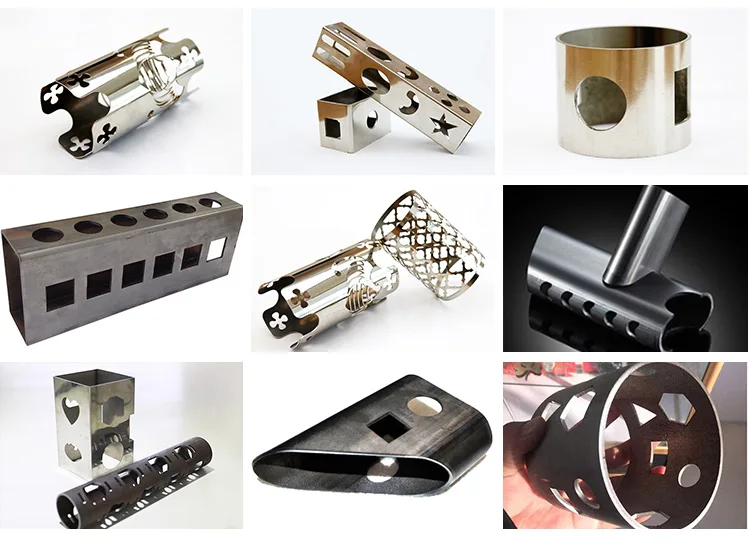

To ensure the machining accuracy, precise cutting of round pipes, square pipes, rectangular pipes, angle steels, channel steels, long round pipes and oval pipes can be realized.

1. Flexible and adjustable to improve efficiency.

2. Suitable for cutting tubes of various shapes.

3. Safer, easy to install, save manpower, consume less and cost less.

4. The minimum tail length is 20mm, which truly realizes zero tail cutting, reduces the cost of raw materials, and brings huge production benefits.

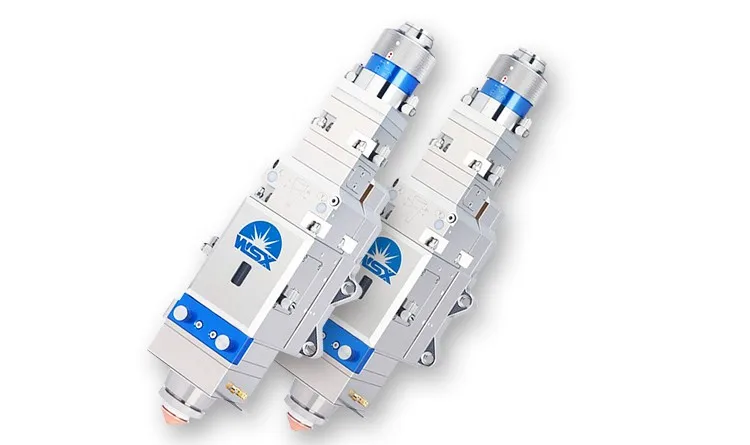

Auto -Focus Laser Cutting Head

The laser head has a built-in motor drive unit, and the focusing lens is driven by a linear mechanism to automatically change the position within 20mm. The user can set continuous focus through the program to complete the rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The compound lens group equipped with D28 integrates the light beam and optimizes the optical and water-cooled design so that the laser head can work stably for a long time.

• Optimized optical configuration and smooth and efficient airflow design to improve the cutting effect;

• Auto focus range +10~-10mm, adjustment accuracy 0.01mm, adjustment speed 100mmms;

• Collimation protection lens dust protection design, effectively protect the internal optical components;

• Extend the distance between the protection lens and the nozzle to increase the life of the lens;

• Drawer-type lens holder is adopted to make the protection lens replacement fast and simple;

• QBH connector is not limited, it can be equipped with various lasers with QBH connector.

Autofocus saves focusing time and improves work efficiency by 10 times.
Extend service life, by optimizing the structural design of the cutting head, extend its service life.

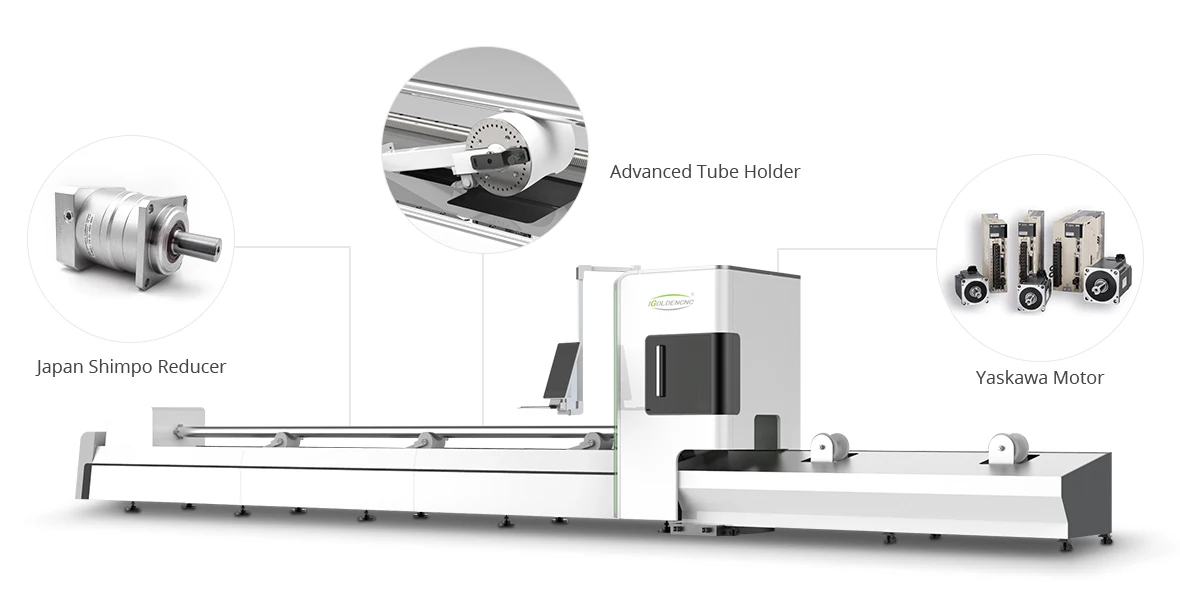

High-Precision Transmission System

Taiwan HIWIN rail racks, Japan Panasonic drive motor, Japan Shimpo reducer, Advanced tube holder.
The positioning accuracy of the machine tool is 0.03mm, and the repeated positioning accuracy is 0.02mm.

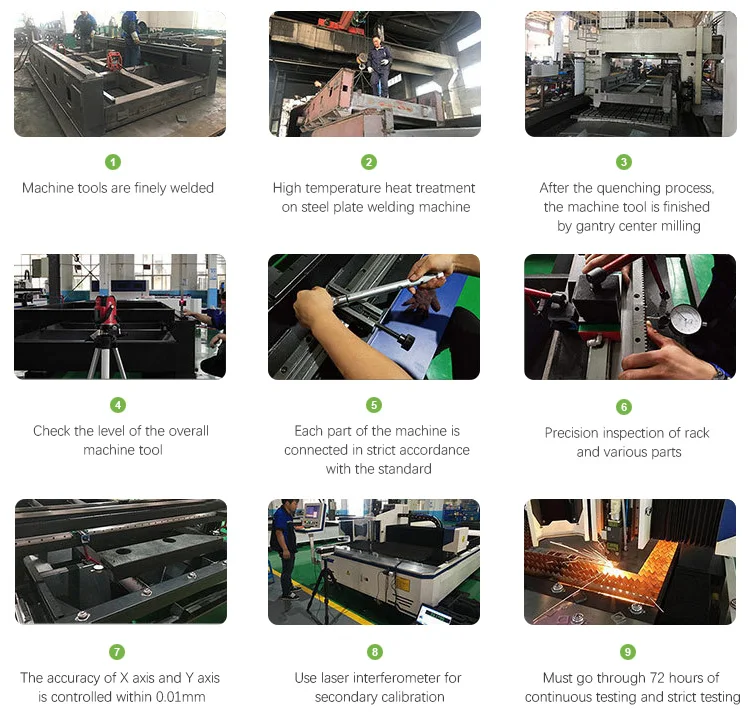

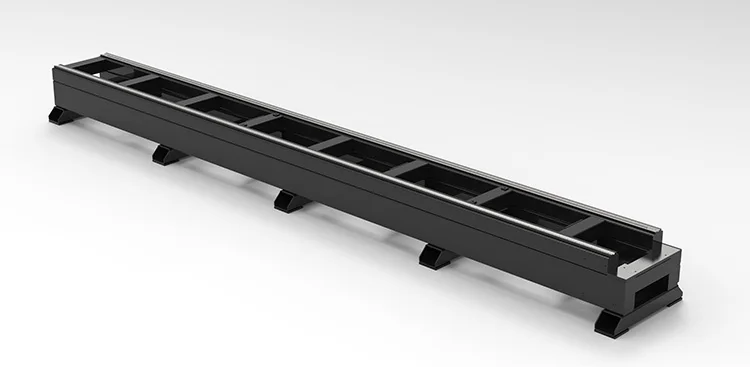

Heavy-duty Welding Bed

The heavy-duty welding bed is welded with a thick rectangular tube with a diameter of 200*200mm. The bed weight can reach 1000kg. The bed body is annealed and milled by a large gantry to accurately drill all installation basic holes at once.
Higher tensile strength and dimensional stability. Effectively improve the accuracy of the bed, reduce the processing error of the workpiece. Increase the resistance and stability of the guide rail.
It reduces the loss of the equipment when it is used and keeps the precision of the tube laser cutting machine for a long time and does not deform for 20 years. The equipment has good stability and reduces the processing errors caused by the vibration of the bed.

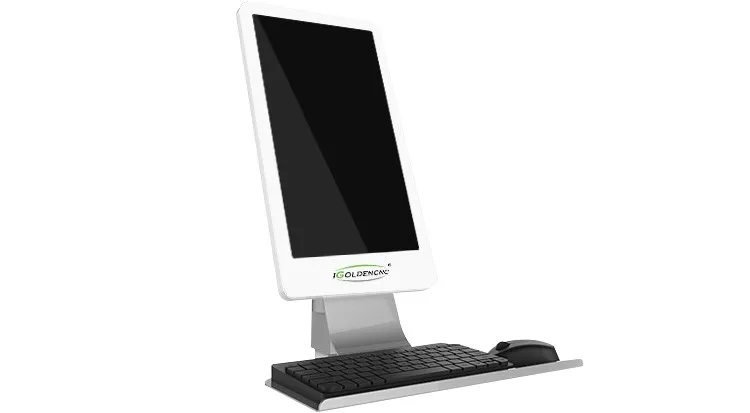

Vertical Lcd Display Screen Design

The 21.5‘ vertical screen display is different from the traditional horizontal screen display. The response speed reaches 8ms, the resolution reaches 1080p, the screen ratio is optimized to 16:9, the power consumption is low, and the control software interface and human browsing habits are better adapted. In addition, it has a high brightness level and low reflectance, and the sturdy glass panel has sturdiness and durability.

CNC laser cutting machine, also called fiber laser cutting machine, fiber laser cutter, laser cutter, metal laser cutter, metal laser cutting machine, designed for high precision metal plate cutting processing
ot applications is cutting for stainless steel, carbon steel, aluminum, copper, galvanized sheet and other metal plate.

All the machine can be customized according to your own requirements. For example the machine is designed with linear or carouse tool changer, the amount of head or spindle can be added, also the rotary device is allowed to be installed on the machine……All in all, all the specification of machine can be customized!!! Now just  click the following machine for more details!
