Our Service Advantages:

1,We'll declare about $98 pic to avoid that you pay too much taxes except Brazil and strict Customs Countries. Please kindly contact us firstly if the customs ask you to provide documents like PI to clear customs.

2,We'd like to change the brake lever into Hydraulic Brake Sensor freely. Please kindly mark while you make order if you need.

3,If you buy this kit and follow our store. we'll send you a pair of connectors (PP30 , Bullet, XT60 ) as gift to you.Please leave a message to tell me which one do you need.

4,In the following countries, your tax will be paied by us if you buy DDP shipping service together with motor kit.

the United Kingdom Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland Romania Russia.

36V 250W Rear Cassette Hub Motor Kit（Waterproof plug）

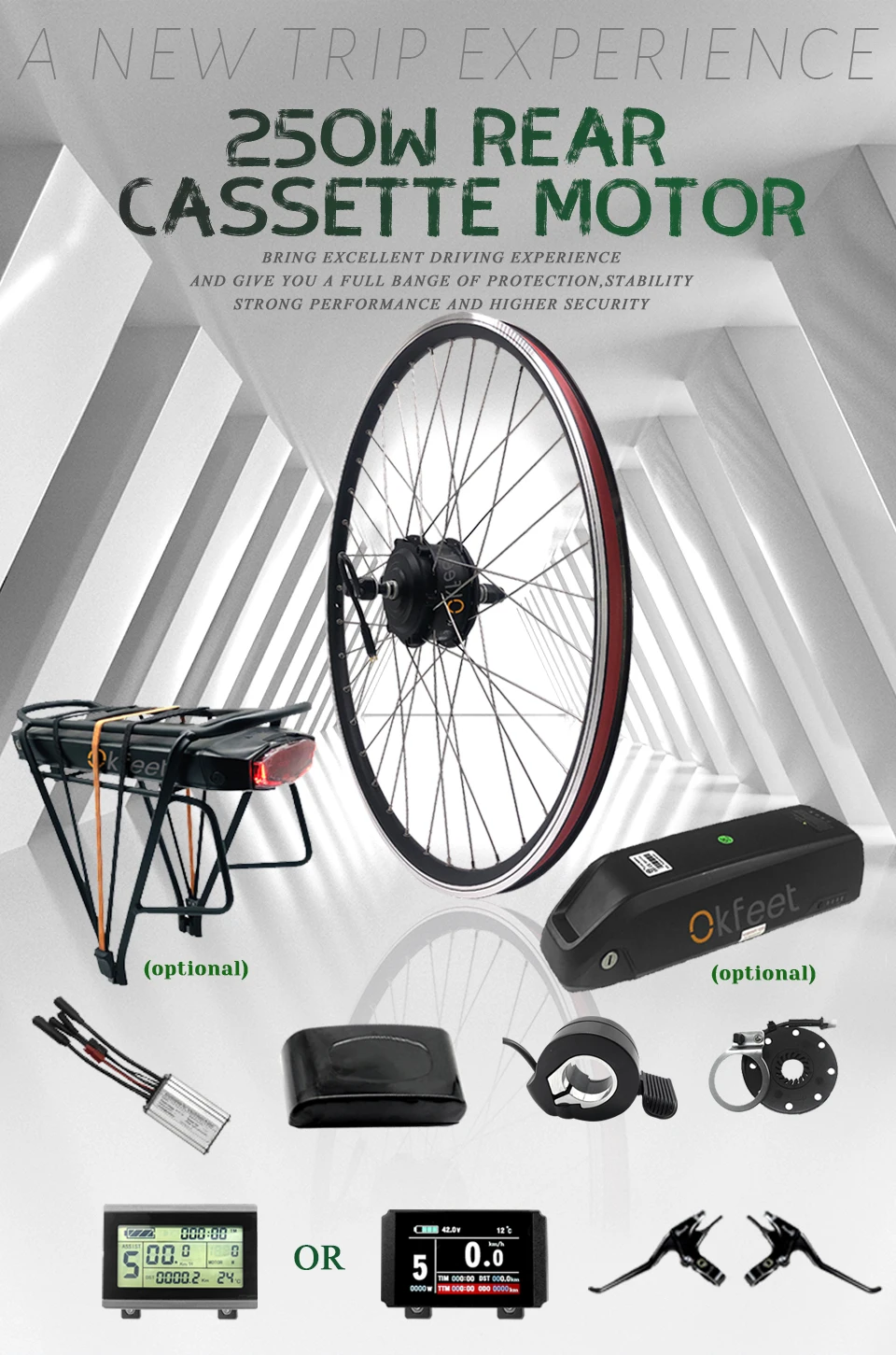

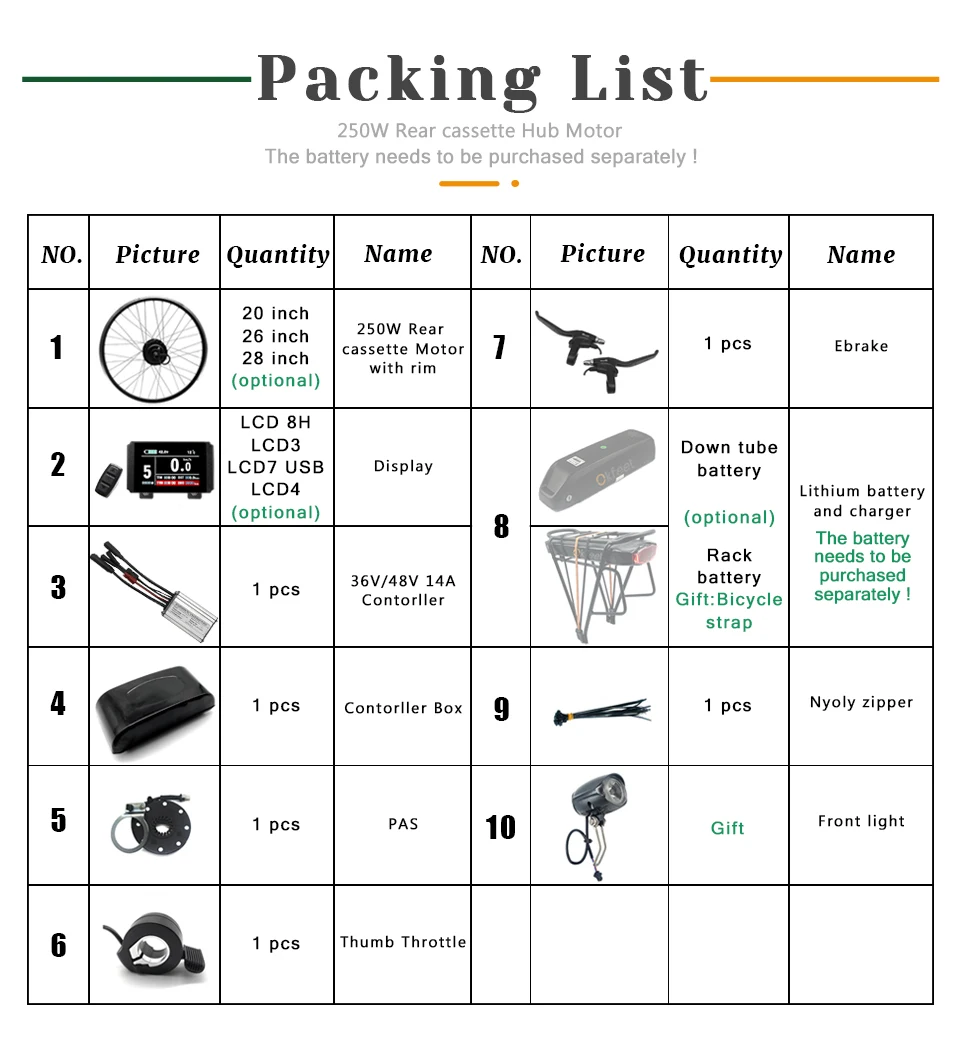

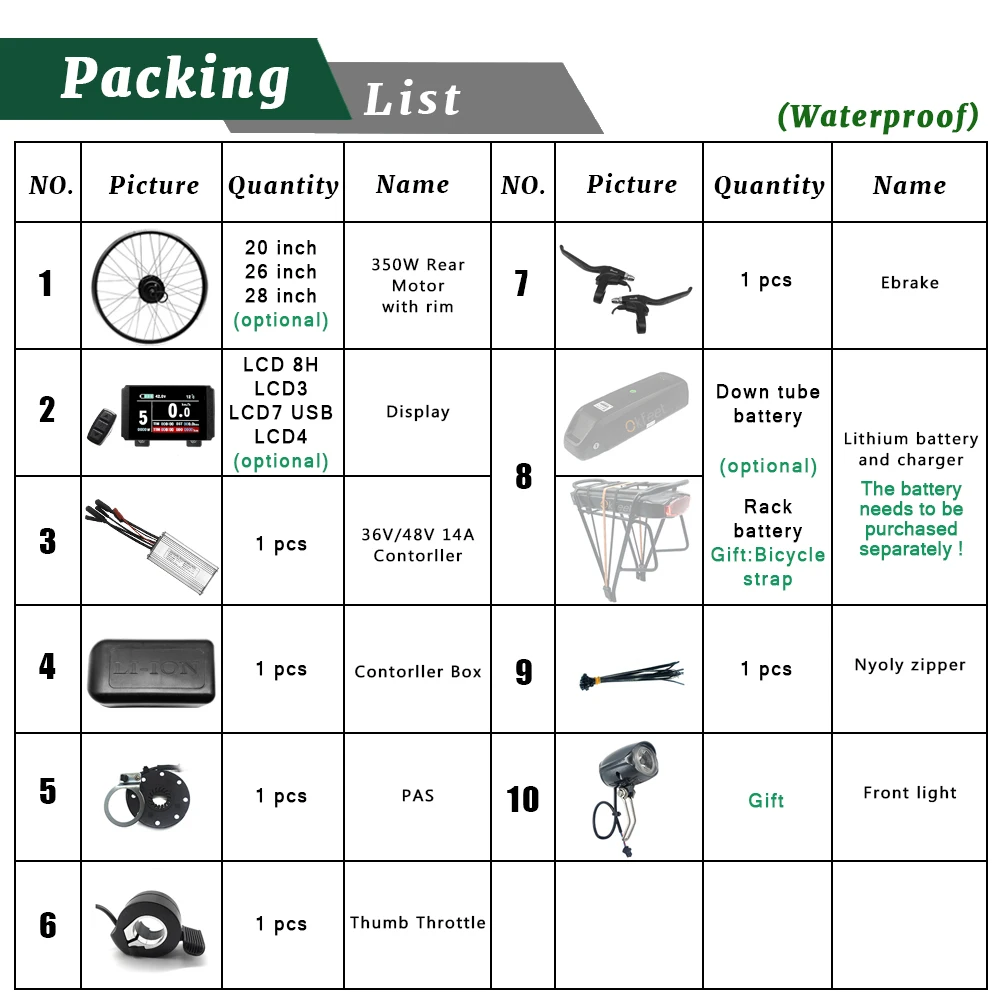

Packing List

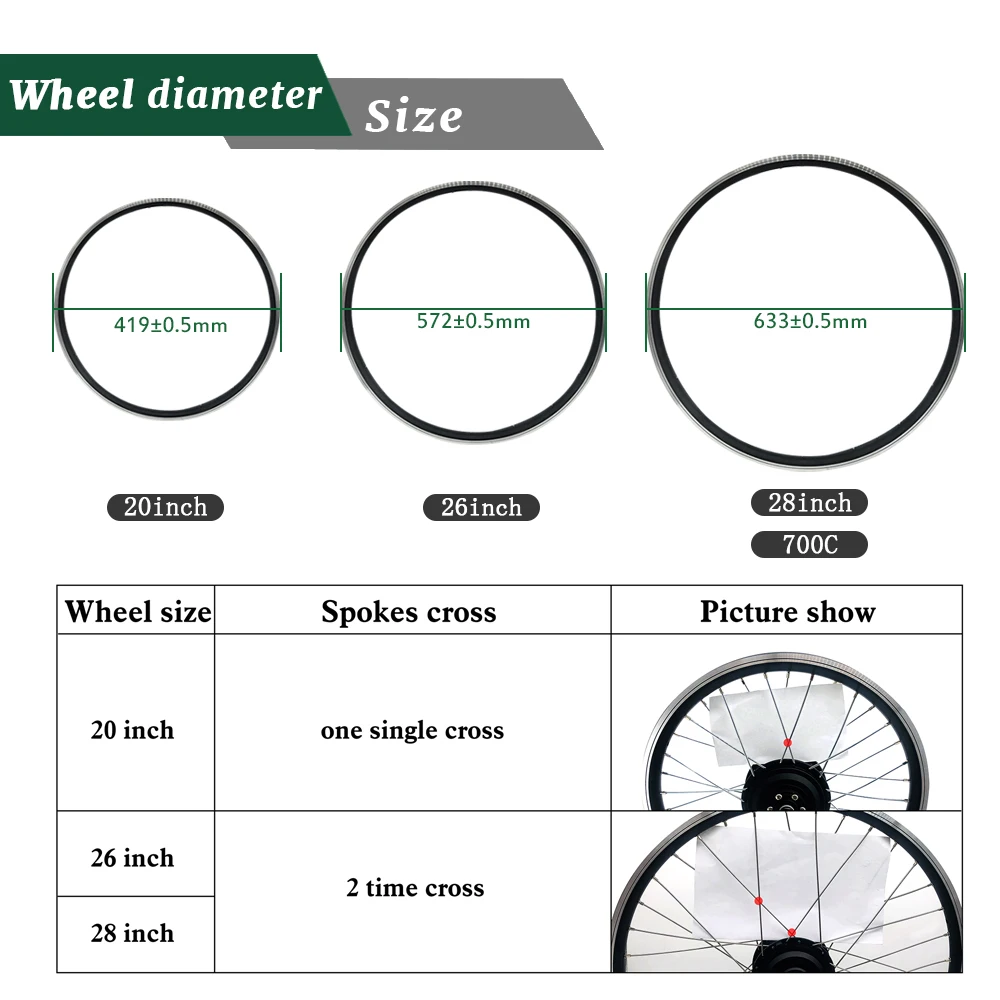

_{1 SET * 36V 250W} rear cassette _{gear hub motor wheel with rim and stainless spoke (20.26.28 inch available)（Motor with Disc brake V brake adaptor)(ATTENTION: 20'' single cross
26'' 28'' 2 time cross.)
1 PCS * high quality red nylon rim tape
1 PCS * KT 36V 14A Controller(waterproof)

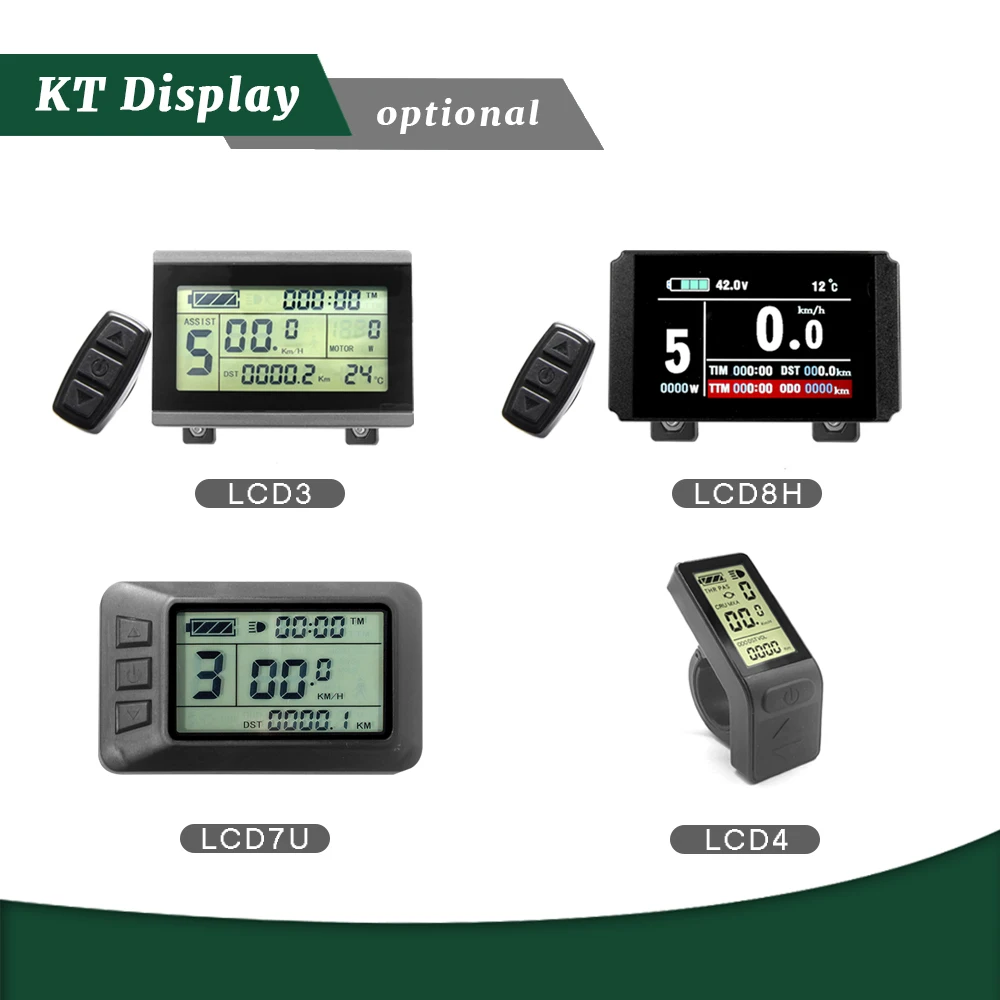

1 PCS *LCD Display( LCD 7 USB . LCD 4. LCD 3. LCD 8H )（optional）
1 PCS *130X Thumb Throttle（Both right and left hands can be used）
1 Pair * Wuxing Ebrake}（If you need to change to Brake Sensor,It's one piece,not one pair.If you need one pair,need extra 5usd）
_{1 PCS * 1:1 PAS, 8 magnet
1 PCS * Controller Box
1 SET * Lithium battery（36V 11AH chinese cell /16Ah LG3200 MH1 cell DP-5C down tube battery RB-1 rack battery）}(The battery is not included in the kit. If you need batteries, please choose the specifications with batteries)
<sub>1 PCS * RB-1 double layer aluminum rack frame ( only provide for RB-1 rack battery)
1 SET * Lithium battery charger (36V2A for 11Ah, and 36V 3A for 16Ah)

10 pcs 20cm nylon zipper
Gift: 1 pcs Front Light</sub>



Attention

<sub>If you choose rack battery:
1.We will send a Bicycle strap（Luggage strap for rack） as a gift
2. Please check the details page for the choice of rear rack fix part. If you do not leave a message about the choice of rear rack fix part, we will send the first choice of rear rack fix part by default.</sub>

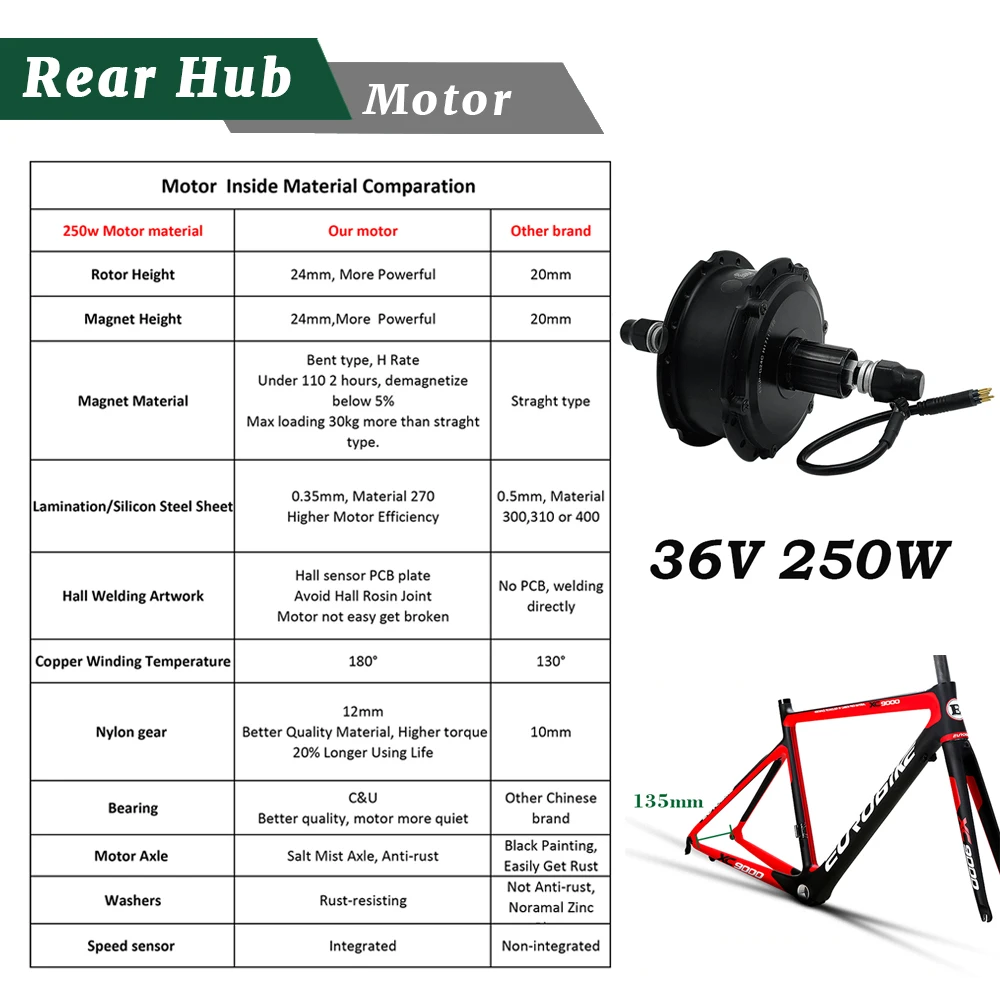

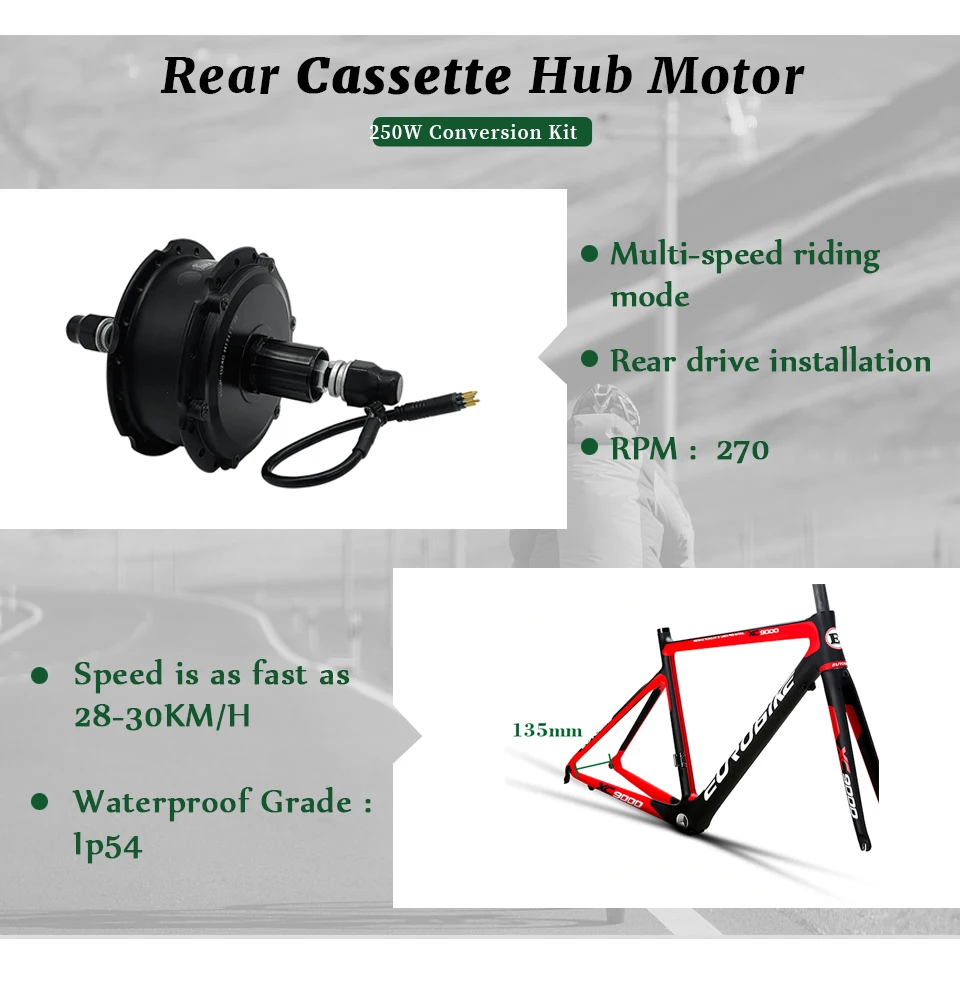

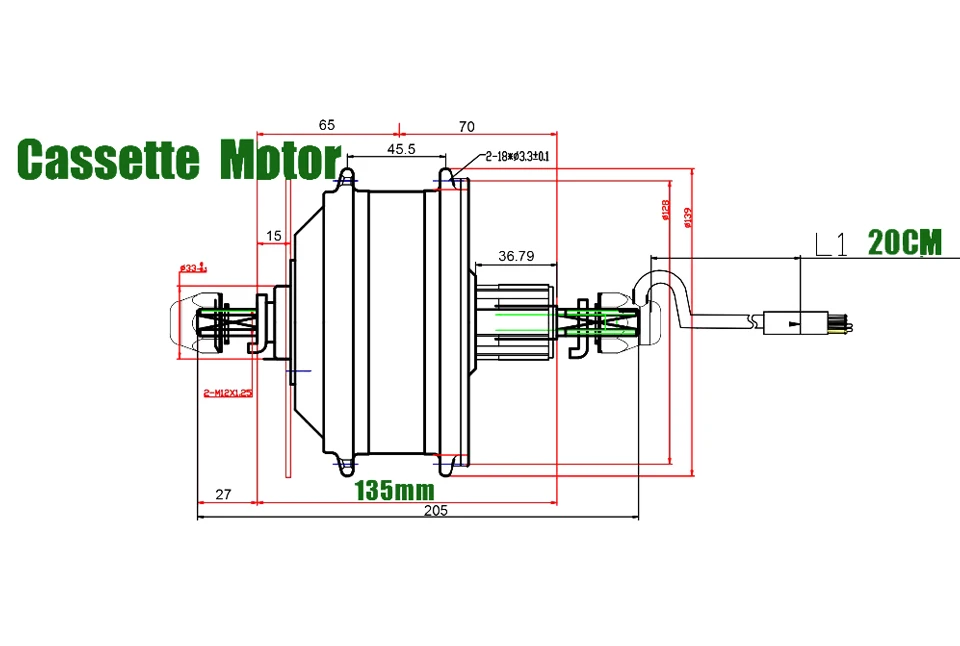

Motor parameter
A Light / Lamp for our KT controller ,it must be about 70 mA ( less than 100 mA )or the controller will be damaged.I suggest you do not use the front and rear lights at the same time.
^{Rated Voltage : 36V
Rated Power : 250W
Wheel Size : 20'' 26'' 28''
RPM : 270
Rated Speed :  20'' (22km/h)/26'' (28km/h)/28'''(30km/h)
Rated Efficiency : ≥ 80%
Reduction Ratio : 1:4.4
Open Size : Rear Wheel 135 mm
Cable Location : Right Shaft Center
Spokes Specification : 12G or 13G
Hall Sensor : Yes
Integrated Speed Sensor : Yes
Color : Black
Brake Type : V brake or Disc brake
Noise : ＜55db
Waterproof Grade : IP54​
​Connector : Julet 1.2 square 9 pin waterproof plug}

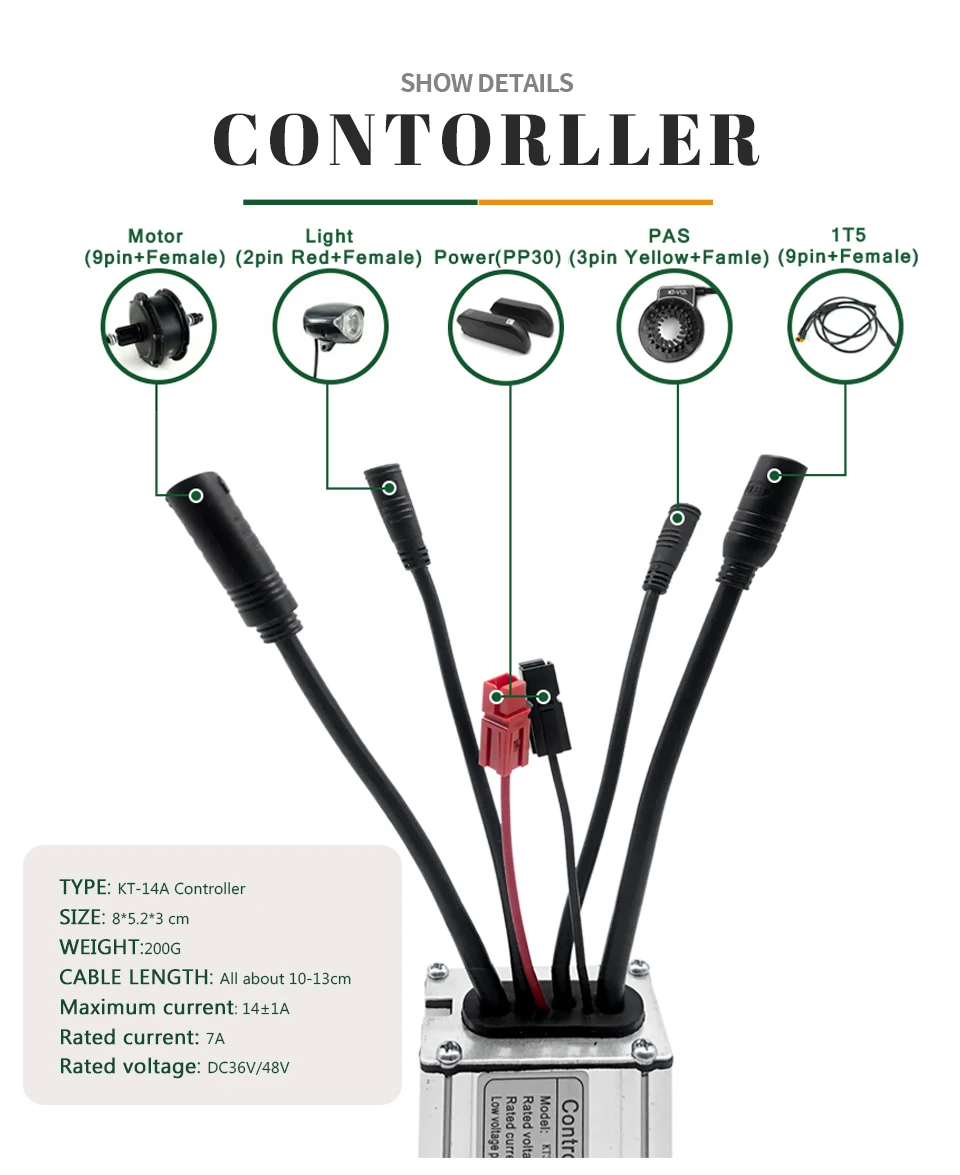

Controller parameter

_{Type : 36/48V 14A controller (waterproof)}

_{Brand : KT}

_{Color : Silver}

_{Dimension : 80.5*52*30.5mm}

_{Mosfet : 6 Mosfets}

_{Maximum current : 14±1A}

_{Rated current : 7A}

_{Rated voltage : DC36V/48V}

_{Speed set : 1-4.2V}

_{Brake input : Low-Level}

_{Low voltage protection : DC30/40±0.5V}

_{Cable length : all about 10-13cm}

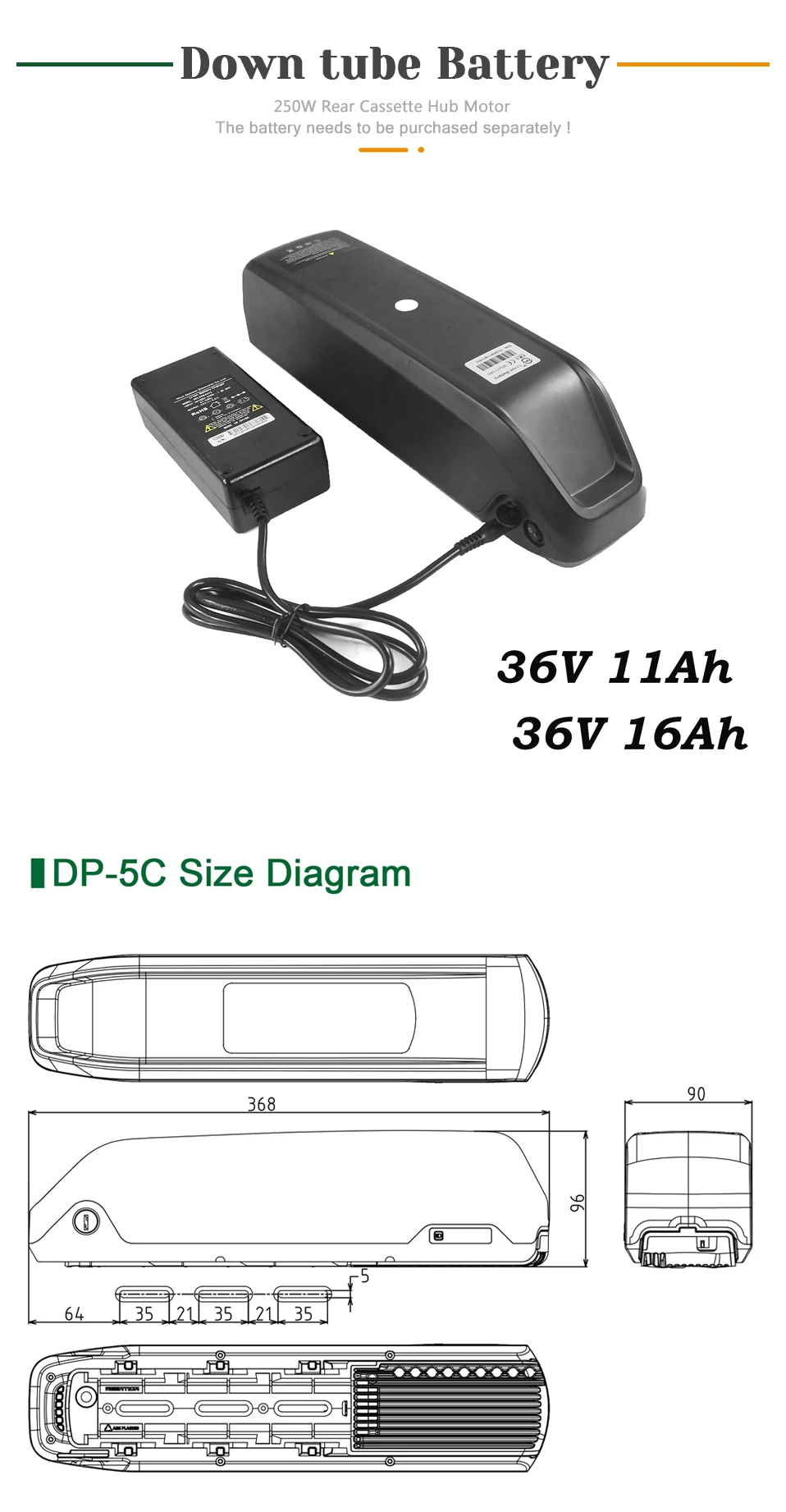

Down tube battery Parameter

Specification : 36V 11Ah/36V16Ah

Nominal Voltage : 36V

Nominal Capacity : 11Ah/16Ah

Cell Type : 52 LGM26 Cells

Cell Model : 18650 Cells

Operating Charge Temperature : 0～45℃

Operating Discharge Temperature : -20～60℃

StorageTemperature : -20～60℃

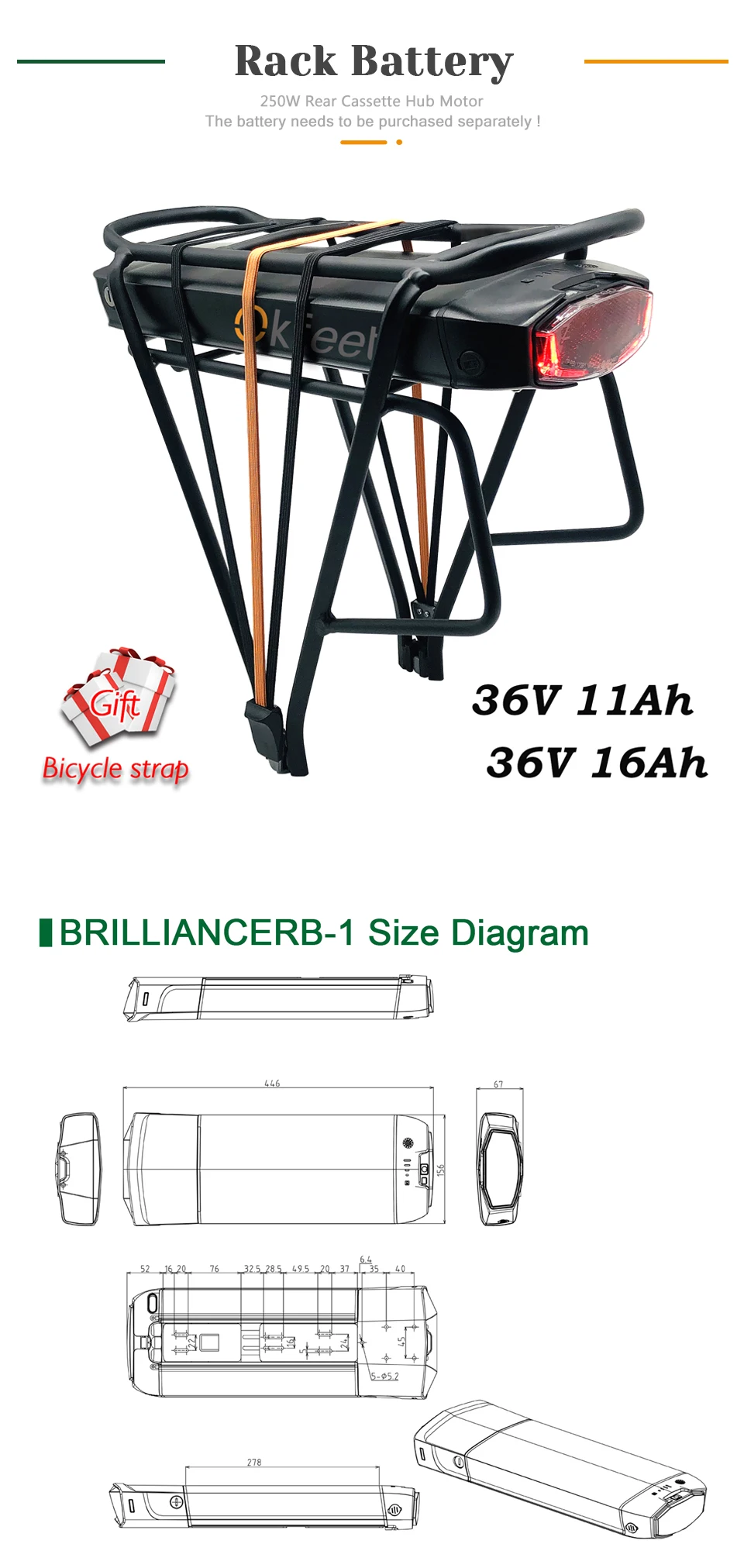

Rack Battery Parameter

Nominal capacity : 11Ah/16AH
Composed type : 5P10S
Cells :Brand 18650 cells
Fit motor power : 200W 250W 300W 350W 500W
Charge current : 2A/3A
Charge cut-off voltage : 42V/54.6V
Discharge cut-off voltage : 30V/40V
Discharge temperature : -20°C-65°C
Charge temperature : 0-45°C
Cycle life : ≥80% capacity after 800 cycles
