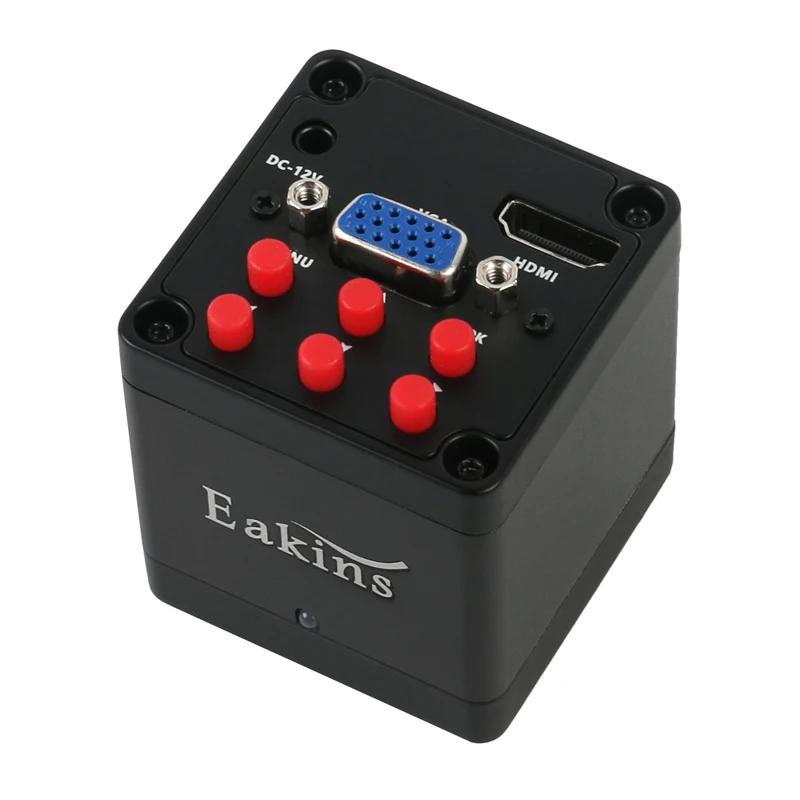

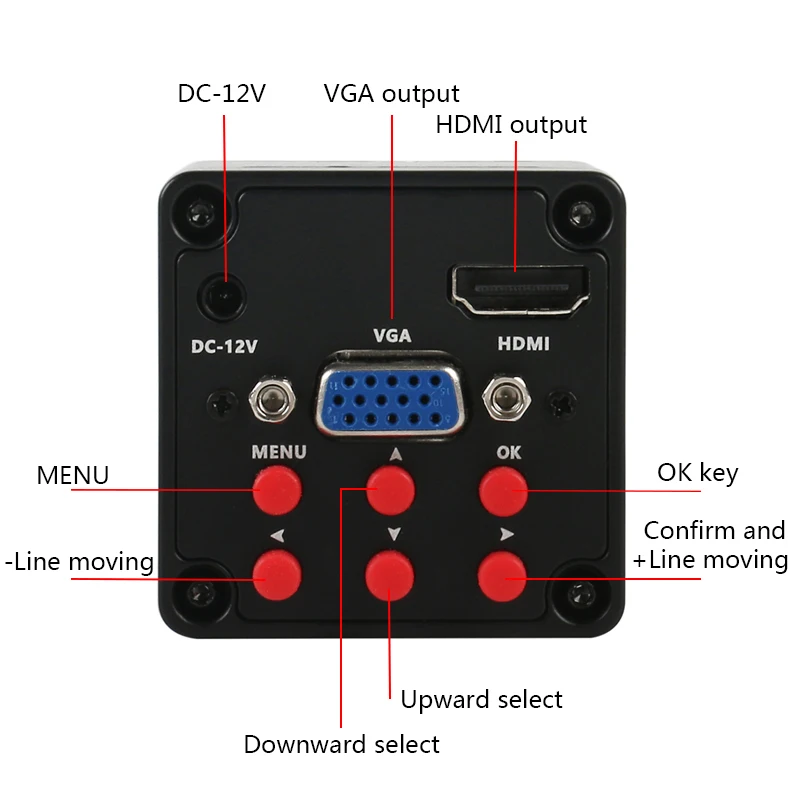

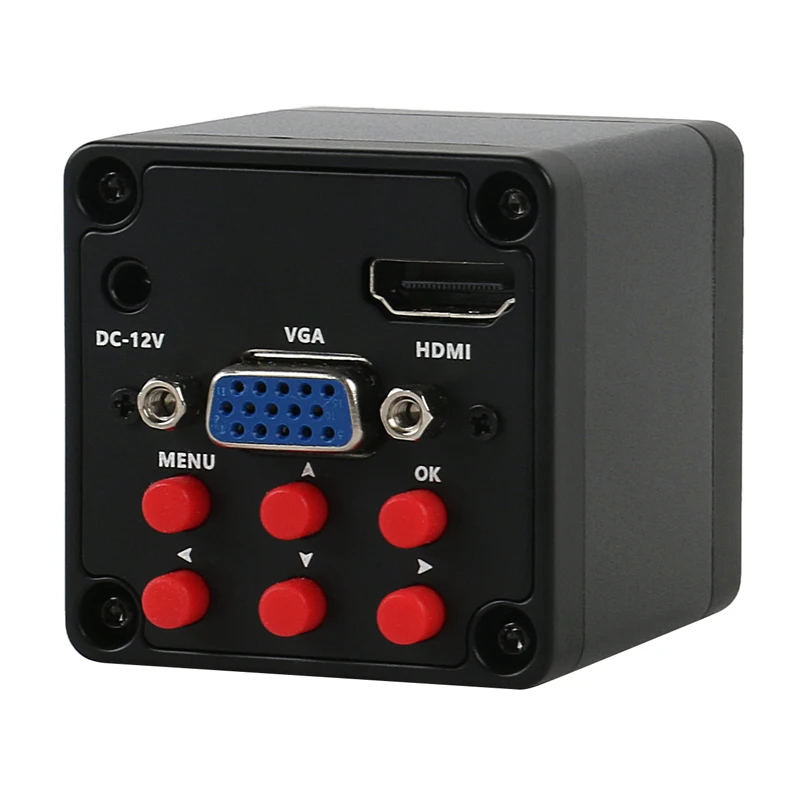

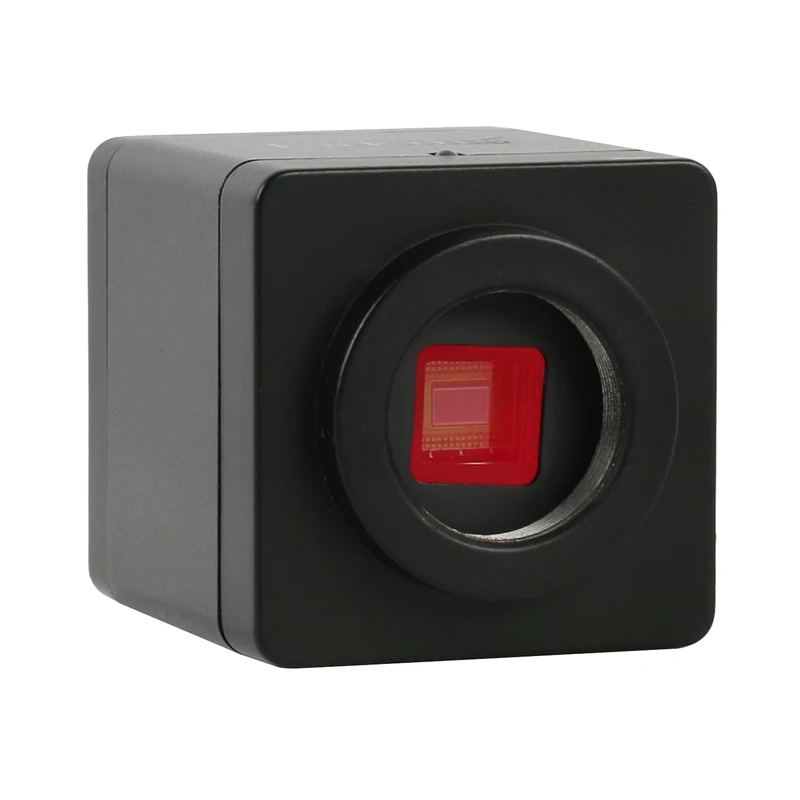

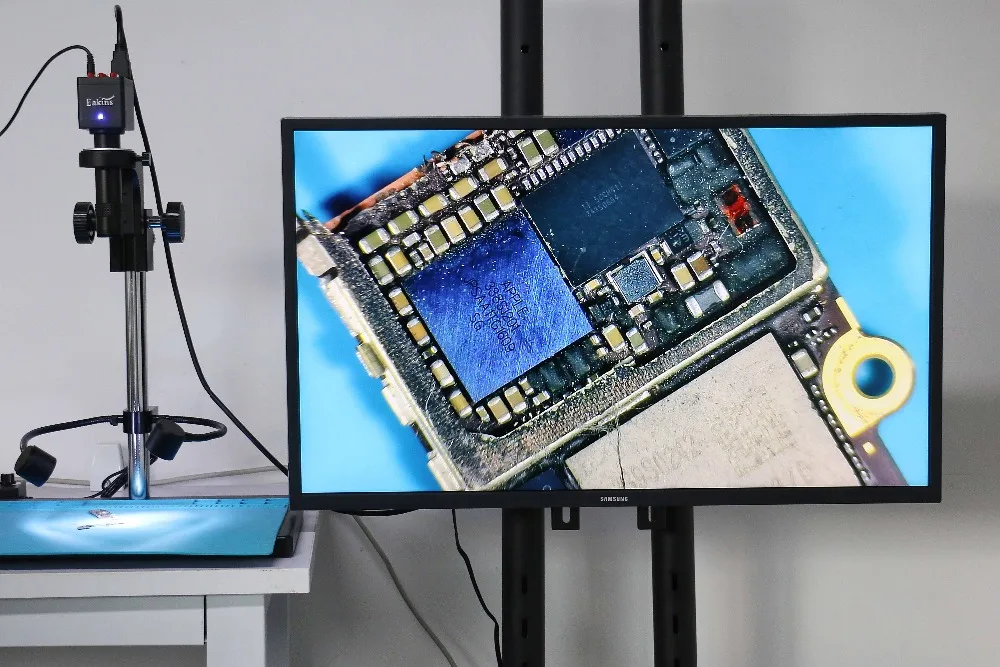

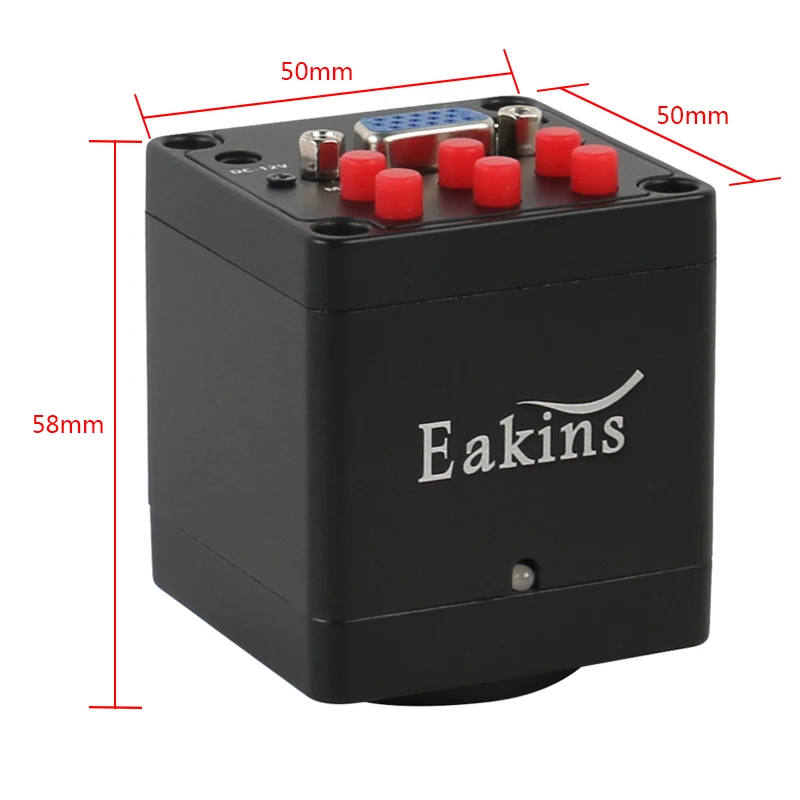

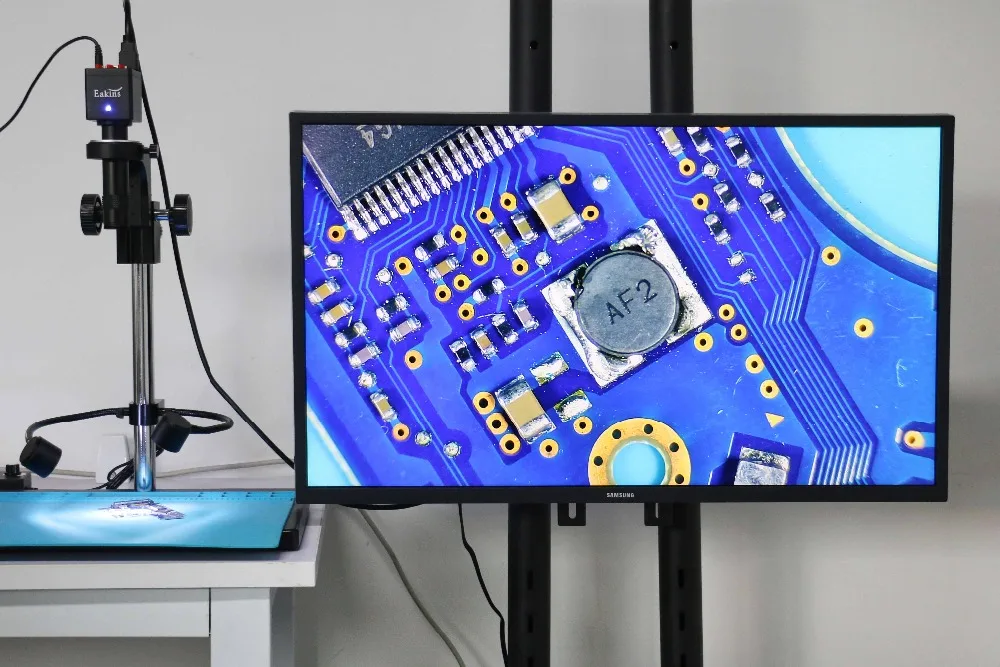

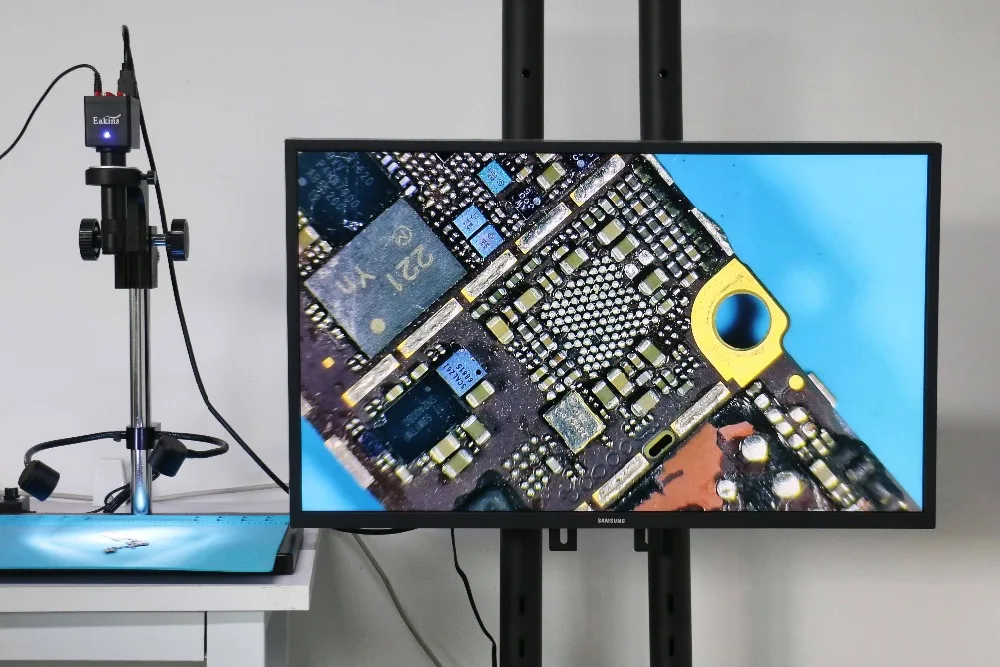

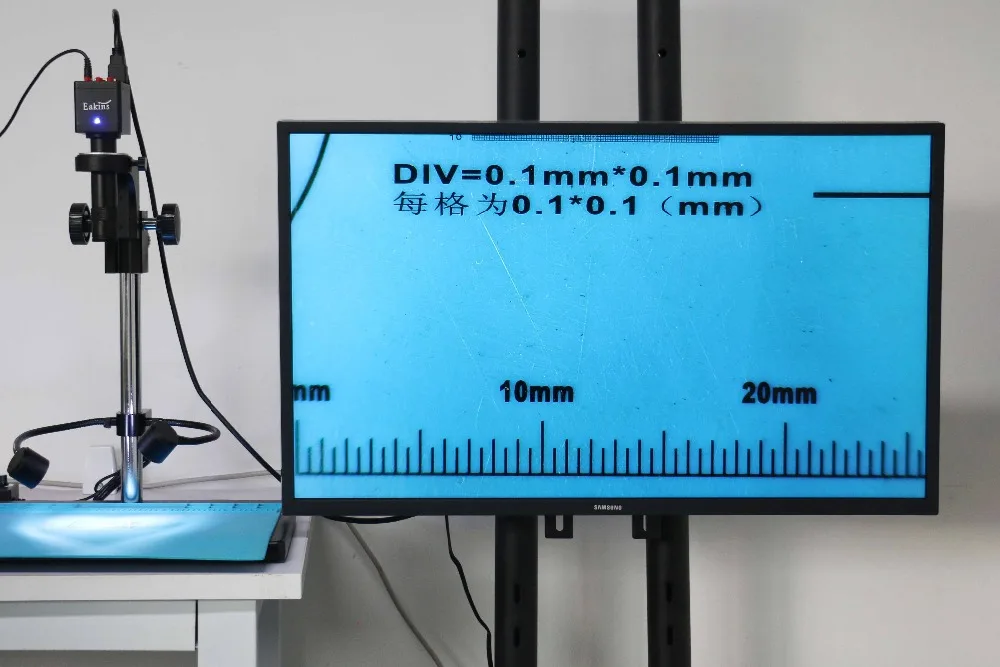

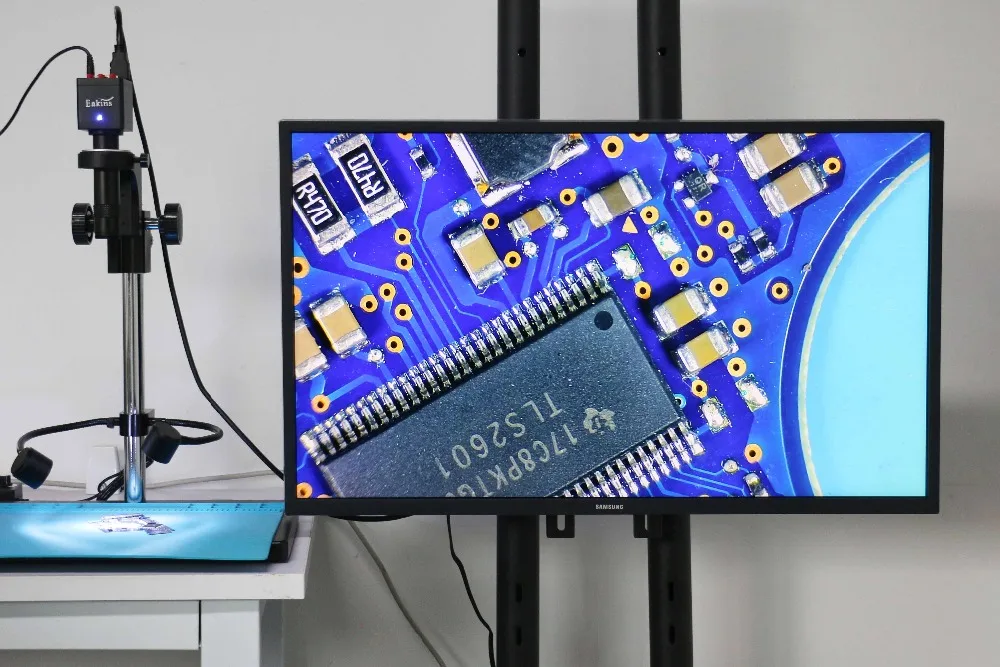

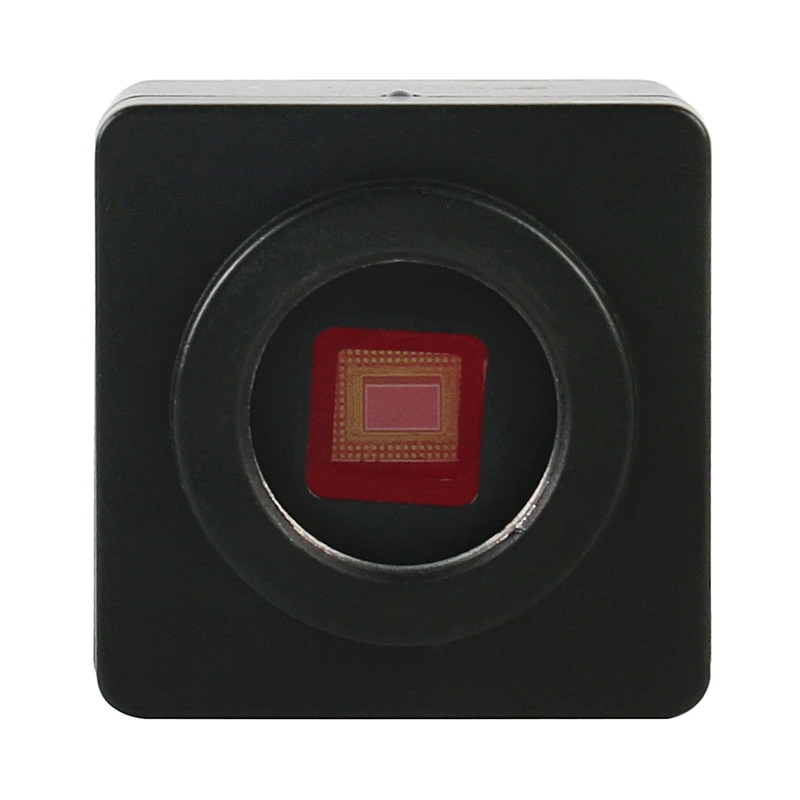

New upgrade to HDMI VGA video microscope camera The color of the camera is black The product uses the SONY IMX307 CMOS sensor, which solves the problem of the dim display of the old camera due to insufficient light. Improve image quality and digital noise reduction, increase color reproduction and 1080P output, support more languages, English, Chinese, Japanese, Spain, Russian, very suitable for phone PCB SMD soldering. 1080P  Feature: High Quality, High Resolution, Clear Images 1/2.8" SONY IMX307 CMOS 1080P 1920*1080   1024*768 @60F/S Video Camera HDMI VGA Video Model Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV. Specification: Model: Camera with HDMI VGA two output Color: Black Sensor: 1/2.8 inch SONY IMX307 Image Resolution: 1920*1080 1024*768 (for HDMI), 1920*1080 1024*768 (for VGA) Video Resolution: 1920*1080 1024*768 @ 60F/S Basic Function:Brightness(0-100%,Adjustable), Contrast(0-100%,Adjustable), Saturation(0-100%,Adjustable), White balance(One key white balance,Manual balance) Image quality adjustment:Exposure(Automatic Exposure, Manual Exposure), Color temperature(Red, Blue, Green, Adjustable) Freeze: Support Mirroring: Support Language: English/Chinese/Japanese/Spain/Russian Power supply:12V 1A Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size Appearance size:50*50*58mm Working distance: 100mm -170mm,90mm -110mm Widely used: machine vision, microelectronics, SMT and other large area Widely used: machine vision, microelectronics, SMT and other large area observation

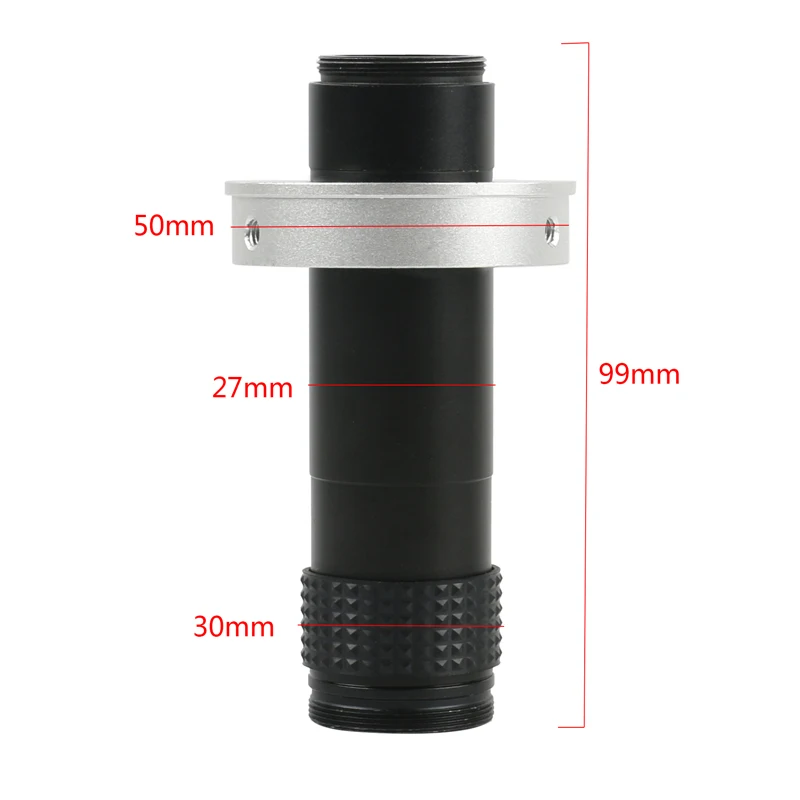

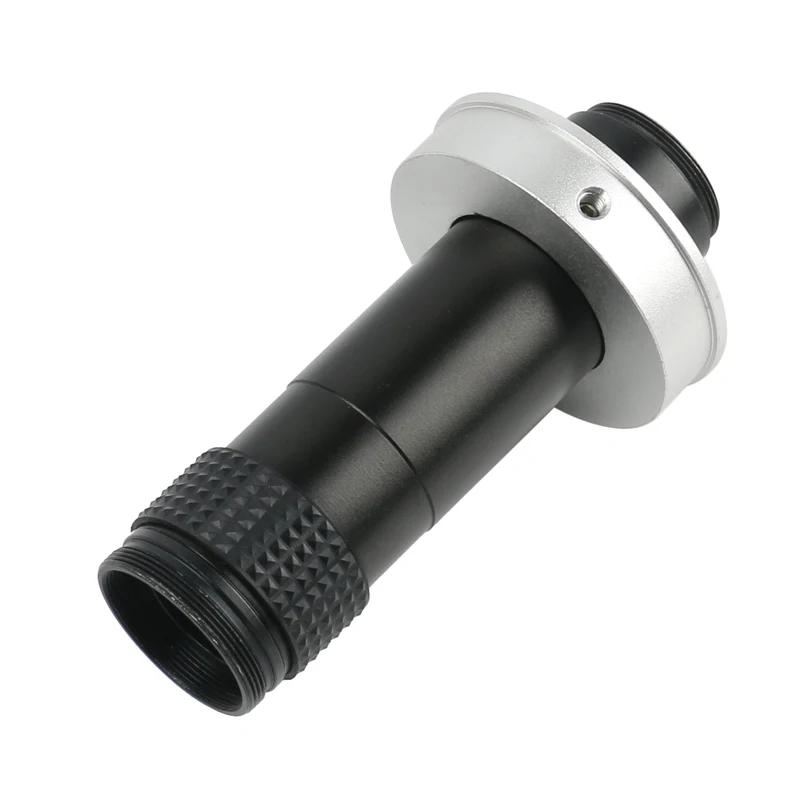

Zoom ratio: 15: 1
Magnification Power by :1X~130X
Material vision: 2.4mm-36mm
Working distance: 55mm-570mm
Lens length: 110mm Product parameter

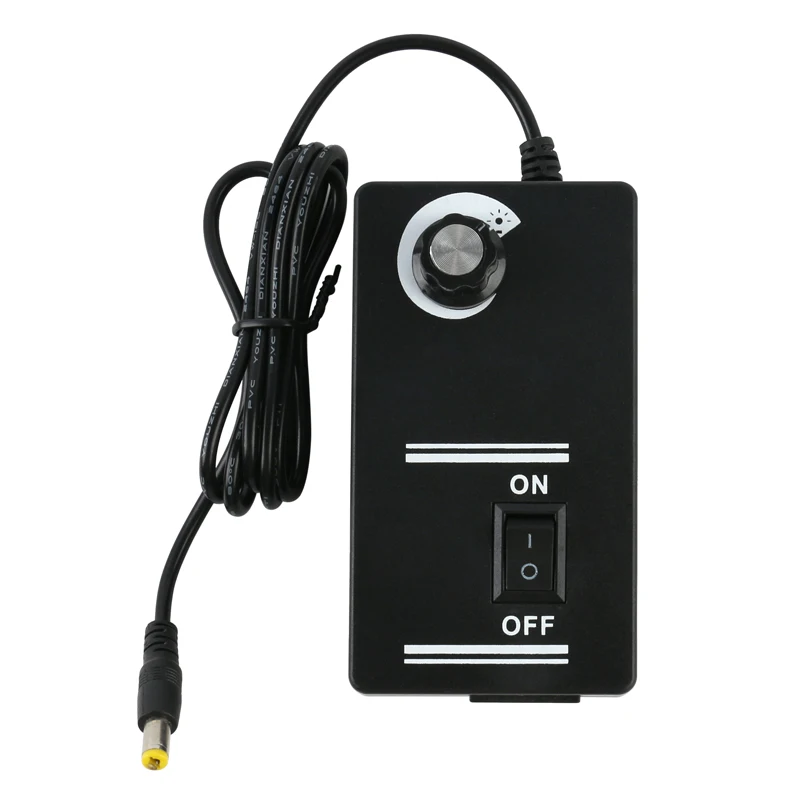

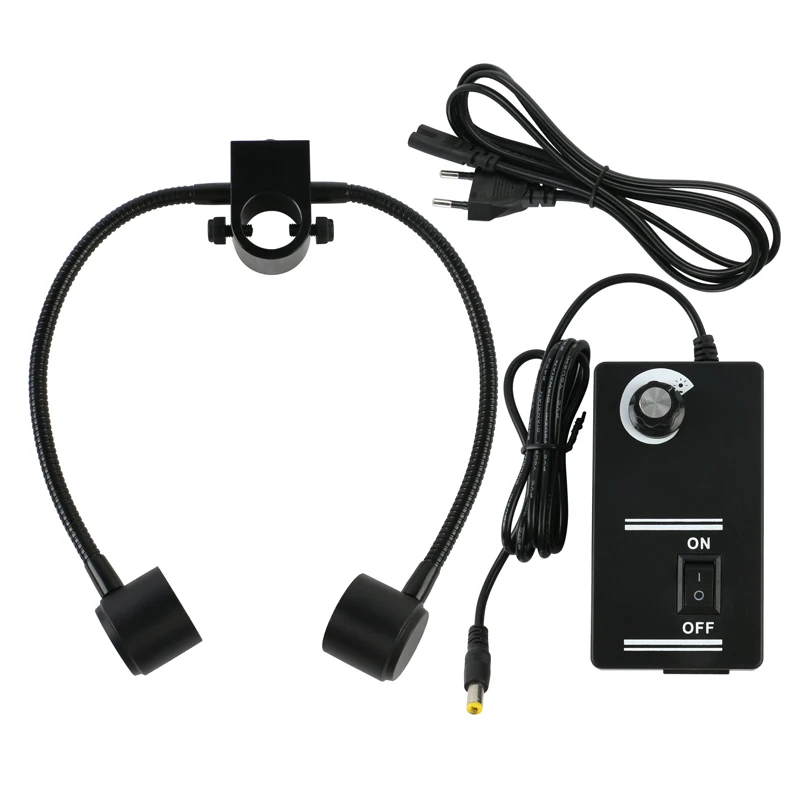

1. power input voltage: AC, 100-265V, 50/60Hz
2. output voltage and power: DC12V 3W
3.LED life: >100000 hours
4. color: according to the needs of users, the conventional white 6500K, this product is used for high-end industrial vision lamp beads, the image effect is more clear. (other colors need to be customized)
5. brightness adjustment: 0~100% linear dimming
6.LED number of luminous tubes: 24

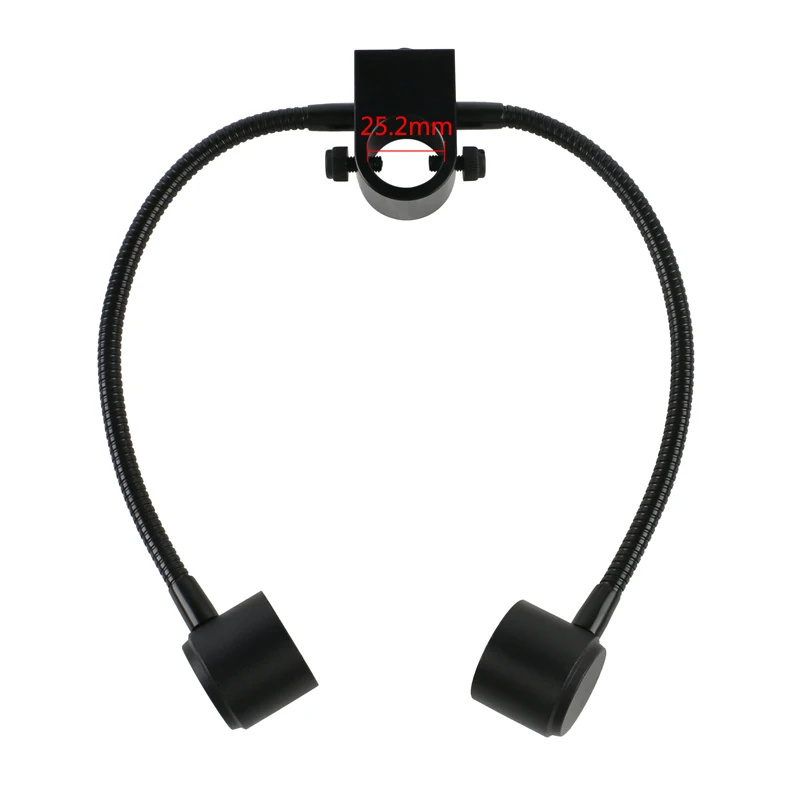

7. inner diameter of ring lamp mounting dimension: 25.5mm

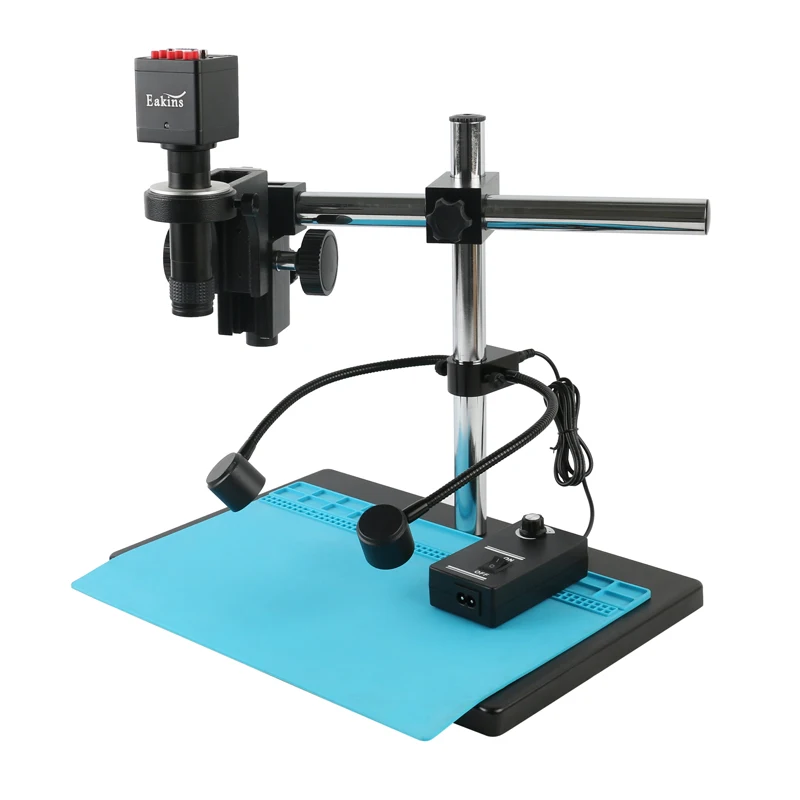

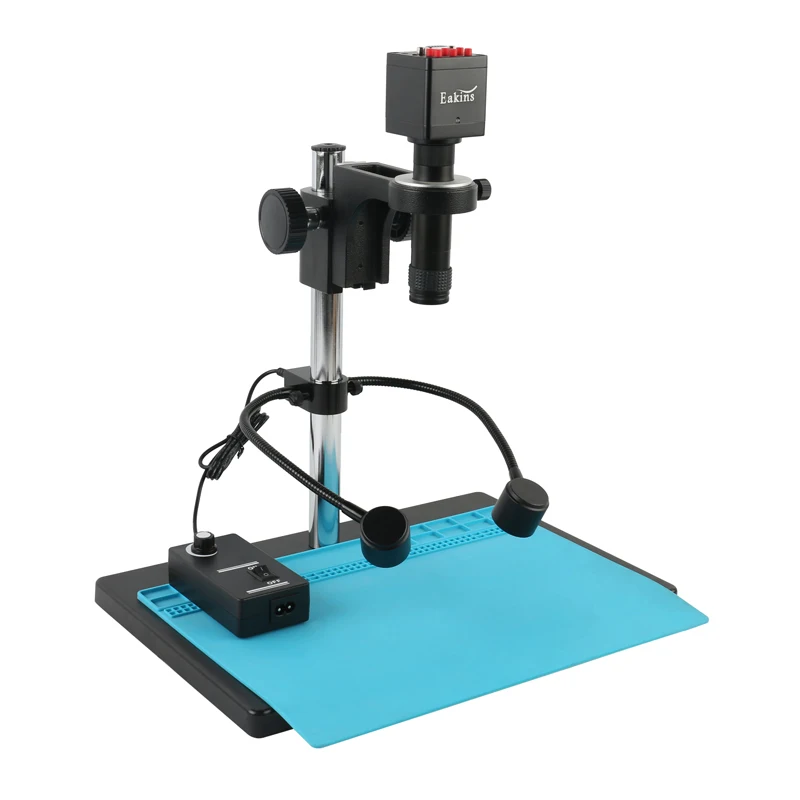

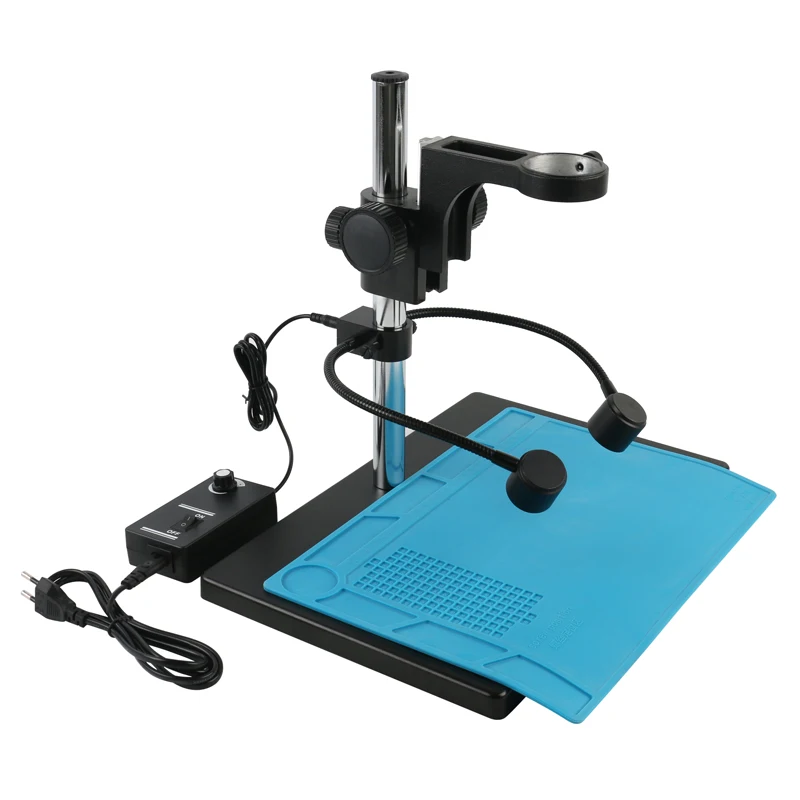

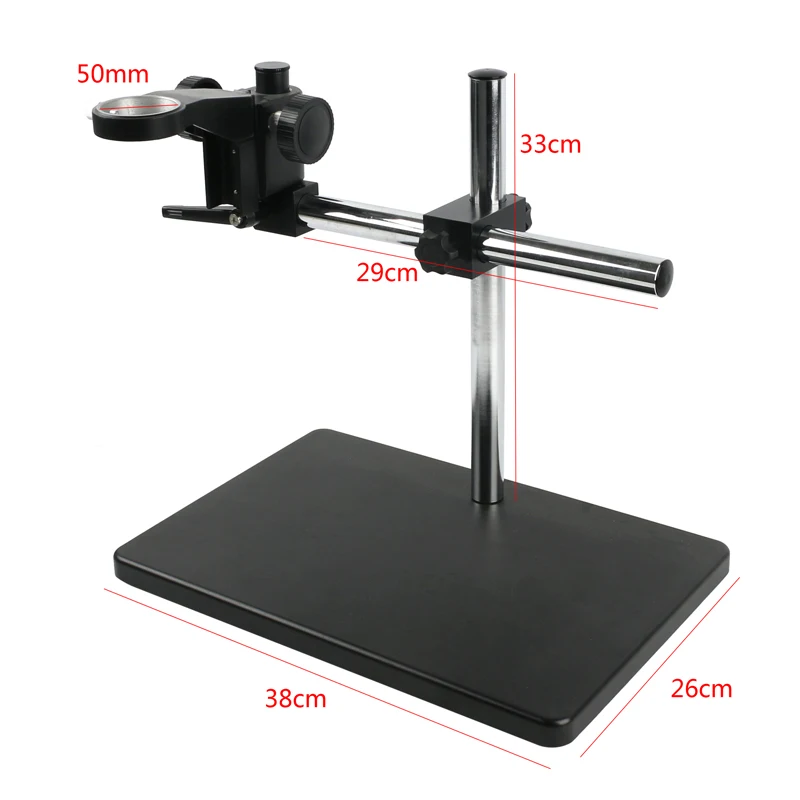

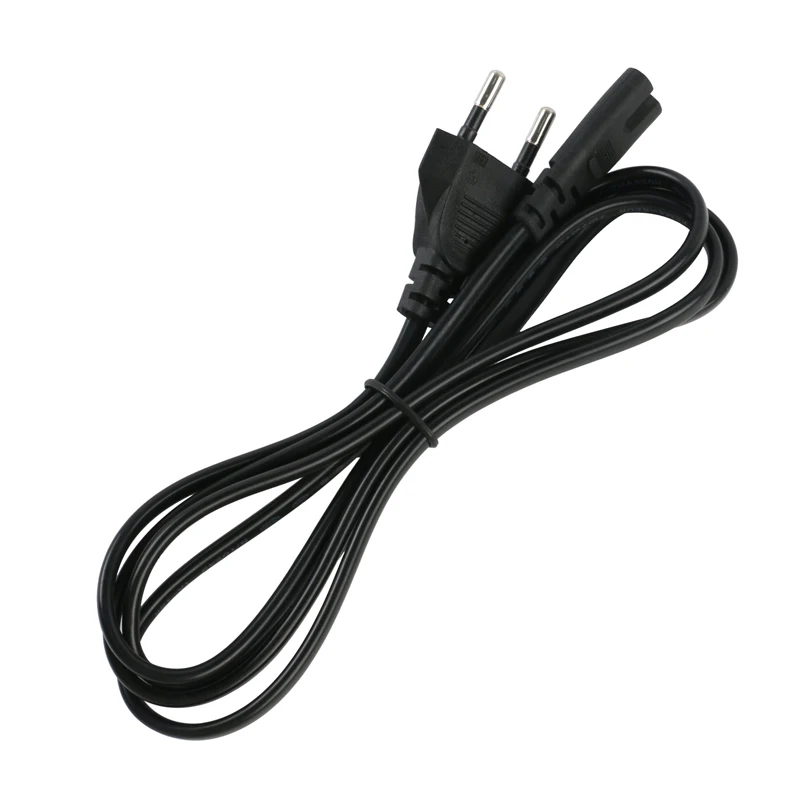

144 LED internal diameter, 60MM microscope light source, stereo electron microscope, adjustable annular light source Package incluede: 1 x Camera 1 x Table Stand 1 x 130X C-MOUNT Lens 1 x  Light 1 x 100V-240V power supply (EU/US) 1 x Work mat Optional accessories 1 x Boom Stand
