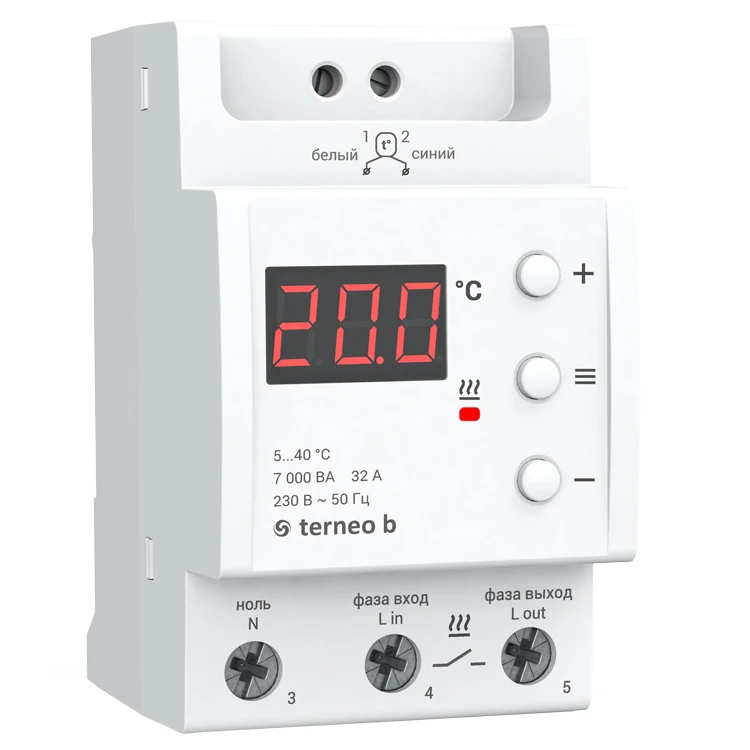

Terneo B thermoregulator-for large capacities

The terneo B thermoregulator is designed to work with "warm floor" systems based on an electric heating cable. A feature of this model is the ability to use it with high rated power systems (up to 6000 VA). The thermoregulator allows you to maintain the set temperature from 5 to 40 ° C. Temperature data comes from a sensor placed in the floor.

Easy Control

To configure the desired parameters, three buttons are enough. The digital screen displays the current temperature, and also simplifies navigation in the thermoregulator menu.

Easy connection and installation

The package includes all necessary equipment: thermoregulator and temperature sensor with 4 m length connecting wire. Installation is carried out in the shield on the din-rail with a width of 35mm.

Safety First
The thermoregulator is resistant to voltage changes. It is protected from overheating: if the temperature inside the case reaches 80 ° C, the device will turn off. On the screen 1 p/s will be displayed "OHT". To resume operation, the temperature shall be reduced to 60 °c. If the protection works more than 5 times: the thermoregulator will shut down until the temperature drops 60 ° C and one of the buttons is pressed. The case of the device is made of non-flammable polycarbonate.

Universal thermostat

You can apply terneo B thermoregulator with heating cables of most manufacturers represented in the market. The device is also compatible with digital (D18) temperature sensors.

Technical specifications terneo B

Applications: for floor heating, for floor heating
Control type: Digital
Mounting method: DIN rail
Maximum Current, a: 32
Minimum temperature, °c: + 5
Maximum temperature, °c: + 40
Maximum load capacity: 7000 VA
Power supply voltage: 230 V ± 10%
Weight in full set: 0,285 ± 10%

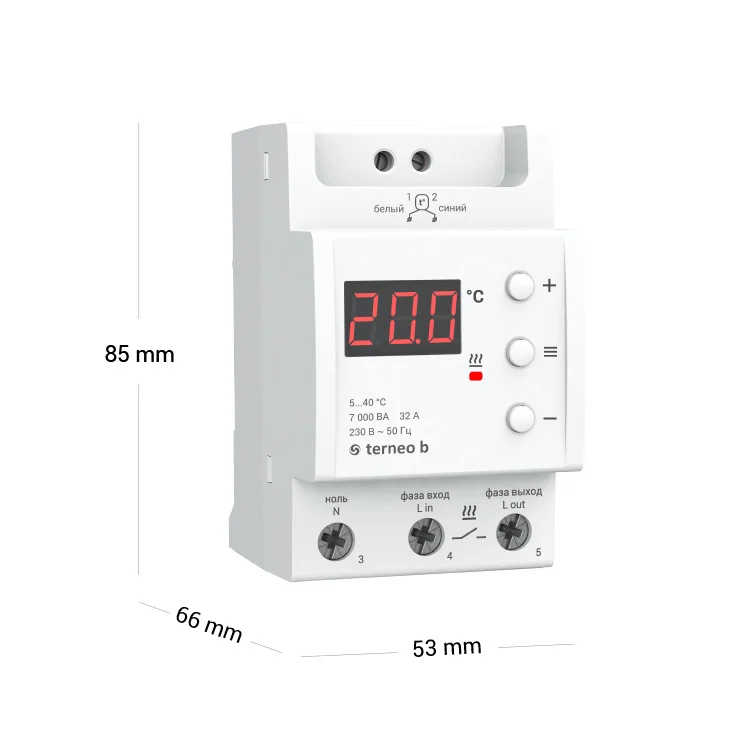

Overall Dimensions (W x H x d):53x85x70mm
Temperature Sensor: NTC thermoresistor 10 Kohm at 25 ° C (R10)
Sensor connecting wire length: 4 m
Quantity коммутаций under load, not less than 50 000 cycles
Number of switching without load, at least: 1 000 000 cycles
Temperature hysteresis: 1 ° C
Measured temperature range:-30...+ 90 ° C
Protection by gost 14254:IP20
Package Contents: thermoregulator, temperature sensor with connecting wire, warranty certificate, warranty card, instruction, Data Sheet, packaging box
