Энергетический модуль сбора энергии термоэлектрической генерации Низковольтный повышающий микроэнергетический BQ25504 включен.

Энергетический модуль сбора энергии термоэлектрической генерации Низковольтный повышающий микроэнергетический BQ25504 включен.

Brand NameNoneOriginMainland ChinaSensitivity.Resolution.Measuring Range.Linear.Hysteresis.Repeatability.Sensor TypePhotoelectricMeasurement unitpiece/piecesEach pack13 934,69 ₽-21%3 934,69 ₽-21%3 108,77 ₽3 108,77 ₽Add to CartBuy now3 108,77 ₽loader

Description

This module can collect and manage microwatt (µW) to milliwatt (mW) power generated from various DC sources such as photovoltaic (solar) generators or thermoelectric generators. It can efficiently obtain energy from low-voltage output harvesters such as thermoelectric generators (TEG) or one or two solar panels. The boost converter can be started with a VIN as low as 330mV, and after startup, it can continue to harvest energy with a VIN as low as 80mV.

Features:

The module can collect tiny energy and store it in an external lithium battery or super capacitor. When the battery is charged to a predetermined voltage, the module will output a signal to start the external load, and the external system will start to work. When the energy input of the module is greater than the output of the module, the battery will continue to charge; if the energy input of the module is less than the output of the module (load energy consumption), the battery will supply power to the load. This module has overcharge and overdischarge protection functions for lithium batteries. The module itself has self-protection functions when overcurrent, overvoltage, and overheating.

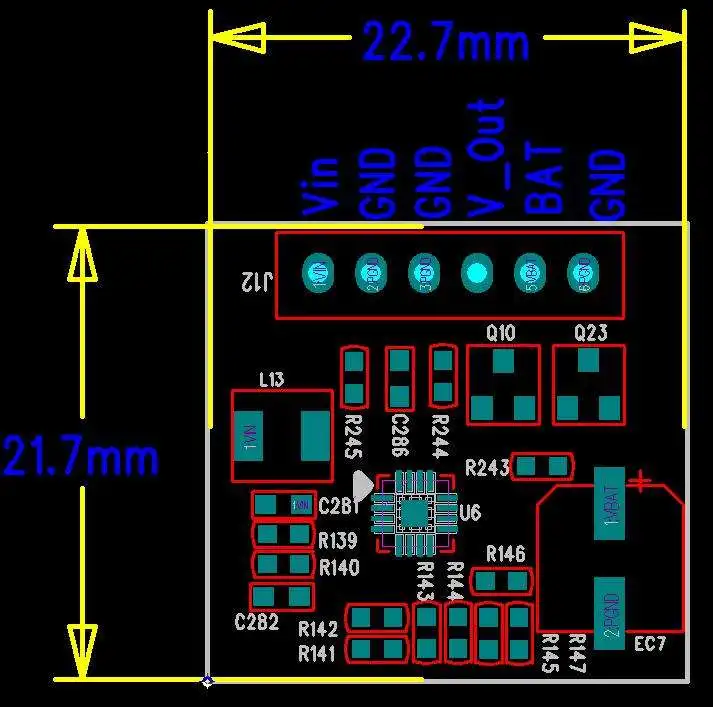

Size: 22mm*23mm

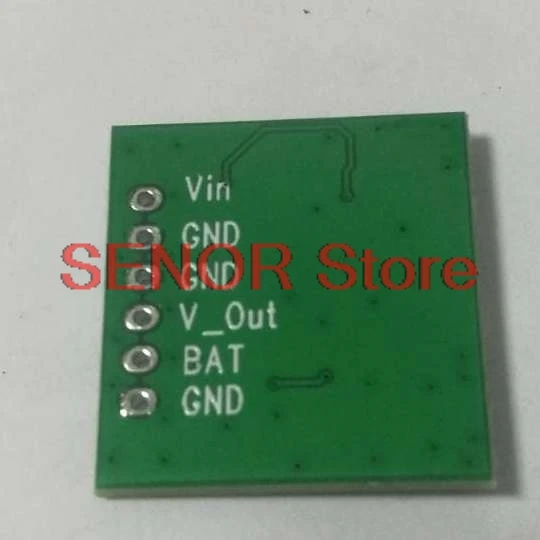

Interface definition

1. Vin: Module power input pin. It can be connected to the positive input of the thermoelectric power generation sheet, the positive input of the solar power generation panel and other power supplies.

Operating voltage range: 0.08V-3.0V, cold start voltage 0.33V. The module withstand voltage range is 0-5.5V.

2. GND: module ground, connected to the negative input of the power supply

3. GND: module ground, module negative output

4. V_out: Module positive output, the output voltage is 2.75V-4.2V. When the voltage at BAT+ is over 4V, V_out starts to output, and the output voltage is equal to BAT+. When the BAT voltage drops below 2.75V, the output is turned off.

5. BAT+: external lithium battery (single cell) or super capacitor positive interface. The module will charge and discharge the external lithium battery through this pin. Output voltage 0-4.2V

6. GND: module ground, external lithium battery (single cell) or super capacitor negative port.

Operating temperature range: -40℃--125℃

Main control chip characteristics:

1. Ultra-low power consumption and high efficiency DC-DC boost converter/charger

Continuous energy harvesting from low-voltage input power: VIN ≥80mV (typical value)

Ultra-low quiescent current: IQ <330nA (typical value)

Cold start voltage: VIN ≥ 330mV (typical value)

2. Programmable dynamic maximum power point tracking (MPPT)

Integrated dynamic maximum power point tracking function, which can realize energy collection of various energy sources

The input voltage adjustment function can prevent damage to the input source.

3. Energy storage

Energy can be stored in rechargeable lithium ion batteries, thin film batteries, super capacitors or traditional capacitors

4. Battery charging and protection

User-programmable undervoltage and overvoltage levels

On-chip temperature sensor with programmable thermal shutdown

5. Battery status output

Battery normal output pin

Programmable threshold and hysteresis

Equipped with battery voltage monitoring function, there is a Power good pin that can be used to set the system startup voltage.

Can be used to enable or disable system load

Scope of application

• Energy harvesting

• solar power charger

• Thermoelectric generator (TEG) energy harvesting

• Wireless Sensor Network (WSN)

• Industrial monitoring

• Environmental monitoring

• Bridge and structural health monitoring (SHM)

• Intelligent building control

• Portable and wearable health devices

• Entertainment system remote control

This module can collect and manage microwatt (µW) to milliwatt (mW) power generated from various DC sources such as photovoltaic (solar) generators or thermoelectric generators. It can efficiently obtain energy from low-voltage output harvesters such as thermoelectric generators (TEG) or one or two solar panels. The boost converter can be started with a VIN as low as 330mV, and after startup, it can continue to harvest energy with a VIN as low as 80mV.

Main control chip characteristics:

1. Ultra-low power consumption and high efficiency DC-DC boost converter/charger

Continuous energy harvesting from low-voltage input power: VIN ≥80mV (typical value)

Ultra-low quiescent current: IQ <330nA (typical value)

Cold start voltage: VIN ≥ 330mV (typical value)

2. Programmable dynamic maximum power point tracking (MPPT)

Integrated dynamic maximum power point tracking function, which can realize energy collection from various energy sources

The input voltage adjustment function can prevent damage to the input source.

3. Energy storage

Energy can be stored in rechargeable lithium-ion batteries, thin film batteries, super capacitors or traditional capacitors

4. Battery charging and protection

User-programmable undervoltage and overvoltage levels

On-chip temperature sensor with programmable thermal shutdown

5. Battery status output

Battery normal output pin

Programmable threshold and hysteresis

Equipped with battery voltage monitoring function, there is a Power good pin that can be used to set the system startup voltage.

Can be used to enable or disable system load

Scope of application

• Energy harvesting

• solar power charger

• Thermoelectric generator (TEG) energy harvesting

• Wireless Sensor Network (WSN)

• Industrial monitoring

• Environmental monitoring

• Bridge and structural health monitoring (SHM)

• Intelligent building control

• Portable and wearable health devices

• Entertainment system remote control
