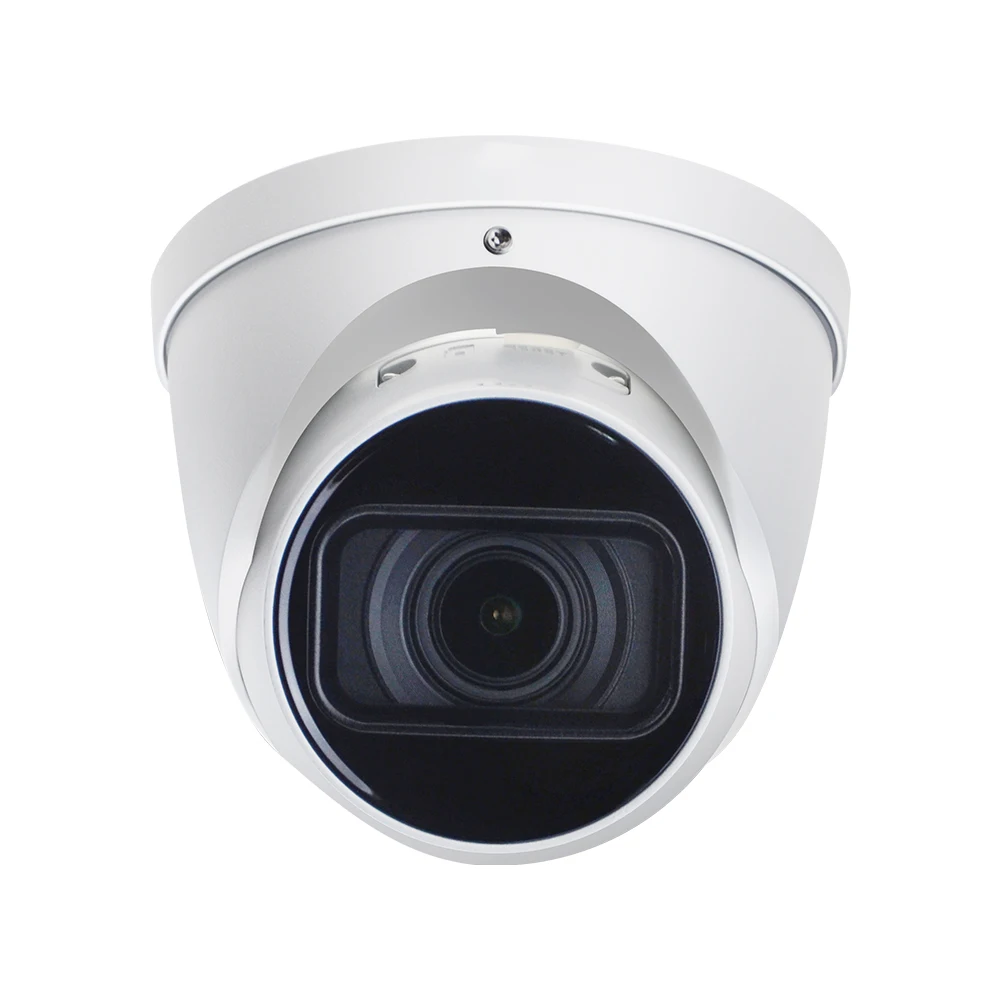

Оригинальная мини-револьверная IP-камера DH фотокамера 4 МП приложение APP умная

Model

IPC-HDW1431T-ZS-S4

Camera

Image Sensor

1/3 ”4Megapixel progressive CMOS

Effective Pixels

2688 (H) ×1520 (V)

ROM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.03 Lux @ F1.7

50 m (164.0 ft)

Auto/Manual

IR LEDs Number

2

Pan/Tilt/Rotation Range

Horizontal: 0°–355°
Vertical: 0°–75°
Rotation: 0°–360°

IR LEDs

12

Lens

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.8 mm–12 mm

Max. Aperture

F1.7

Field of View

Horizontal: 98°–31°
Vertical: 55°–18°
Diagonal: 116°–36°

Iris Type

Fixed aperture

Close Focus Distance

0.8 m(2.6 ft)

Detect

66.0 m
(183.7 ft)

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

IntelligenceIntelligence

Event Trigger

Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

IVS

Tripwire, Intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440);
2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 × 480); CIF (352 × 288/352 ×240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6144 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Manual/Auto

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Privacy Masking

4 areas

Protocol

HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;

FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

NAS

Local PC for instant recording

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Network

Network

RJ-45 (10/100 Base-T)

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP;IGMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;

User/Host

20

Edge Storage

DH Cloud; FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certifications

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/POE (802.3af)

Power Consumption

< 6.9w="" (poe)="" 6.9w="">

Environment

Operating Conditions

-30°C to +55°C (-22°F to +131°F) /less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Ingress Protection

IP67
