DC 6.5В~50В Регулятор ШИМ 350W Мотор для BLDC Бесщеточного 16A Вперед-Назад Водителя.

DC 6.5V~50V PWM Controller 350W PWM Motor Controller for BLDC Brushless Motor 16A Forward Reverse Driver

1>.Description:

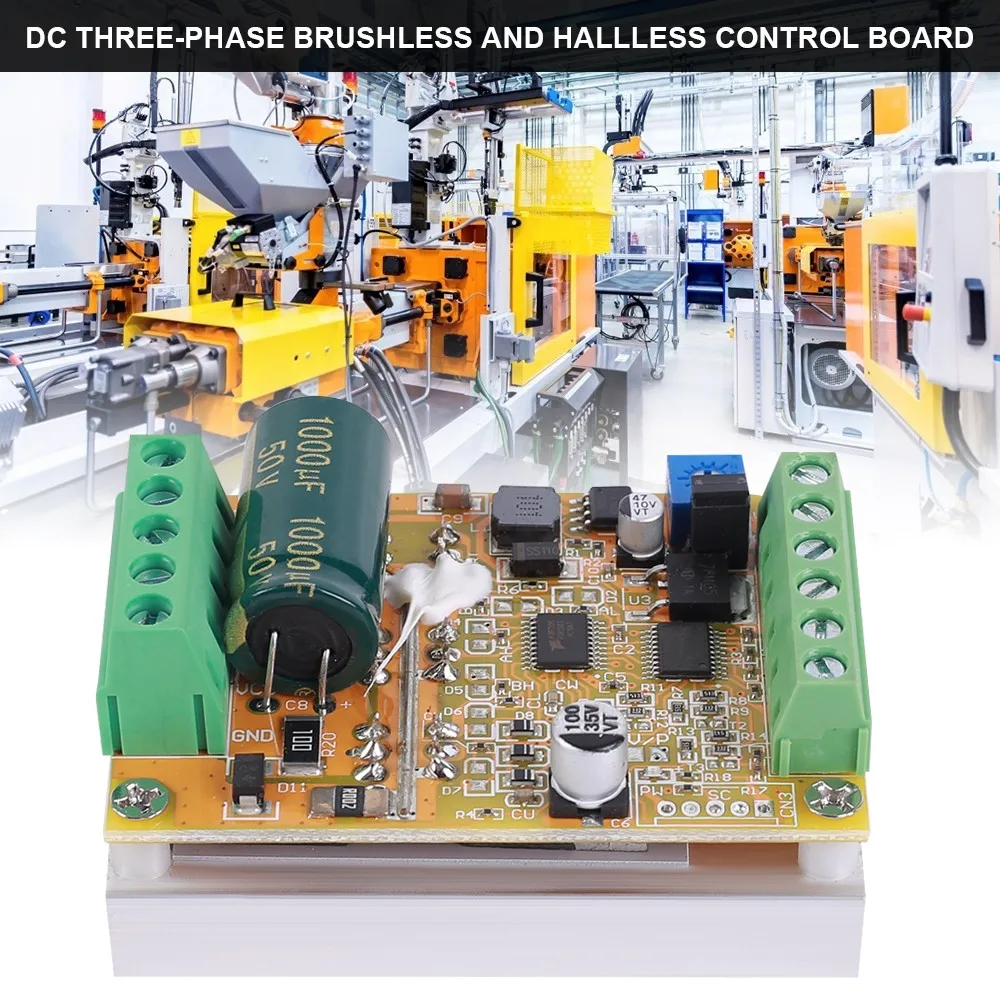

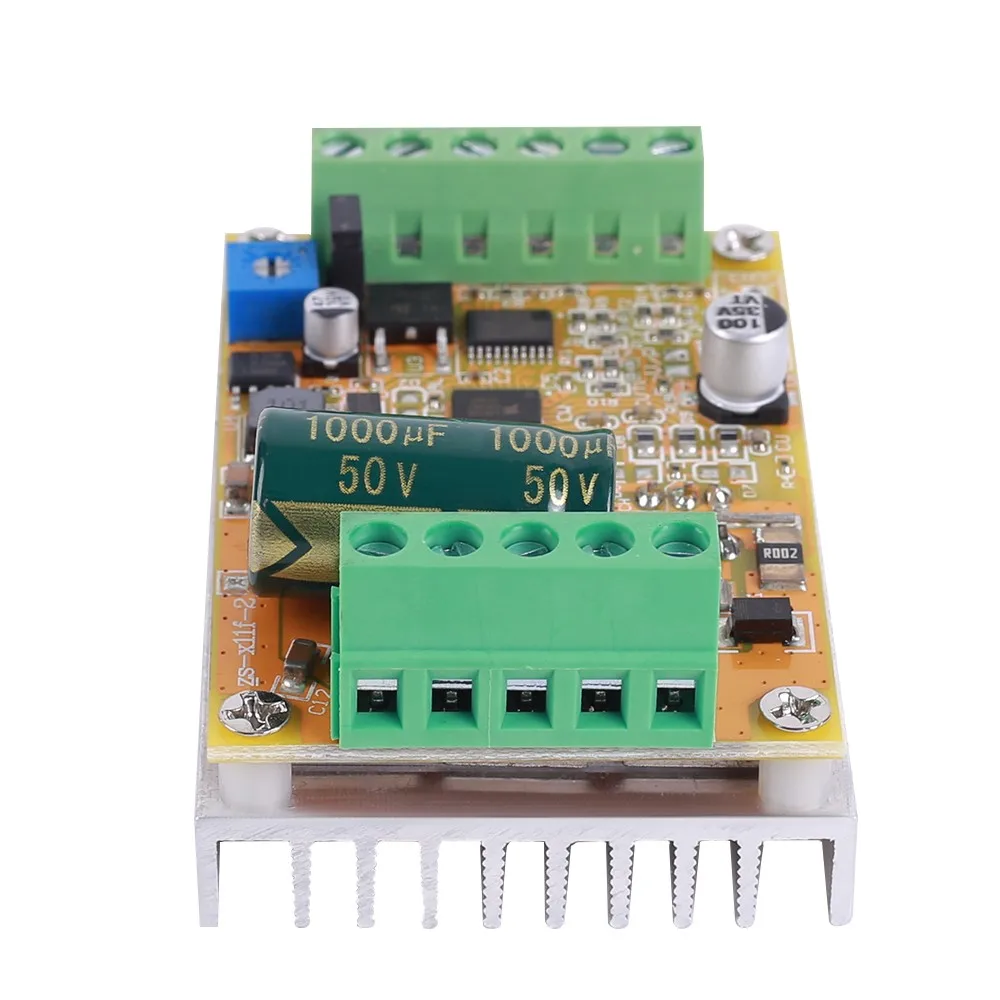

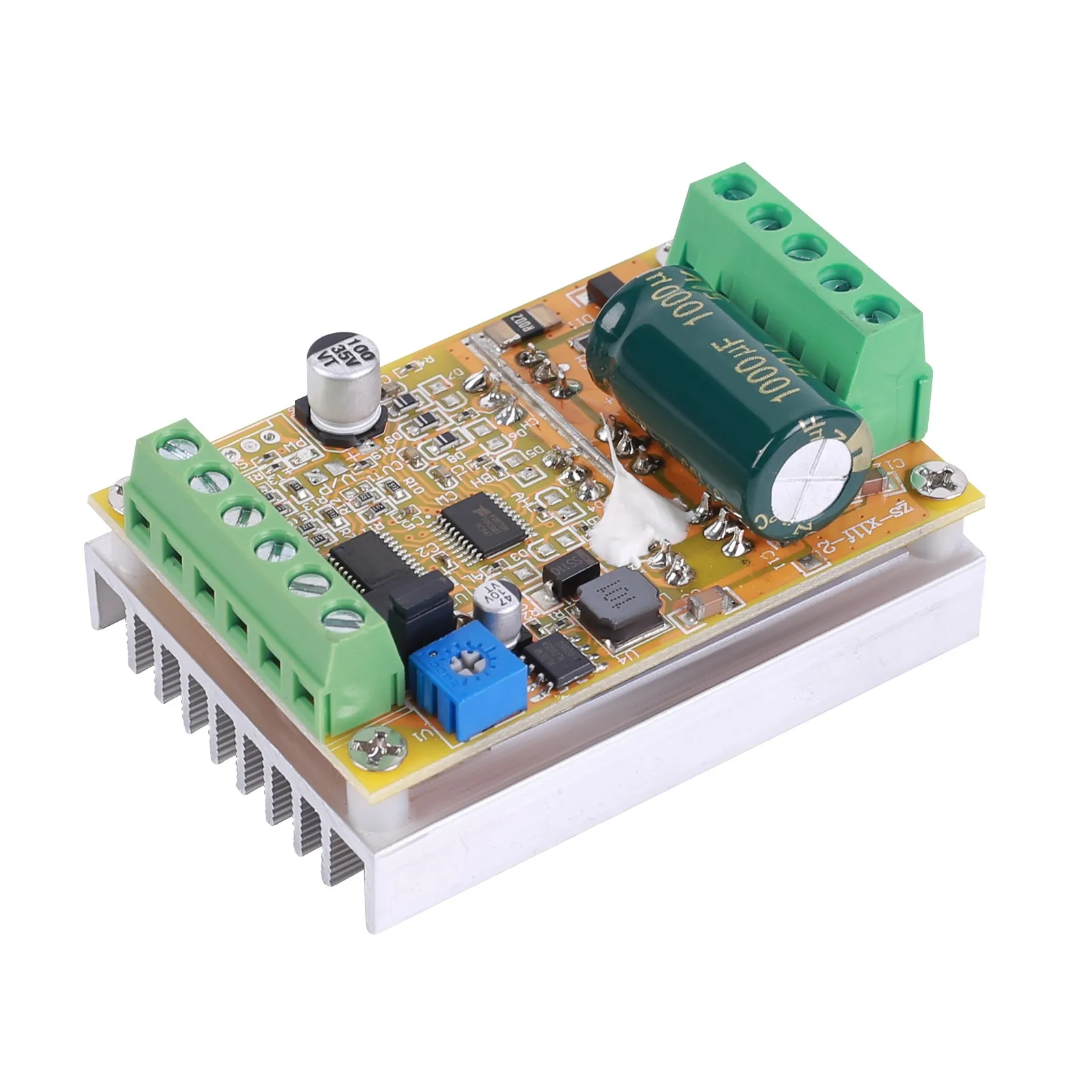

It is a PWM controller.It is a DC brushless and Hallless control board,and the motor can work normally without Hall.

2>.Feature:
1.It supports wide input voltage.
2.It comes with high power 350W.
3.It supports PWM signal input.
4.There is a potentiometer on the module board for speed regulation.
5.It has overcurrent protection,stall protection,and overtemperature protection.

3>.Parameter:
1.Product Name:PWM Controller
2.Working Voltage:DC 6.5V~50V
3.Drive Current:16A (rated current)/25A (plus air cooling)
4.Maximum Power:350W
5.Maximum Speed:224000 RPM(2 pole motor),74000 RPM(6 pole motor),40000 RPM(12 pole motor),35000 RPM(14 pole motor).
6.Work Temperature:-25℃~85℃
7.Work Humidity:5%~95%RH

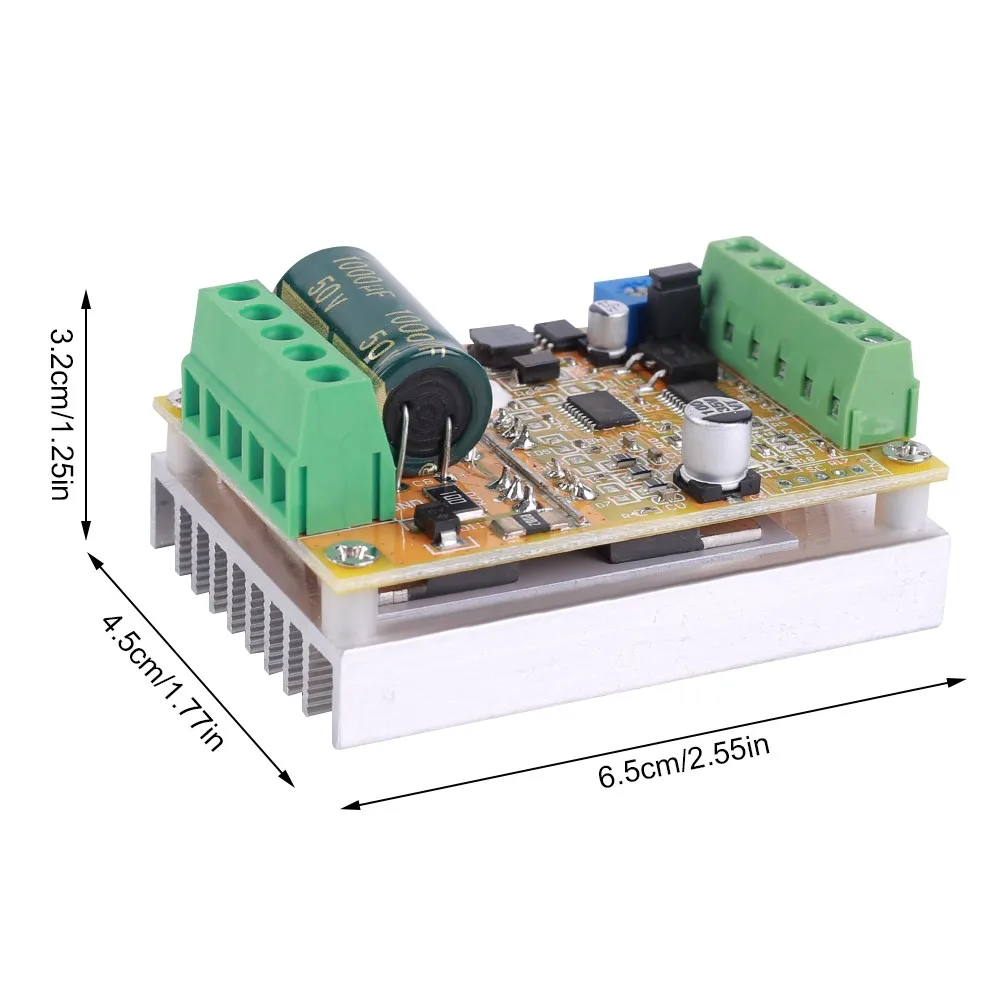

8.Size:65*45*32mm

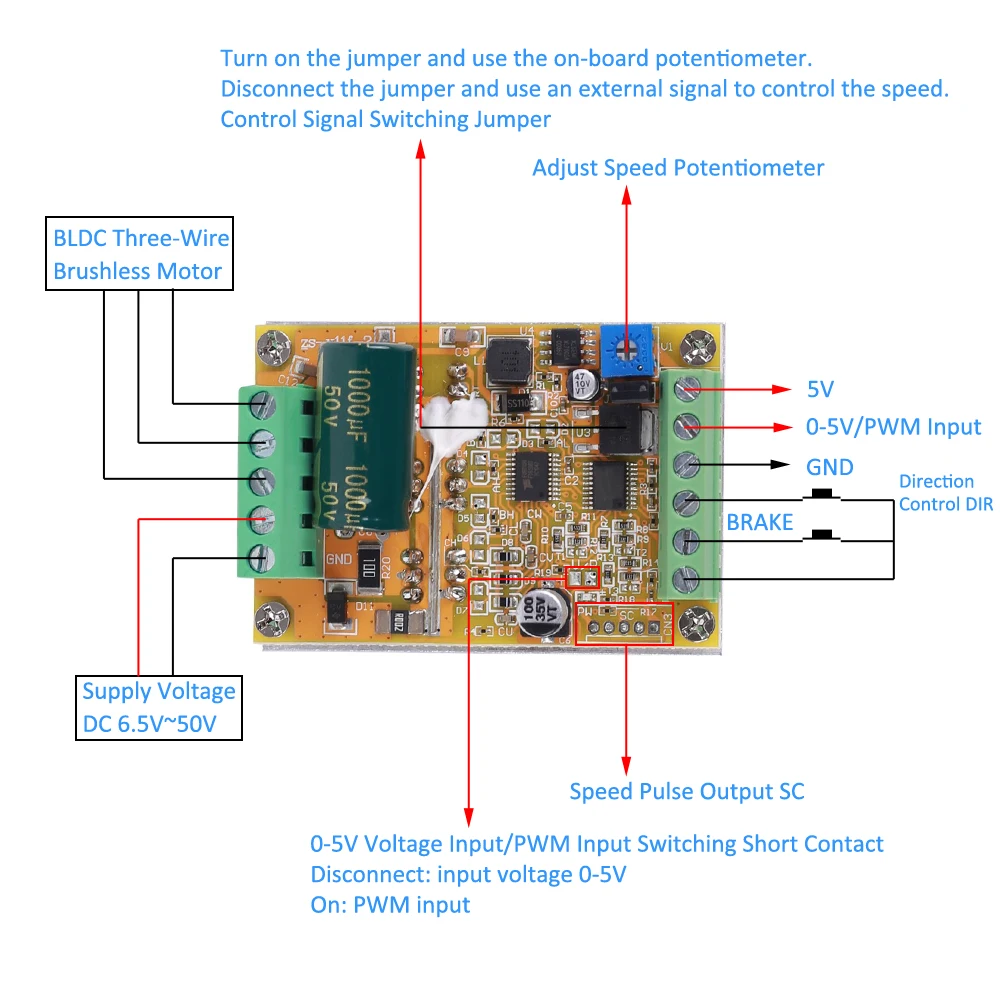

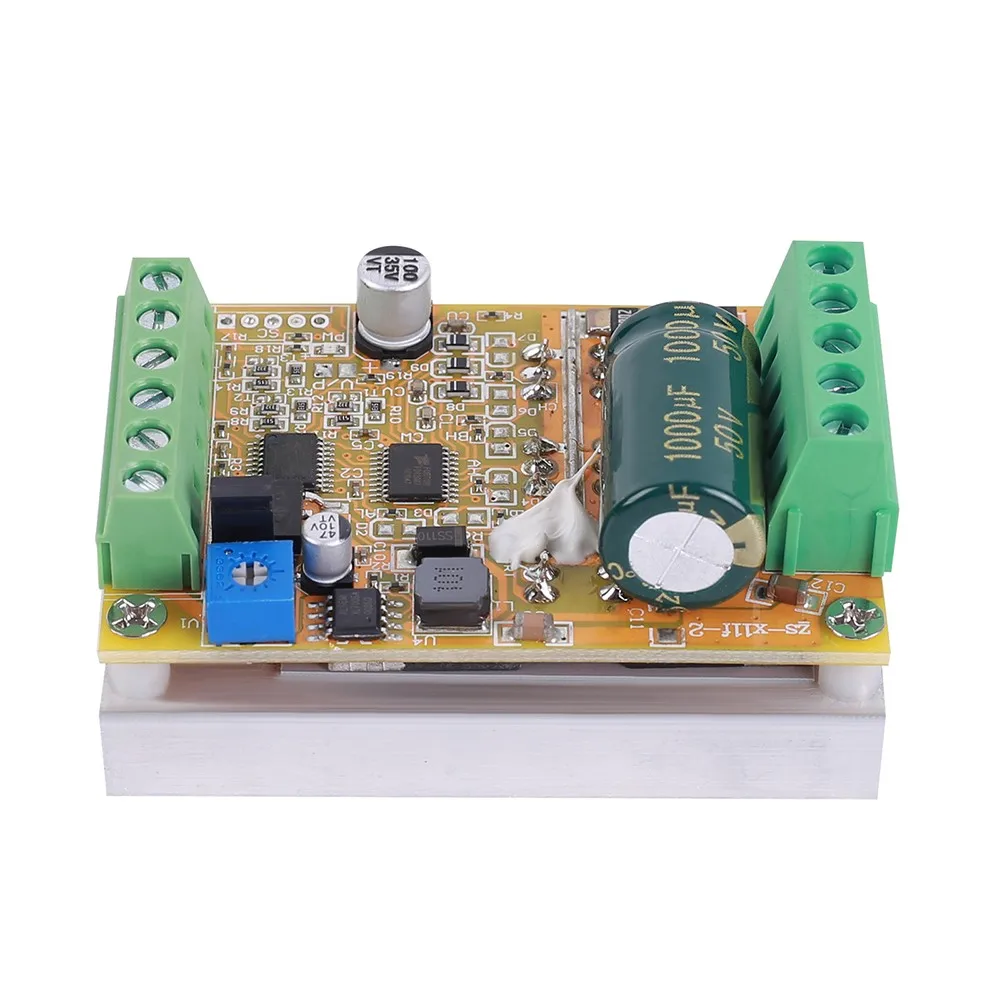

4>.Interface Description:
1.UVW:Phase line output is connected to the motor
2.5V GND:The motherboard comes with a power supply (current does not exceed 300MA)
3.VCC GND:main power supply of motor (external DC power supply)
4.SC:Speed ??pulse signal output
5.DIR:forward and reverse control (can be connected to the lead wire)
6.BRAKE:Brake control (can be connected to an external switch with lead wire)
7.0-5V:PWM speed control signal input (on-board potentiometer for speed control can also be switched by jumper to connect an external 0-5V analog quantity,PWM duty cycle signal input for speed control)

5>.Note:
1.Power supply on the main board,reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board.
2.The output terminal of the motor has sampling overcurrent protection during normal operation.Since the power and current of the module are large,please do not artificially short-circuit the module when it is not working normally.Once the short-circuiting may cause the line to burst,the first wiring test Please use small current and low voltage to test the machine.After it is OK,apply high current and high voltage.Because it is a bare board module,please pay attention to the insulation of the wiring head and it is strictly forbidden to touch the board parts.
3.Do not connect the motor that is obviously inconsistent with the voltage,current,and power of the drive module or the motor is very different to avoid inexplicable "nonsensical" damage.

6>.Package:
1.1pcs PWM Controller
