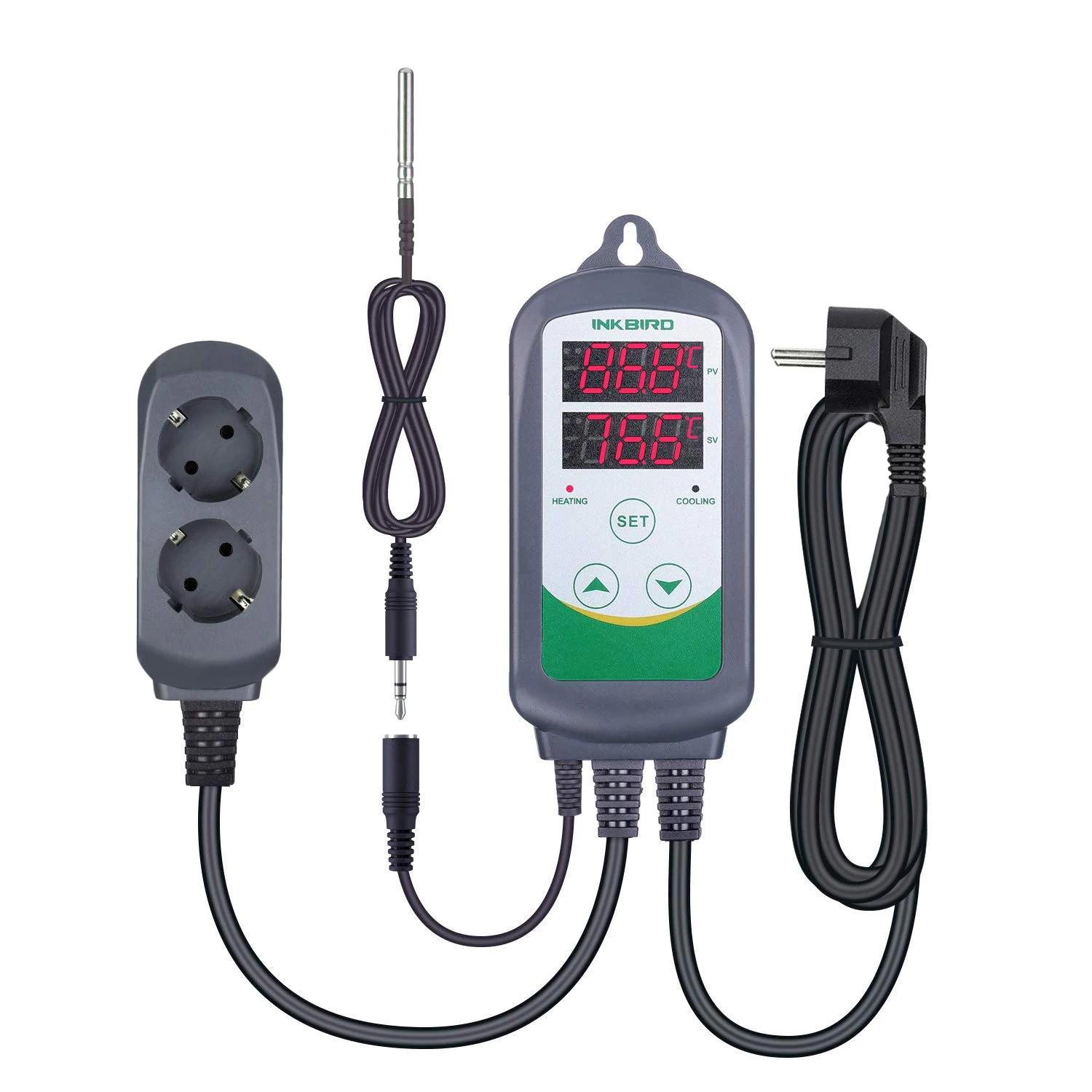

Inkbird ITC-308S Heating&Cooling Multi-Function Temperature Controller Outlet Thermostat with Removable Stainless Steel Probe |

Inkbird ITC-308S Heating&Cooling Multi-Function Temperature Controller Outlet Thermostat with Removable Stainless Steel Probe

Descriptions：

ITC-308S 1,000W(110V)/2,000W(220V), it’s suitable for most applications.It can be used as Over-temperature protection and automatic temperature control system for various electric appliances such as equipment for home-brew, aquarium, pet breeding, incubation, BBQ, seedling heat mats, oven temperature control, terrestrial heat control, constant temperature cycle of heating pump, culture fermentation, accelerating germination, electric radiator, electric oven, etc.

Main features：

• Plug and play design, easy to use;

• Dual relay output, be able to connect with refrigeration and heating equipment at the same time;

• Support reading with Centigrade or Fahrenheit unit;

• Maximum output load: 1000W(110V)/2000W(220V);

• Dual display window, be able to display measured temperature and set temperature at the same time;

• Temperature calibration;

• Compressor delay protection for refrigeration control;

• High and low temperature alarms are available;

• Over-temperature and sensor fault alarm;

• Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Specification：

• Temperature Control Mode :On/Off Control, Heating and Cooling

• Temperature Control Range : -50~99 °C / -58~210 ° F

• Temperature Resolution: 0.1 ° C / 0.1° F

• Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)

• Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F

• Input Power: 100 ~240VAC, 50Hz/60Hz

• Temperature Control Output: Max. 10A, 100V ~240V AC

• Input Power Cable Length: 1.5m (5ft)

• Output Power Cable Length: 30cm (1ft)

• Buzzer Alarm: High and Low Temperature Alarm

• Sensor Type: NTC sensor (Including)

• Sensor Length: 2m / 6.56ft

• Relay Capacity: Cooling/ Heating (10A, 100-240VAC)

• Storage Temperature: -20~ 60 ° C / -4~ 140 ° F

• Storage Humidity: 20~85% (No Condensate)

• Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)

• Warranty: 1Year

Package:

• 1 x Temperature controller with outlet,

• 1x 1.97" Female to Male NTC Sensor

• 1 x English Manual
