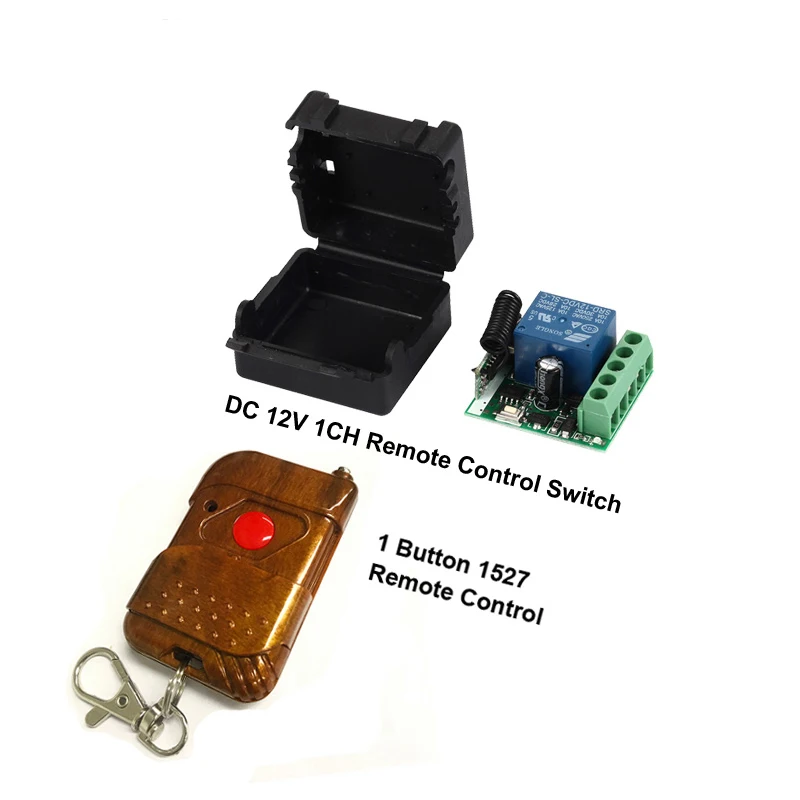

Tiktango 433Mhz Universal Wireless RF Remote Control Switch DC 12V 10A 1CH Relay Receiver Module and 433.92 Mhz Controls |
История изменения цены
*Текущая стоимость 327.38 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-20-2026 | 415.86 руб. | 423.9 руб. | 419 руб. |
| Jan-20-2026 | 337.2 руб. | 344.7 руб. | 340.5 руб. |
| Dec-20-2025 | 409.52 руб. | 417.87 руб. | 413 руб. |
| Nov-20-2025 | 405.81 руб. | 413.50 руб. | 409 руб. |
| Oct-20-2025 | 324.67 руб. | 330.44 руб. | 327 руб. |
| Sep-20-2025 | 399.29 руб. | 407.34 руб. | 403 руб. |
| Aug-20-2025 | 396.22 руб. | 404.20 руб. | 400 руб. |
| Jul-20-2025 | 392.8 руб. | 400.56 руб. | 396 руб. |
Описание товара
Description
Technical Data:

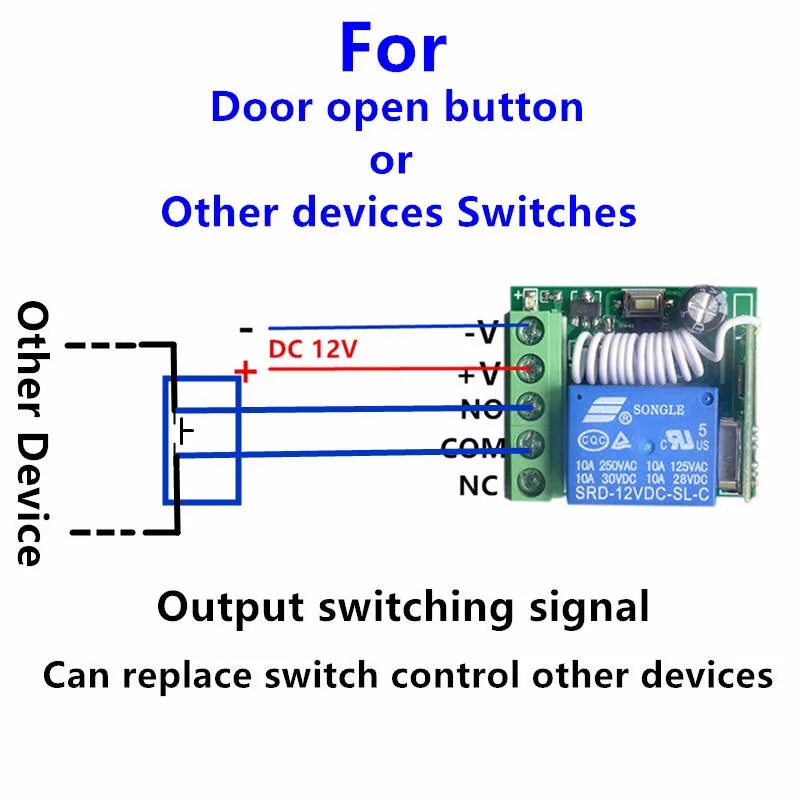

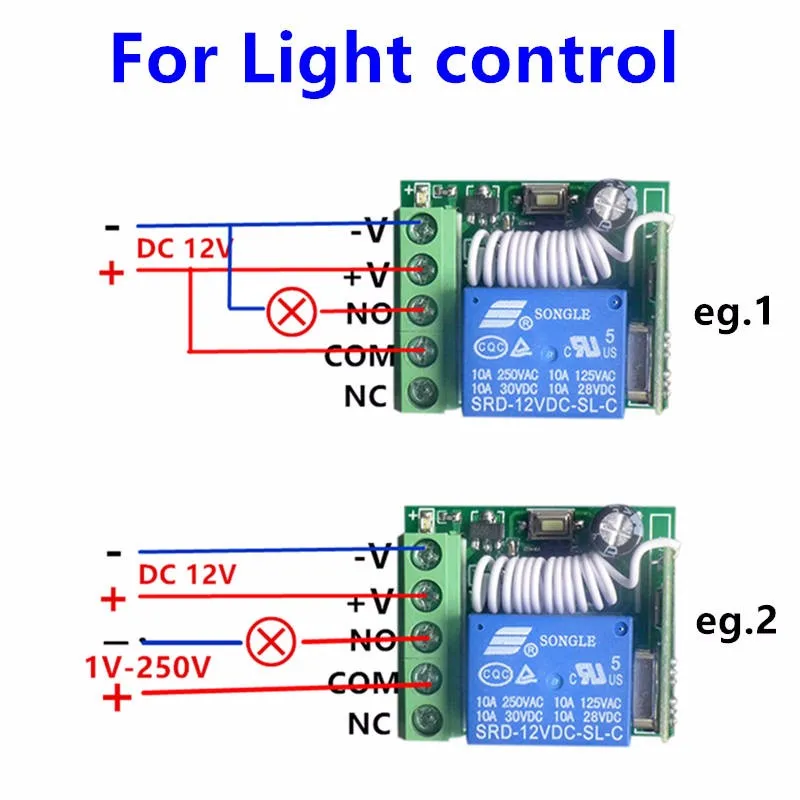

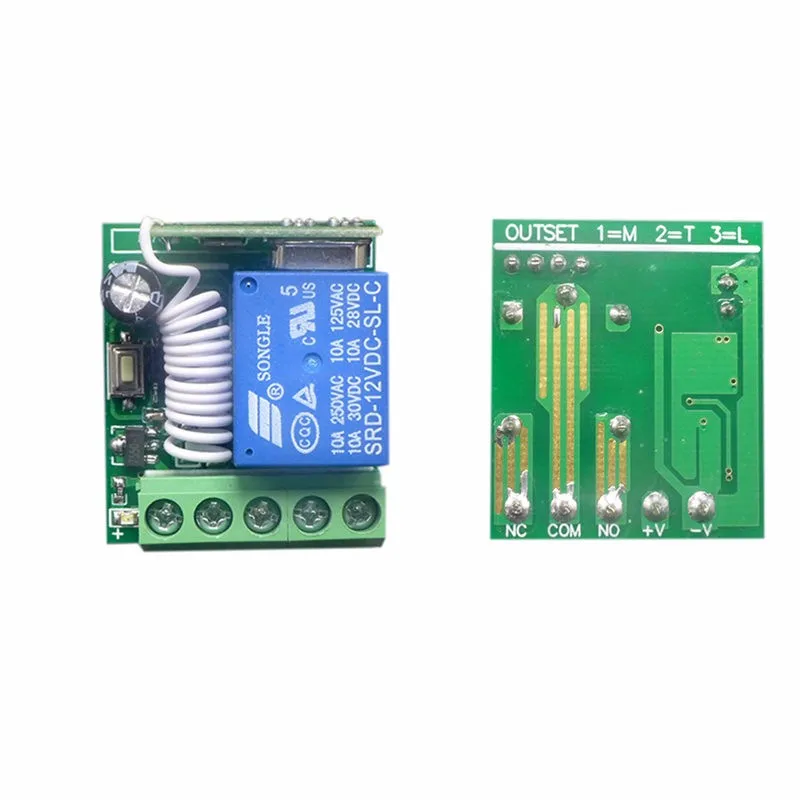

Input Power:DC10V-14VStandby Current:<5MARF Frequency:433MRF working mode:superheterodyneReceive sensitivity: >97dbmTransmitting distance: 20-100m ( open space)Decoding mode:MCU software decodingRemote storage:50pcsSupport remote type: Learning code, Fixed codeWorking mode:Momentary, Toggle, LatchingWiring type:fixed terminalOutput Terminal :NO , NC , COMDimension of PCB:35*30*18mm (L,W,H)Wiring diagram 1:+V : 12V + input ;- V: 12V - input ;NO: Output , normal open;COM:Output , common ;NC: Output , normal close;
About Working mode:Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects.Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.Clearing the code :Push the learning button on the receivers for 8 times , the codes will be cleaned .After clearning the code, all the remote control cannot work any more.Learning the code : (momentary)Push the learning key on the receiver once time , it comes into momentary setting mode .Wait for a moment , the LED will be off , it comes into learning state .Push the remote button , LED indicator on the receiver board will flash then come off .After 3 seconds, the LED indicator will be on again , learning successfully .Learning the code : ( Toggle )Push the learning key on the receiver twice time , it comes into toggle setting modeWait for a moment , the LED will be off , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash then come off.After 3 seconds , the LED indicator will be on again , learning successfully .Learning the code :( Latching )Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the first time learnt is for "ON", the second time learnt for "OFF".For example : button A = ON , button B = OFFPush the learning key on the receiver triple time , it comes into latching mode .Wait for a moment , the LED indicator on the receiver board will flash then come off.Push the remote button A .LED flash for 5 times .Push the remote button B .Led flash for 5 times .After 3 seconds , the LED indicator will be on again , learning successfully.A = ON , B = OFF .NOTE: The system can store for 50 pcs of remotes , if the remote get more than 50pcs , the initial remote control will be lost .
