Hantek 6022BE PC USB Digital Portable Oscilloscope 2Channels 20MHz oscilloscopes Handheld osciloscope | Инструменты
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-20-2026 | 0.13 руб. | 0.34 руб. | 0 руб. |
| Feb-20-2026 | 0.26 руб. | 0.48 руб. | 0 руб. |
| Jan-20-2026 | 0.53 руб. | 0.13 руб. | 0 руб. |
| Dec-20-2025 | 0.72 руб. | 0.27 руб. | 0 руб. |
| Nov-20-2025 | 0.88 руб. | 0.63 руб. | 0 руб. |
| Oct-20-2025 | 0.41 руб. | 0.18 руб. | 0 руб. |
| Sep-20-2025 | 0.22 руб. | 0.25 руб. | 0 руб. |
| Aug-20-2025 | 0.67 руб. | 0.98 руб. | 0 руб. |
| Jul-20-2025 | 0.24 руб. | 0.23 руб. | 0 руб. |
Описание товара
![]()
Hantek 6022BE PC USB Digital Portable Oscilloscope 2Channels 20MHz Portable PC USB oscilloscopes Handheld osciloscope
Hantek 6022BE PC USB Digital Portable Oscilloscope 2Channels 20MHz Portable PC USB oscilloscopes Handheld osciloscopeFeatures：
Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXITM interface, easily inserts into USBXITM housing to make up a combinationinstrument.
USB2.0 interface, no external power source required, easy to use.
Be suitable for notebook computer, product line maintenance, be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
Labview\VB\VC Second Design instance.

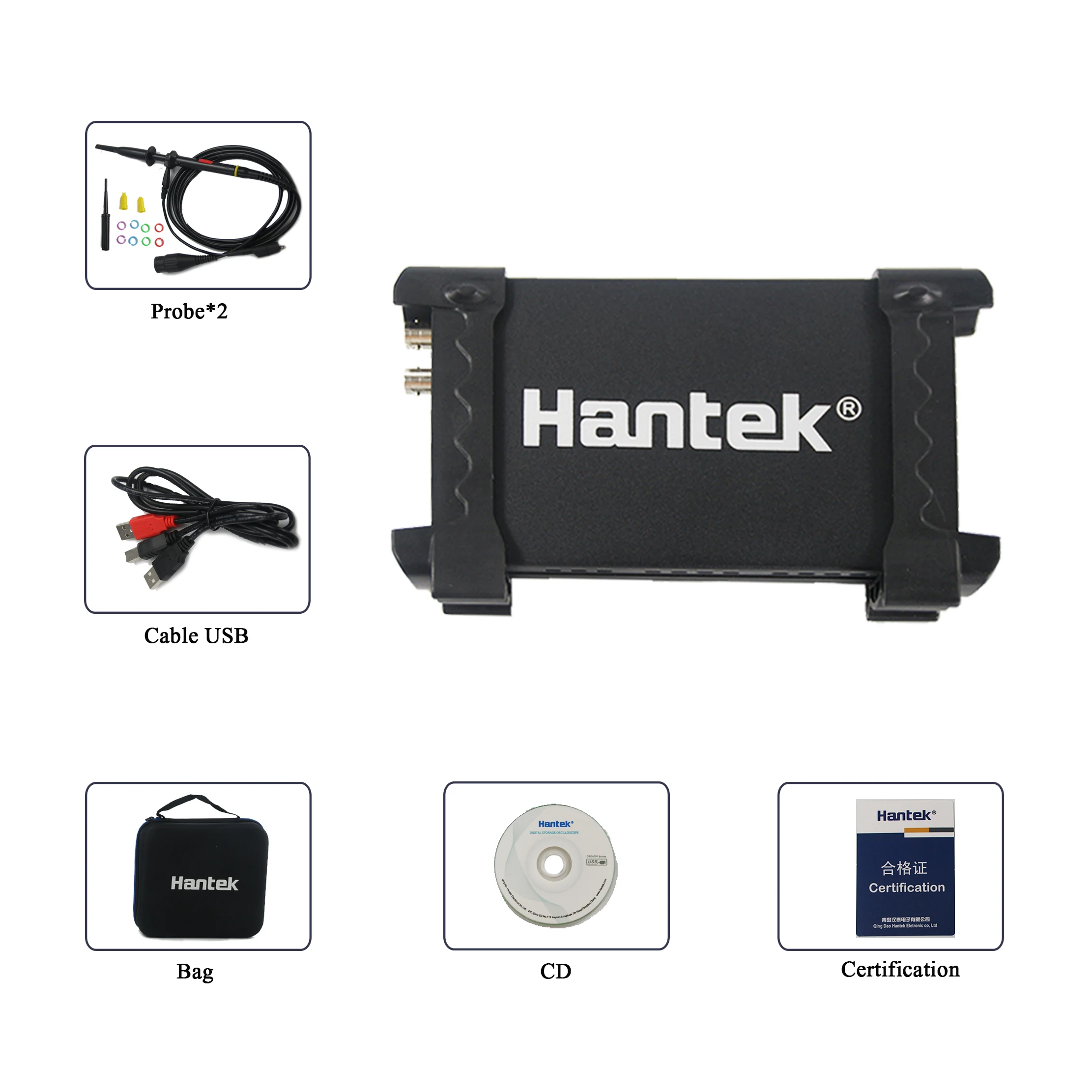

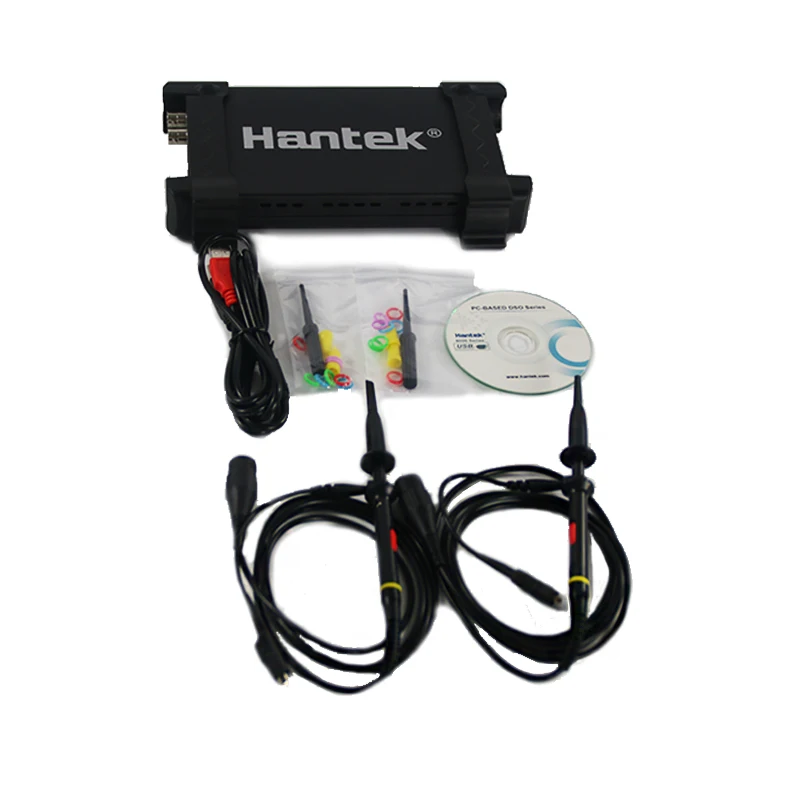

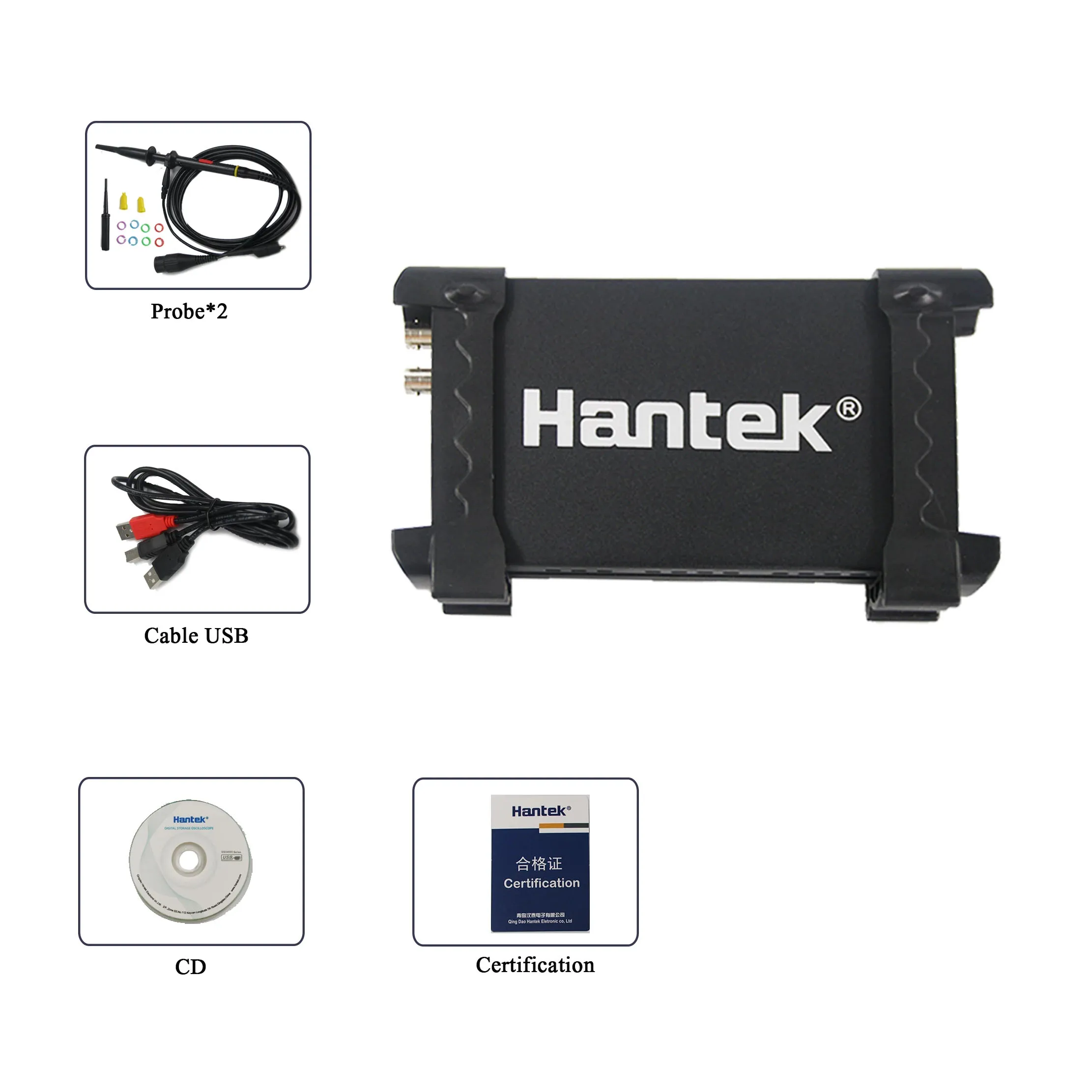

Package Including:
1 * Oscilloscope 6022BE
1 * USB Cable
1 * CD
2 * Probes
1 * User Manual (in CD)
Hardware Specification | |
Channel | 2 Channels |
Bandwidth | 20MHz |
Input Impandence | 1MΩ 25pF |
Max. Sample rate | 48MS/s |
Vertical resolution | 8Bit |
Gain range | 20mV-5V, 8Steps |
DC accuracy | ±3% |
Coupling | DC |
Timebase range | 1ns-9000s, 39 Steps |
Vertical adjustable | Yes |
Input protection | Diode clamping |
X-Y | Yes |
Trigger Mode | Auto, Normal and Single |
Trigger Slope | +/- |
Trigger level adjustable | Yes |
Trigger Type | Rising edge, falling edge |
Trigger Source | CH1, CH2 |
Pre/Post trigger | 0-100% |
Sampling selection | Yes |
Waveform Display | port/line, waveform average, persistence, intensity |
Network | Open/Close |
Vertical mode | CH1, CH2, Dual, ADD |
Cursor measurement | Yes |
Math | FFT, addition, subtraction, multiplication, division. |
Cursor | Frequency, Voltage |
Accessories | S/W CD, probes, manual, USB cord |
| Software | |
Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA | |
Second Design | |
Supply DEMO code(VC、VB、LABVIEW) and technical support. | |
