Описание товара
This 2.4G RF remote dimmer controller works together with LED strip.
It allows you to control the brightness of LED strip.
Note: LED controller and Remote Control are sold seperately. Freely choose any combination to your choice.
Features:
1) 4096 levels 0-100% dimming smoothly without any flash.
2) Match with 2.4G single zone or multiple zone dimming remote control.
3) One RF controller accept up to 10 remote control.
4) Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
5) Synchronize on multiple number of controllers.

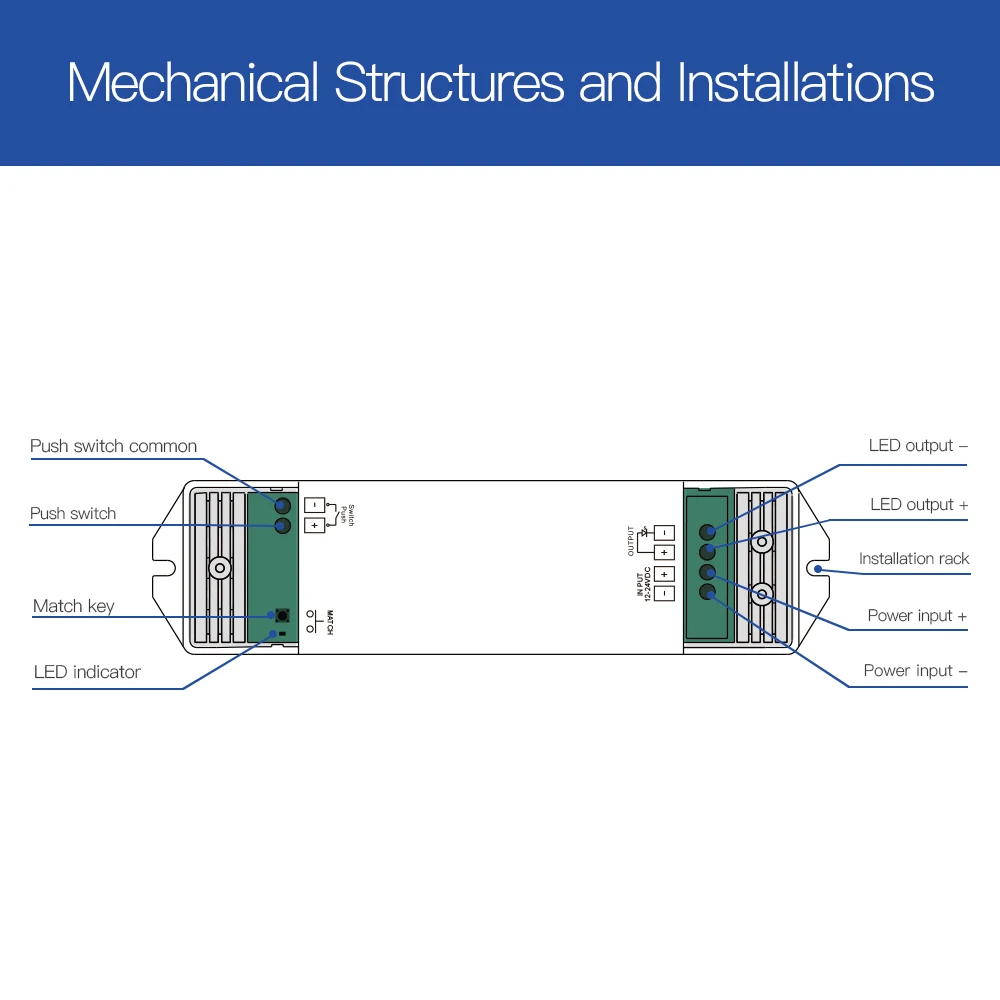

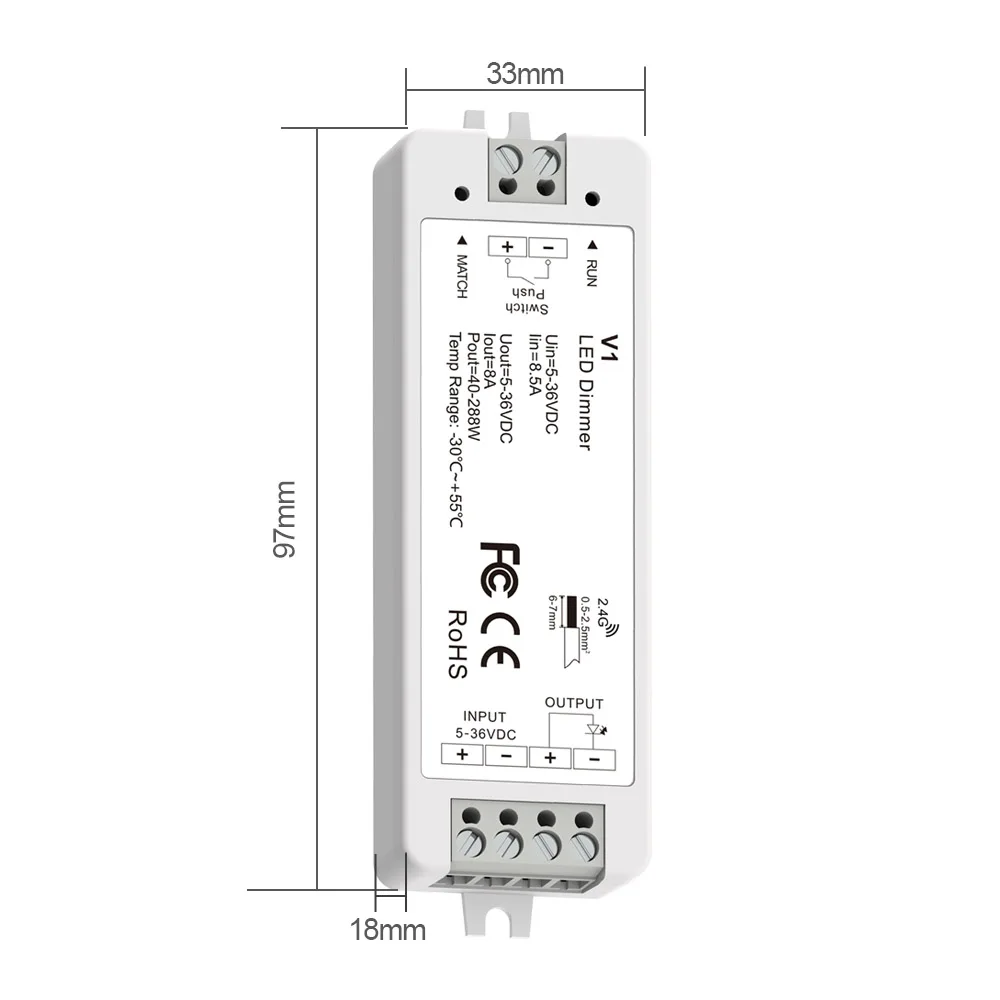

LED controller V1:
Working Voltage: DC5V~36V (never connect to others or AC220V)
Body material: PVC Plastic
Output type: Constant voltage
Max Output Current: 8A/Channel
Max Output Power: 5V: <40W,12V: <96W, 24V: <192W, 36V: <288W,
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz + Push Dim
Connect with external push switch to achieve on/off and 0-100% dimming function.
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Over-heat / Over-load / Short circuit protection, recover automatically.
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED

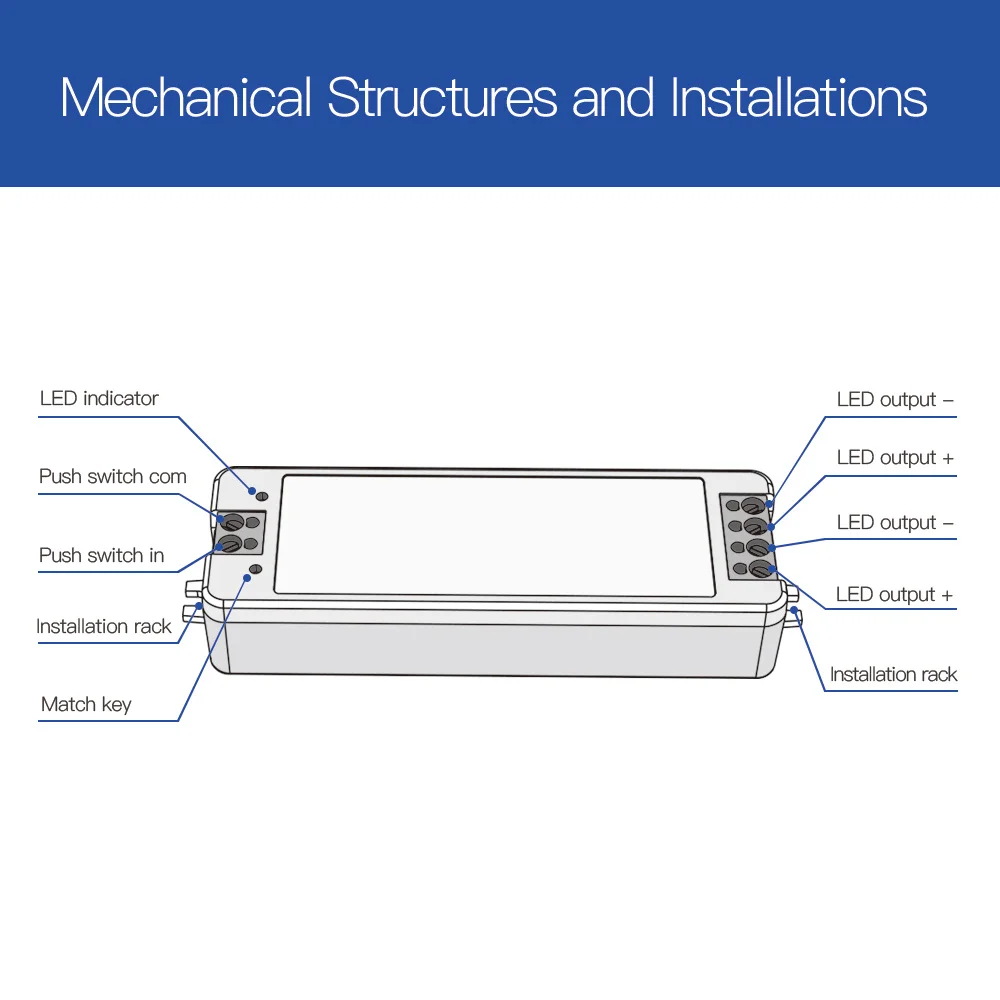

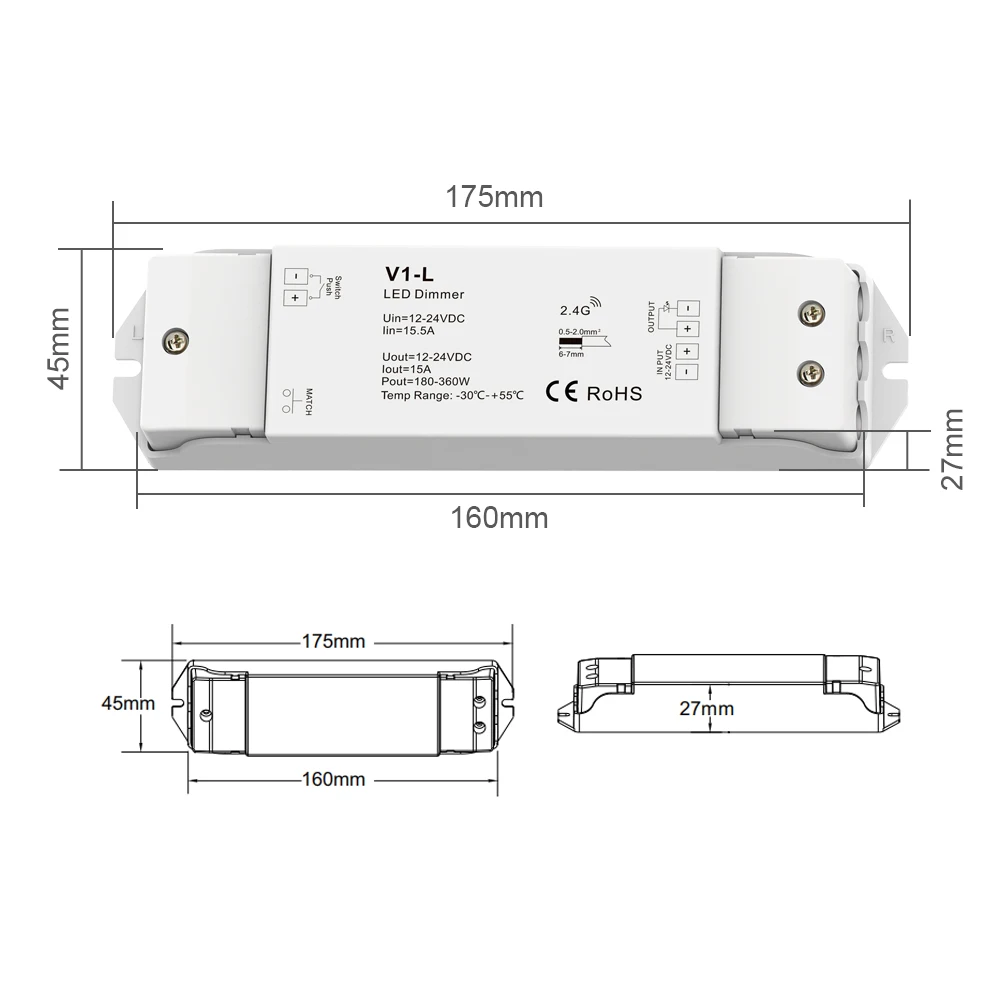

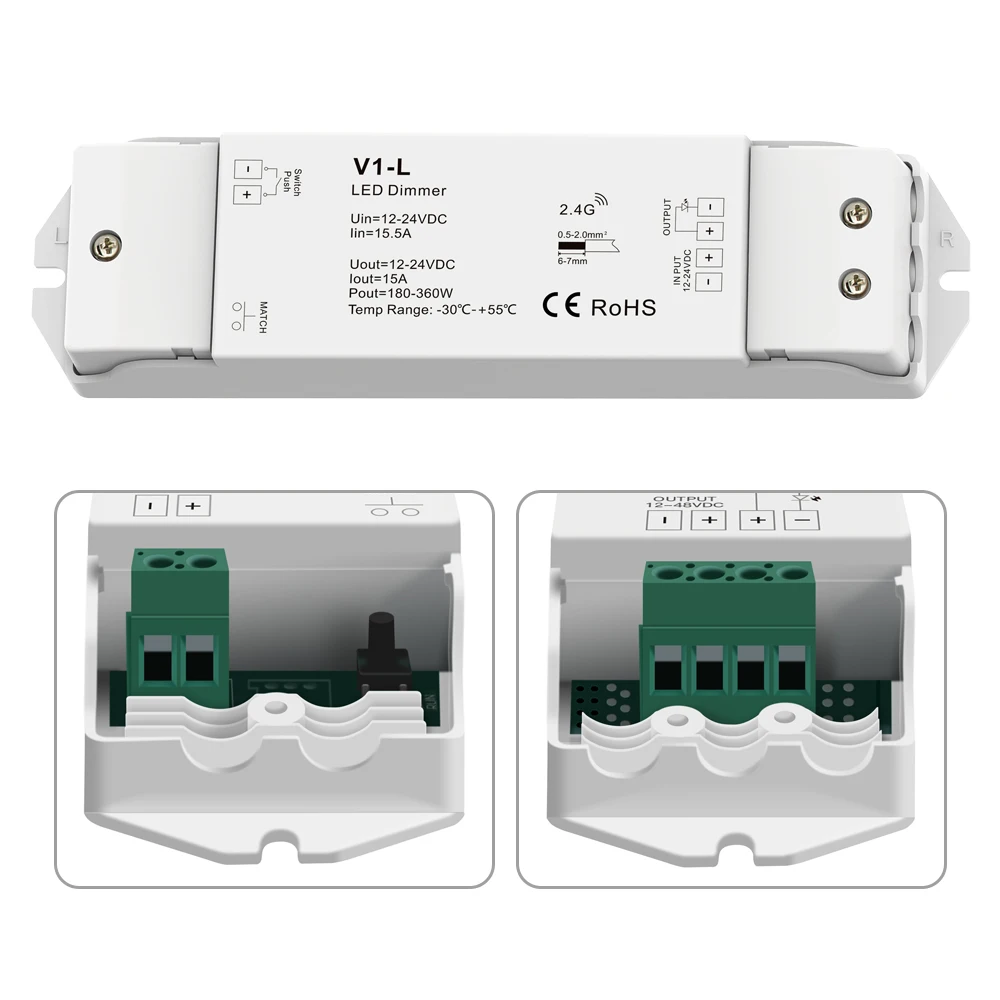

LED controller V1L:
Working Voltage: DC12V~48V (never connect to others or AC220V)
Body material: PVC Plastic
Output type: Constant voltage
Max Output Current: 15A@12/24V, 10A@36/48V
Max Output Power: 12V: <180W,24V: <360W, 36V: <360W, 48V: <480W
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz + Push Dim
Connect with external push switch to achieve on/off and 0-100% dimming function.
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Over-heat / Over-load / Short circuit protection, recover automatically.
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED

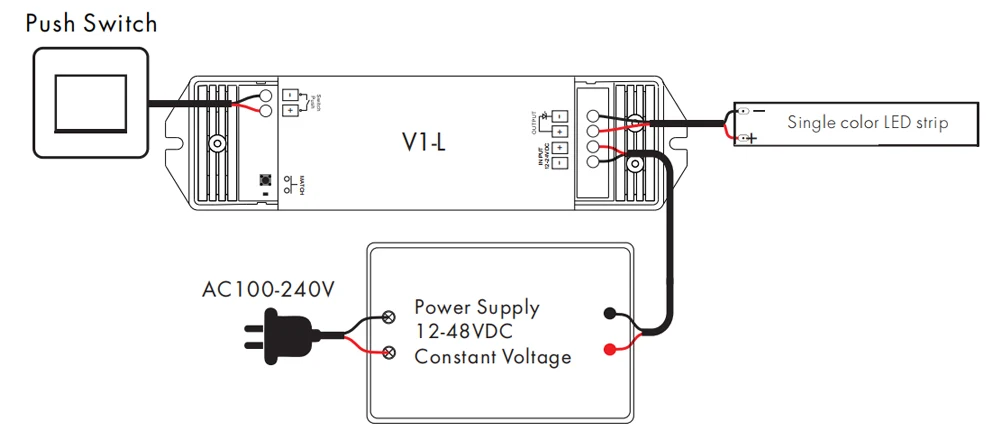

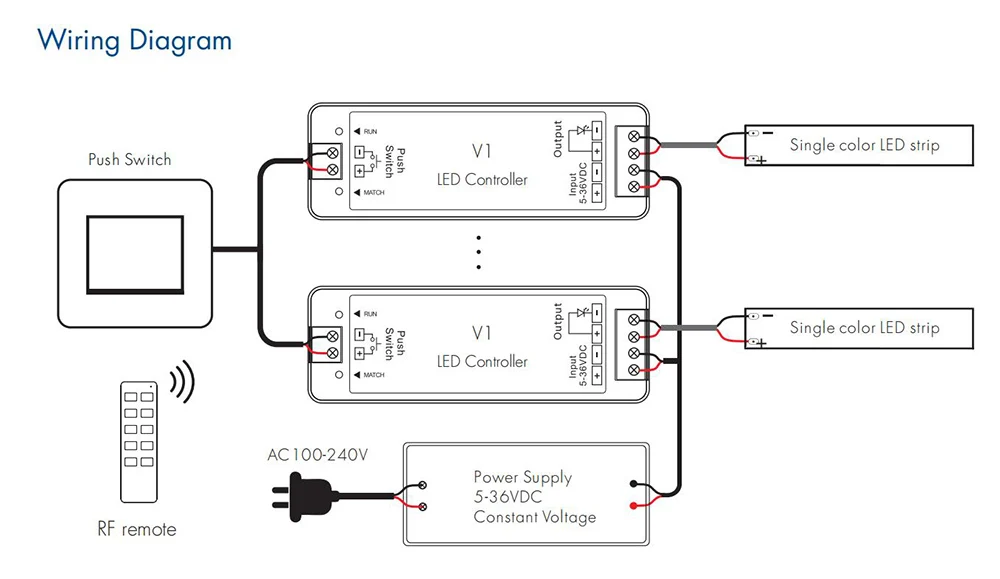

Wiring Diagram:
Match with dimming remote
Connect with push switch

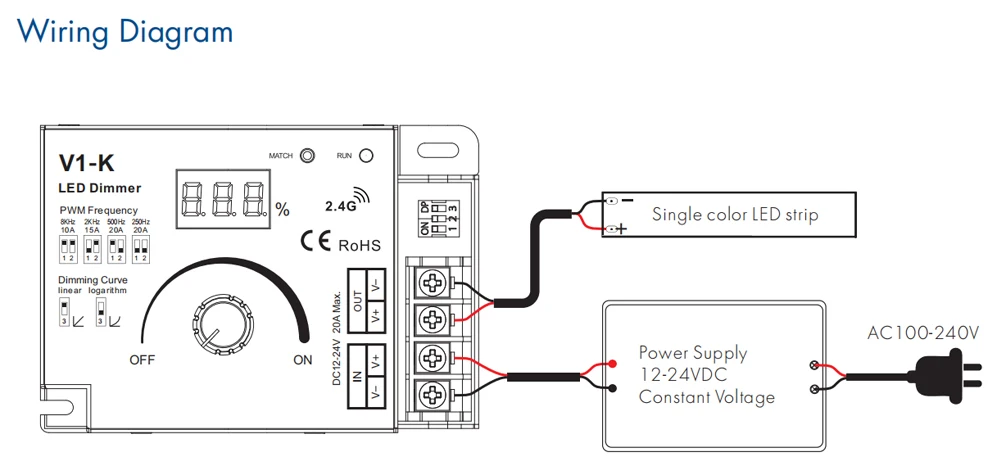

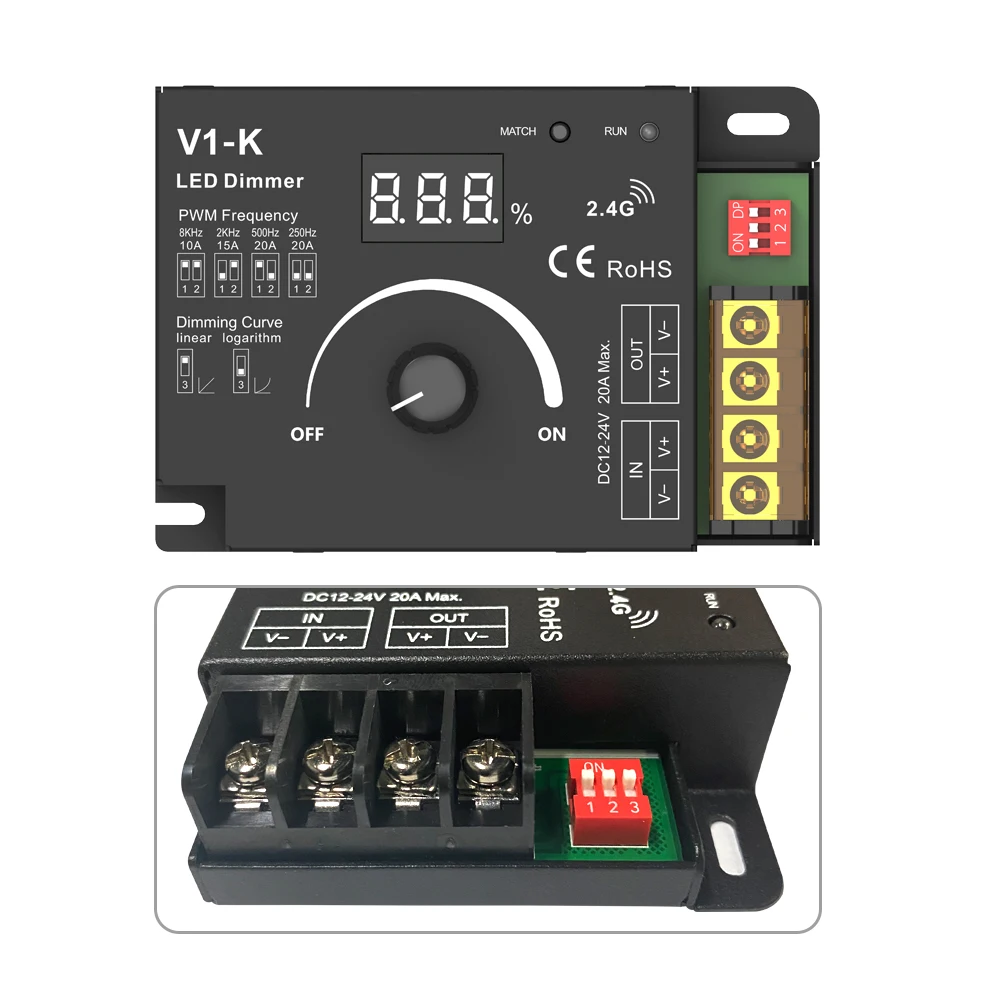

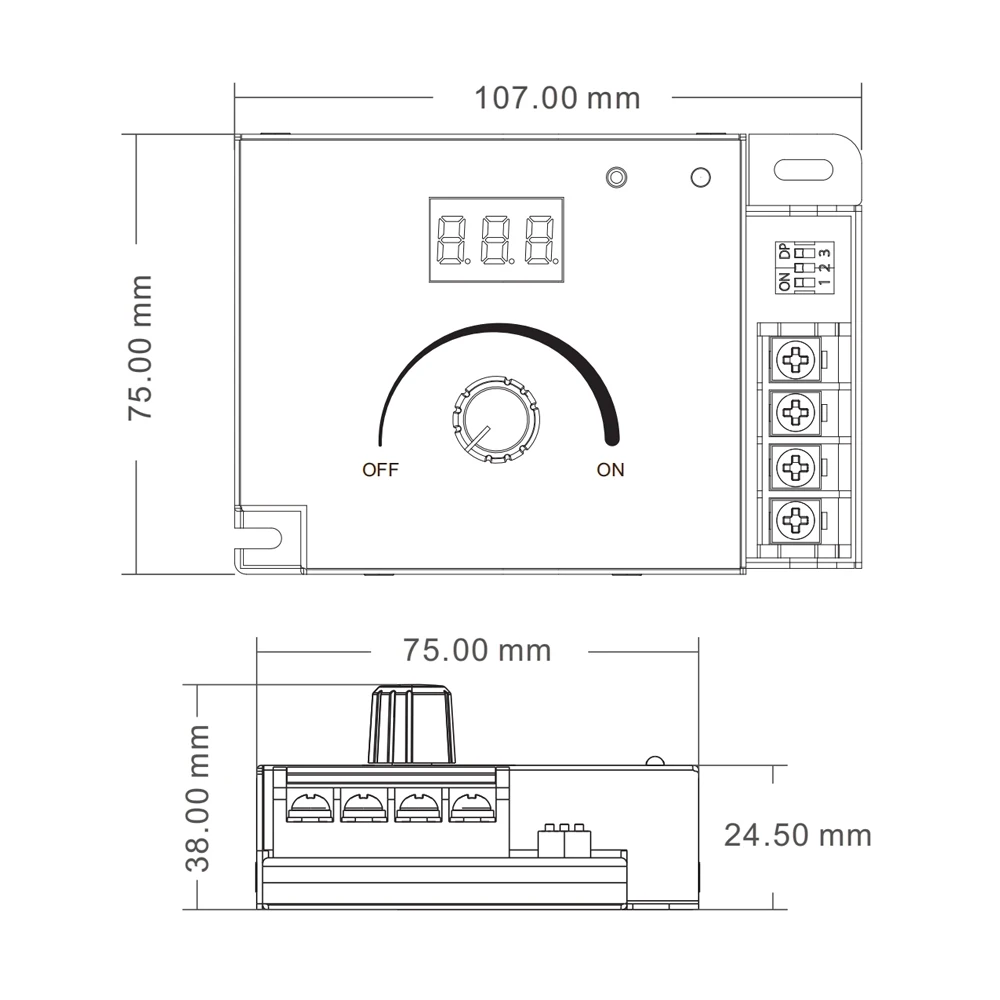

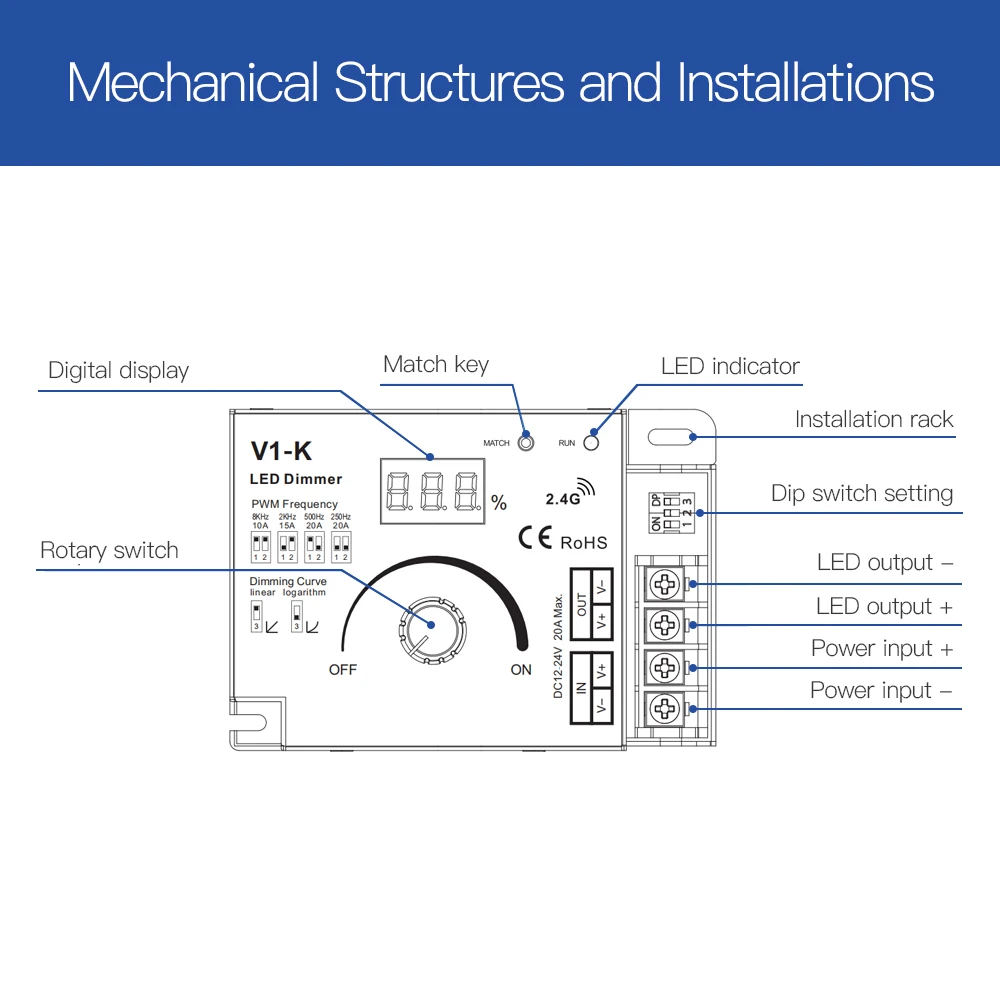

LED controller V1K:
Rotary dimmer with digital numeric display, visible dimming level.
Working Voltage: DC12V~24V (never connect to others or AC220V)
Body material: PVC Plastic
Output type: Constant voltage
Max Output Current: 20A
Max Output Power: 12V: <240W,24V: <480W
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz + Rotary knob
Connect with external push switch to achieve on/off and 0-100% dimming function.
Control distance: 15m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic or linear
PWM Frequency: 250Hz, 500Hz, 2KHz, 8KHz
Over-heat / Over-load / Short circuit protection, recover automatically.
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED

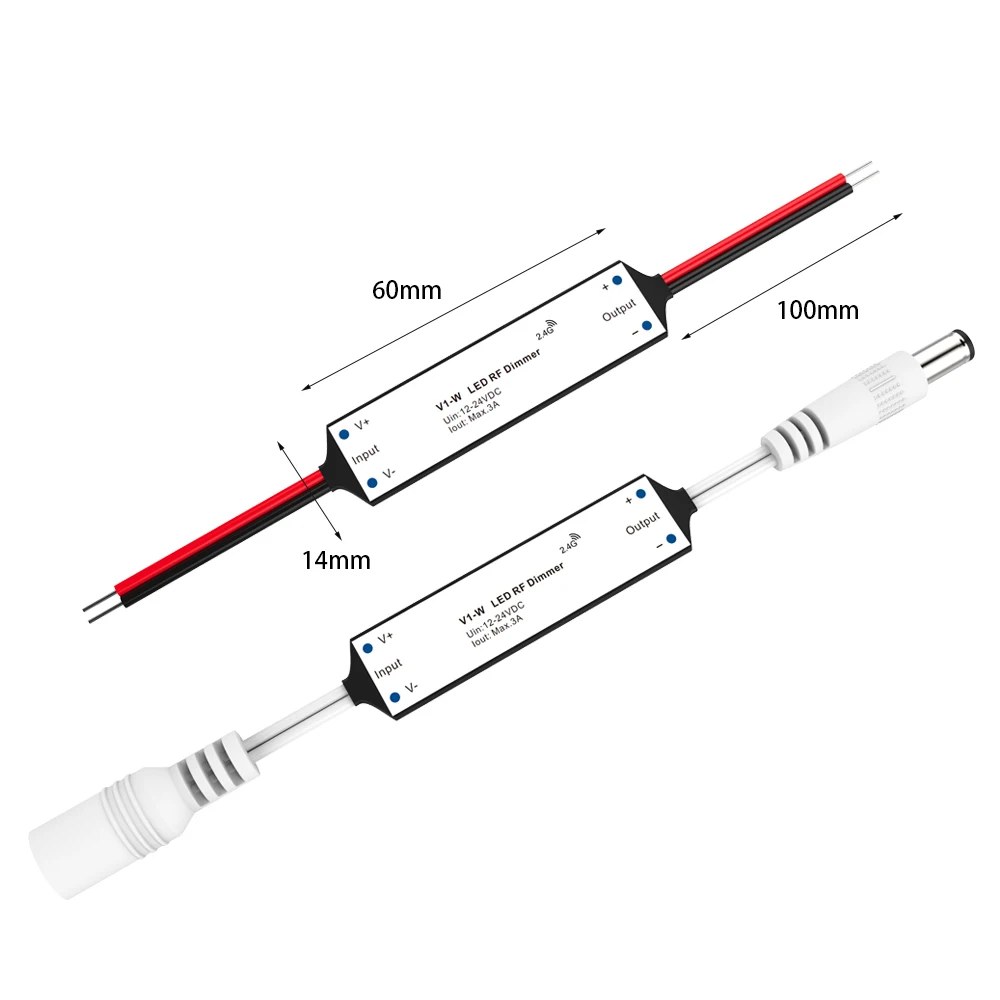

LED controller V1W V1W DC:
Working Voltage: DC12V~24V (never connect to others or AC220V)
Compact Size: 6cm*1.4cm*0.5cm
Output type: Constant voltage
Max Output Current: 3A
Max Output Power: 12V: <36W,24V: <75W
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Reverse Polarity Protection.
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED

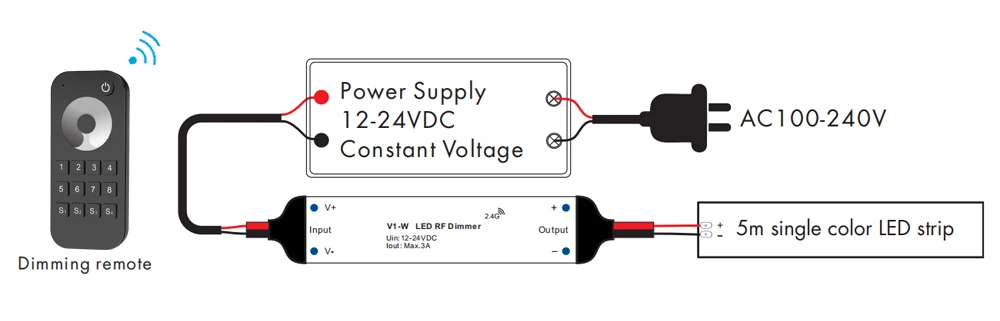

Wiring Diagram:

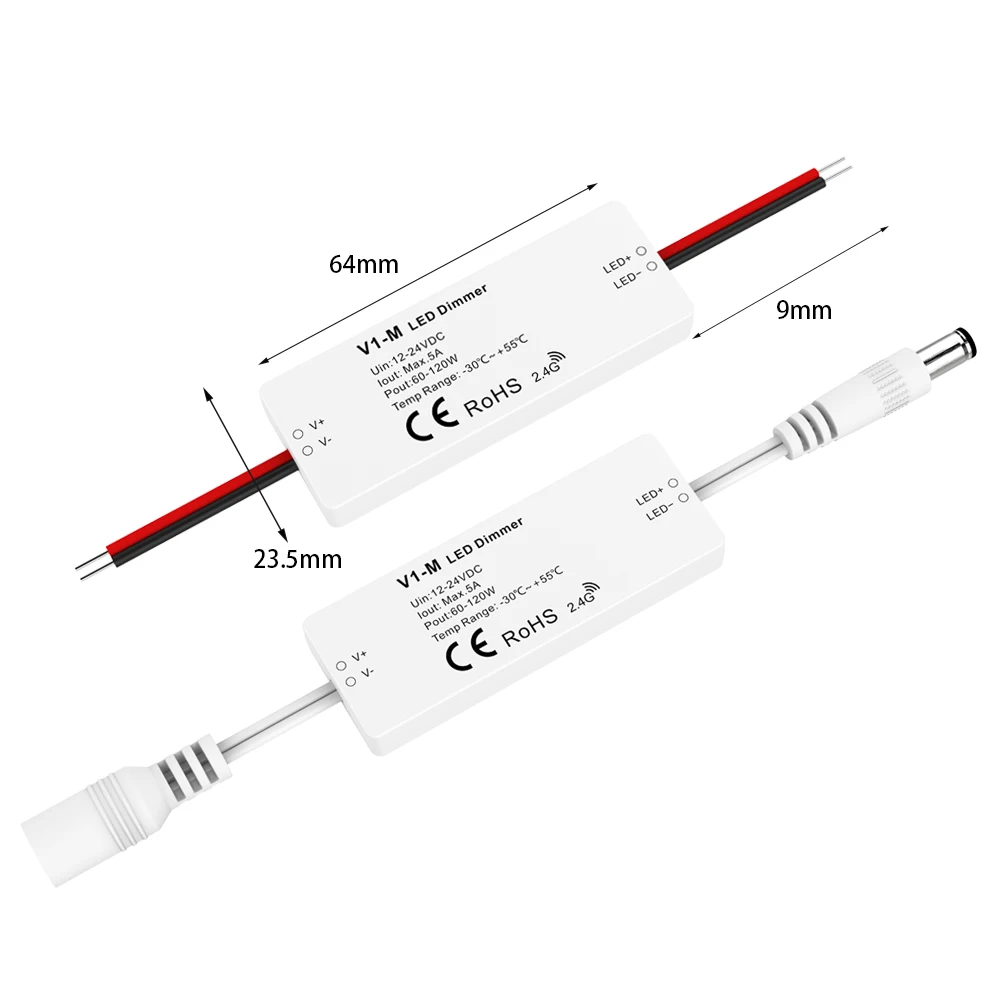

LED controller V1M, V1M DC:
Working Voltage: DC12V~24V (never connect to others or AC220V)
Compact Size: 6.4cm*2.35cm*0.9cm
Output type: Constant voltage
Max Output Current: 5A
Max Output Power: 12V: <60W, 24V: <120W
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
Protection: Reverse Polarity, Over heat, Short circuit
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED

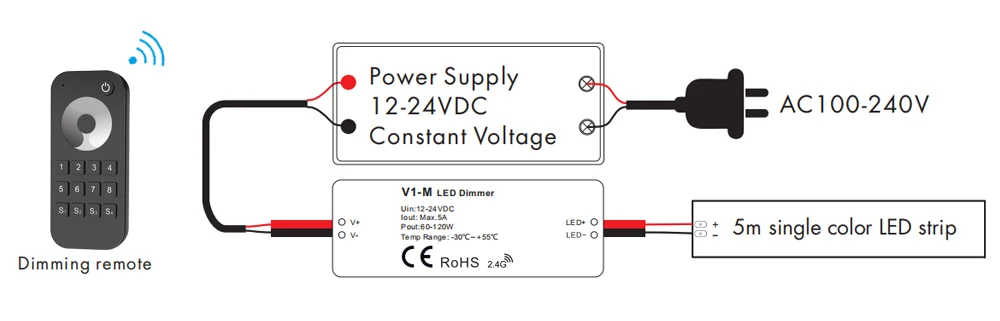

Wiring Diagram:

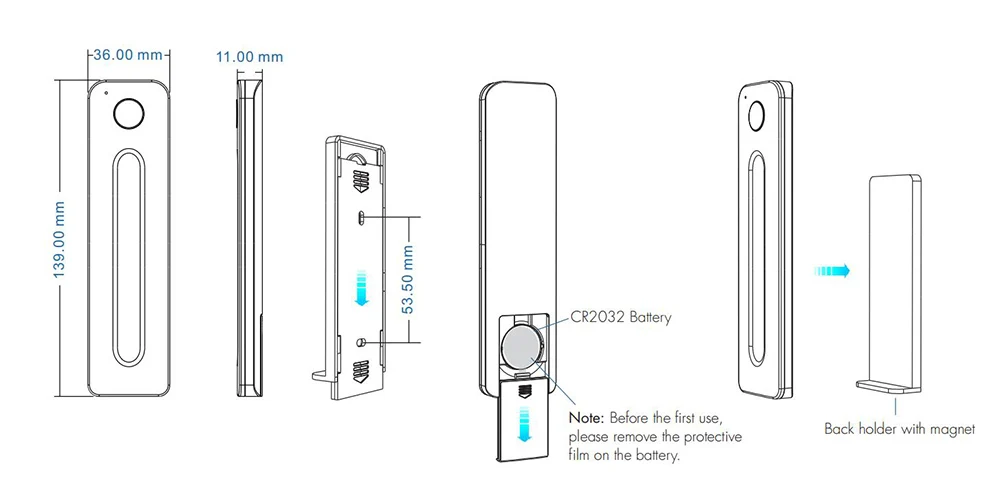

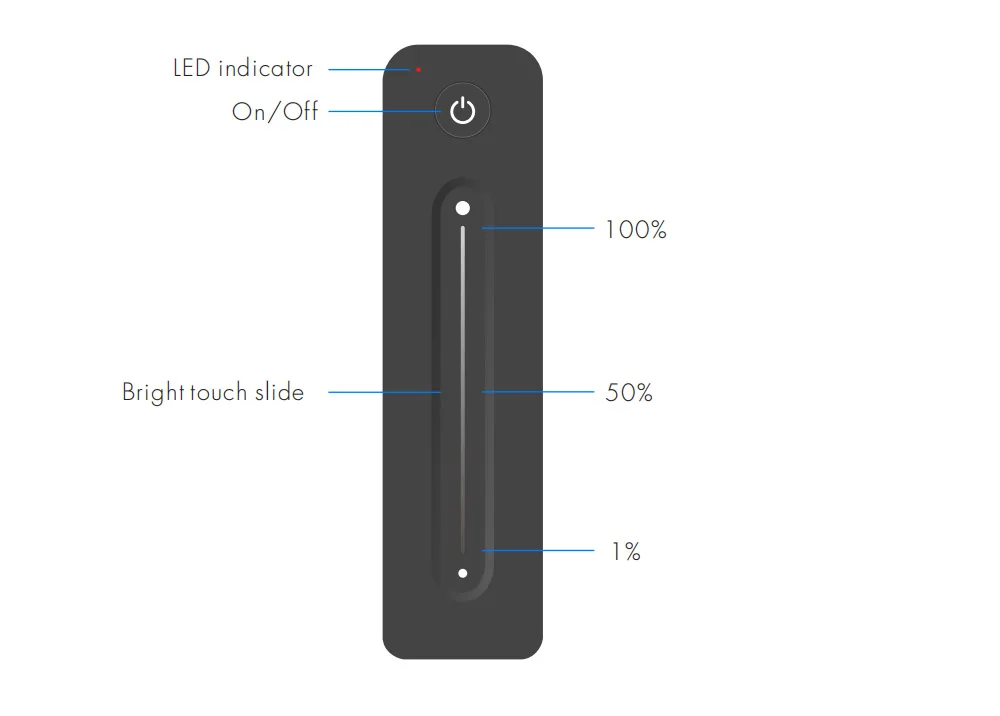

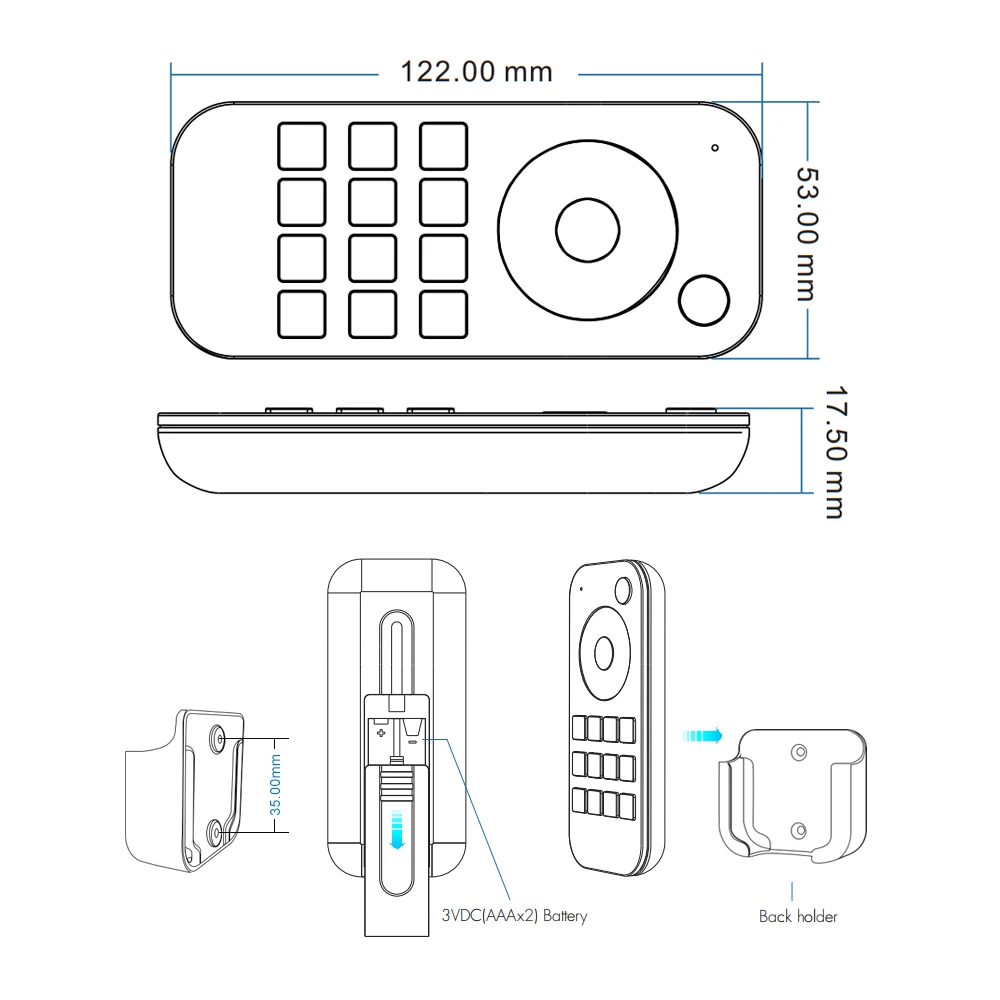

Remote Controls:
Features:
1) Ultra sensitive color adjustment touch slide.
2) Each remote can match one or more receiver.
3) CR2032 battery powered(Battery no included).
4) Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Parameter:
Working Voltage: 3V DC(CR2032)
Body material: Plastic
Output Signal: RF(2.4GHz)
Working current: ＜5mA
Standby current: ＜10μA
Standby time: 1 year
Remote distance: 30m(Barrier-free space)
Work temperature: -30~55°C
Not waterproof
Input signal: RF 2.4GHz + Push Dim
Control distance: 30m(Barrier-free space)
Dimming gray scale: 4096 (2^12) levels
Dimming range: 0 -100%
Dimming curve: Logarithmic
PWM Frequency: 500Hz (default)
EMC standard (EMC): EN301 489,EN 62479
Safety standard(LVD): EN60950
Radio Equipment(RED): EN300 328
Certification: CE,EMC,LVD,RED
Remote R11: DIM, 1 Zone

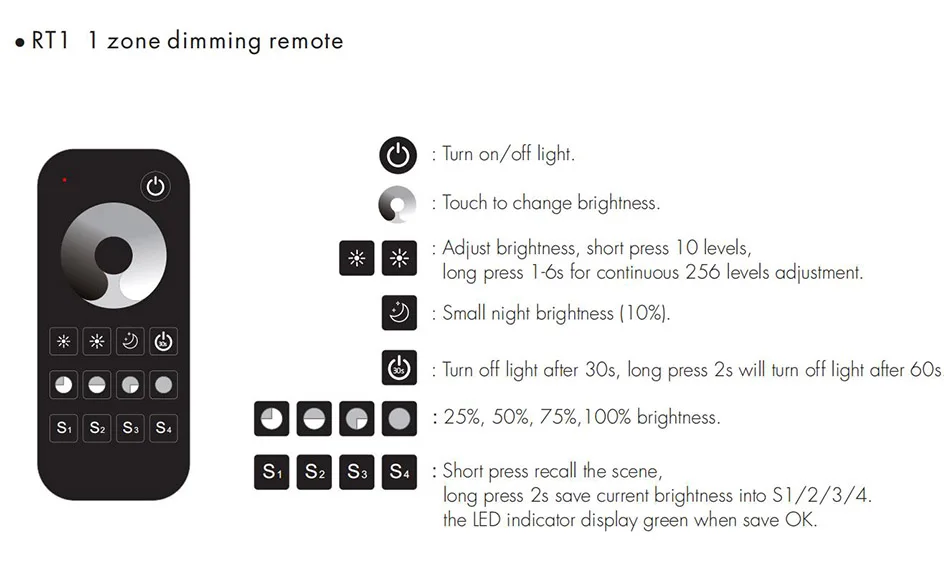

Remote RT1: DIM, 1 Zone

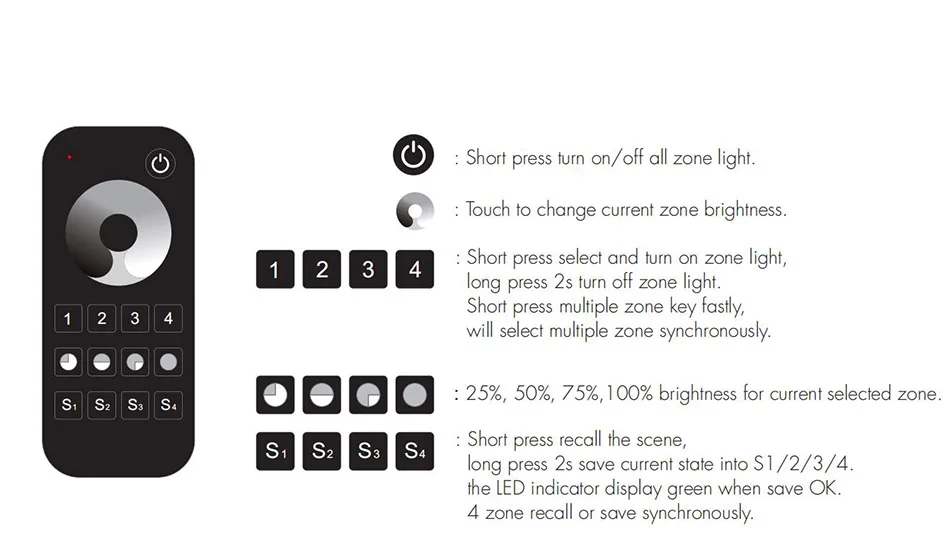

Remote RT6: DIM, 4 Zone
Match Remote Control (two match ways)
When match different color remote, the controller become different light type automatically. End user can choose the suitable match/delete ways. Two options are offered for selection:
1) Use the controller's Match key
Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) of the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match.
The LED indicator fast flash a few times, means all matched remotes were deleted.
2) Use Power Restart
Match:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote), or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) , or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
