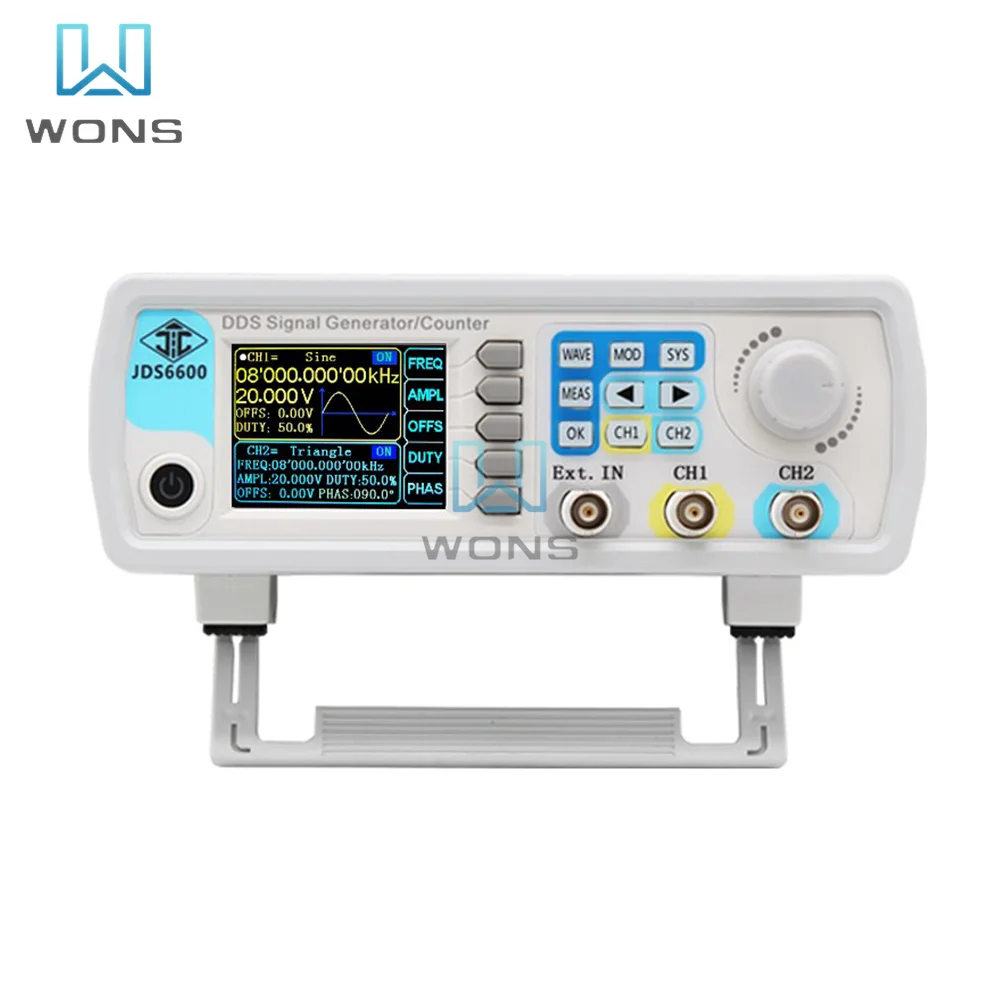

JDS6600 15M двухканальный цифровой DDS функциональный генератор сигналов/произвольный

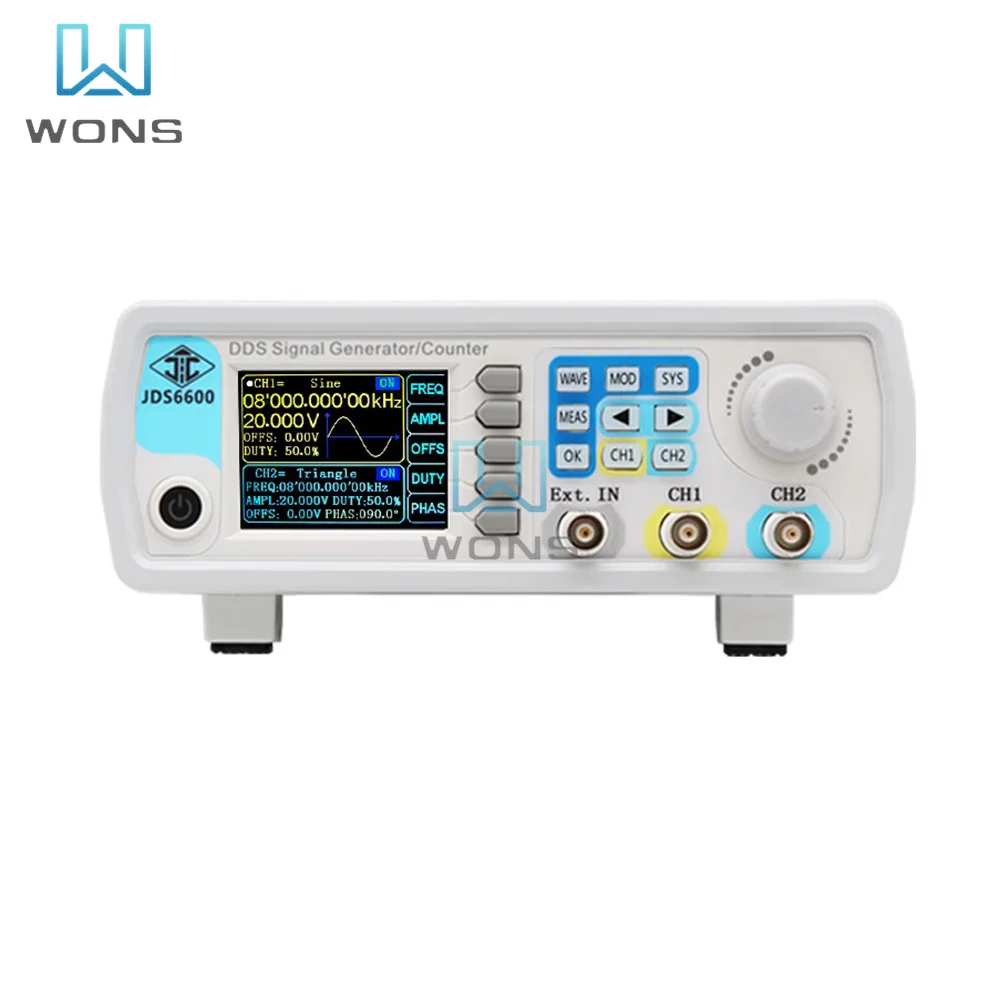

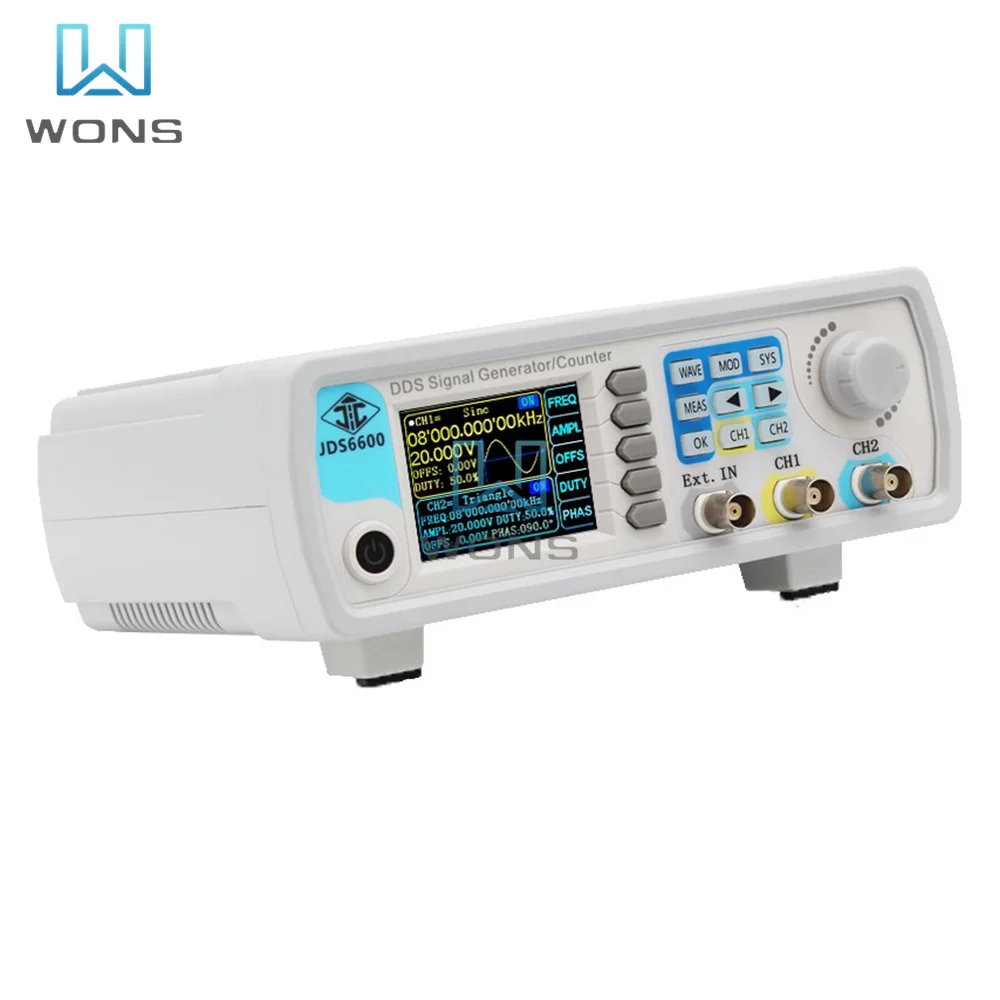

JDS6600 15M Dual-channel Digital DDS Function Signal/Arbitrary Waveform Generator Sweep Signal Generator /Frequency Meter

Feature:

1. Easy to operate

2. Programmable control

3. Comes with rotating bracket

4. Widely used

5. High accuracy, superior performance, multi-effect and durable

Specifications:

Working voltage: DC5V±0.5V

Display type: 2.4 inch TFT color liquid crystal display

Number of storage and loading: 100 groups, location: 00-99 (the default storage location parameter of 00 is called when the machine is turned on)

Number of arbitrary waveforms: 1 to 60, 60 groups in total (15 groups by default)

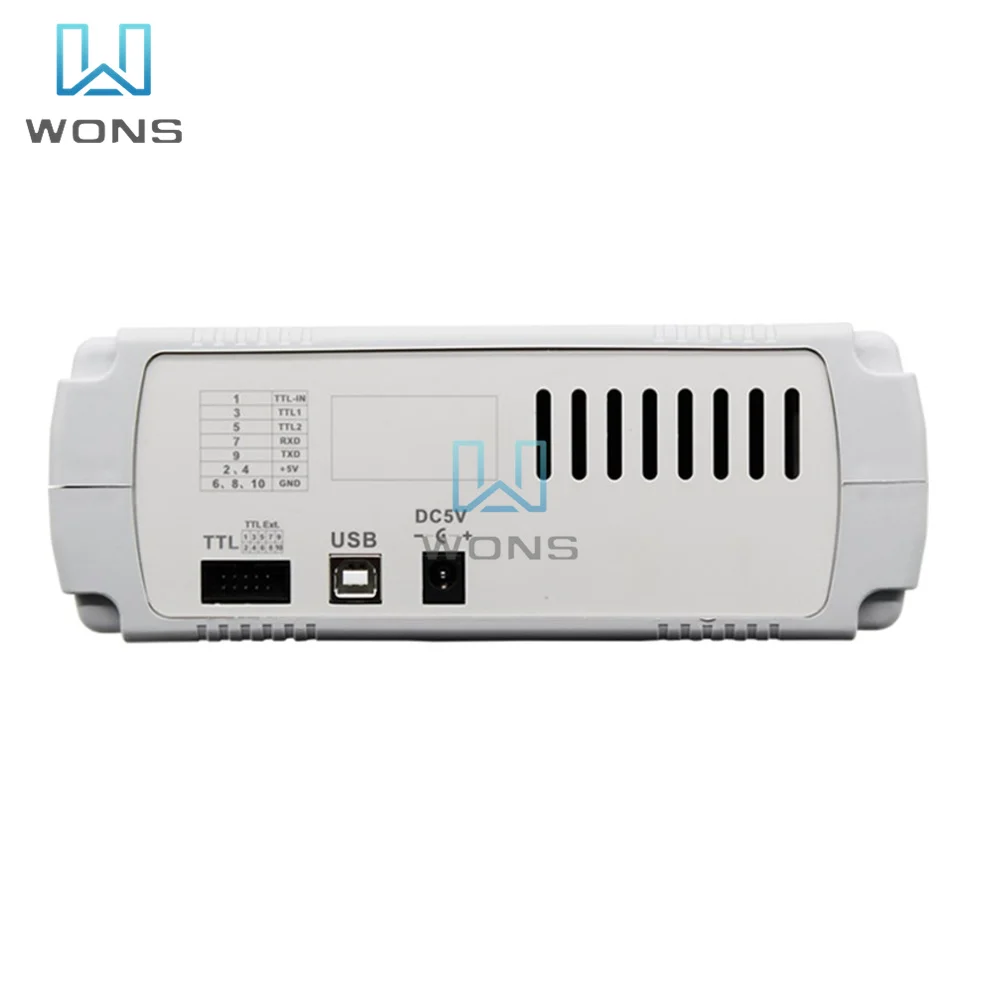

Interface mode: using USB to serial interface

Expansion interface: serial port with TTL level mode, convenient for users to develop

Communication rate: using standard 115200bps

Communication protocol: using command line mode, the protocol is open

Manufacturing process: surface mount process, large-scale integrated circuit, high reliability, long service life

Prompt tone: users can turn on or off through program settings

Operating characteristics: all key operations, continuous adjustment of the knob

Environmental conditions: Temperature: 0~40℃ Humidity: <80%

Number of burst pulses: 1-1048575

Burst mode: manual trigger, CH2 trigger, external trigger (AC), external trigger (DC)

Descriptions:

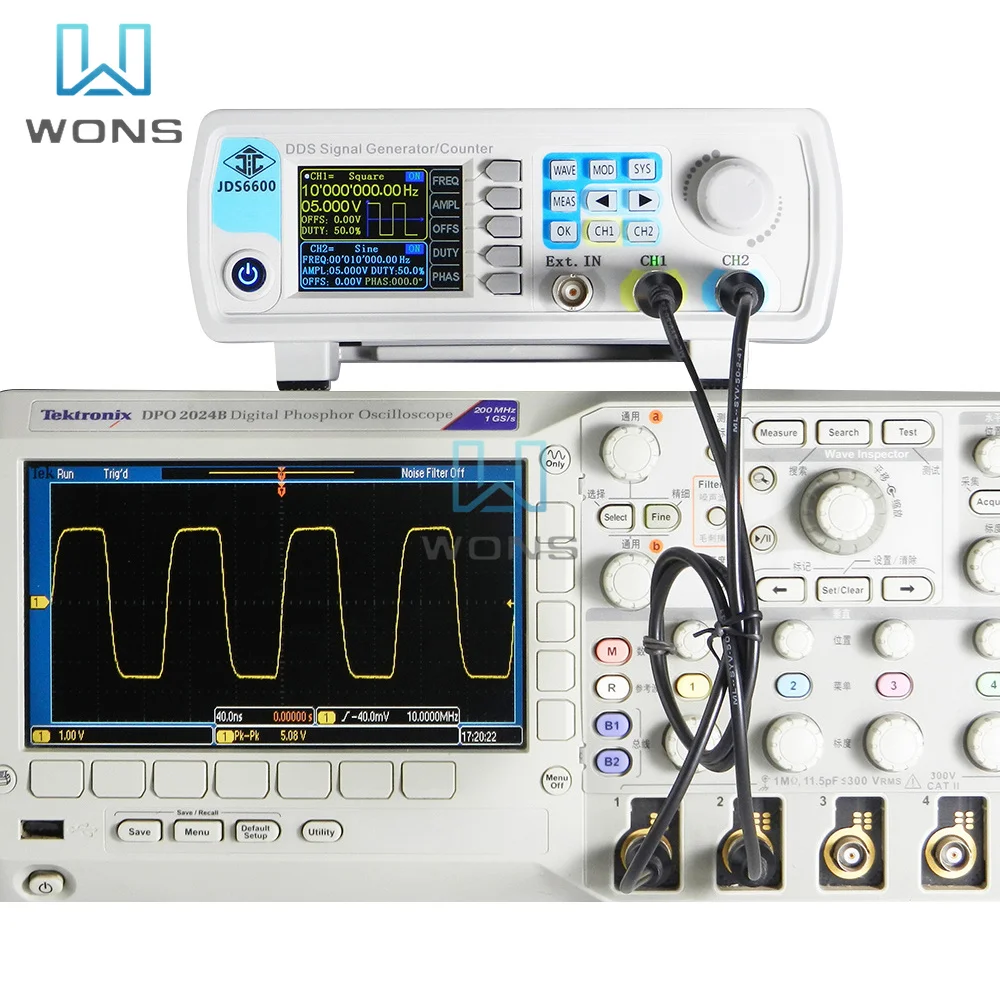

1. The two channels of equal performance can output the same or different function signals or arbitrary waveform signals at the same time; all parameters can be adjusted independently, and the phase difference between the two channels is continuously adjustable from 0-359.9 degrees;

2. Burst function: 4 trigger modes, you can use sine wave, square wave, sawtooth wave, or arbitrary wave to generate pulse train, the number of pulse period is continuously adjustable between 0-1048575.

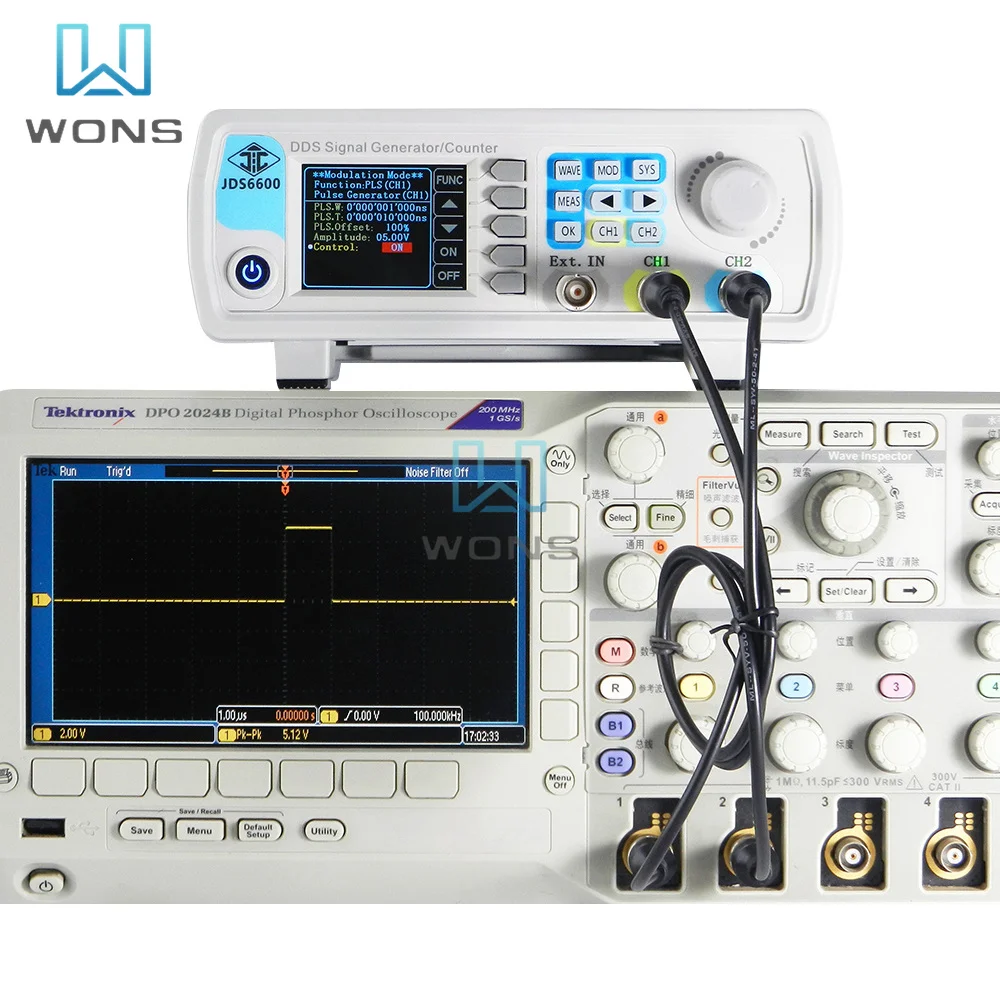

3. The pulse width and pulse cycle time of the pulse wave can be digitally adjusted accurately.

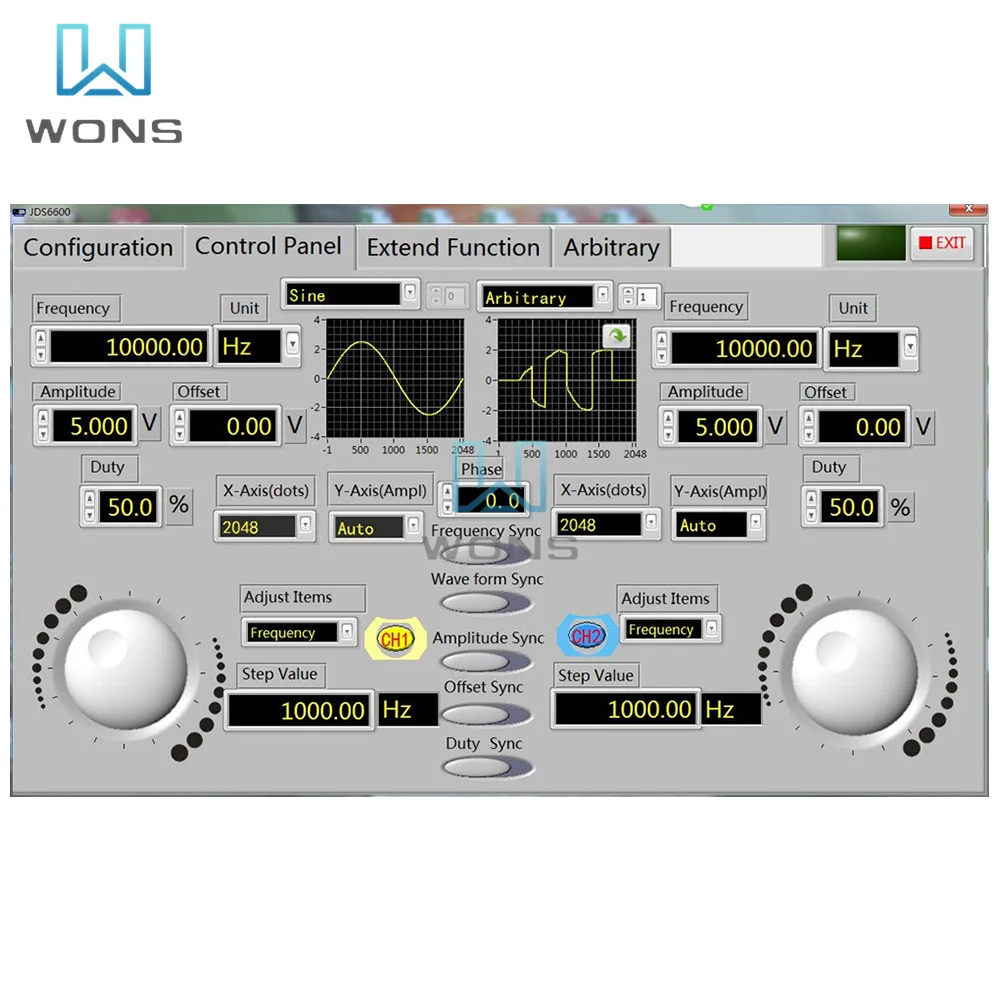

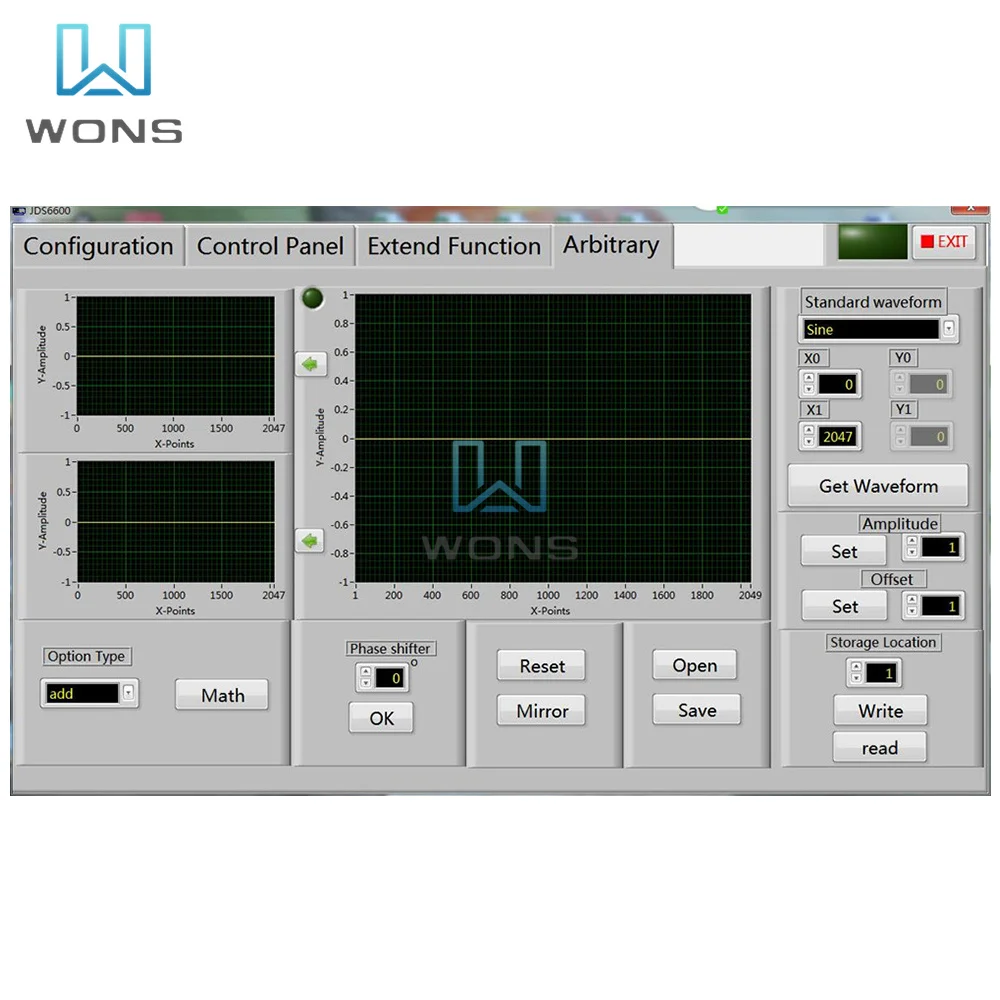

4. Arbitrary waveforms can be drawn, and the host computer software and communication protocol are provided free of charge. Arbitrary waveforms can be drawn using the host computer software;

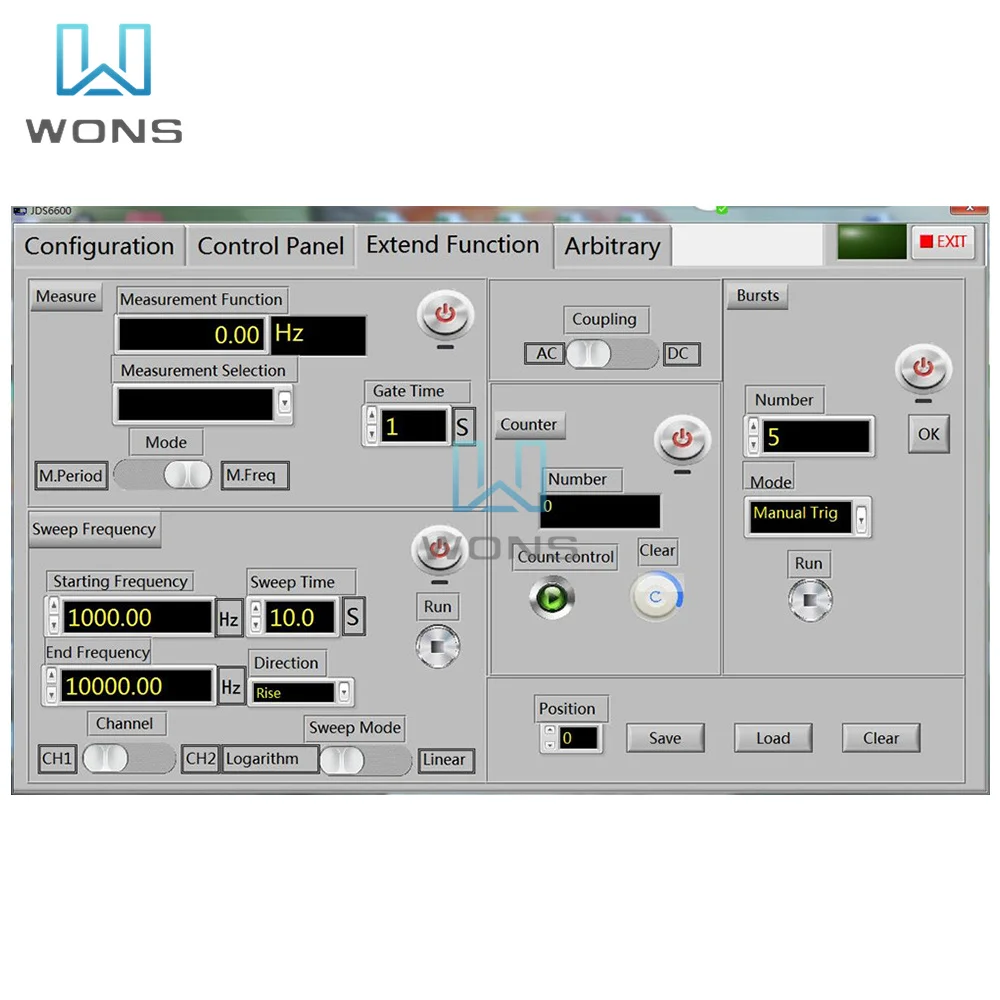

The communication protocol can be used for secondary development and programming; all the functions of the instrument can be controlled by the upper computer software (not connected to the computer, a single computer can also complete all operations).

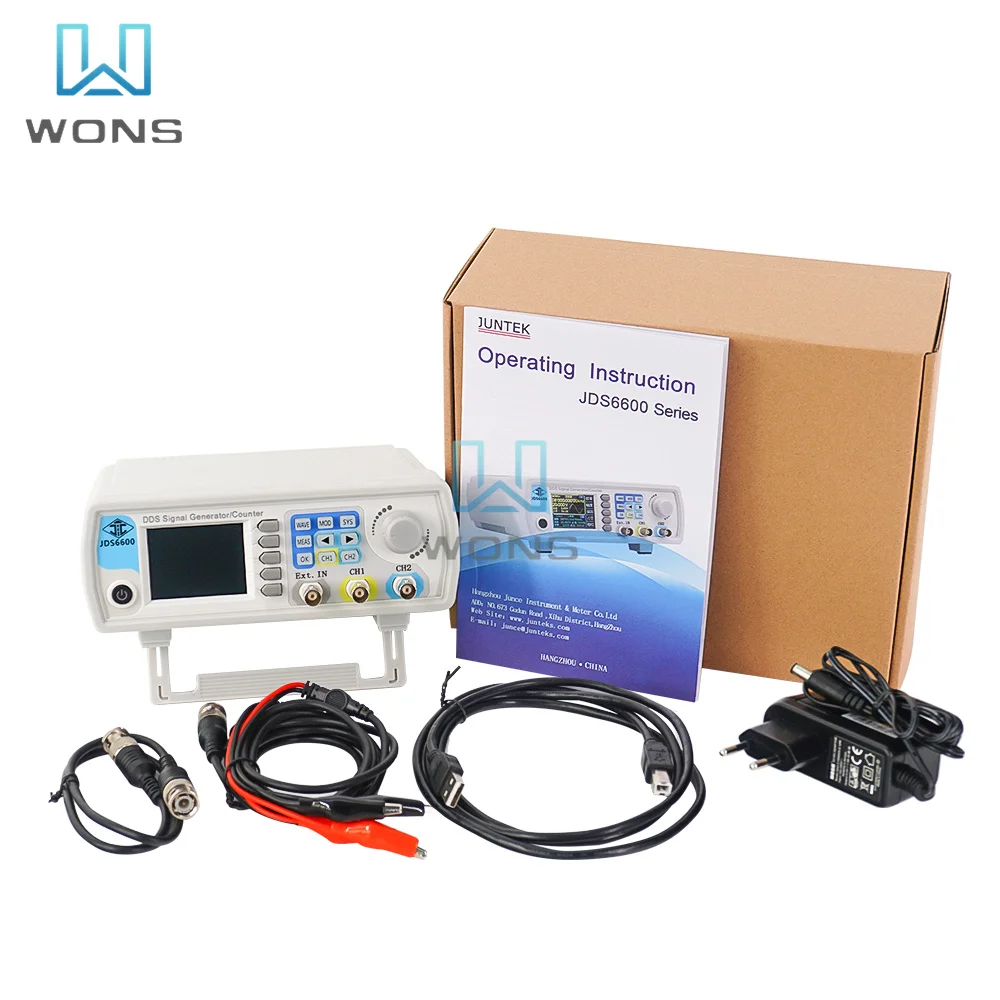

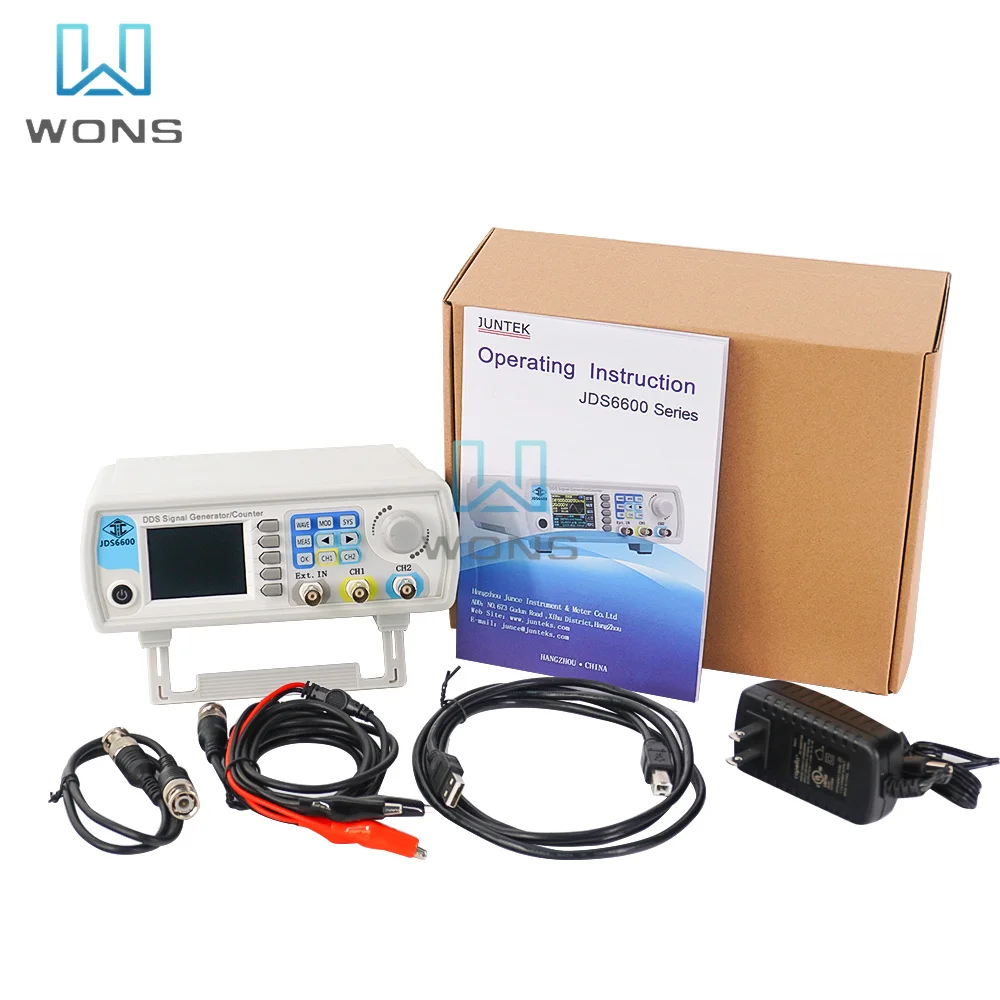

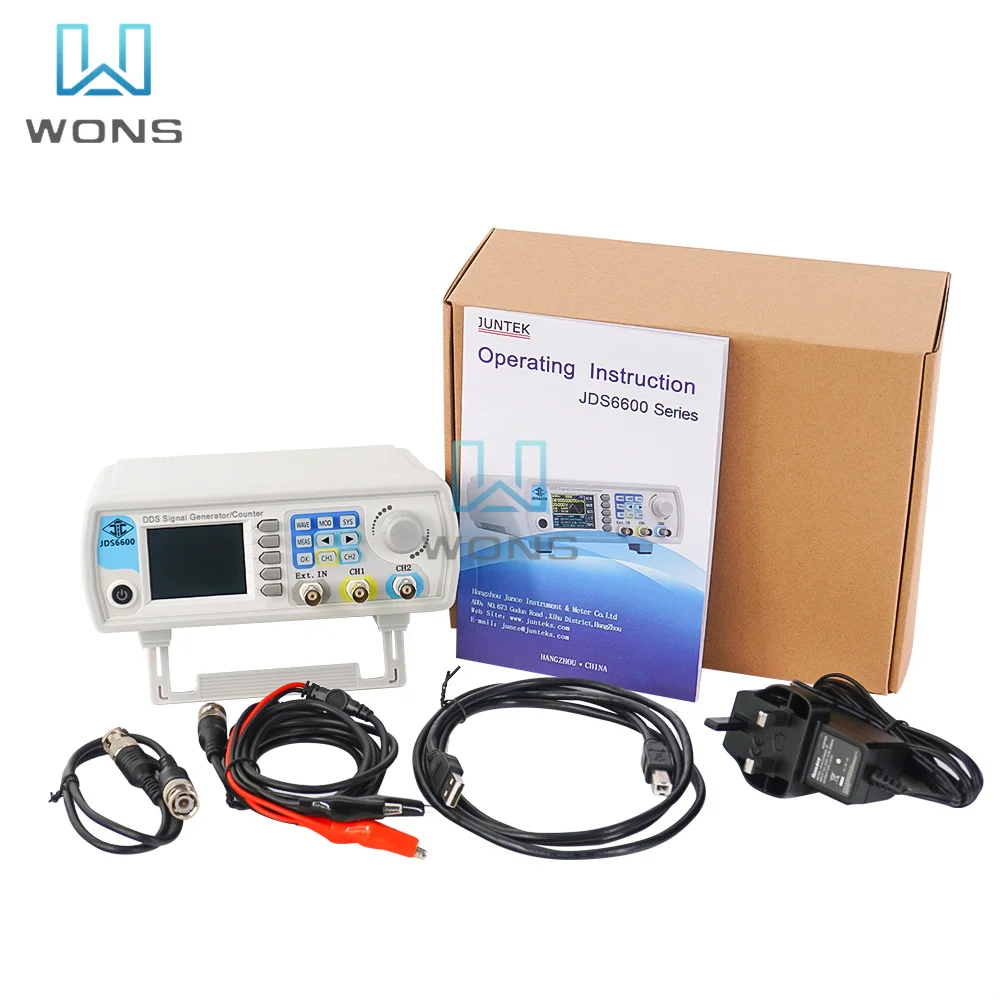

List:

JDS6600 generator*1

USB teaching data line*1

Power adapter*1

Q9 clip line*2

Q9-Q9 through line*1

English manual*1
