Оригинальный сплайсер волоконного оптического соединения K5 Fusion Splicer Q1 высокой точности, оптический нож для разрезания волокна.

---

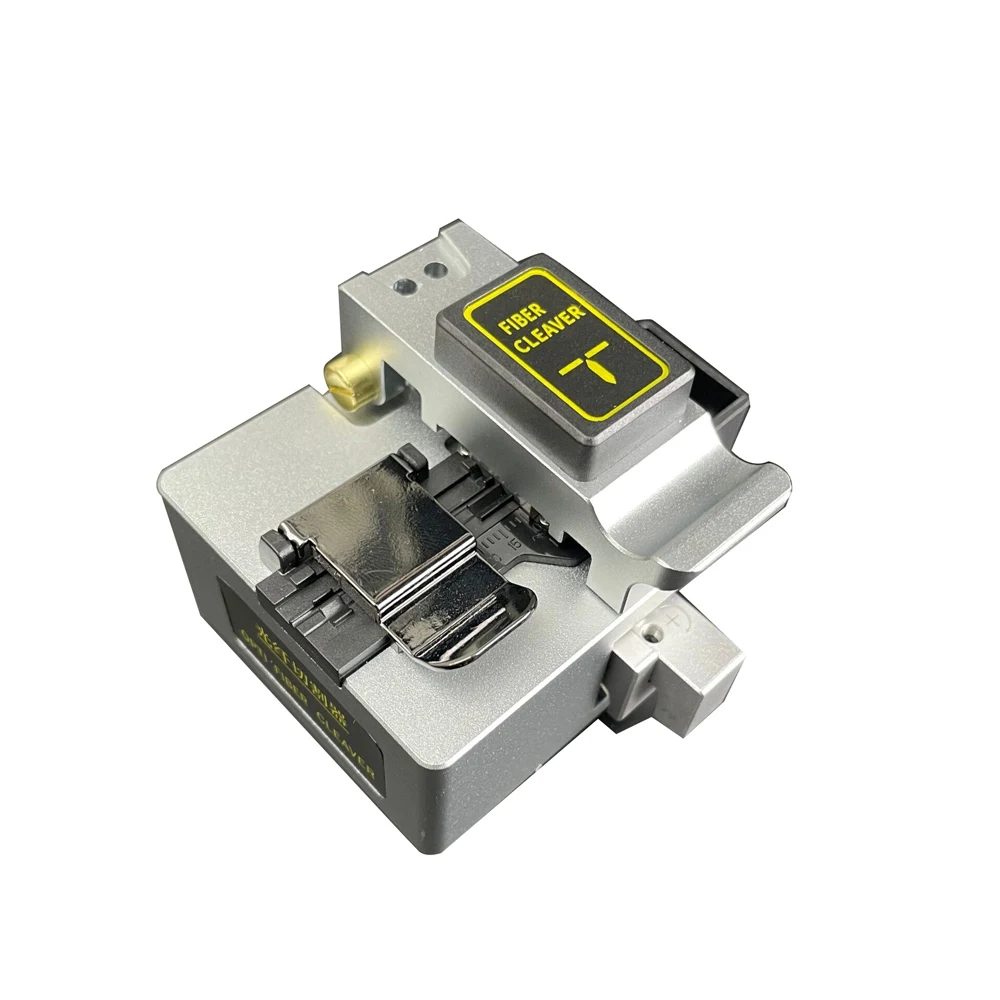

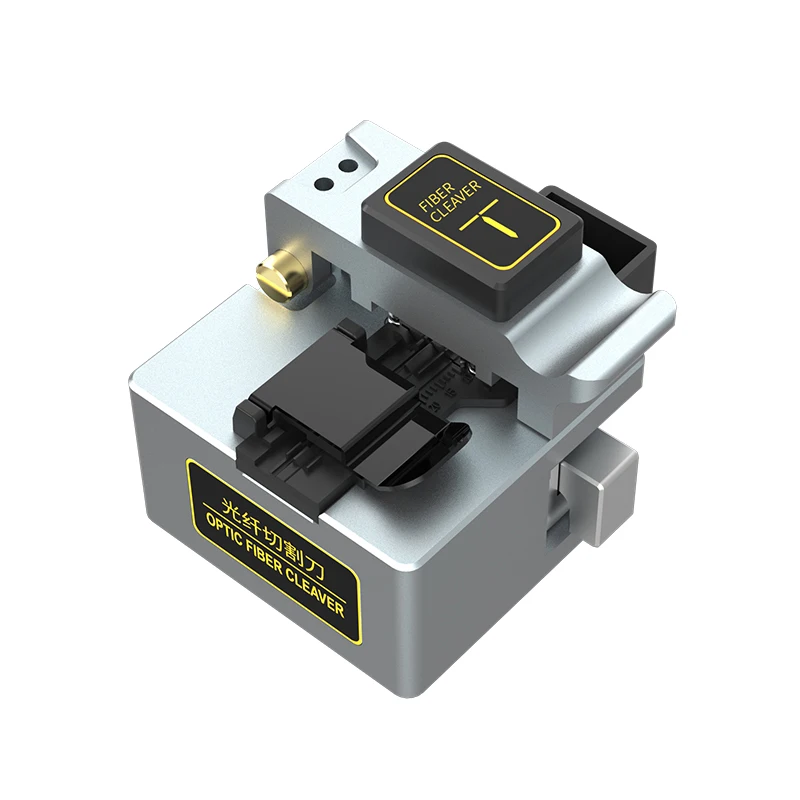

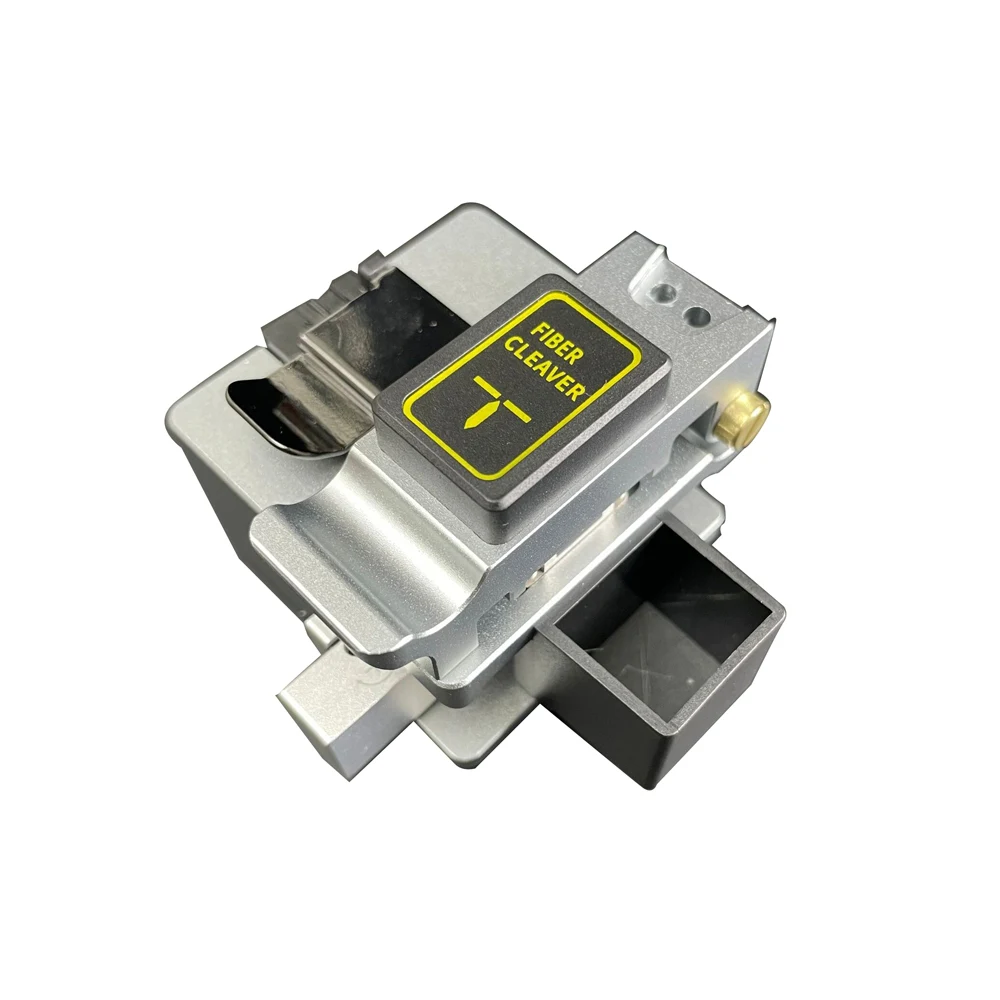

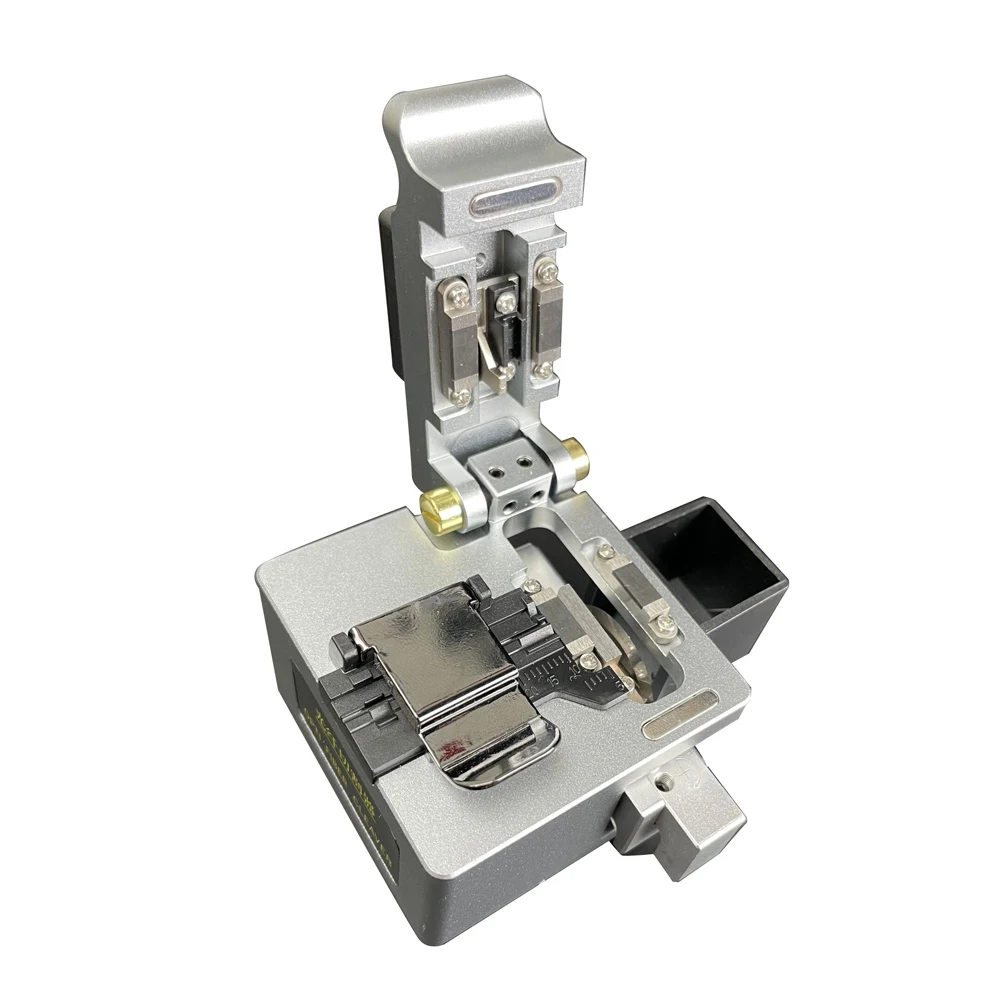

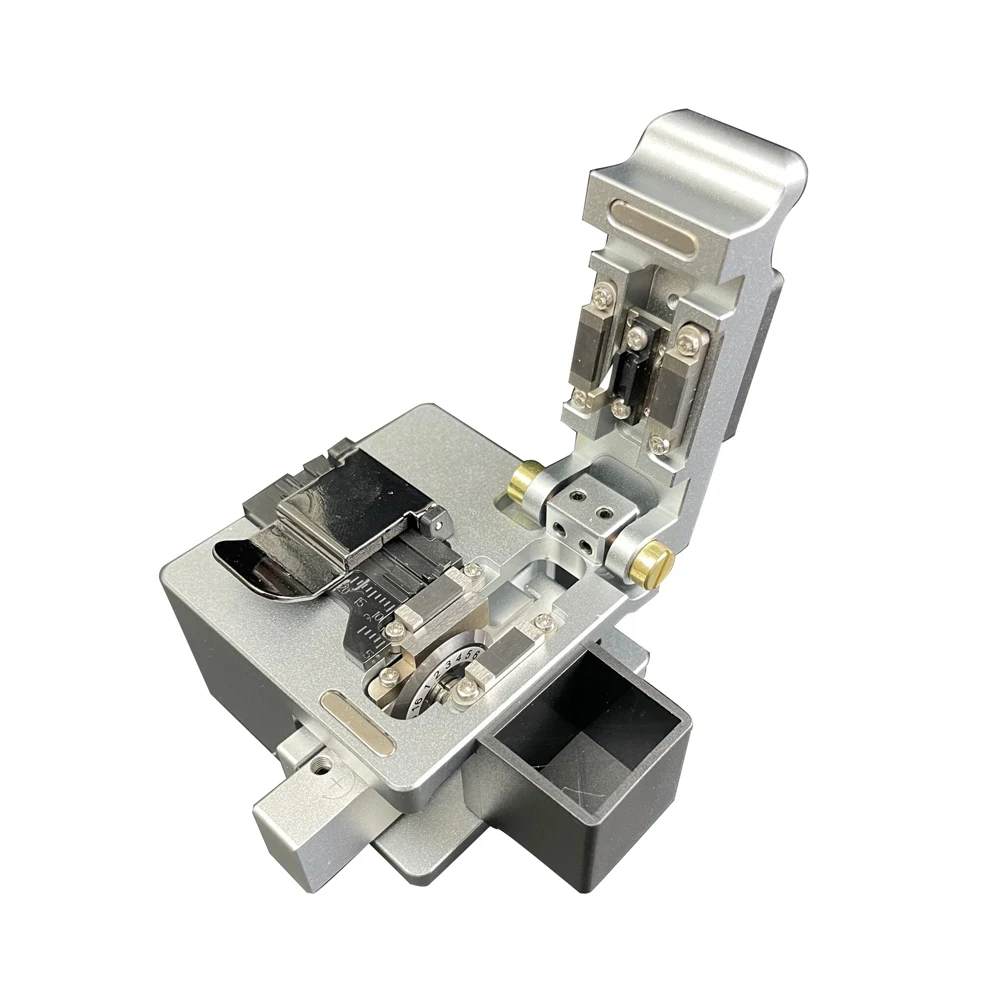

Original K5 Fusion Splicer Q1 High Precision Fiber Cleaver Optical Fiber Cutting Knife Fiber Optic Cleaver Fiber Cutter

.

Key Features: Easy-step operation to complete the cleaving and collection of waste fiber shards. Convenient and quick to operate. Either hand-held or on table/worktop surfaces. Very easy fiber setting and placing and, no need for blade height adjustment, thereforeimproving work efficiency and low maintenance cost. Smart design of pressure pads preventing the fiber from damage by the return of the bladecarriage. Main Body is made from aluminum material; Blade is made from magnesium alloymaterials, giving high strength and stability. Small, compact size and light weight. Blade has 24 Sharp Cutting Points Processed with precision CNC machine, giving precision and stability

Speficications

Applicable fibers	Silica optical fiber
Coating Diameter	250um ~ 900um
Bare fiber diameter	125um
Cleave Length	10~16mm (0.9mm) , 9-16mm (0.25mm)
Cleave Angle	≤0.5°
Blade Life	>48,000 cleaves
Dimension	63 mm(W)×56(D)mm×56mm(H)
Weight	280g





---
