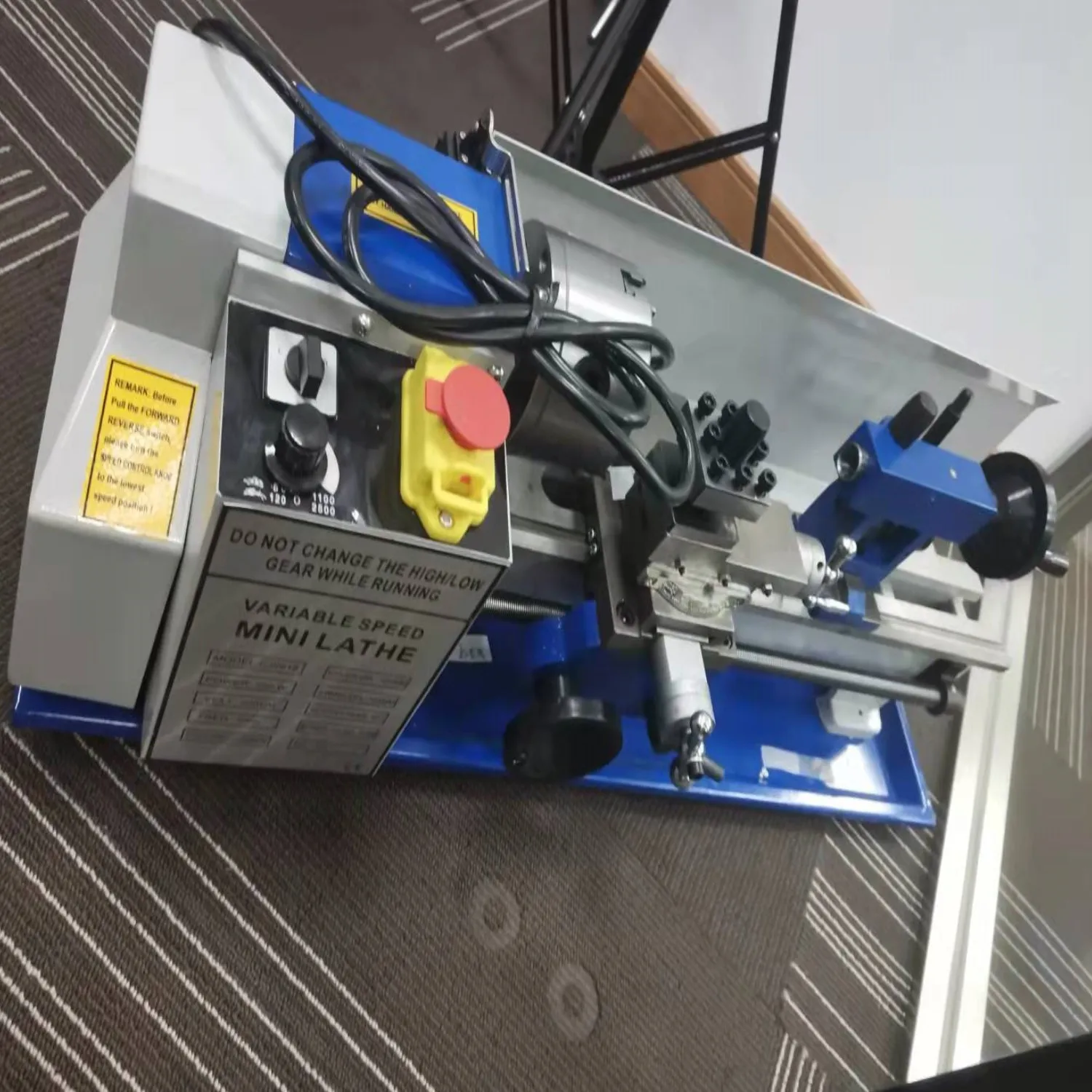

550W 7" X 14" Variable-speed Metal Lathe

The 7 x 14 Inch Precision Mini Benchtop Lathe features a 3-jaw chuck, a MT3 spindle taper, a MT2 tailstock taper, a tool rest and a 3/4 HP motor, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed. 0-2500Rpm spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.

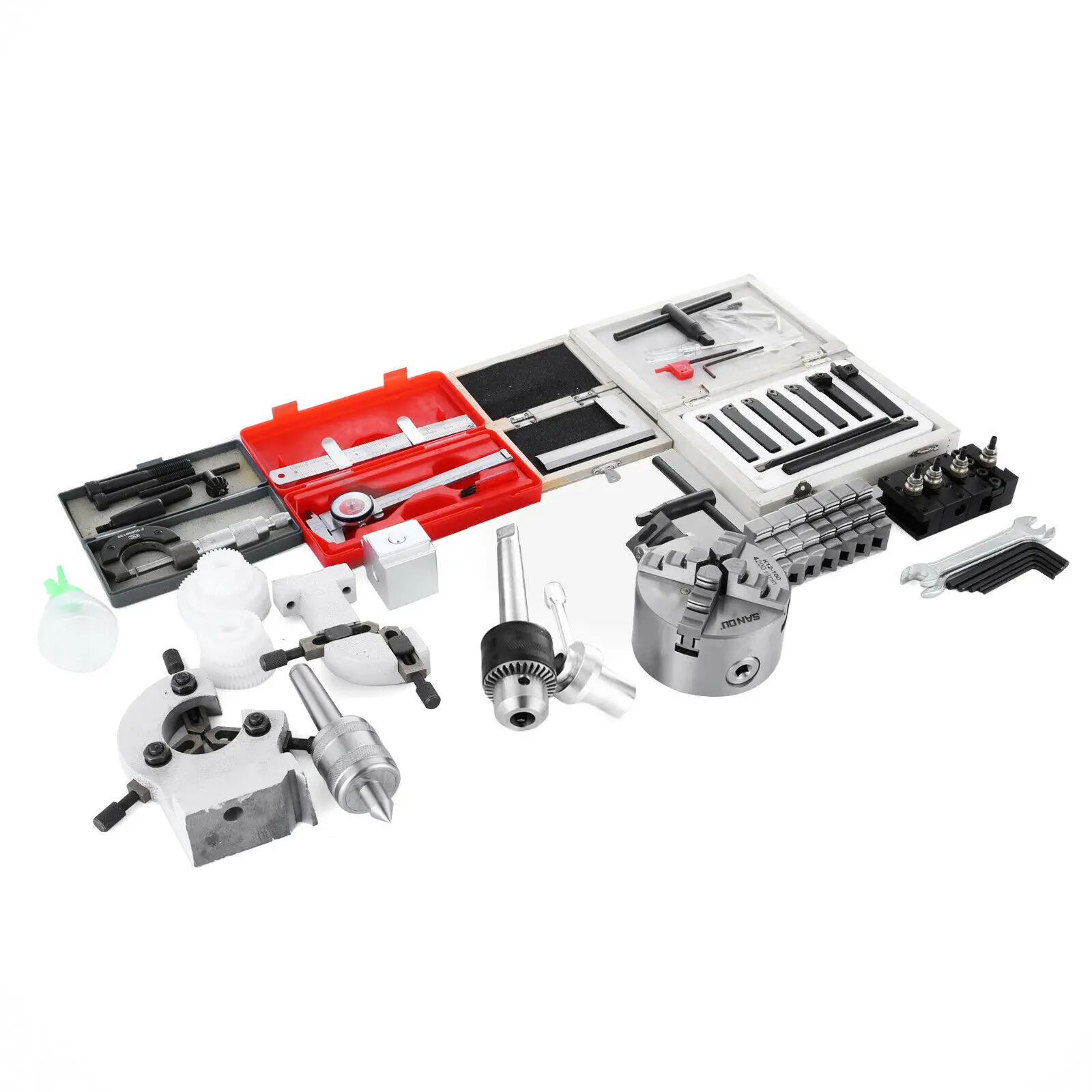

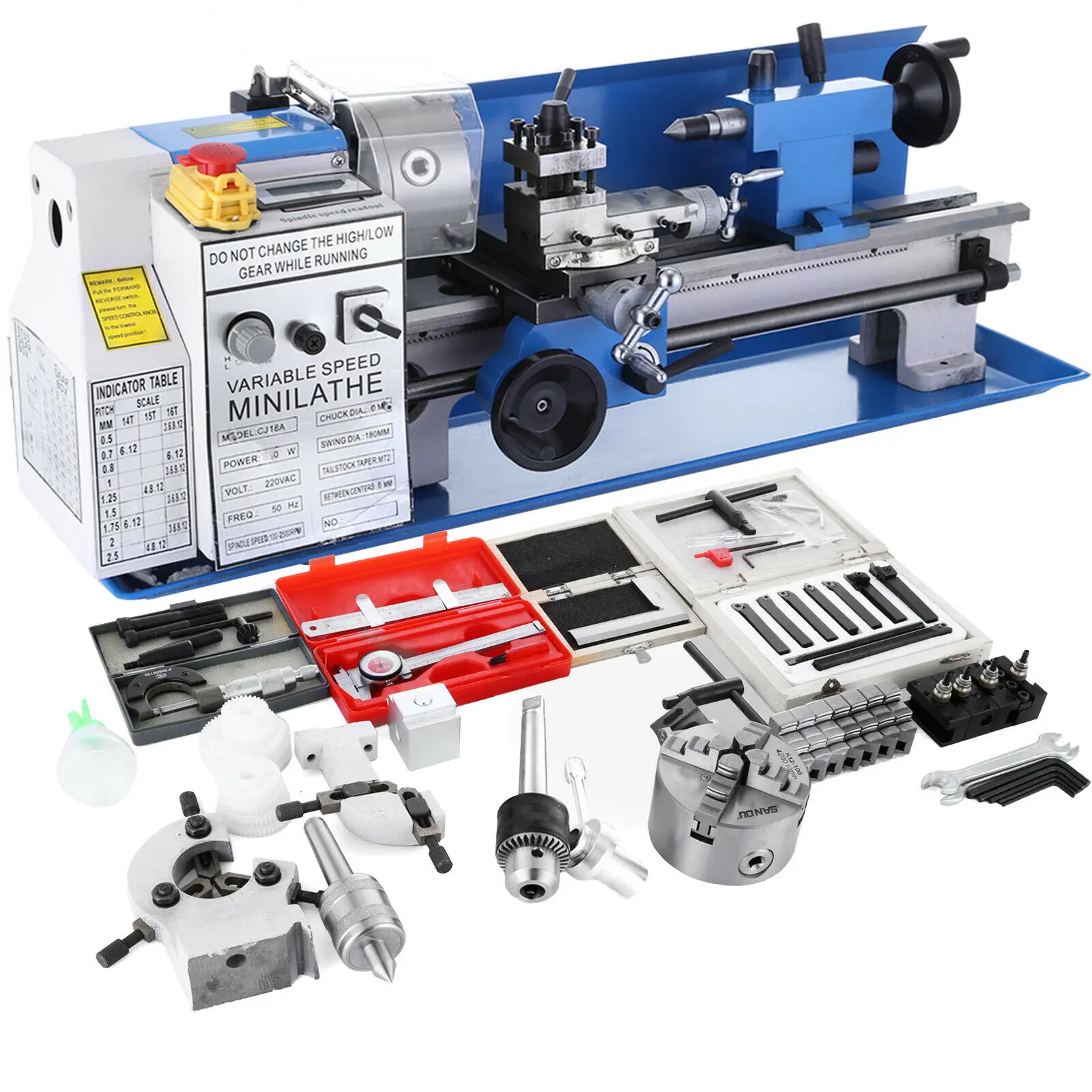

Additional accessories include: lathe tool, center frame, chuck, etc.

If you don’t need an accessory kit, we provide basic accessories that can meet your needs
Basic accessories: chucks, gears, chuck jaws, etc.

Europe   : 220V-240V America : 110V

Heavy & Sturdy Machine

Features a 7 inch swing over bed, 13.78 inch distance between centers and 21mm spindle bore. Includes a thread range of 12-52 TPI, threading dial indicator and standard and metric handwheel graduations.

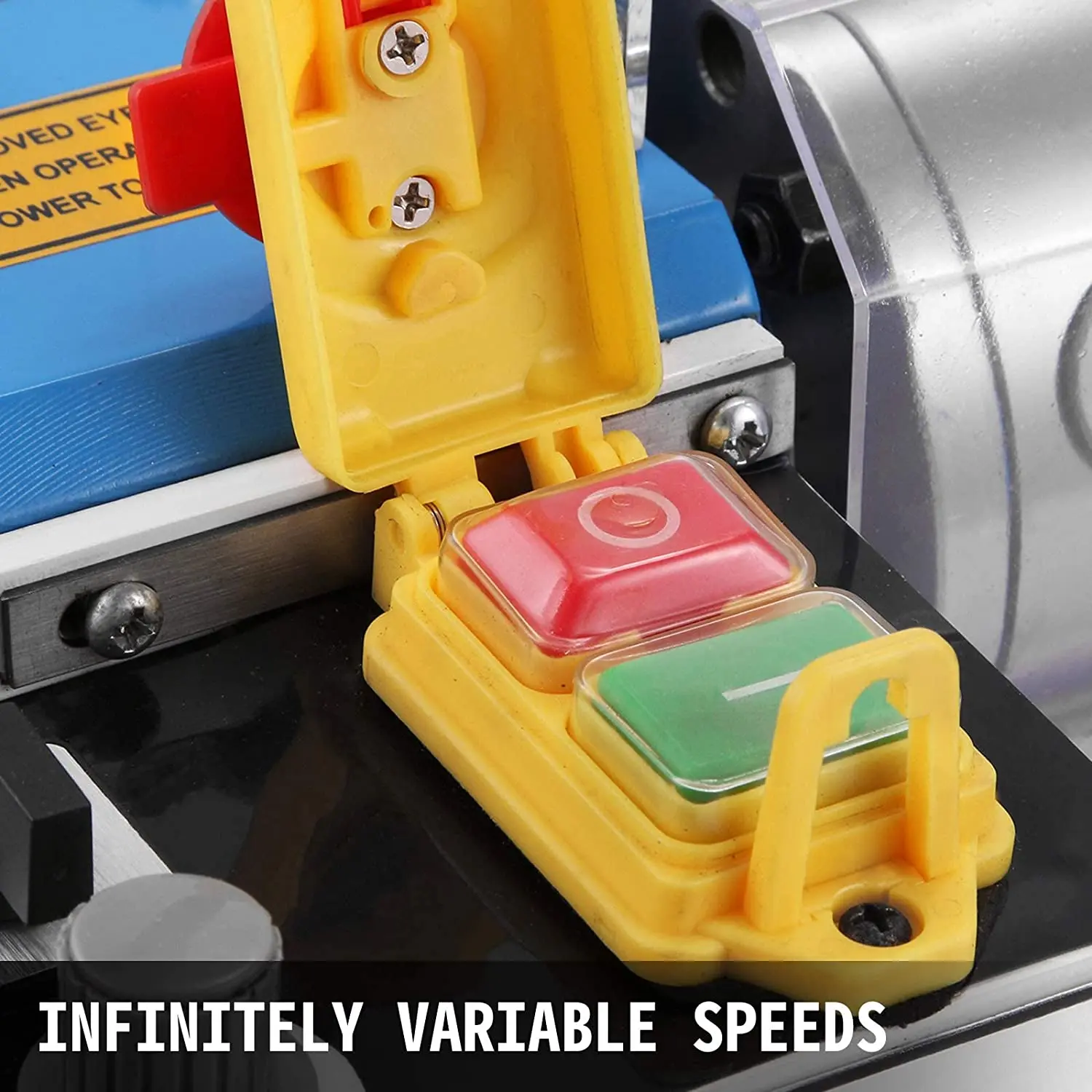

Infinitely Variable Speeds

Variable speed from 0-2500 Rpm. Forward and reverse in all speeds. Operate either manually or with the adjustable auto feed rate. The feed speed can be adjusted according to the requirements of different workpieces.

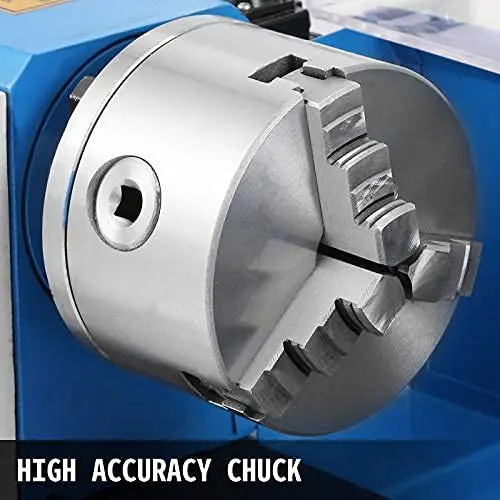

High Accuracy Chuck

3-jaw self-centering chuck has gone tested with accuracy and repeatability to set cylindrical materials steadily. Backsplash guard included. Spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01mm.

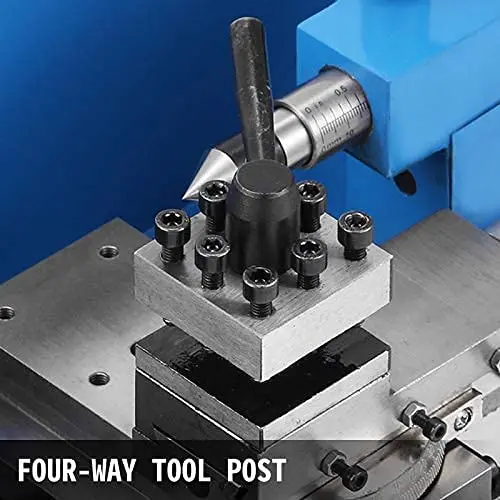

Four-way Tool Post

T-slotted compound slide with four-way tool post, 4 blades avaliable at most, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

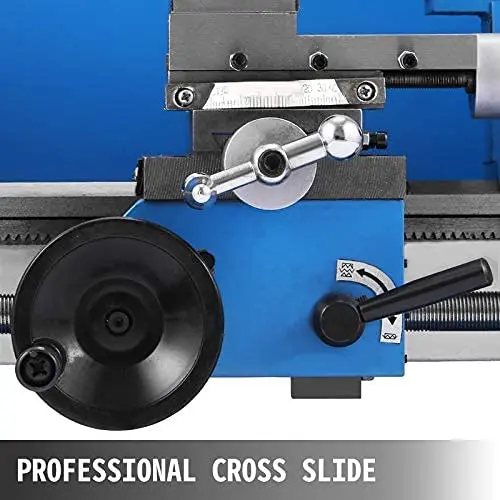

Professional Cross Slide

Designed with abrasive resistance, moving blades freely with feed rod. 16 TPI reversible lead screw. The v-slideways with distance between center: 350mm(13.78").

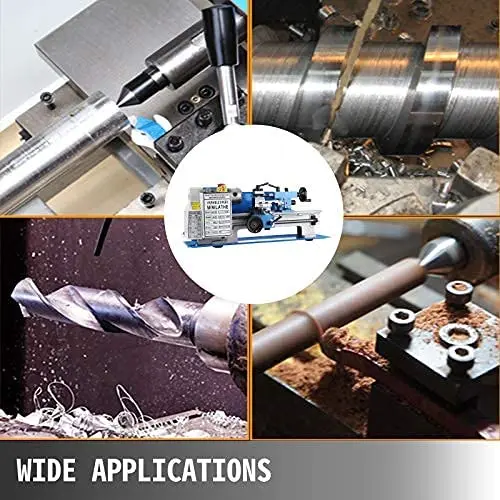

Wide Applications

Suitable for processing jobs, like counter face turning, driling, threading and cutting jobs on materials made up of round bar. All accessories are well packed.

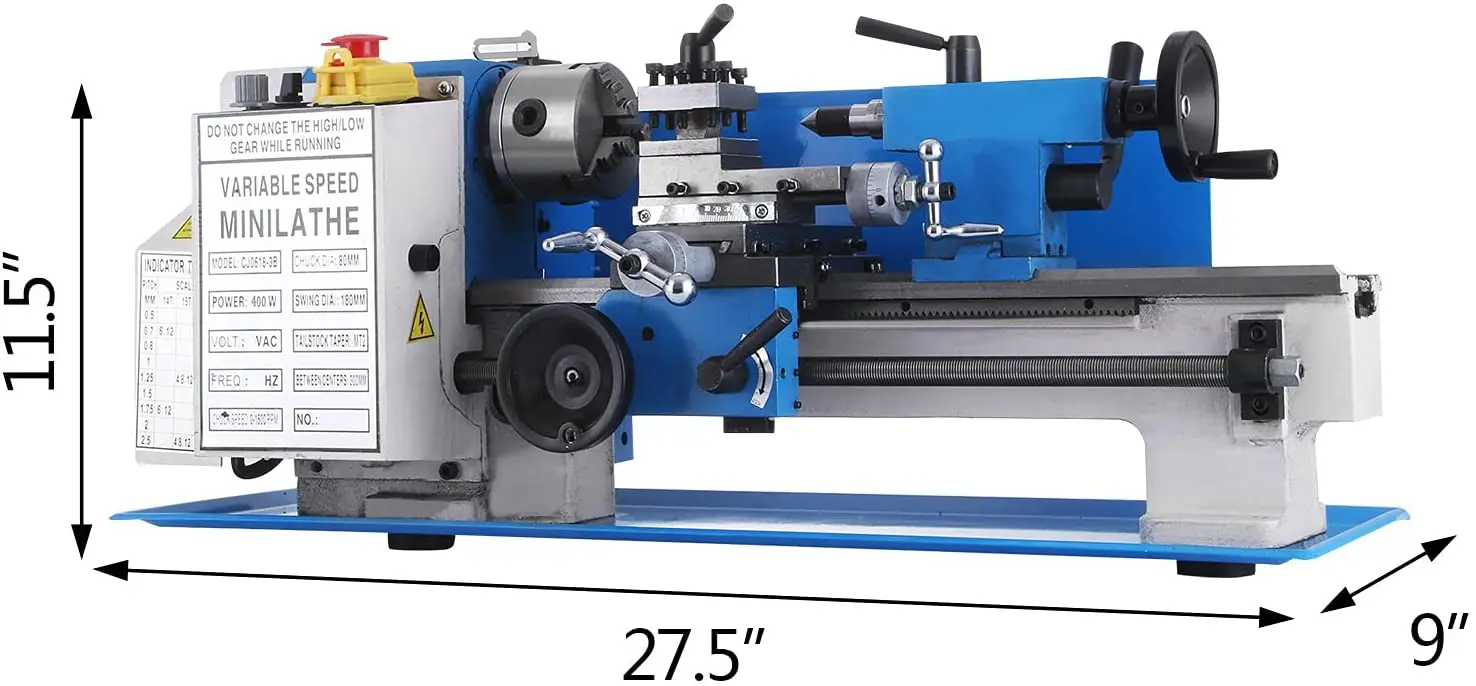

Specifications

Power of Motor: 550W DC Single Phase
Spindle Speed: 0-2500 RPM
Swing Over Bed: 180mm(7.09")
Swing Over Cross Slide: 110mm
Chuck Diameter: 100mm(3.94")
Centers Distance: 350mm(13.78")
Spindle Bore: 21mm(0.82")
Spindle Taper: Mt3
Tailstock Taper: Mt2
Cross Slide Travel: 65mm(2.53")

Package content:

1 x Mini Torno de Metal
3 x Mandíbula de Mandril
1 x Llave de Mandril
2 x Llave
1 x Lata de Aceite
5 x Llave Hexagonal
9 x Engranaje de Nailon de Plástico
2 x Mango
4 x Pies de Goma
4 x Tornillos
1 x Caja de Herramientas
1 x Additional accessory kit (need to be purchased separately)
