5000W ZVS Induction Heater Heating PCB Board Machine Melted Metal + Coil+Pump+ crucible+power supply |

5000W ZVS Induction Heater Heating PCB Board Machine Melted Metal + Coil+Pump+ crucible+power supply |

Brand NameNoneOriginMainland ChinaTypeHand Tool PartsMeasurement unitpiece/piecesEach pack1

Unavailable in

Description

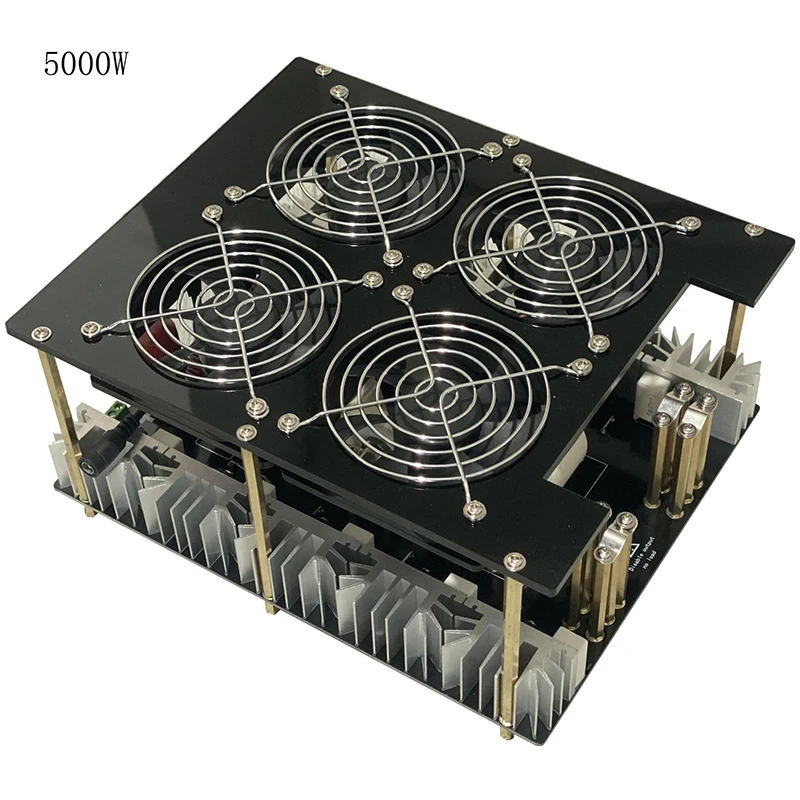

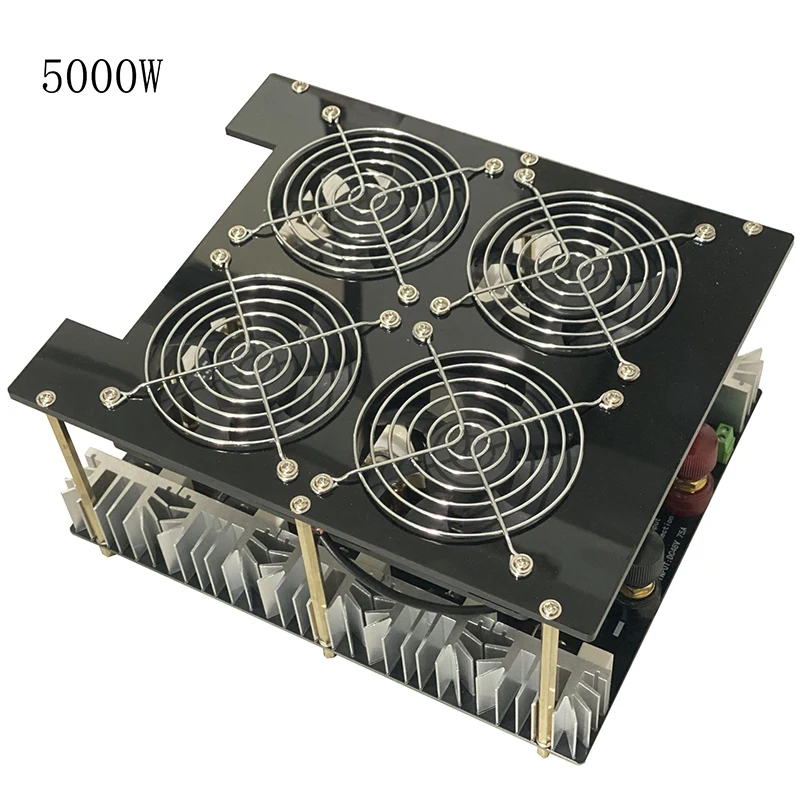

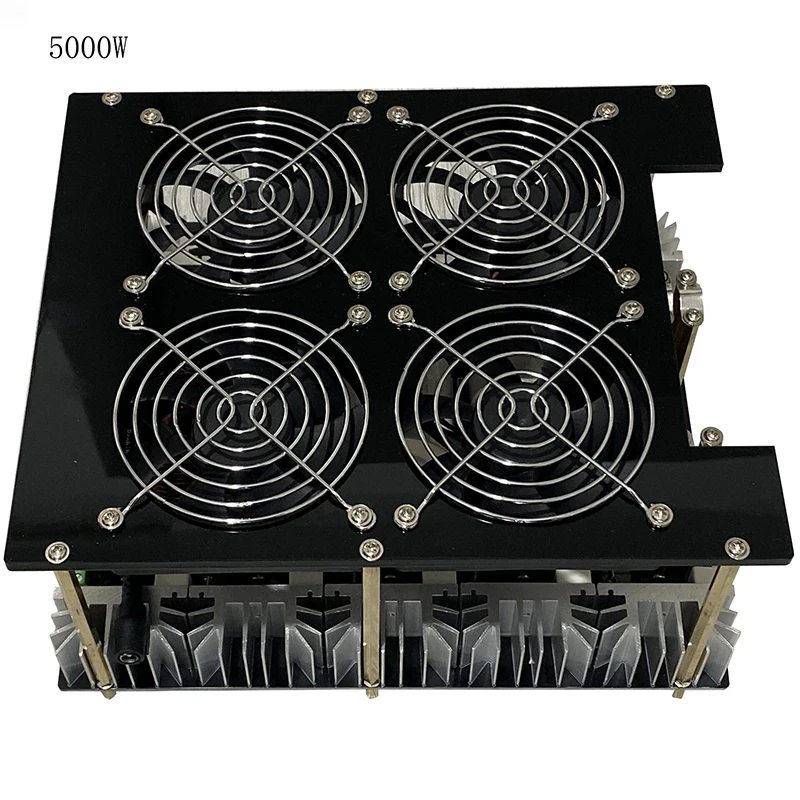

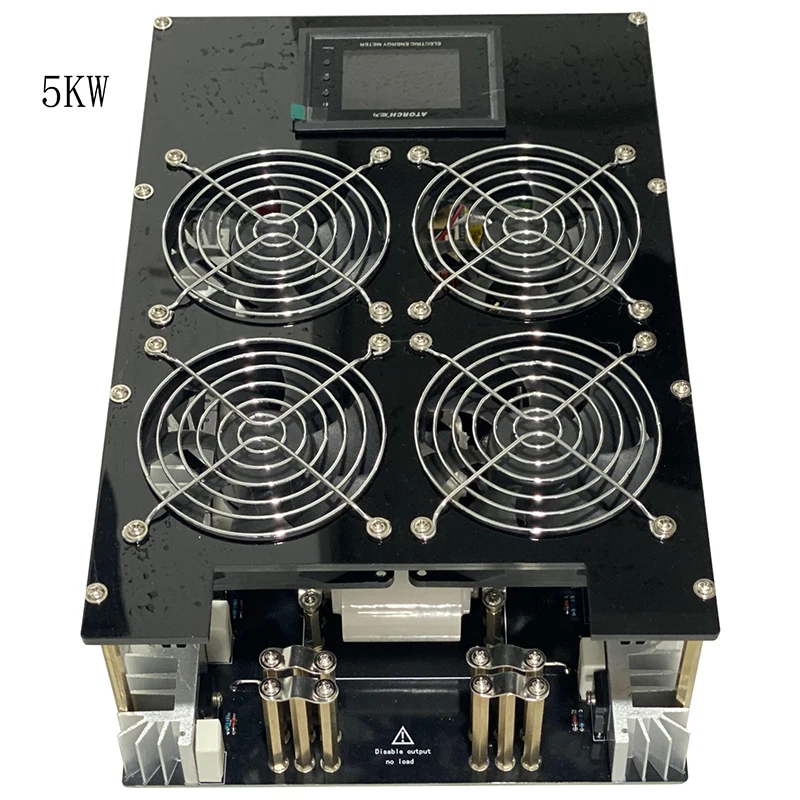

5000W ZVS Induction Heater Induction Heater PCB Board High frequency Heating Machine Melted Metal + Heater Coil + Pump + Crucible + Power Supply

This product is DC48V power supply, maximum current 100A power 5000W small power

Induction heating, especially for heating and quenching small iron metal materials, using

Support 70mL or 150ml graphite crucible maximum temperature up to 1600 degrees Celsius.

Easily melt iron copper gold silver and other metals.

Note: The power supply is dismantled, please contact the seller if you need a new power supply

: Product features and functions

1. Use 2mm thick PCB design, copper thick 2 OZ, large current, good heat dissipation;

2.4 high-power cooling fan;

3. The heating ring is wrapped with high-temperature insulation materials to prevent short circuits

During heating, and a certain heating ring is customized;

4. The input terminal uses high-current power terminals, which can be connected directly to one

Dedicated 100A power meter;

5. Send the matching water pump for water cooling the heating ring, and send a temperature

Sensor to monitor the temperature of the motherboard at any time;

6. Optional external control board function which can detect external button soft control, control

Board built-in overload protection temperature protection, etc.

: Product parameters

1. Dimensions: length, width and height 2560 * 210 * 115 (unit: mm);

2. heating ring size: 60 * 70 * 73 or 70 * 80 * 73 (inside diameter * outside diameter * height);

3. Input voltage: DC48V;

4. Maximum power: 5000W;

5. Maximum DC working current: 100A;

6. The maximum temperature of metal iron direct heating is above 1000 degrees Celsius;

7. The maximum temperature of the crucible is 1600 degrees Celsius;

: Matters that attract attention

1. Users who only purchase the main board and do not purchase the power supply must be theirs

Own power supply to ensure that the power can supply stably output more than 100A of current.

Usually, two 50A communication power supplies are used in parallel

2. The boot sequence should follow the power supply to the power supply, wait a few seconds for

The power supply to stabilize, then connect the power supply between the power supply and the

Motherboard (recommended to use a 100A power switch), and finally press the red button on the

Green control interface. Do not make mistakes, otherwise the motherboard will be burned directly

And unprotected. When down down, first turn on the red button, then turn on the switch

Between the motherboard and the power supply, and finally turn on the power switch.

3. Water cooling and air cooling need to work at the same time when working. If any of them have

Do not work, you should immediately unplug the network and contact the manufacturer for one

Solution;

4. If conditional water cooling can be used, cold water can be discharged directly into the hot water

Without blood circulation, so the heat dissipation effect is better;

5. For long-term use of crucibles, more crucibles should be prepared. The high temperature

Heating graphite will react with oxygen to produce carbon dioxide and gradually consume it

Crucible;

6. Pay attention to the changes of various display parameters at all times, especially those

Voltage and current and the temperature of the main board. Once the anomaly is found that

Service must be disconnected immediately.

Packaging:

2 x power supply (This power supply is disassembled second-hand communication power supply)

1 x PCB board

1x48V copper pipe

1x water pump

1x crucible
