Receiver essential DVB-T2/DVB-C Selenga hd980d

Selenga hd980d-a modern essential-cable set-top box with H.265/HEVC codec and Ethernet port with various Internet applications, full-size wireless and wireless Internet

New CPUNationalChip GX6702H5Is combined (now demodulator inside), has built-in interfaceEthernetSupport codecH.265/HEVC. Processor speed 594 MHz, Ram frequency 667 MHz. Memory DDR2 with a volume of 64 Mbytes (as in other combined processors of consoles). The previous gx3235s processor has a 574 MHz clock frequency.

The prefix comes in a colorful box with a description of key features, including codec supportH.265/HEVC, Network port availabilityLANAndLearningRemote control:

On the back side-the reverse side of the console, the main characteristics, the complete set:

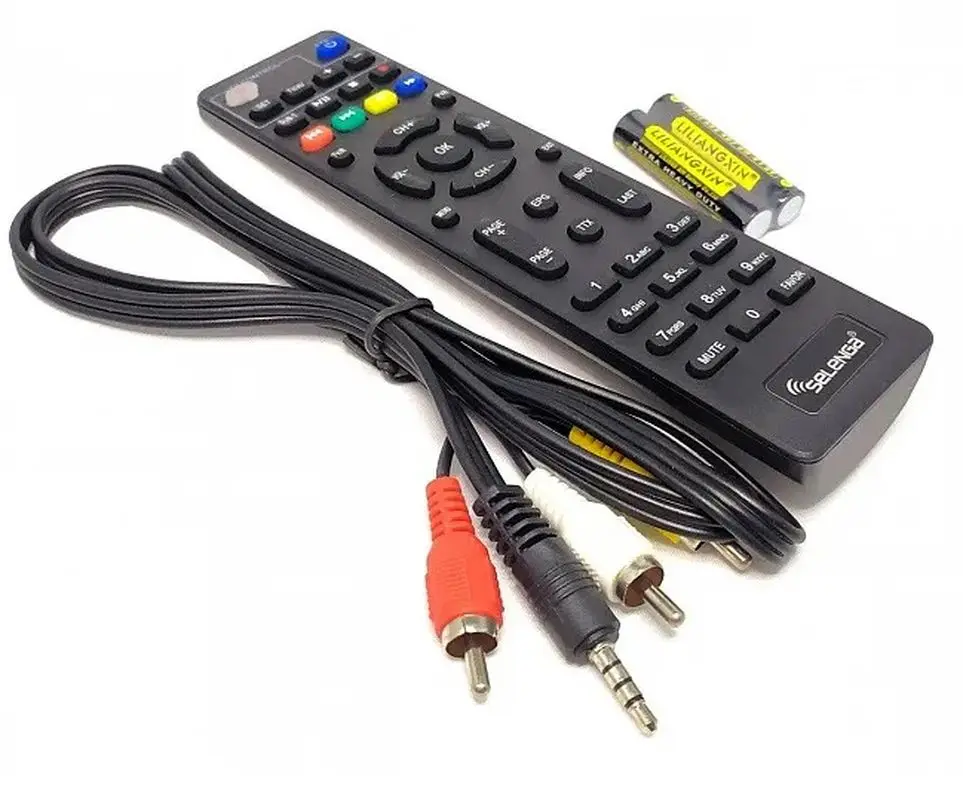

The set consists of the very console inMetalCase with 1 m length network wire,TraineeRemote Control, batteries, 96 cm long audio video cable, operation manuals, warranty card and online subscription-CinemaIVI.

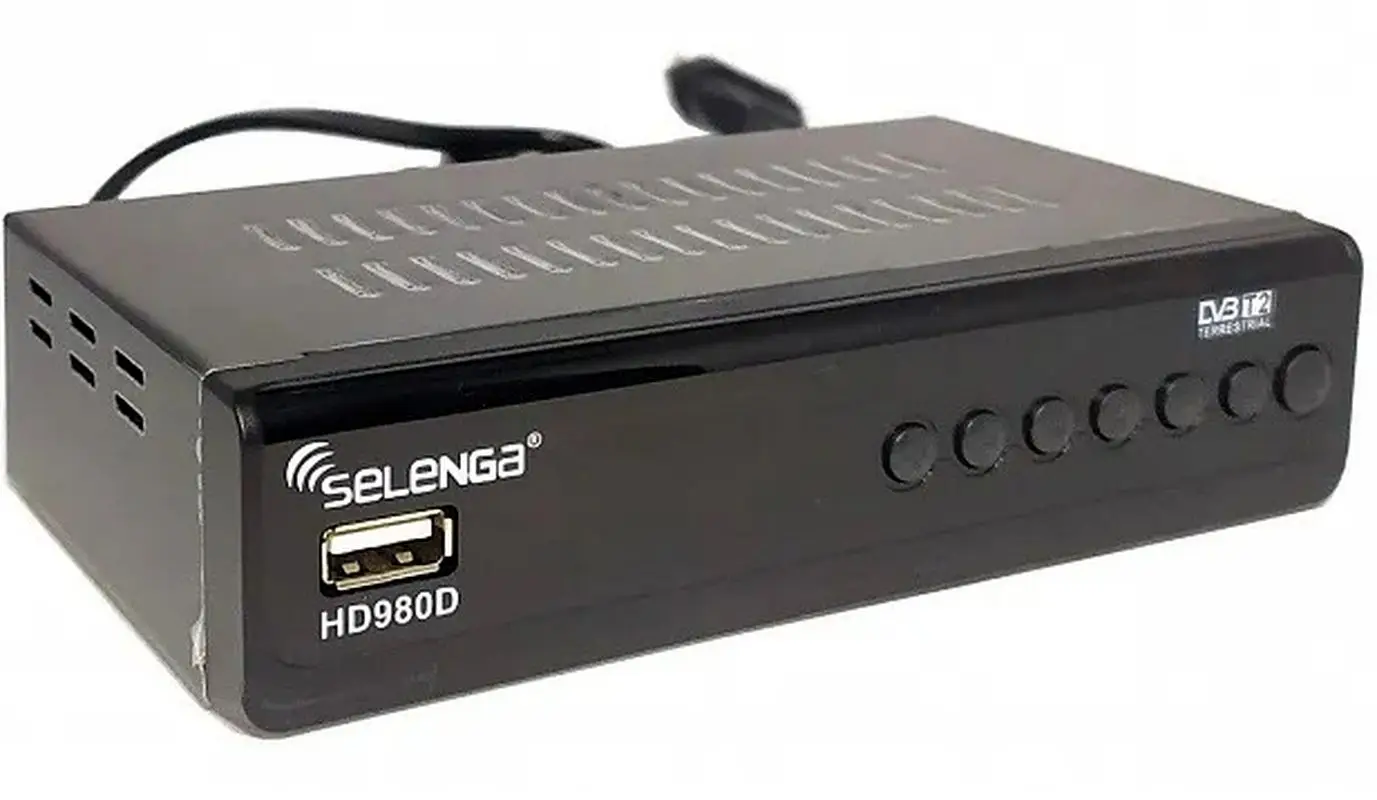

On the front panel-front USB connector, built-in IR sensor, digital indicator and 7 control buttons-+/-Volume,M-Menu,<>Channels,OK-OK button andLargeWorking/duty mode button withGreen-RedDiode:

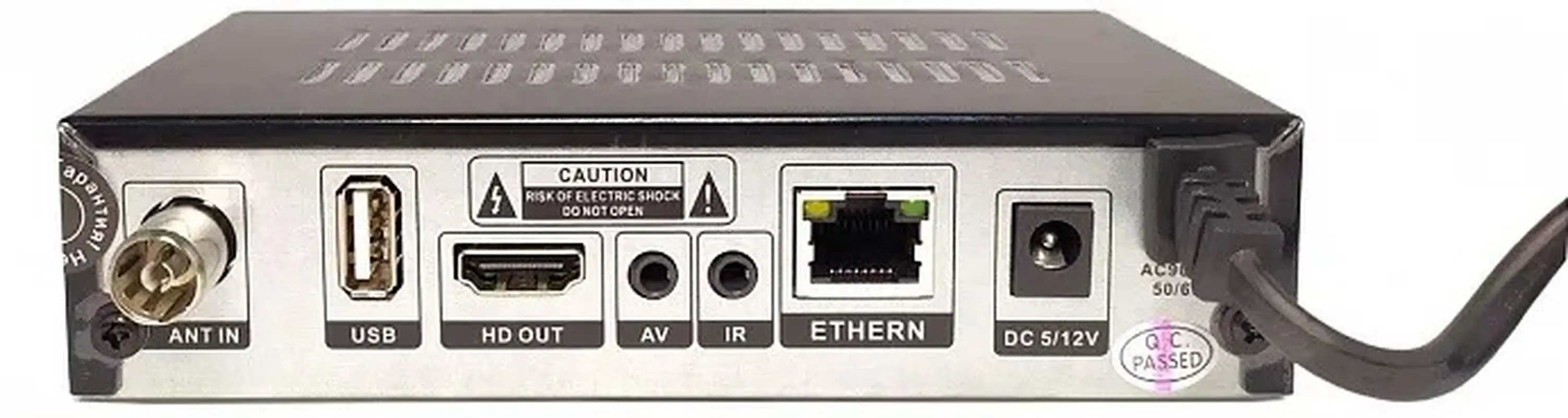

Rear-antenna input, rearUSB, HDMI, outputAVAnd input for externalIRSensor, Ethernet, inputDC 5/12VAlternative power supply and power cord ~ 220V. Ethernet indicators:OrangeГорит-100 Mbit,GreenBurning/flashing-link/activity.

InputDC 5/12VCan be used to connect in the car from the cigarette lighter. Also in the case of failure of the internal power supply (for example, at the cottage or in the village strongly jumped voltage), you can connect a suitableExternalAdapter 5 \ 12 volts.

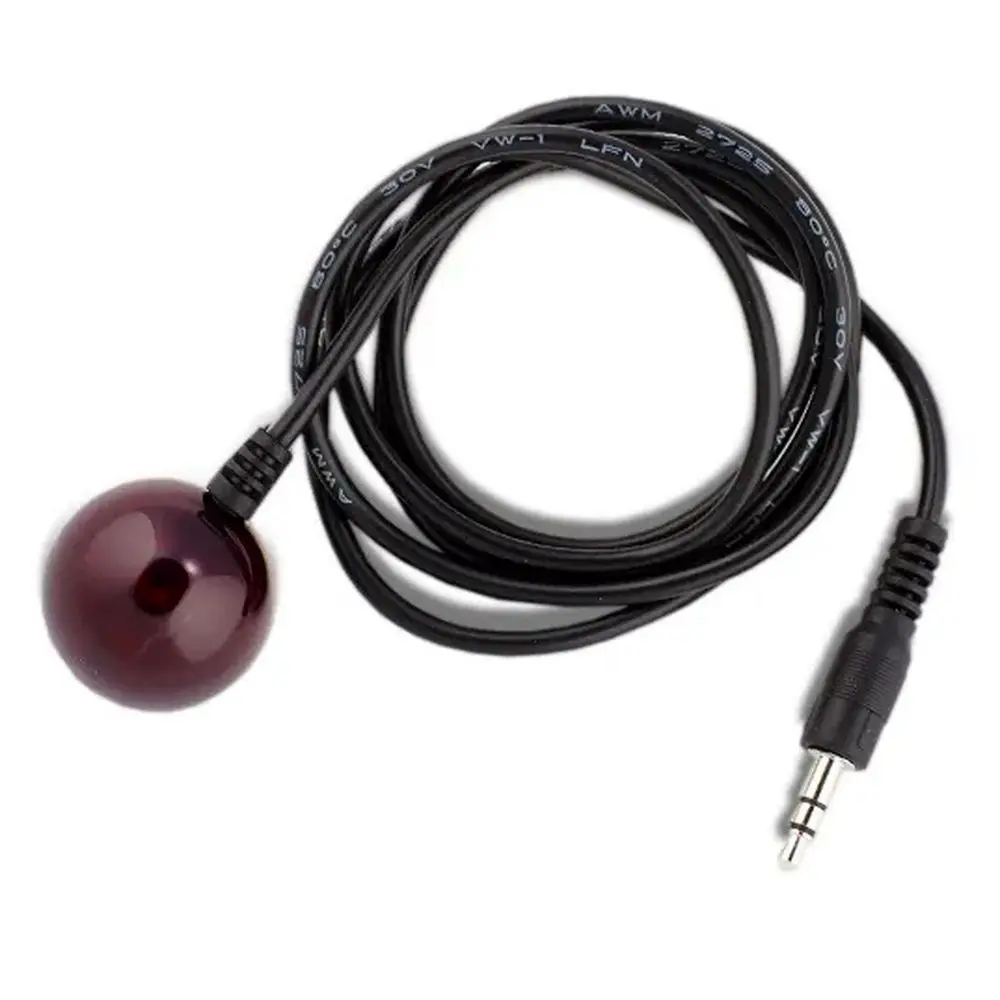

The receiver is compatible with IR sensors 3.5 Jack receivers GS. If necessary, you can hide the console behind the TV, and the IR receiver to place in front on the TV.Such an IR receiver can be purchased in our store.

Learning remoteHas a size of 166x42mm. in a learning unit of 4 programmable buttons (can be trained from any button of the TV remote). The learning console allows you to control not 2 remotes (from the console and from the TV), but only one. Of course, this convenience will be especially appreciated by the elderly.

Instruction manual-on the back of the console (and in the instruction manual).

In addition to the main funces, such as receiving digital terrestrial and cable television signals, recording, recording files from external mediaThis receiver has several interesting network capabilitiesFor example,Network functionDMR. This function allows you to send photo/music/video from your computer/tablet/smartphone (using any DLNA program). If you have a computer, you can install, for example, home media server. If the smartphone, then Xcast, web video caster, bubbleupnp for DLNA / Chromecast/smart TV and many others to your taste.

First, we start on the DMR (Digital Media Renderer) console. Install and run any DLNA application on your smartphone, for example, web video caster. Here you can choose which Photo/music/video files to send. Then choose send to our Selenga DMR. On the TV screen we will see the video file we selected.

In the firmware added functionDVB2IP-Transmission of received channels into the network (previously met only with satellite receivers, and then not all). T. E. The prefix itself can stand in one place (where the antenna or cable TV is connected), and you can view the channels in another place-on a smartphone/tablet/computer or on.

So, the positive points of this console can include the following:An essential-cable prefix on a new processor with built-in Ethernet and an H.265/HEVC codec in a spacious metal case, a digital indicator with adjustable brightness in both modes. 7 buttons on the front panel, 2 USB ports, the ability to connect an external IR sensor for the remote, a common short plug-in audio-video cord, a license by Ability to connect any external power supply up to + 16v, full-size learning console, cable mesh frequencies from 52.5 MHz, various Internet applications, autostart IPTV at once 3G modems, YouTube app with the ability to download your API key, as well as stalker and Xtream IPTV, free online cinema megogo, And with any DLNA app on your smartphone/computer-broadcast your photos/videos/music and videos from YouTube, as well as the trancing of the received channels over the network with. License Dolby Digital (AC-3), large menu interface icons, availability of disaster recovery for failed firmware, support on the forum.

Specifications:

Processor/demodulator:

GX6702H5

TUNER: maxliner 608

Ozu DDR 64MB, ddr-2 512MB. Flash memory 32MB.

Support DVB-C, DVB-T2 and DVB-T HD / SD MPEG2 / MPEG4 (H.264)/ HEVC N. 265 standards

Demodulation:

Multiplexing with orthogonal frequency channel separation (COFDM)

Data transfer mode: 1 ~ 24 Mbps

Demodulation (flow capacity): QPSK, 16QAM, 32QAM, 64QAM, 128qam, 256QAM.

Transmission mode: 2K, 4K, 8K, 16K, 32K/protective interval 1/4, 1/8, 1/16, 1/32, 1/128

Decoder FEC (noise-resistant coding) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6

Video Decoder:

Profile: MPEG2 MP@ML.HL, MPEG4 AVC/H.264 HP @ L4, HEVC H. 265

Input speed: Max. 80 Mbps @ MPEG2, Max. 60 Mbps @ H.264 / AVC

Aspect ratio 16:9 full screen, 4:3 letterbox & full screen

Frame rate: 25Hz for pal, 30Hz for NTSC

Video resolution 576i /576H/720p /1080i/1080p

TUNER:

Input frequency: 170 ~ 230 MHz (VHF-h); 58 - 100 MHz (group I-II),

VHF: 174MHz - 226,5 MHz, UHF: 470MHz - 862MHz, bandwidth-8 MHz

Input impedance: 75 & OMEGA;, unbalanced/signal Level: -90 DBM ~-20dBm

Connectors:

Antenna input, AV output: HDMI, 2 USB ports: USB 2.0 (to play media files, PVR, software updates), IR , LAN, DC 5 v 12 V

Input voltage: 220V/maximum power consumption 6W/standby 0.5 W. Built-in power supply or external power supply 5 V/12 V

Equipment/accessories:

Prefix for digital TV, universal remote control,

AAA batteries, connecting cable 3,5 jack-3rca, user manual, warranty card.

Physical specifications:

Dimensions (WxHxD): 183x130x50mm

The weight of the console in the kit: 0,45 kg.
