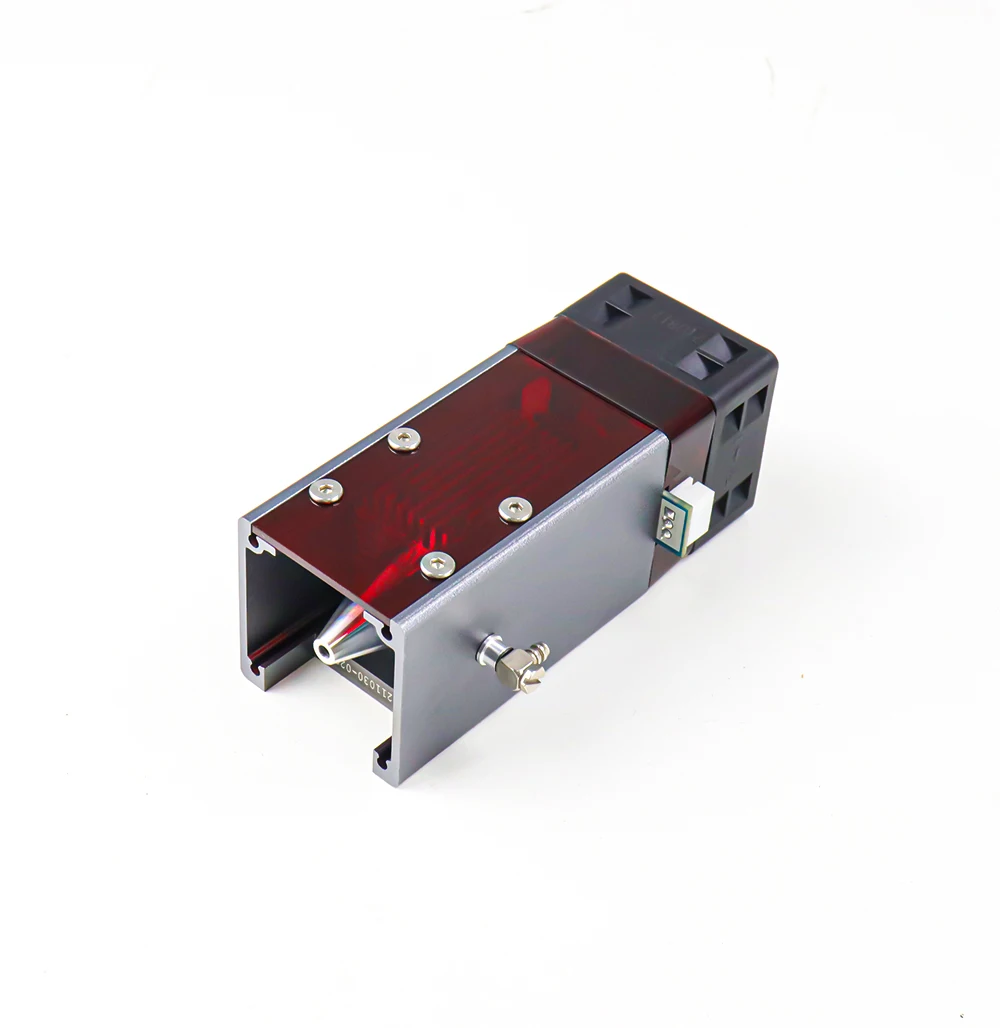

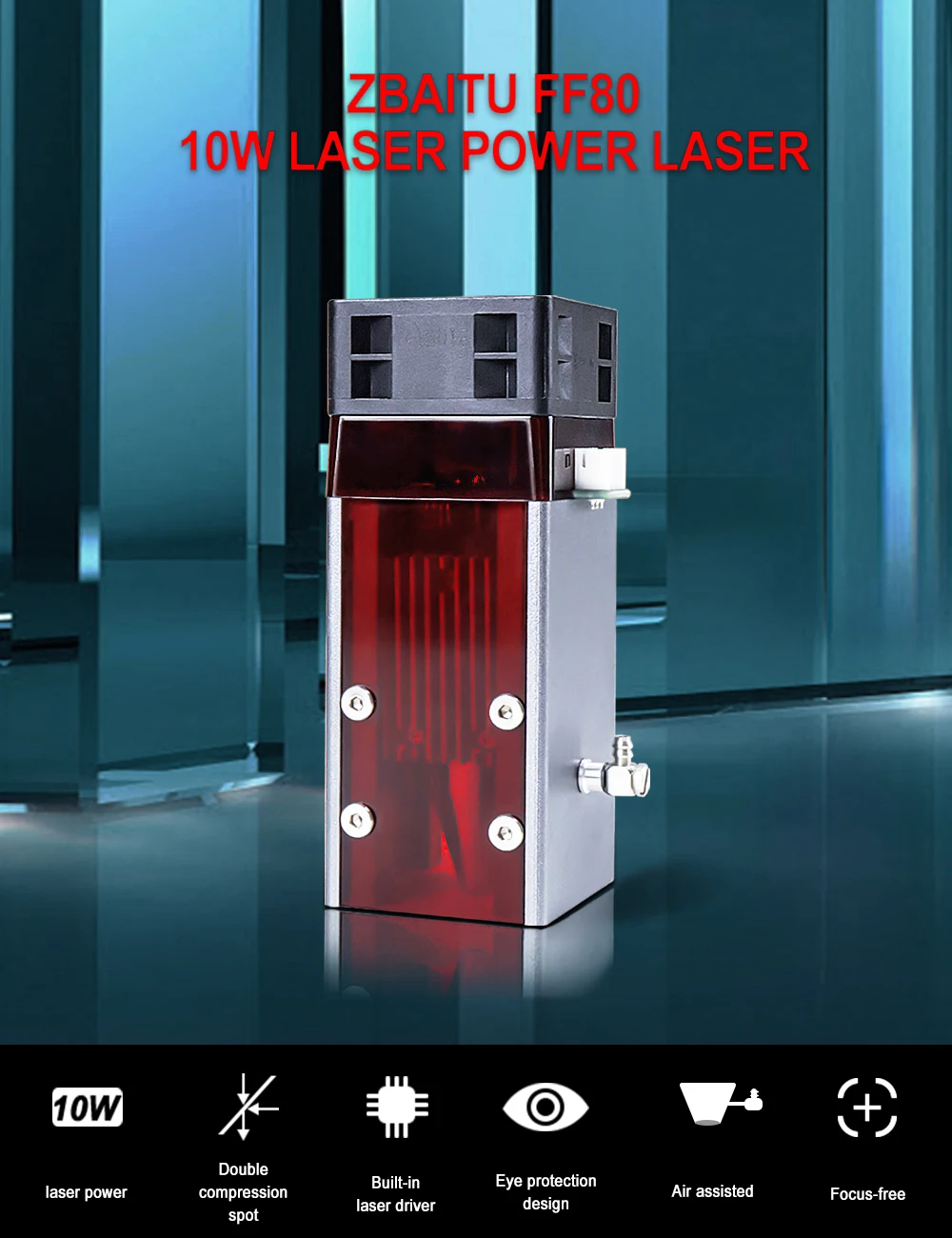

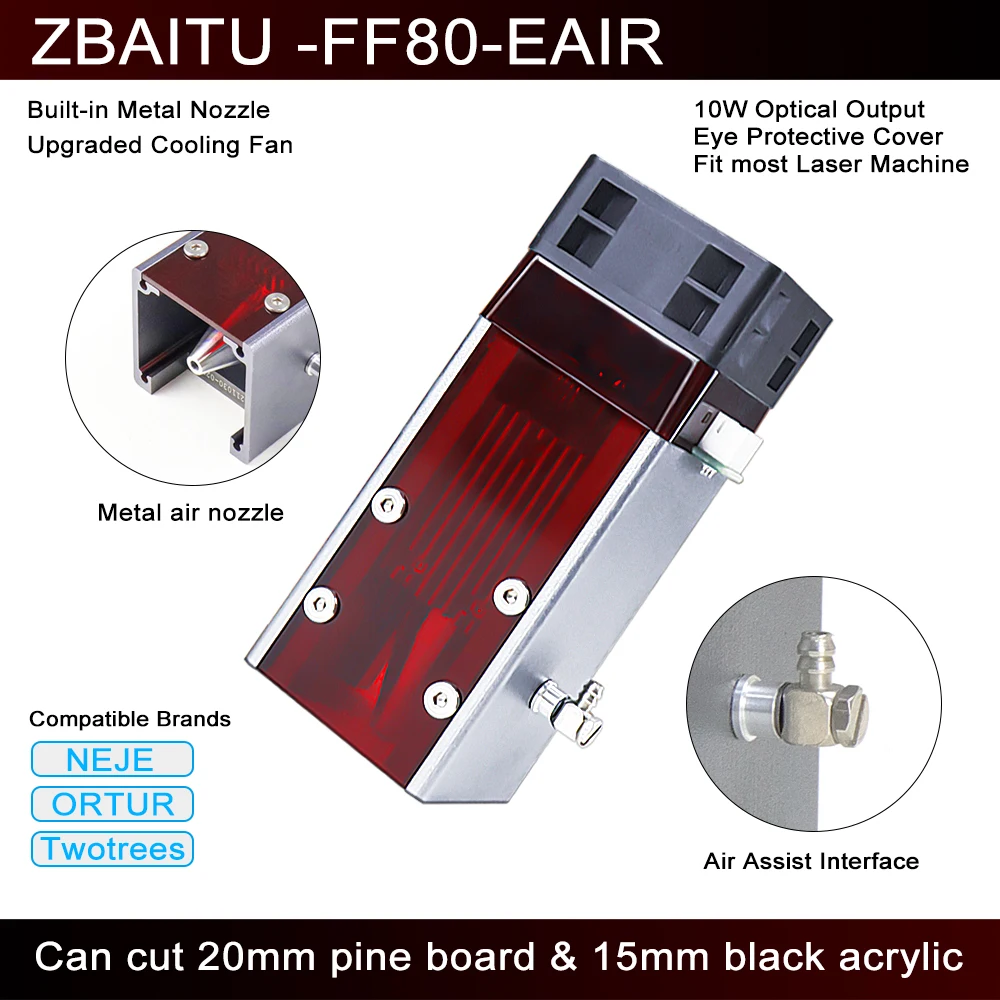

80W Upgraded Laser Module Head with Cover, Built-in Air Assist, Metal Nozzle, CNC TTL / PWM Cutting Engraving Module Laser

1-- Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

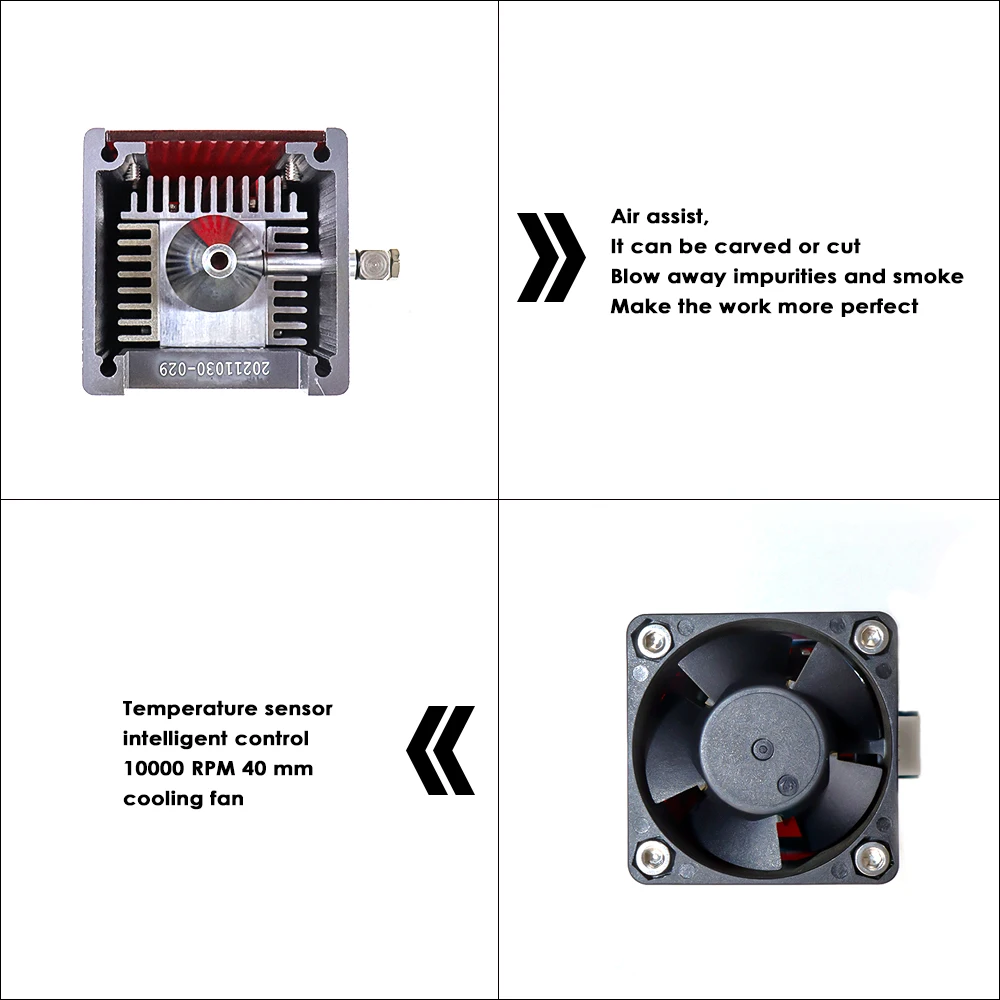

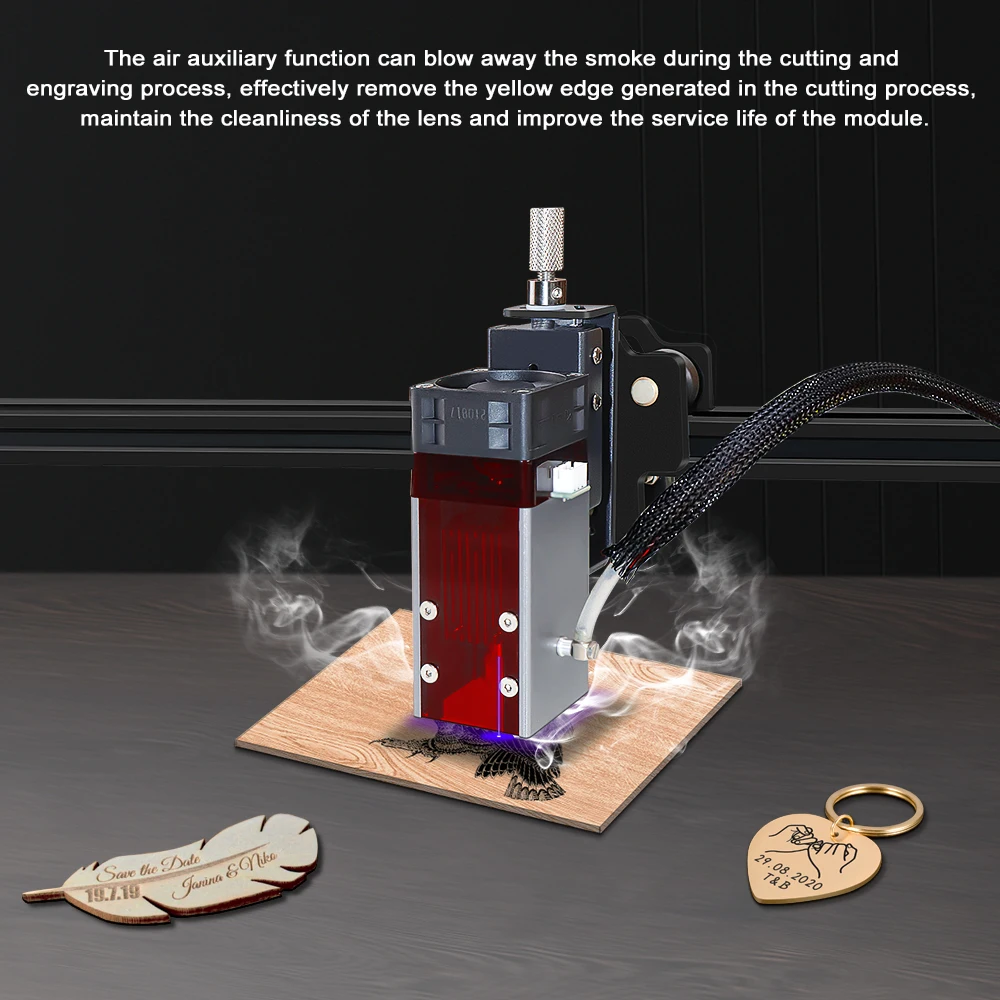

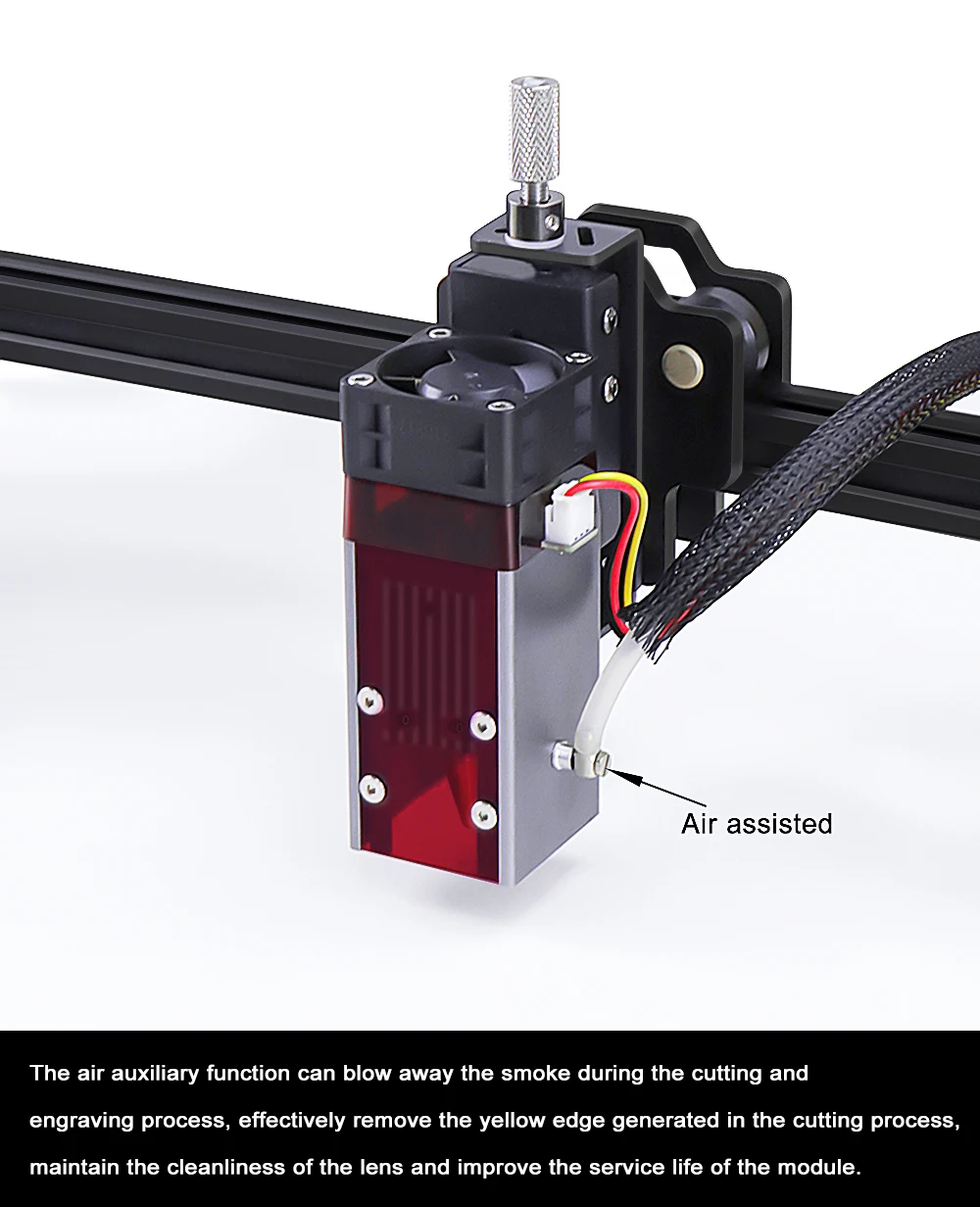

2-- Built-in Air assist Interface, it is easy and convenient to use a air bump to improve cutting and engraving accuracy and speed.

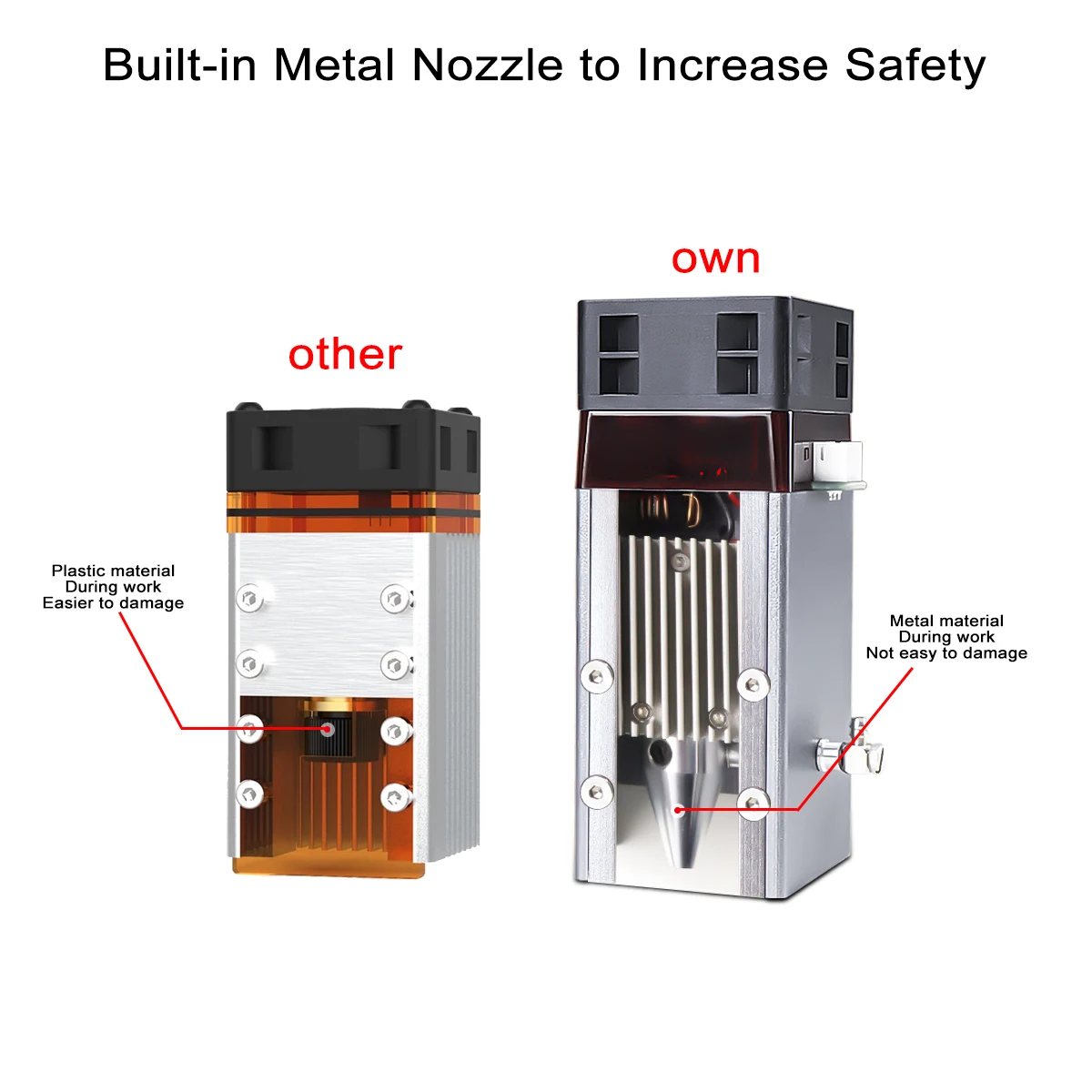

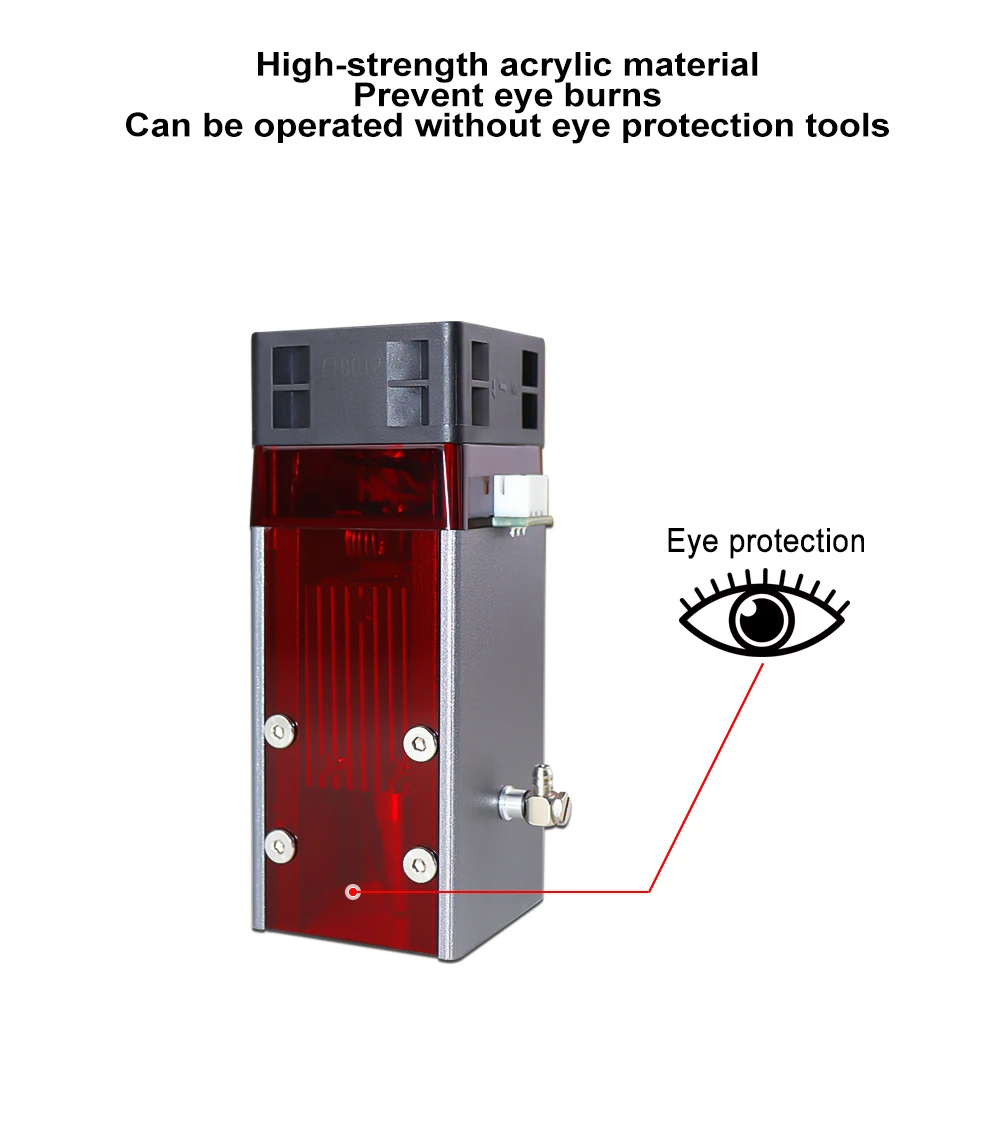

3-- Metal Nozzle, the head is metal to improve safety, no worry burn the plastic protective cover again.

4-- Smaller and Lighter, the upgraded laser module head is compacted 0.2kg/0.44lb, the lighter the weight, the smaller the move inertia, the better performance for printing.

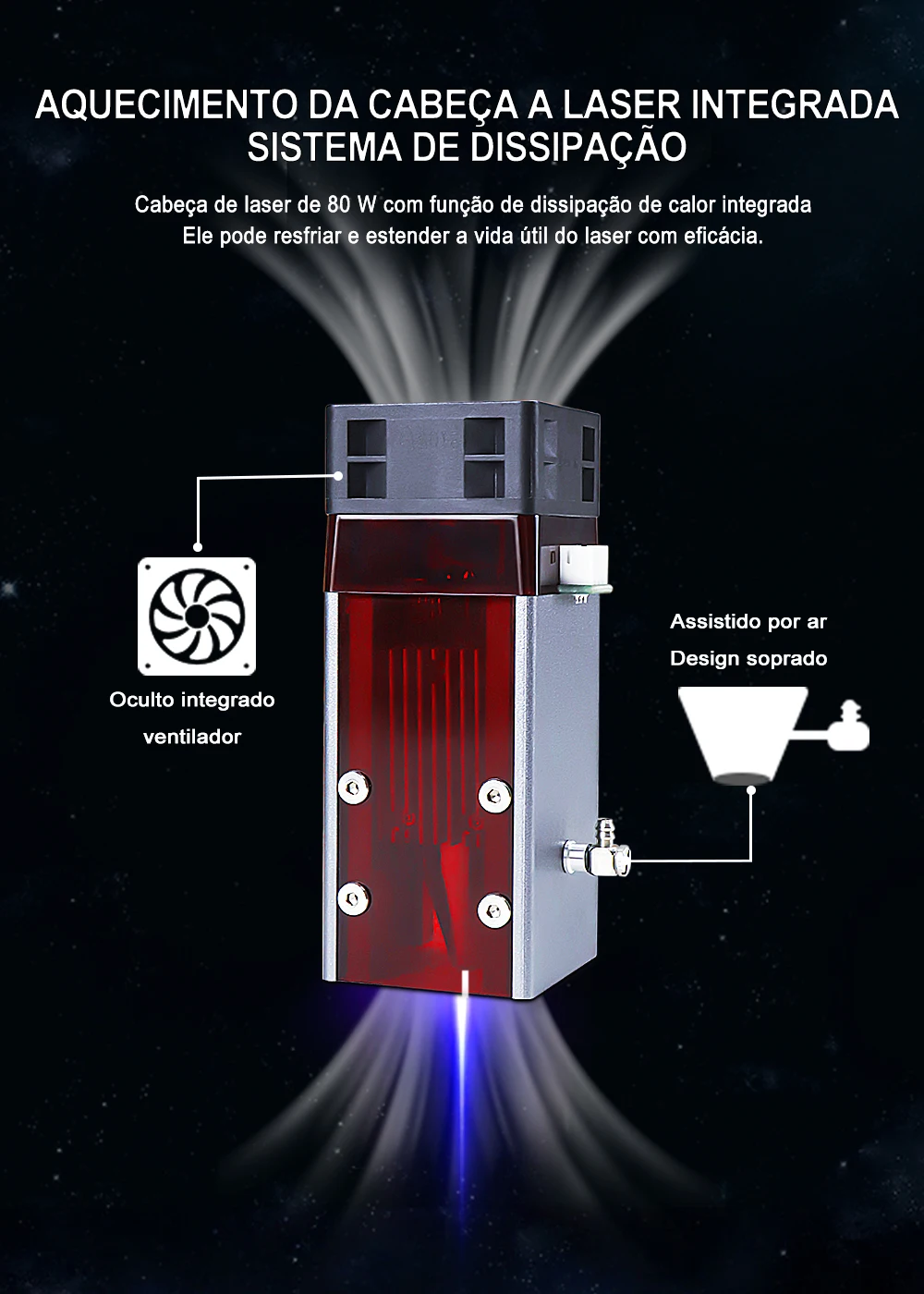

5-- Cooling System, temperature sensor intelligent control + 12000 rpm 40mm cooling fan, can working 20 hours Continuously.

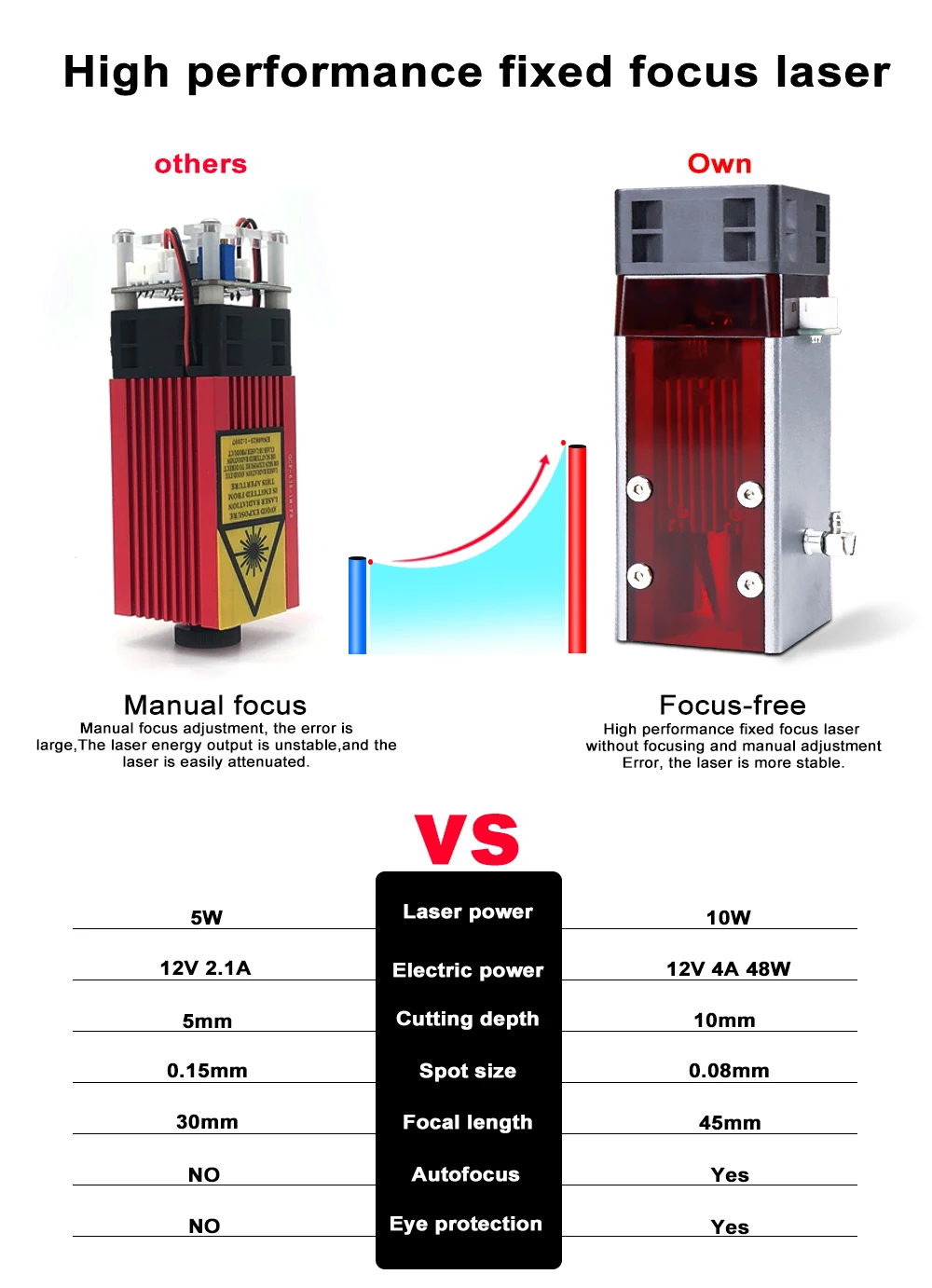

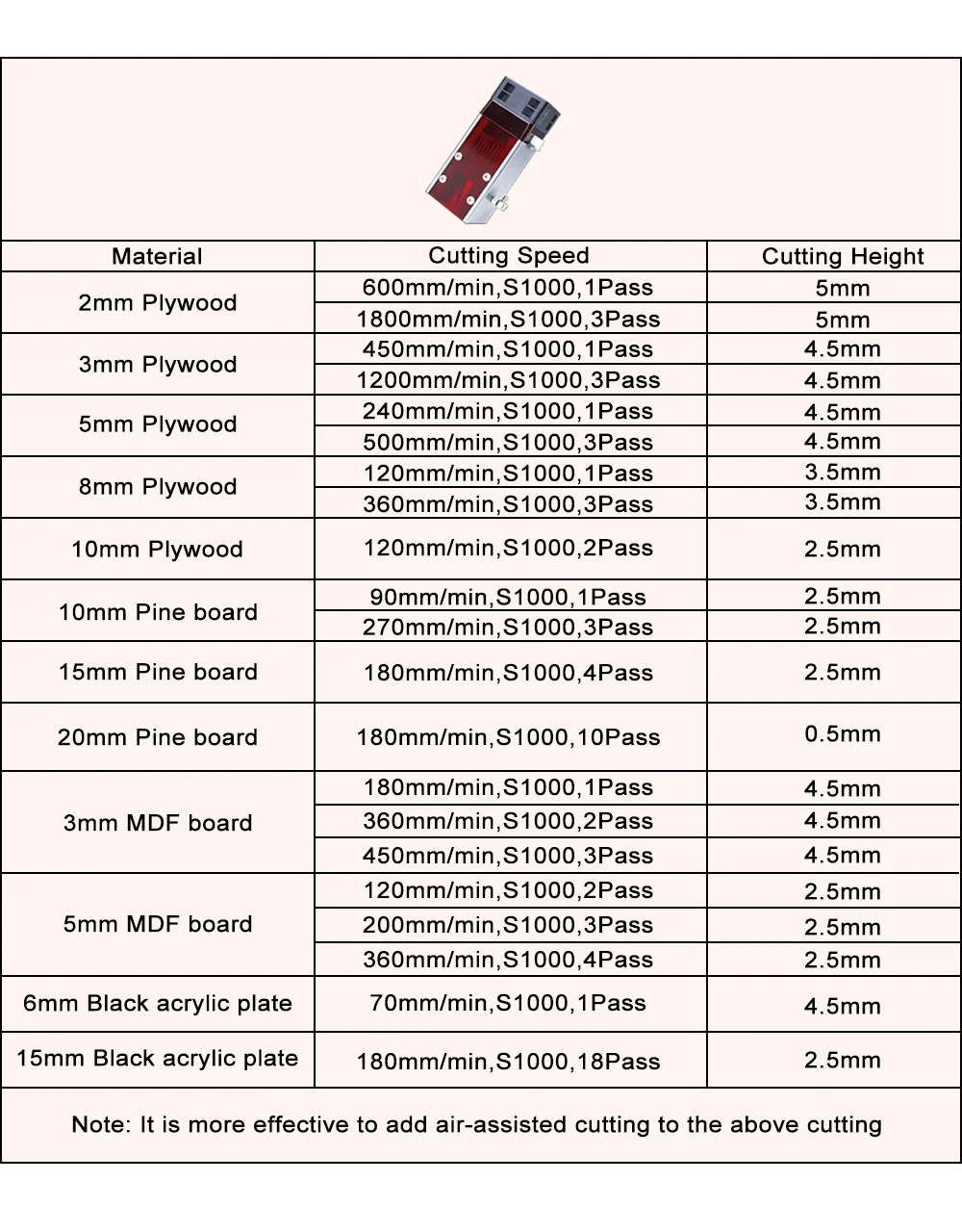

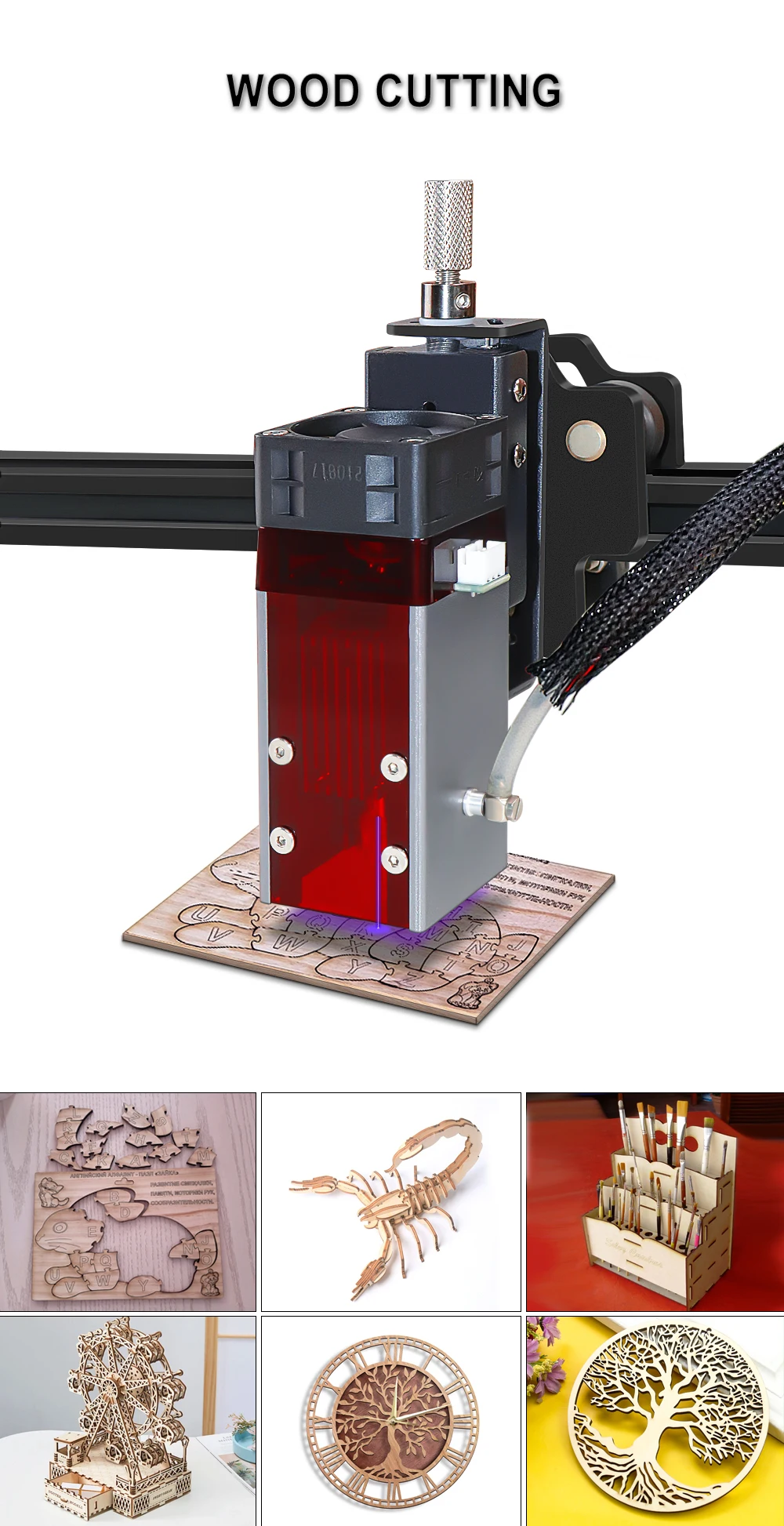

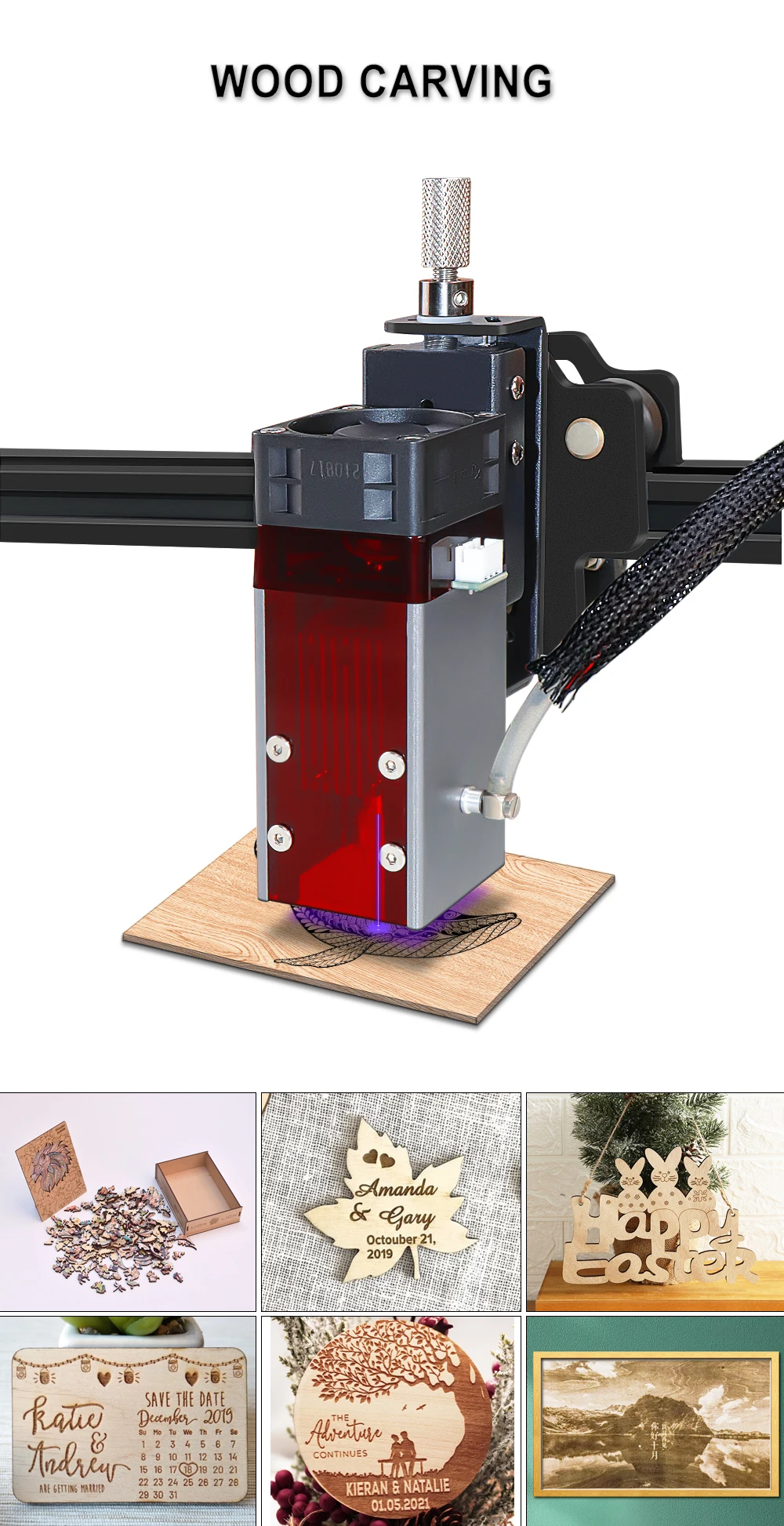

6-- 10W Optical power output, 6mm plywood by 1 pass, 10mm pine board by 1 pass(straight line), 5mm black acrylic board by1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

7-- More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

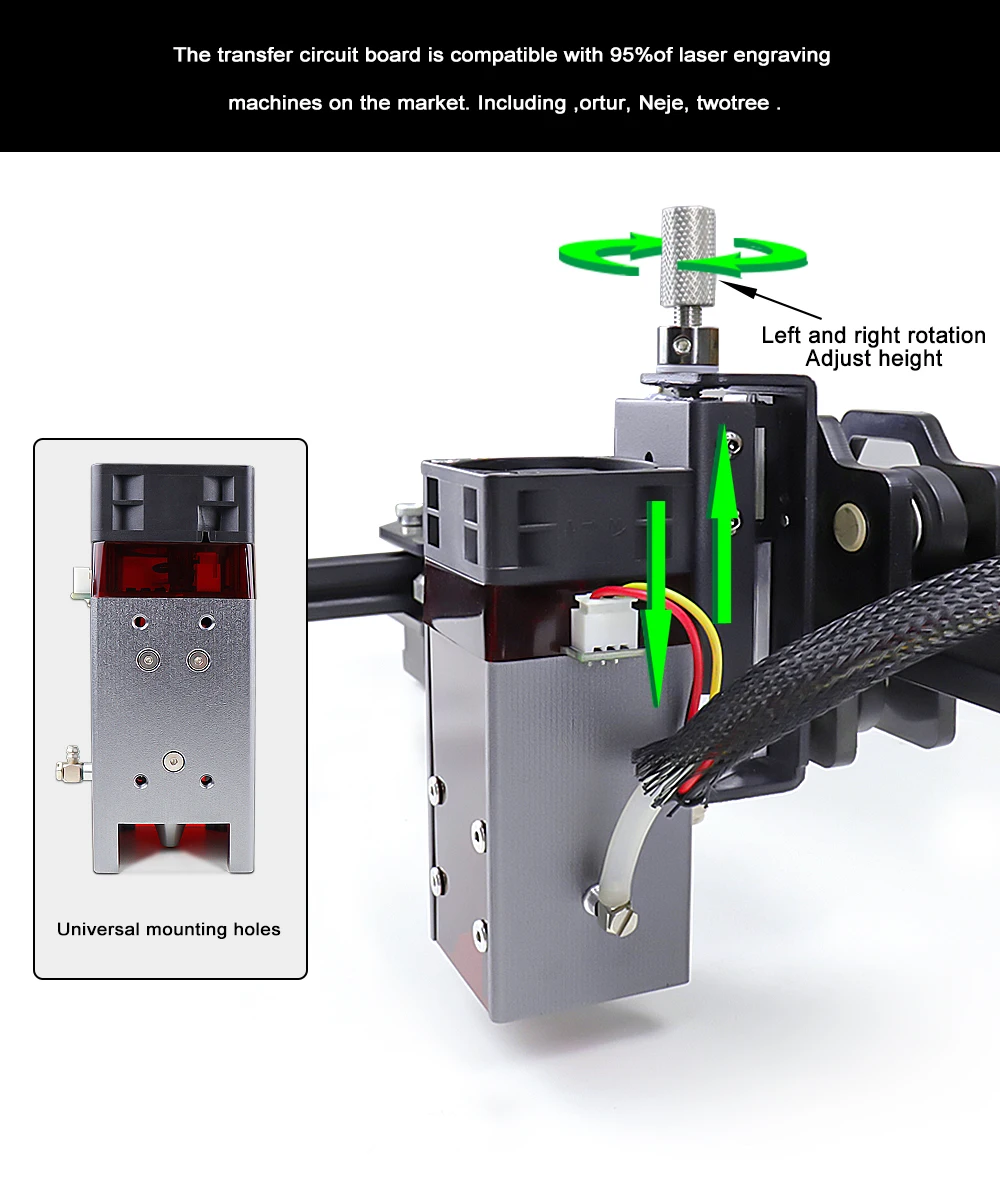

8-- Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for laser module, can work with lase machine from Neje, Ortur, Two tress and so on.

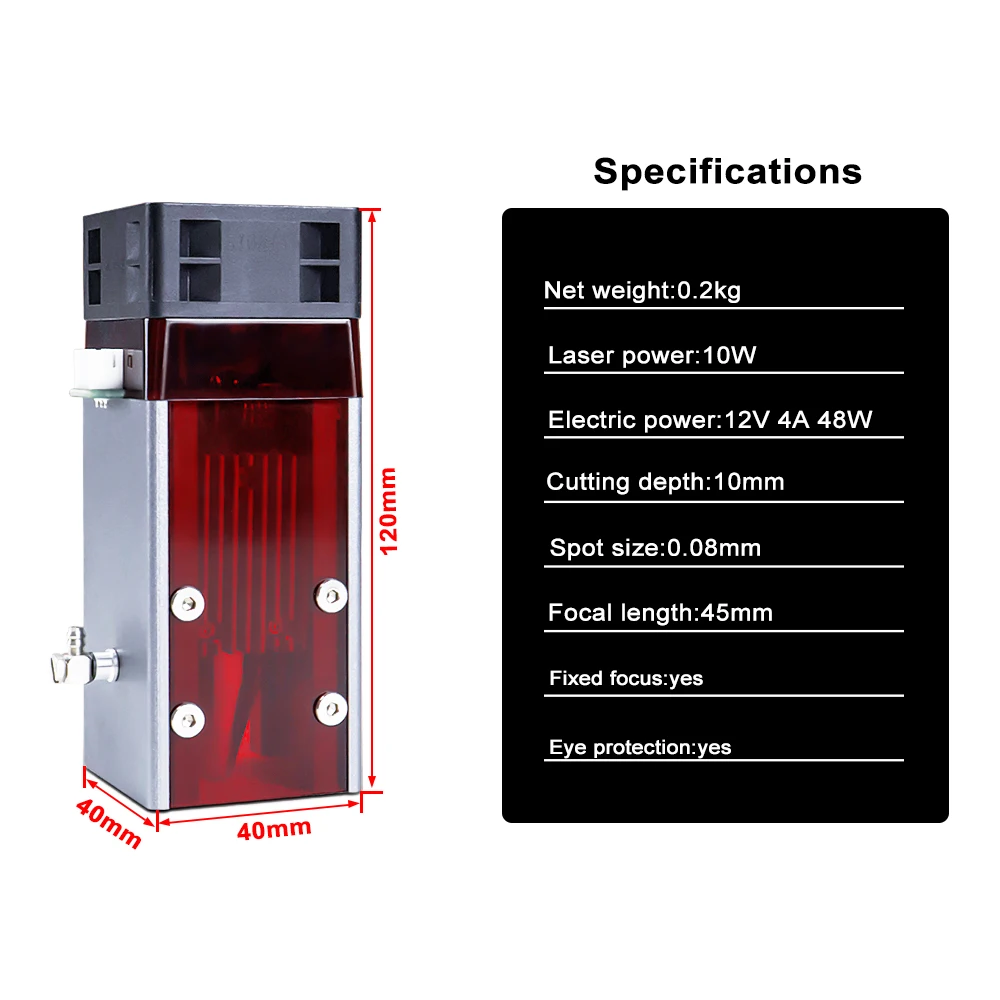

Product Specification

Model：FF80-EAIR

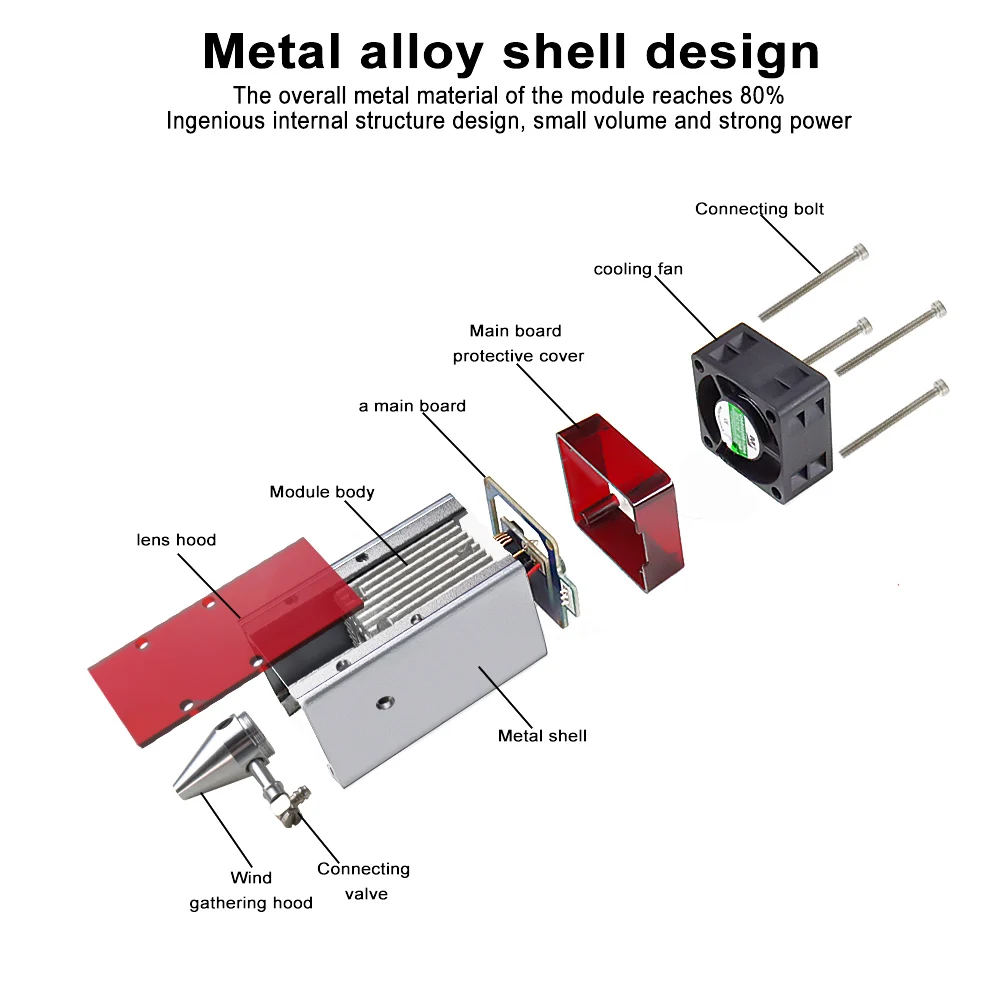

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

Dimension：4x4x12CM

Can Cut/Engrave : MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/PVC

Module Input：40-80W

Optical power output：10W

Wavelength：450nm

Beam Shape：0.08X0.08mm

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

PWM/TTL Input：DC3.3V-12V

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：200g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20000 hours

Please Note!!!!! Make sure your address is correct and full before payment!

You May Be Wondering

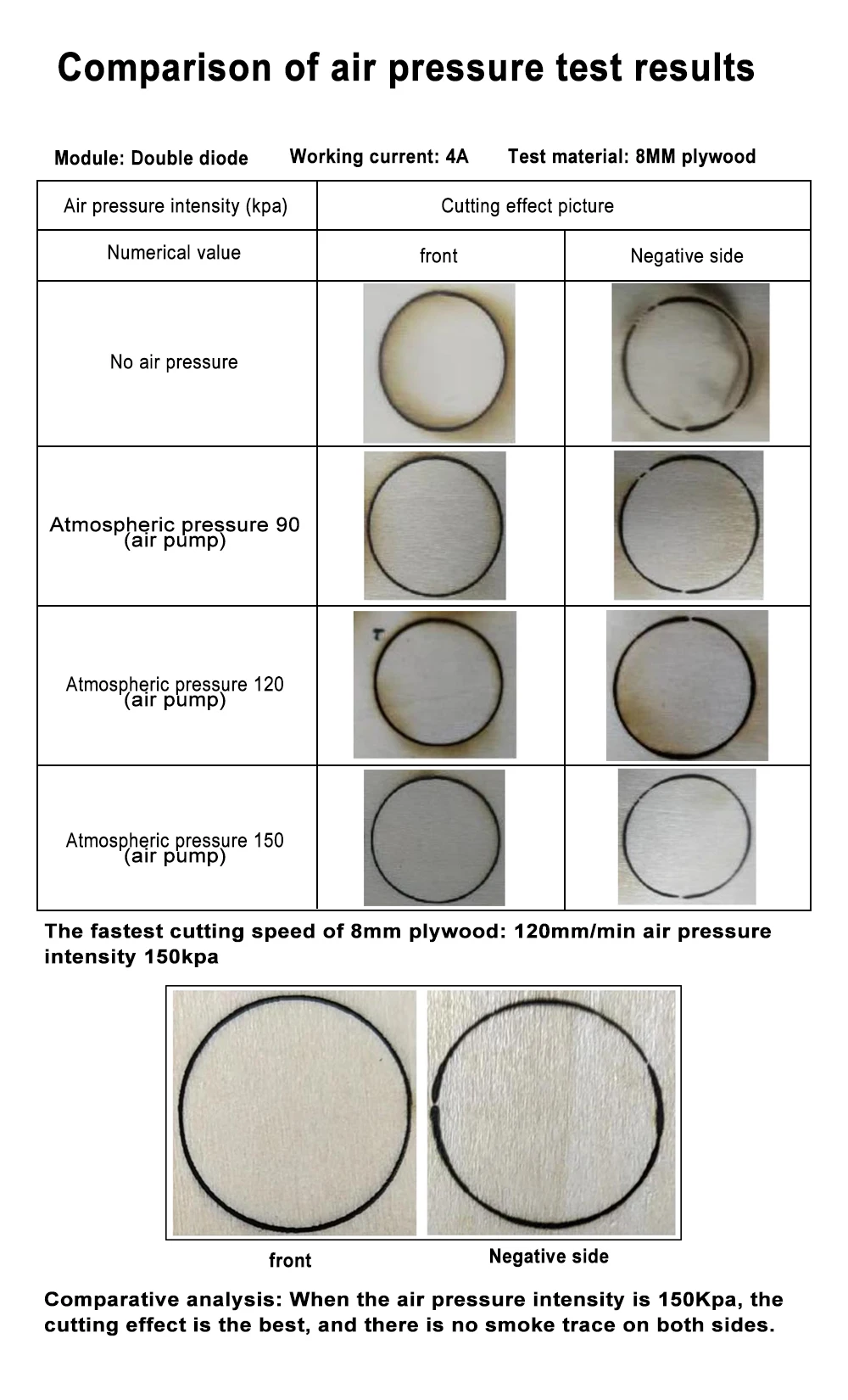

1. Can I use it without air compressor?

Yes, it can work without air compressor,  the cutting ability will be increased with air compressor.

2. Why is the title says 80W, but the Laser is 10W ,

80w is the effective power of Laser machines, its actual laser output power should be 10W.

3. Is it possible to engrave metal?

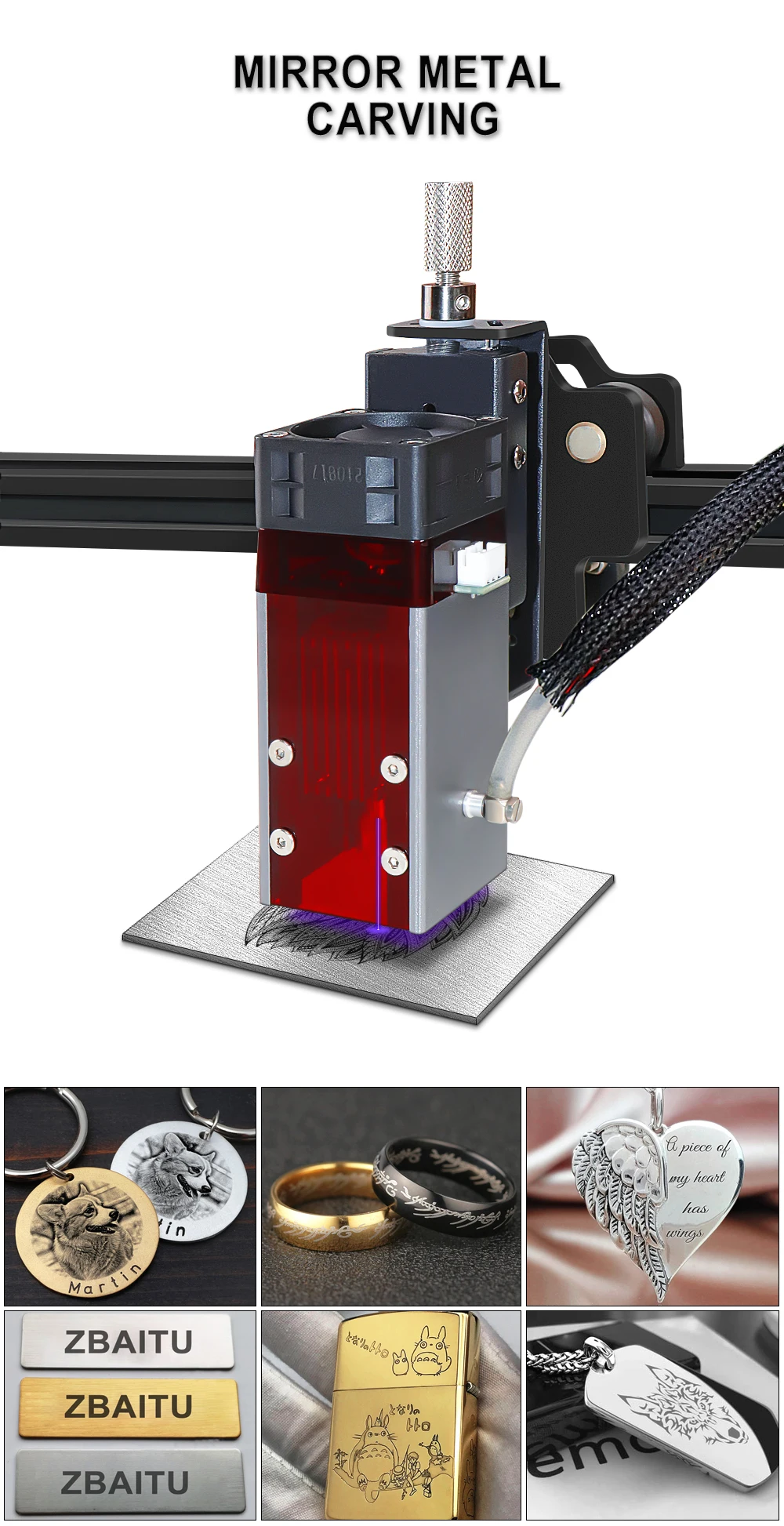

Yes, the ZBAITU laser Engraver uses compressed spot technology with a spot size of only 0.08mm and supports engraving stainless steel and various coated metals.

4. Is it possible to engrave glasses cups?

Yes, it can engrave glasses.

look at our video: //youtu.be/3TnwUb8cIc8Q

5. Can this machine only cut dark acrylic?

Yes, the laser cutter can cut dark acrylic, but not transparent acrylic.

6. Is there user manual?

Yes, there are user manual in paper in the box, also some assembly videos.

7. Has any warranty?

ZBAITU laser engraving machine has 1 year warranty, the parts can be replaced free, you just need pay for the shipping cost.

8. Do I have to pay for tax?

We have warehouses in China, Europe, Russia, choose to ship from Europe and Russia will not need to pay customs duties.

9. Can cut 20MM wood?

yes, it can cut 20mm pine wood, several times cutting.
