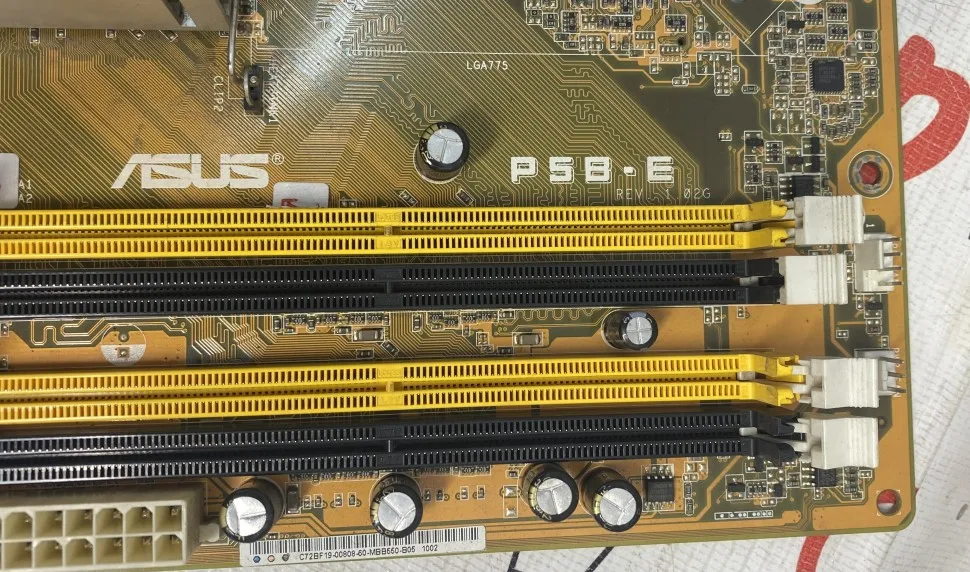

Motherboard Asus p5b-e lga775 | Motherboards

Only motherboard, no memory, no CPU,

Without cooler, without battery bios, without back strap.

The goods are used, tested, there is a guarantee

More accurate characteristics are indicated in the description of the goods.

Hello, thank you for visiting our store!
We are in Russia, so we will pack and send your goods quickly. You will always be able to consult with our specialists, answer all questions of interest!

Download real photos of goods, if necessary, make additional photos. Before sending, all products are subjected to professional inspection.

Write if you need additional components for this product. If you want to order several items, please place them one order to speed up the packaging and delivery.

If you have any questions about compatibility, feel free to ask. We can provide a large number of spare parts for old PCs.

After receiving and testing the goods, please positively evaluate your order.
If for some reason you are not satisfied with the goods you purchased-do not rush to put negative feedback, contact us in personal messages, you will definitely answer.
Important!
After the publication of negative feedback, it is impossible to change, solve your problem becomes much more difficult.

Brand Asus
Model p5b-e
Type of equipment motherboard for desktop PC
Destination Table PC
Chipset мат. Intel P965 + ich8r boards
Socket lga775 processor socket
ATX board format (305x244mm)
CPU support
Max. number of processors on Motherboard 1
Support Intel Pentium 4 Series Processor types, Celeron D, Pentium D, Pentium Extreme, Core 2 Duo, Core 2 Extreme
Support for processor cores Prescott, Smithfield, Presler, Cedar Mill, Kentsfield, Conroe
Bus frequency 533, 800, 1066, 1333 MHz (to support 1333 MHz bus, BIOS upgrade to version 1601 or above is required)
Support hyper threading yes
Support memory
Type of supported memory DDR2 pc2-4200 (ddr533), pc2-5300 (ddr667), PC2-6400 (ddr800) ex not supported
Number of DDR2 4 connectors (for activation of 2 channel mode, modules are installed in pairs)
Maximum supported memory standards PC2-6400 (DDR2 800 MHz), pc2-5300 (DDR2 667 MHz), pc2-4200 (DDR2 533 MHz)
Maximum Memory 8 GB
Дисковая system
RAID controller is embedded in chipset, it is possible to build RAID arrays of levels 0, 1, 10, 5 matrix raid from SATA devices.
SATA-II 8 channels with the ability to connect 7 and internal devices and 1 external (Sata on-the-go). 6 channels ich8r and 2 JMicron jmb363
Support UDMA/133 1 channel with the ability to connect 2 devices (JMicron jmb363 controller).
Support UDMA/66 Yes
Communication
Network network controller attansic L1 1 Gbit/s
Interface, connectors and outputs
USB connectors on the back 4x USB 2.0
Controller IEEE-1394 via vt6307
1x IEEE1394 (6-pin) ports, 1x LPT, 1x eSATA
Keyboard/mouse PS/2 keyboard + PS/2 Mouse
Slots for installing expansion boards
Number of PCI Express 16x1 slot 16x connectors
Number of PCI Express 1x3 slots 1x
Number of PCI 3 slots
Integrated graphics card
Video connectors on the back panel no
Integrated sound card
Sound 8-channel HDA codec analog devices ad1988a
Audio connectors on the back 1x coaxial S/PDIF-out, 1x Optical S/PDIF-out, line-in, mic-in, front-out surround-out, sub/center-out
Cooling
ASUS Q-Fan 2 cooling system noise reduction technology
Power supply
Power supply requirements are supported only 24 + 4 Pin power supplies.
Other features:
BIOS AMI BIOS, 8 MB
