Awesafe PX9s для BMW 1 серии E81 E82 E87 E88 2004-2012 Android автомобильное радио CarPlay Auto GPS без 2 din 2din DVD.

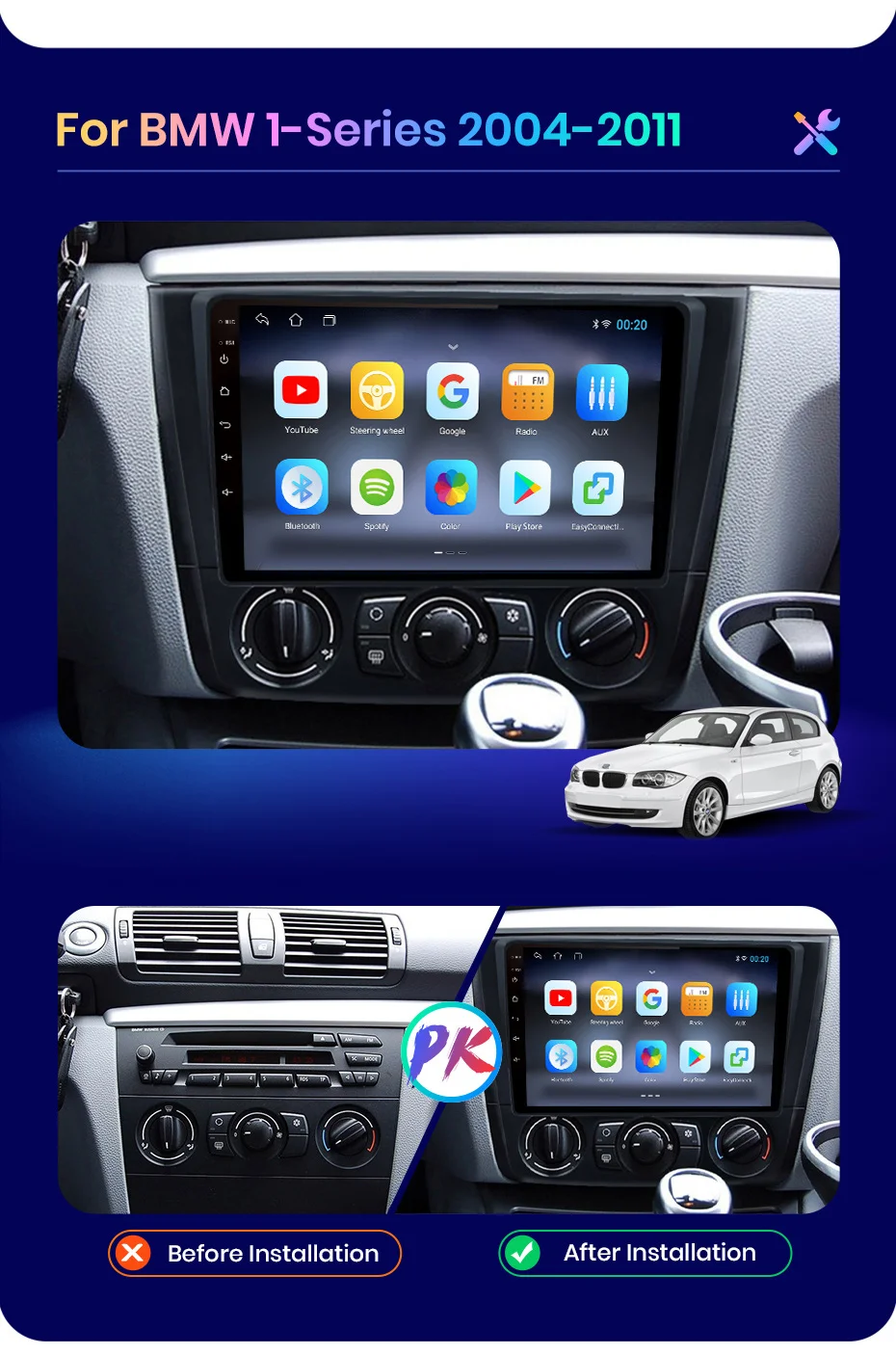

AWESAFE PX9 funtion For BMW 1-series 1 e87 2004-2011

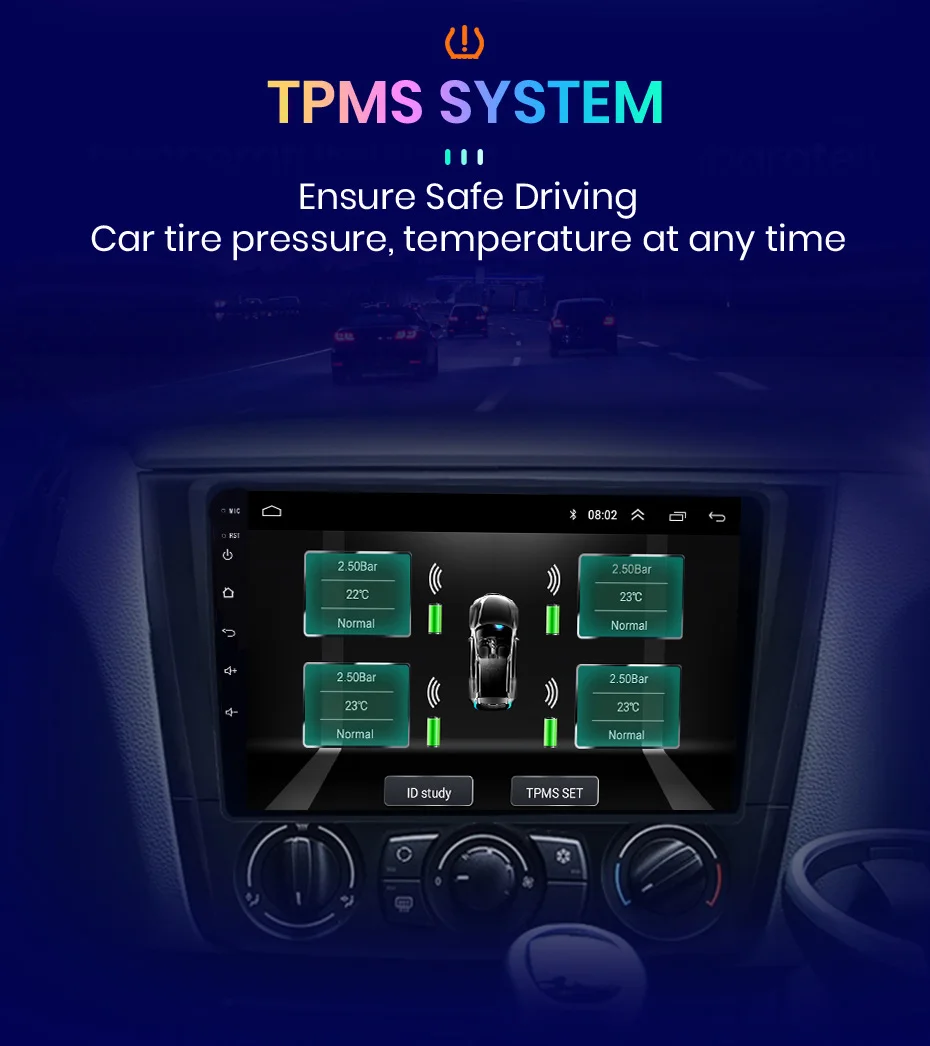

>> 9 inch 2.5D Capacitive Screen+Quad Core 1.2GHZ CPU+DDR3 1GB/ 2GBFlash (optional)+16GB/32GB Memory (optional)+WIFI+GPS Navigation (Map free update)+Steering Wheel Control+carplay(optional)+android autoc(need to buy)+Bluetooth-compatible+Built-in Microphone+FM/AM+RDS(need to buy)+support USB DVR ADAS+support Europe DAB Function+1080P Video Play+HD 1024*600+support Tire Pressure Monitoring System+support Voice Control(need to buy)+GPS track function(need to buy)

>> Optional gadgets

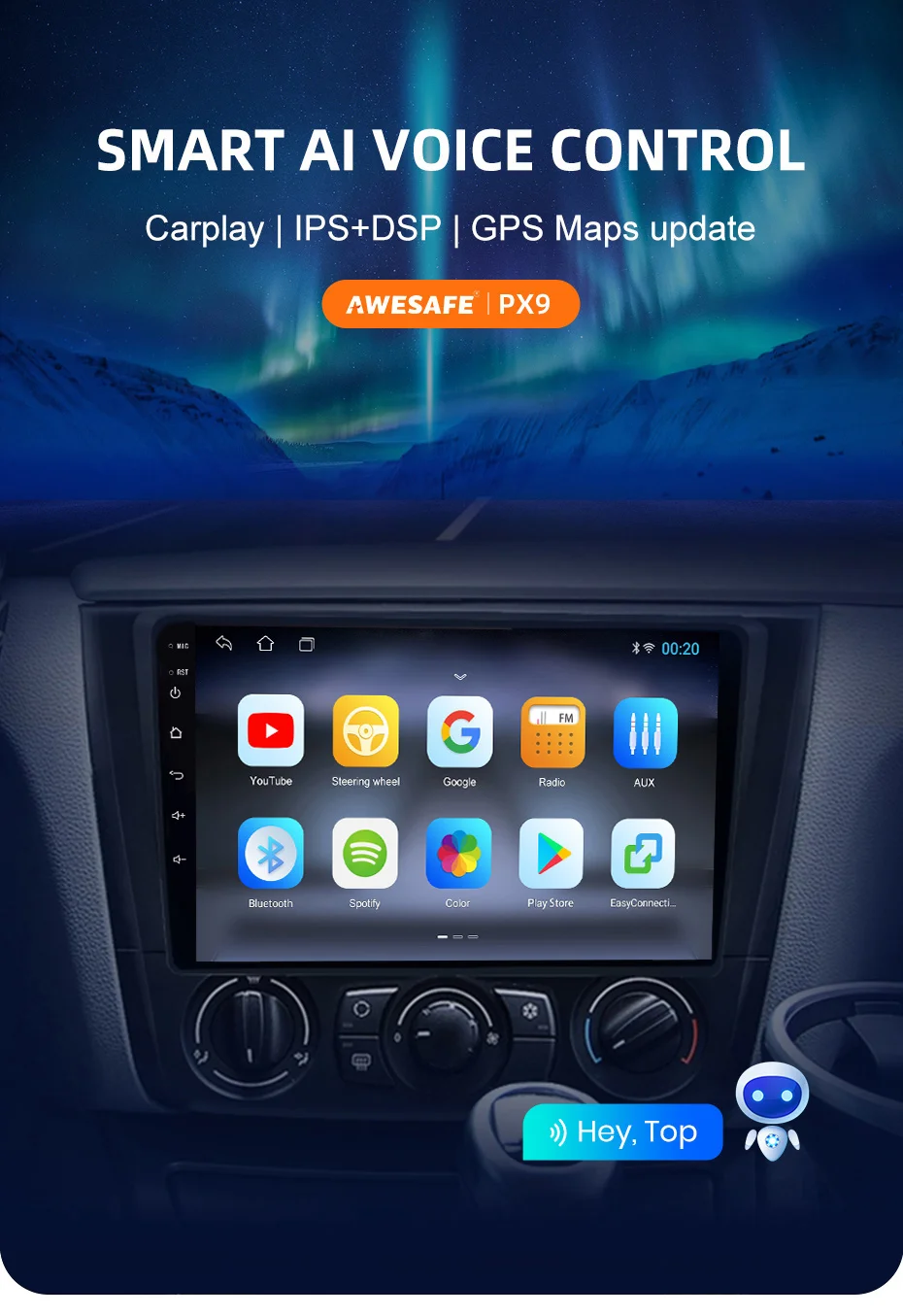

> AI Voice Control: just say the command word control the radio without hands, make driving safer

> ADAS DVR camera, tire pressure monitoring, OBD2, external microphone, RCA cable

Reduce manual screen touchin during driving,

interesting interaction

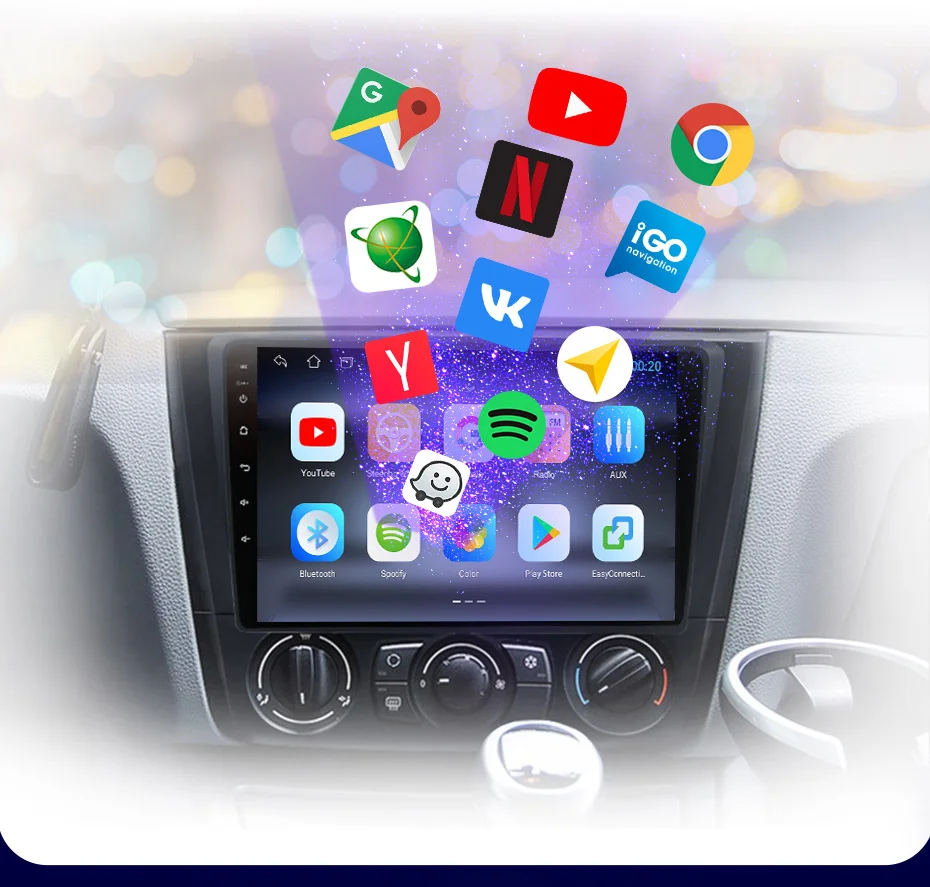

YouTube, VK, Twitter, Skype, Facebook, Messenger, LinkedIn,

Navitel, IGO Navigation, Spotify, Yandex, Yandex Map,

Waze, Google, Google Map, Netflix, Instagram

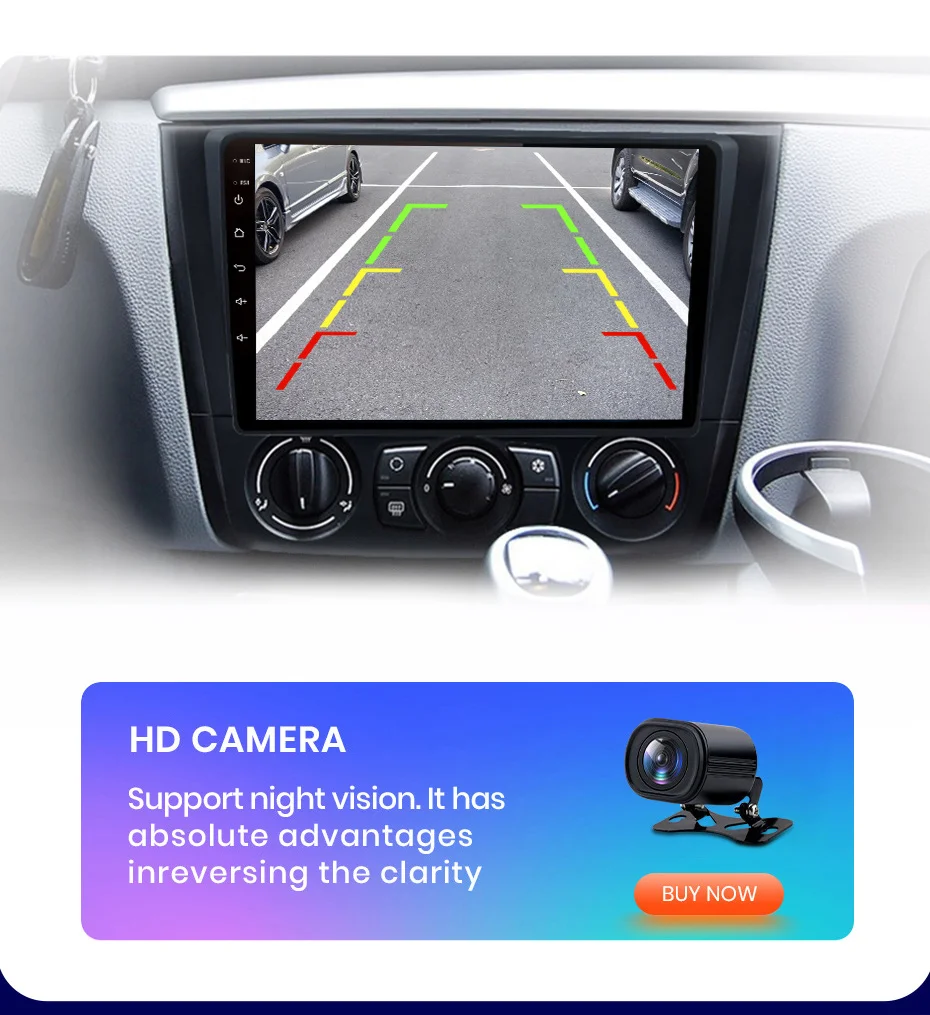

Reversing safely, With reversing line.

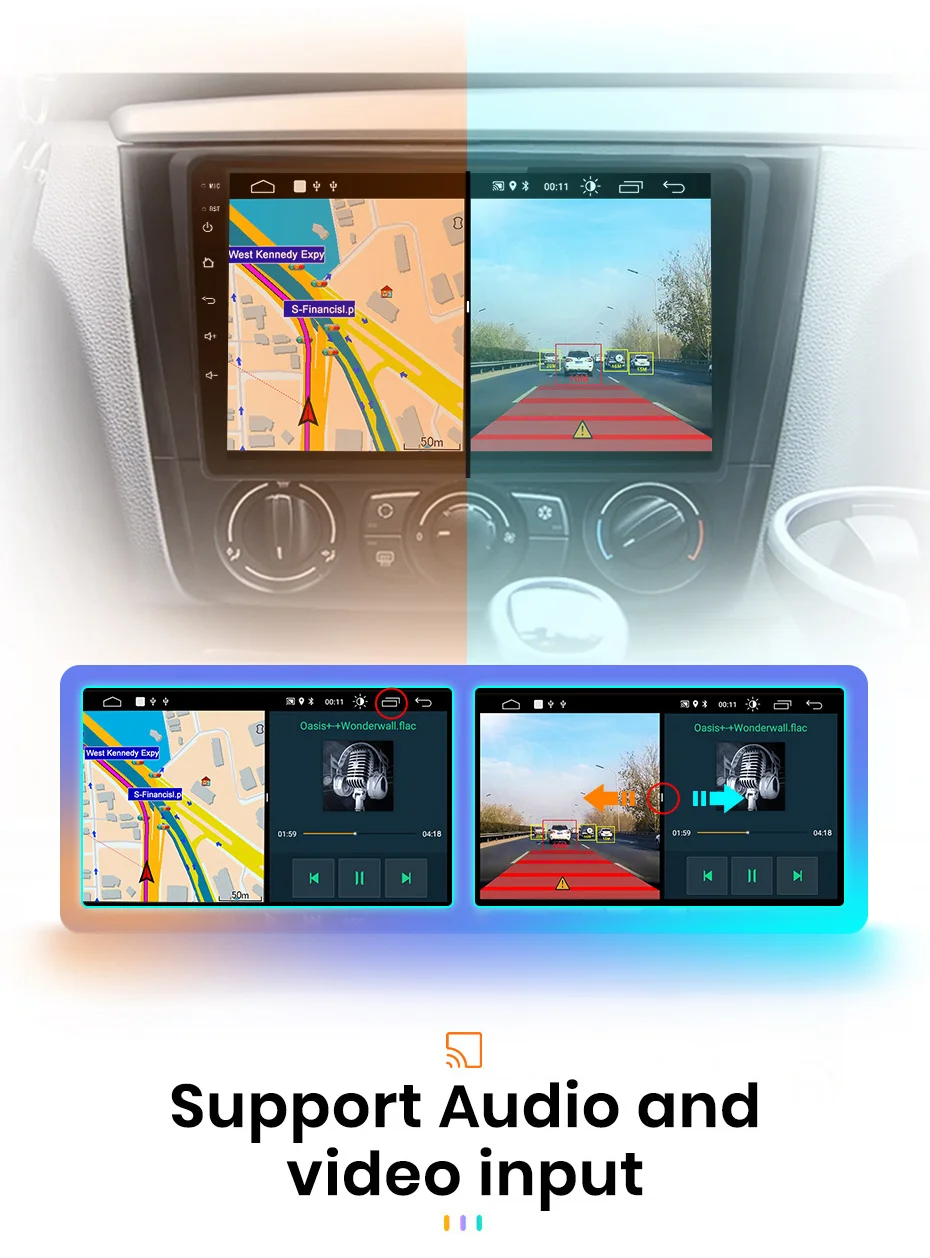

You can use navigate and other applications

at the same time, such as listening to music or

turning on ADAS functions ect.

Support up to 2TB hard-disk

Promotes Safe Driving

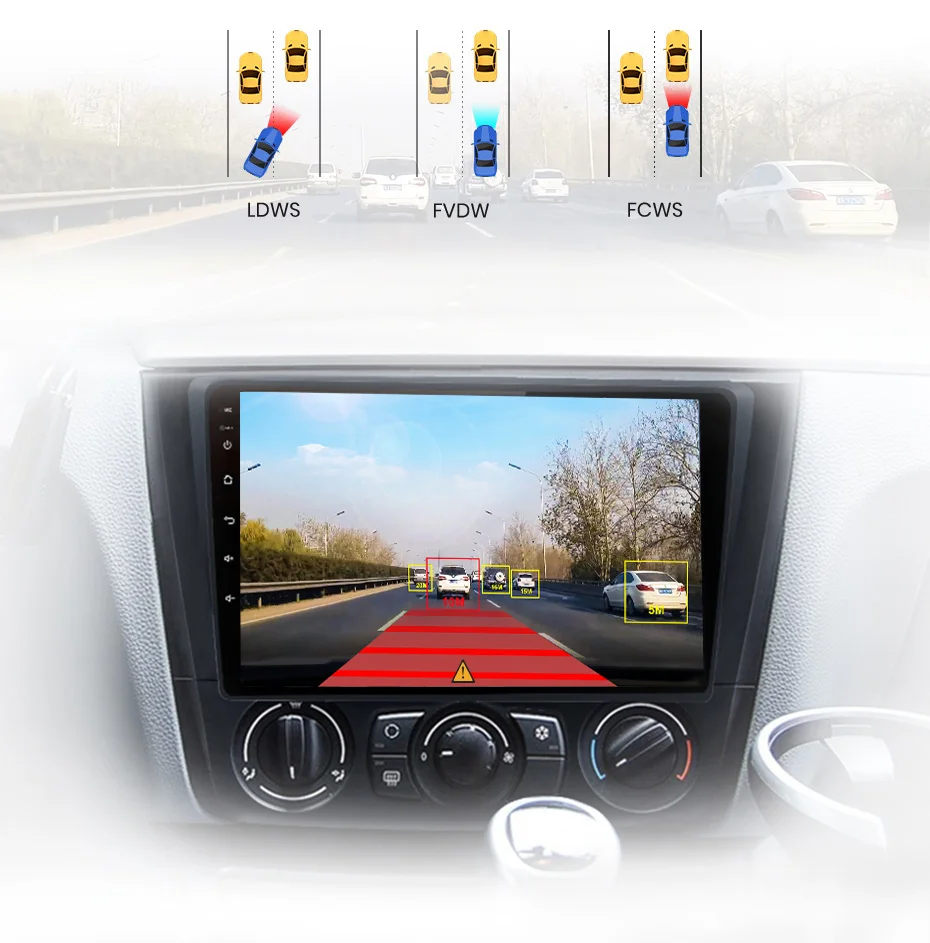

ADAS System Distance warning

lane departure warning

Warm and Important Tips:

1). The device needs to search the satellite correctly the first time, then the time can be updated,
two). Keep in mind that the system and the pre-installed applications will be part of the memory; If Russia map is installed it will take about 3GB; If Europe map is installed, the system will take about 7GB;

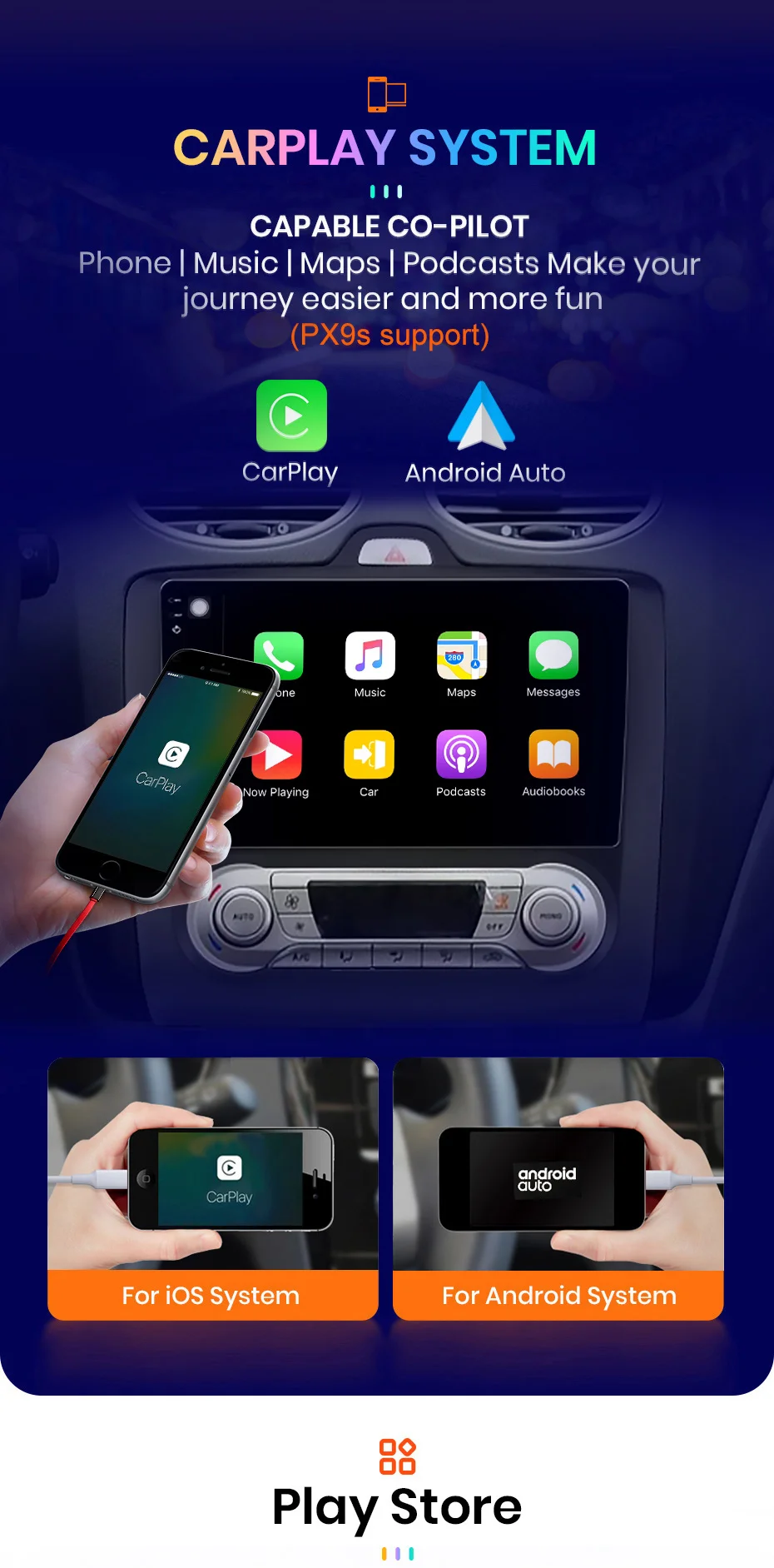

1. How to use CarPlay and Android Auto?

CarPlay:
Both are wired and can only be connected with 4-pin USB port (with 4 small holes), then click "" Phonelink "" or "" Tlink "" app on the radio;
Android Auto:
After purchasing the activation code, the customer service staff will send you the operation method and the activation code

2. How to configure the steering wheel controls?

1) If there is no canbus, please follow the steps below
① 1 + 16GB: Clik Settings Control icon, as the picture shows
//ae01.alicdn.com/kf/Hdd515243bc65428b89fec0f2f27828ccc.jpg

② PX9: Control Clik icon, as the picture shows
//ae01.alicdn.com/kf/H5d52012903cb4a58a6d8347cbb76d2efE.jpg

③ PX9S / PX9S pro: settings → car info → swc, as the picture shows
//ae01.alicdn.com/kf/Hfcecbe6dbc0446d0bae293be583b65bft.jpg


2) If there is canbus in the package, please connect canbus first
(⚠Please note that the Canbus cable needs to be connected, not only to connect to Canbus, but also to connect to the back of the machine with another 8-pin cable.)
Then follow the steps below
① 1 + 16GB:
Settings → factory → 3368 → car model → choose correct car information → reset
As shown in the picture:
//ae01.alicdn.com/kf/H6a1a227be2cf4e248dd1a0a5e274caf0F.jpg

② PX9:
Settings → System → Car Settings → 8888 → Model Choice → Choose Correct Car Information → Restart
As shown in the picture:
//ae01.alicdn.com/kf/He3da309960684f91b1ecbb192b7cde9c6.jpg

③ PX9S / PX9S pro:
Settings → car information → about device → ⚙ → 8888 or 8878 → you can type → choose the correct car information → restart
As shown in the picture:
//ae01.alicdn.com/kf/H4fd8c6c9f2fb4eeda50efaf2f9b87301i.jpg

3. How to change the boot logo?

1 + 16GB: Click System Settings ---- Extended Settings ---- enter the password 3368.

PX9 and PX9S / PX9S pro: click System Settings ---- factory settings ---- enter password 8888


4. How to connect the rear camera?

1) Red wire ① is connected to the backup light "" "" + "" ""

2) Black wire ② is connected to the backup light "" - "" ""

3) the reverse detection wire ④ (pink color) is connected to the red wire ③ that runs from the video input cable

4) ⑤ the cable does not need to be connected.
