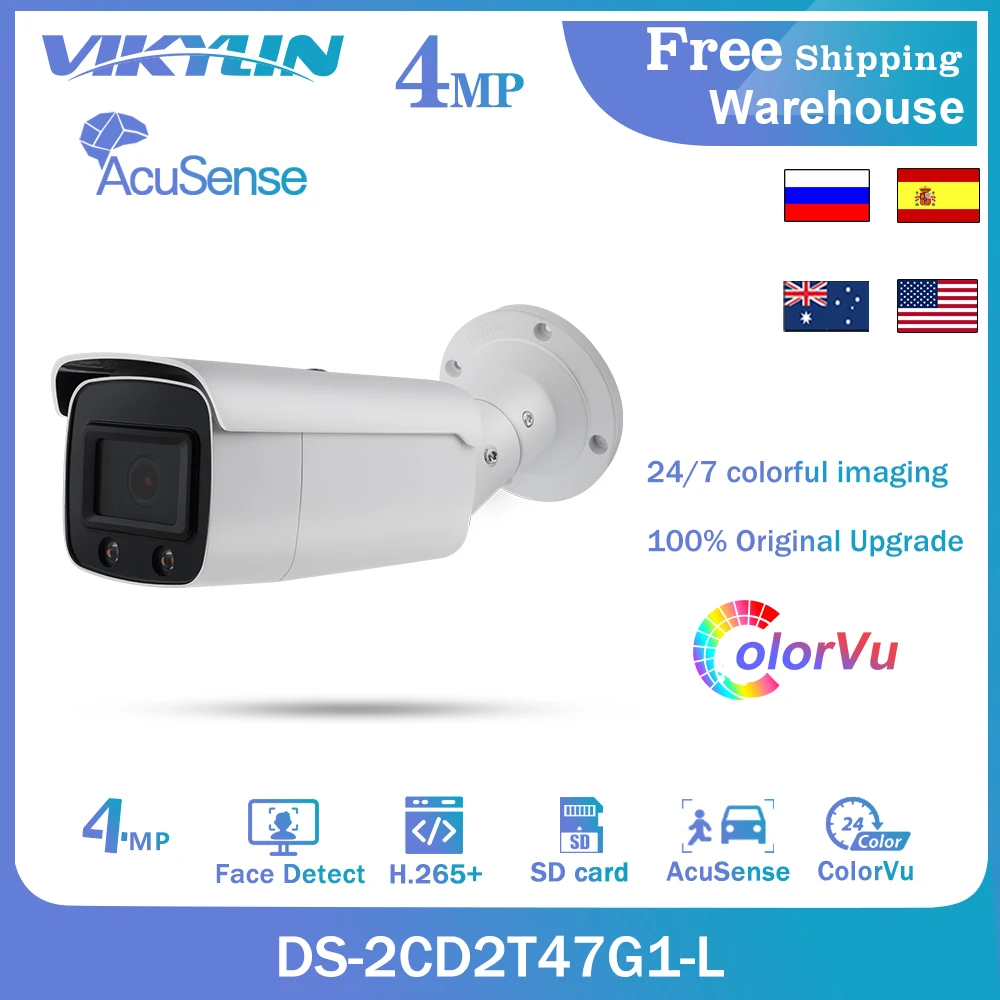

OEM Hikvision DS-2CD2T47G1-L AcuSense IP Camera ColorVu 4MP Bullet IPC Night Vision H.265+ SD Slot POE CCTV Face Detection IP67 |

Camera
Image Sensor : 1/1.8" Progressive Scan CCD
Signal System : PAL/NTSC
Min. Illumination : 0.0014Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter time : 1/3 s to 1/100,000 s
Slow shutter : Support
Lens : 4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°;6 mm, horizontal FOV: 57°, vertical FOV: 31°, diagonal FOV: 67°
Lens Mount : M16
Adjustment Range : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night : Auto
Wide Dynamic Range : 120 dB
Digital noise reduction : 3D DNR
Focus : Fixed

2.Compression Standard

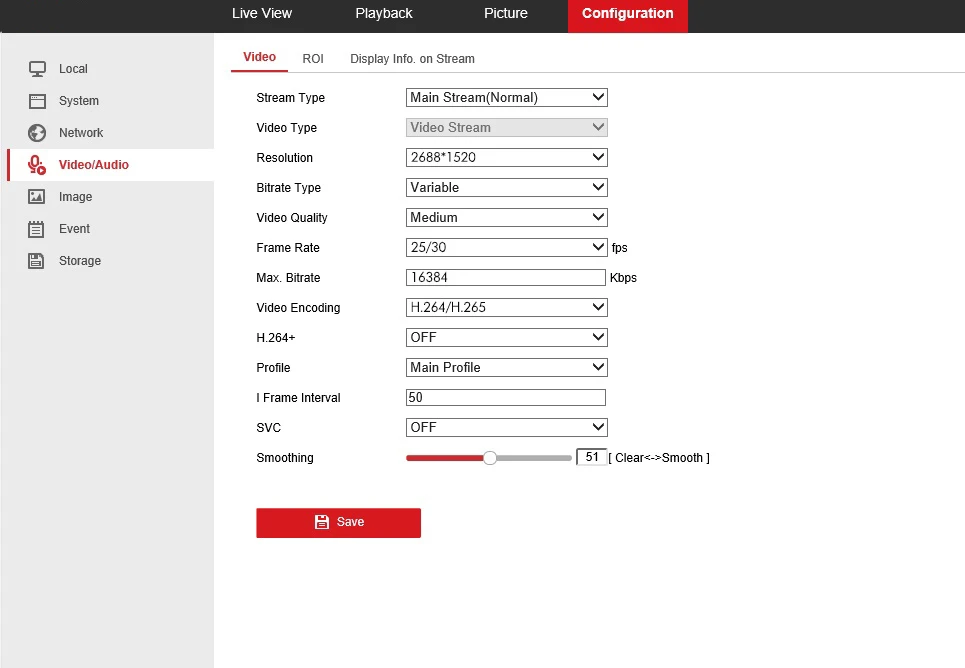

Video Compression : H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate : 32Kbps~16Mbps

3.Image
Max. Image Resolution : 2688 × 1520
Sub Stream : 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240);60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate : 50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720);60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Third Stream : 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288);60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)

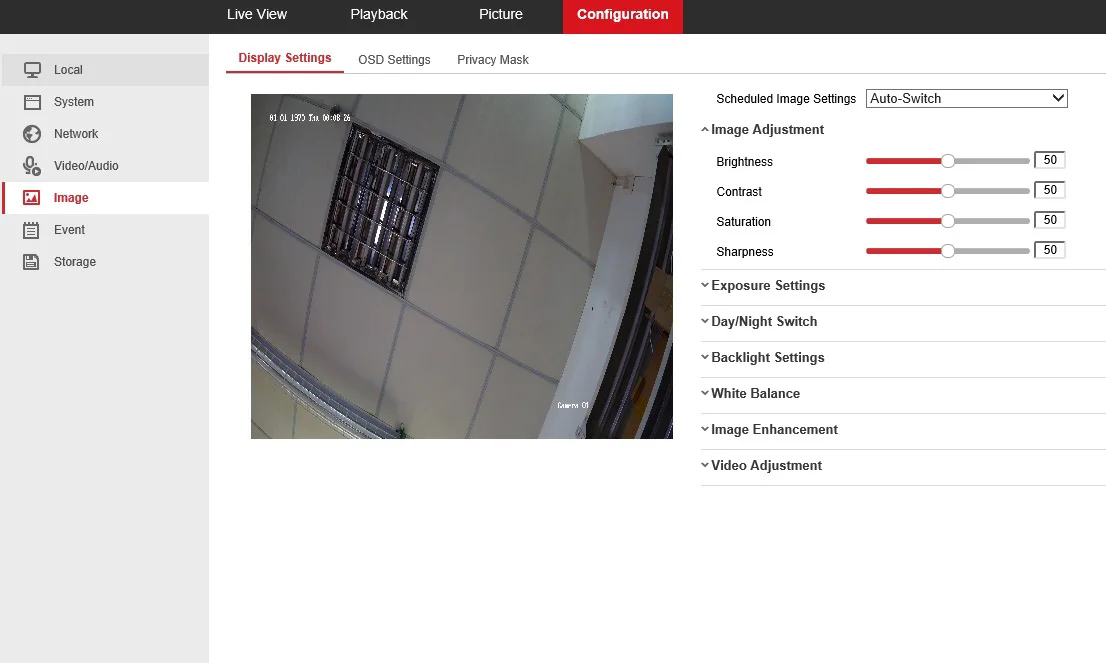

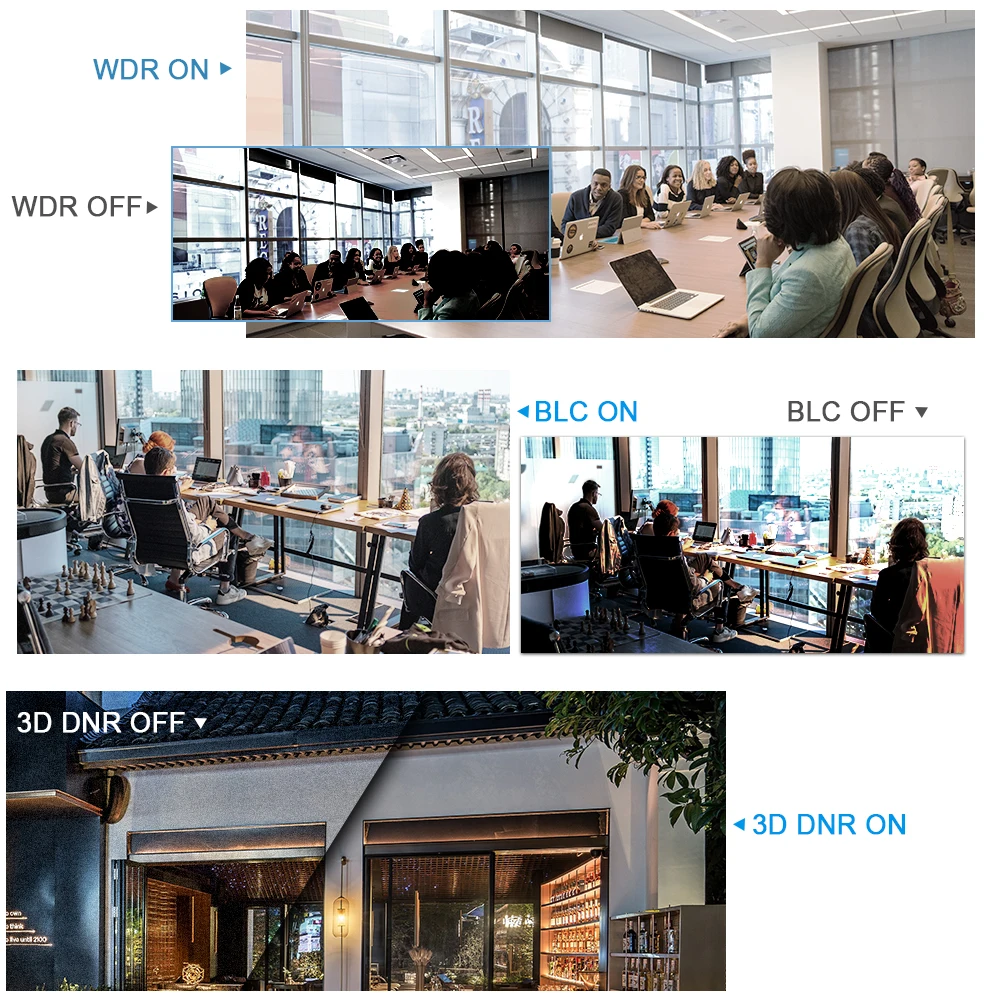

Image Enhancement : BLC/3D DNR/HLC
Day/Night Switch : Day/Night/

4.Network
Network Storage : microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function : One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility : (Profile S, Profile G),ISAPI

5.Interface
Communication Interface : 1 RJ45 10M / 100M Ethernet interface

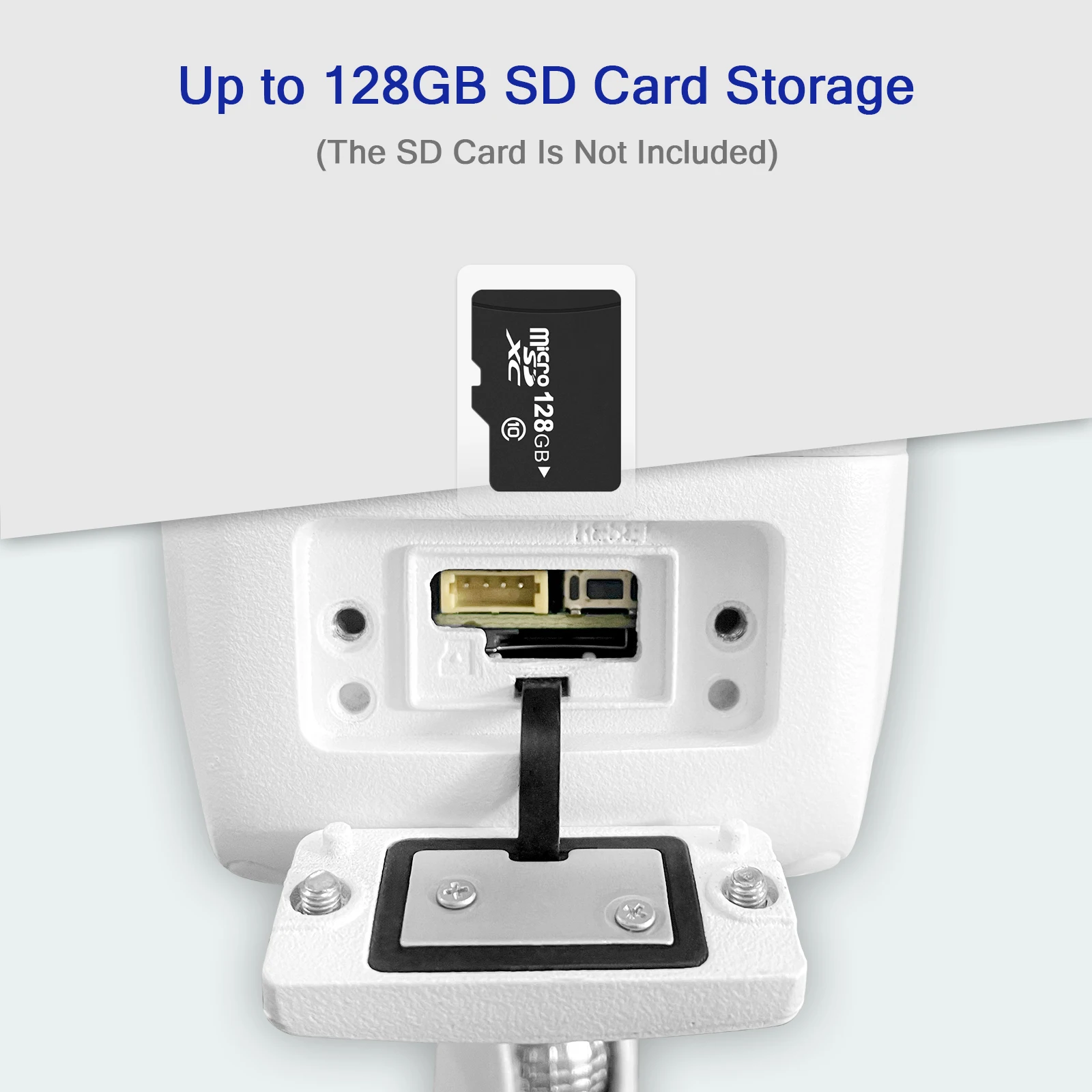

On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button : Yes

6.Smart Feature-set

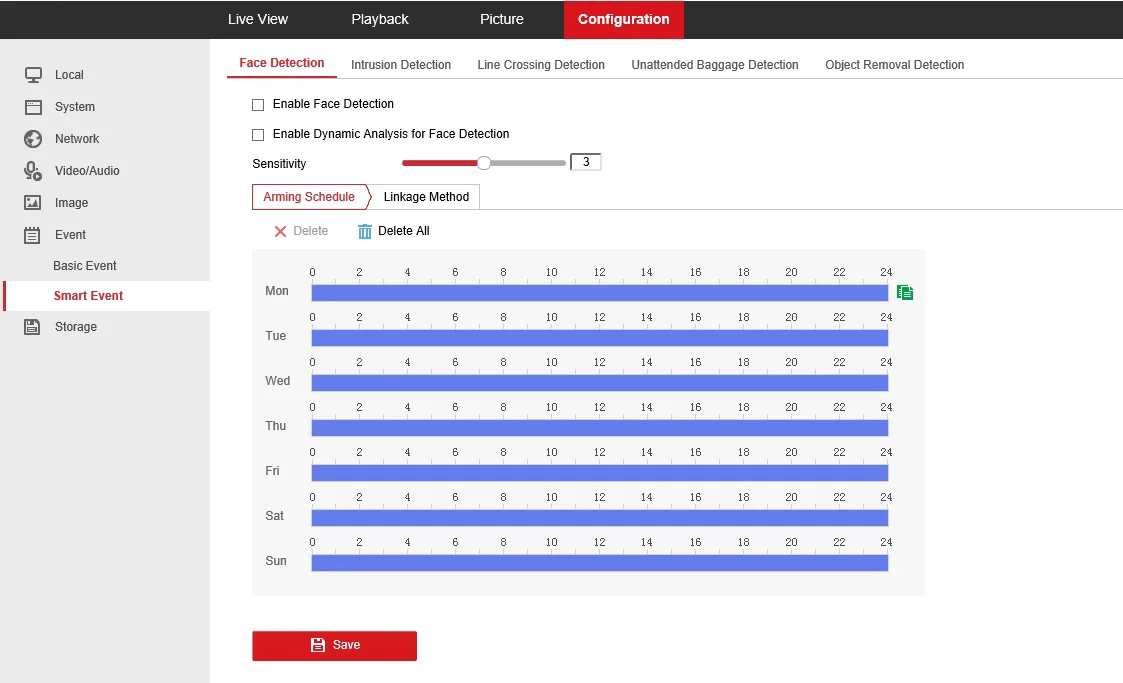

Behavior Analysis : Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection : Cross a pre-defined virtual line
Intrusion Detection : Enter and loiter in a pre-defined virtual region
Unattended Baggage : Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal : Objects removed from the pre-defined region, such as the exhibits on display.

7.General
Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F);Humidity 95% or less (non-condensing)
Power Supply : 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption : 12 VDC, 0.7 A, max. 9.5 W;PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 11 W

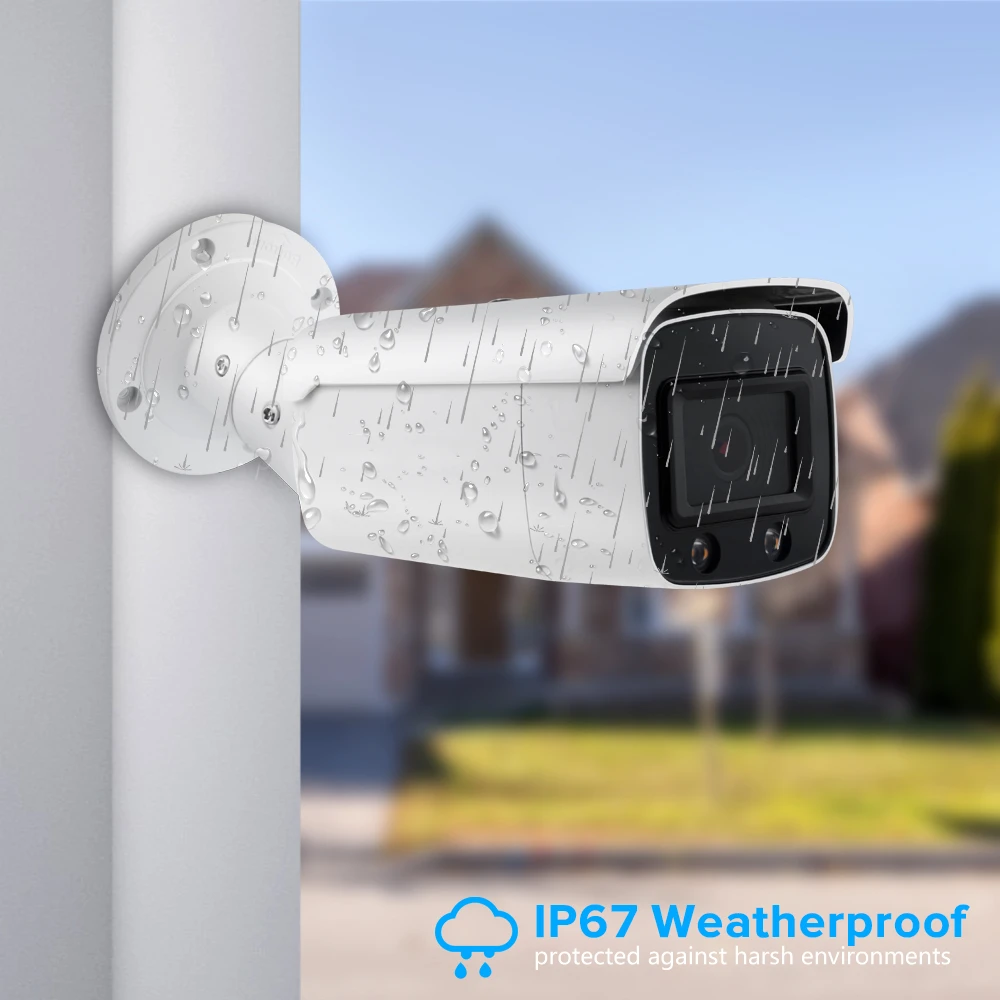

Weather Proof : IP67

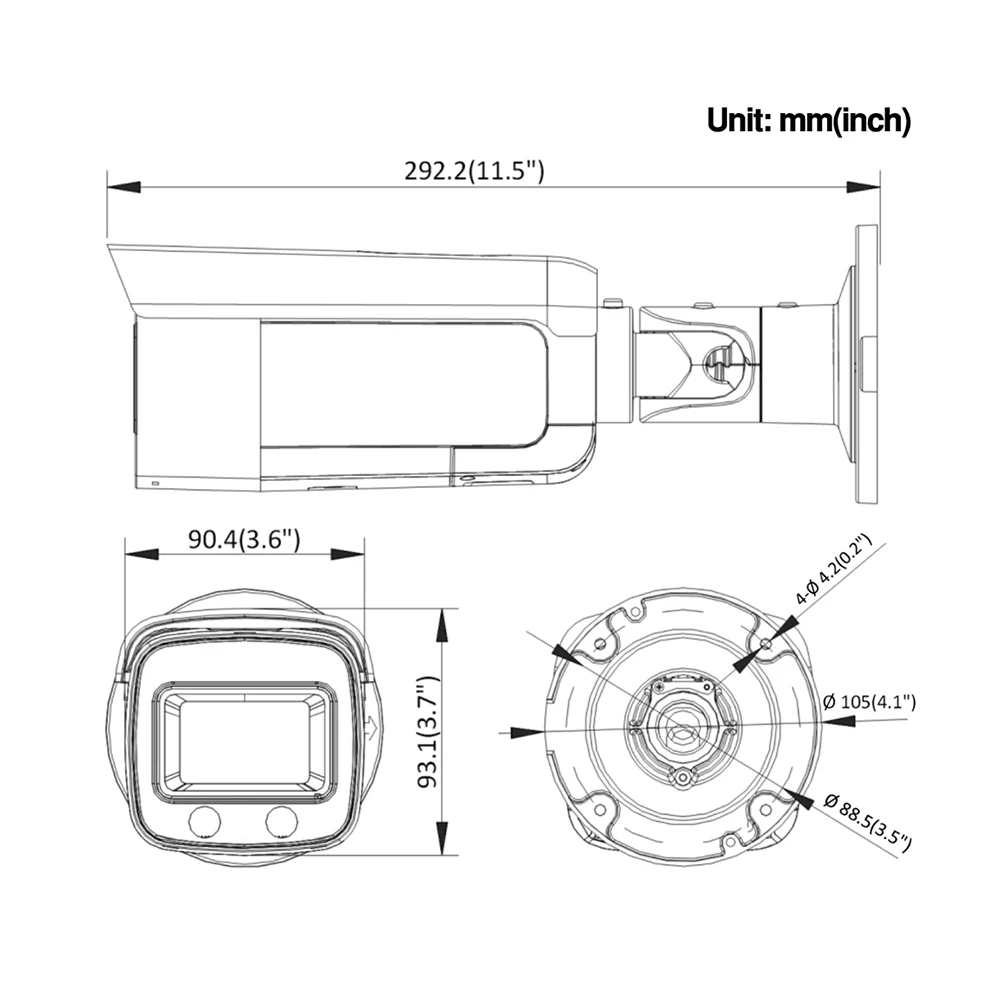

Dimensions : Camera: Φ 105 × 290.7 mm (Φ 4.1" × 11.4");With package: 385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight : Camera: 1200 g (2.6 lb.);With package: 1800 g (4 lb.)
