Welding semi-automatic real smart MiG 200 (n2a5) |

---

Welding semi-automatic real smart MiG 200 (n2a5) is a universal machine designed for MiG/mag, MMA welding, and TIG welding.

Welding semi-automatic real smart MiG 200 (n2a5) is a versatile, multifunctional machine designed for semi-automatic welding with solid and powder wires (MiG). As well as argon arc welding with non-melting electrode (TIG). All modes are complete and each contains a large set of auxiliary functions:

MIG/MAG	Reset settings to factory Costing the working time of the device Adjustable wire ignition time Adjustable gas blowing time after and before welding Adjustable inductance
MMA	Reset settings to factory Costing the working time of the device Power off function VRD Adjustable Arc Force Adjustable hot start and its duration
TIG	Reset settings to factory Costing the working time of the device Adjustable starting current

KEY FEATURES:

• Three full welding modes: MiG/mag, MMA and Tig, in each mode a wide set of parameters

• Performance-the machine has a good power reserve and allows you to qualitatively weld from a leased network of 120 V

• Intelligent cooling system reduces inverter pollution, reduces power consumption at idle and noise level

• Compactness and convenience of working with the device

• Reliability-the device is designed with the use of modern technologies and components

• 5 years warranty

Power supply voltage: 120-270 VFrequency of power supply network: 50HzMiG power consumption: 6.8 KVAMMA power consumption: 7.1 KVATig power consumption: 5 KVACurrent consumption: 30.9 aMIG welding current: 30-200 aWelding current MMA: 20-160 ATIG welding current: 20-180 AMiG working voltage: 15.5-23.0 VMMA working voltage: 20.8-26.4 VTig working voltage: 10.8-17.2 VMon (40 °c): 60%MIG welding current (Mon 100%): 155 AWelding current MMA (Mon 100%): 140 ATIG welding current (Mon 100%): 150 AIdle voltage MMA: 64 VNo-load voltage Tig: 15 VNo-load voltage MiG: 64 VFeeder mechanism: built-inMIG welding wire diameter: 0.6/0.8/1mmMMA electrode diameter: 1.5-4.0mmTIG electrode diameter: 1.6-3.2mmMaximum coil weight: 5 kgWire feed speed: 1.5-15.0 m/minNumber of rollers: 2 pcs.EFFICIENCY: 85%Power factor: 0.72Insulation Class: HProtection class: IP 21sDimensions: 500 × 200 × 385mmWeight: 9.96 kgAntistick✓Hot Start✓Lift-Tig✓VRD✓Operating Mode 2 T/4 t ×Welding mode TIG✓Welding mode ММА✓Welding алюминия✓Welding powder проволокой✓Welding wire ignition functionSingle Girder проволоки✓Digital дисплей✓Adjustable afterburner дуги✓Adjustment индуктивности✓Change полярности✓Package includes:

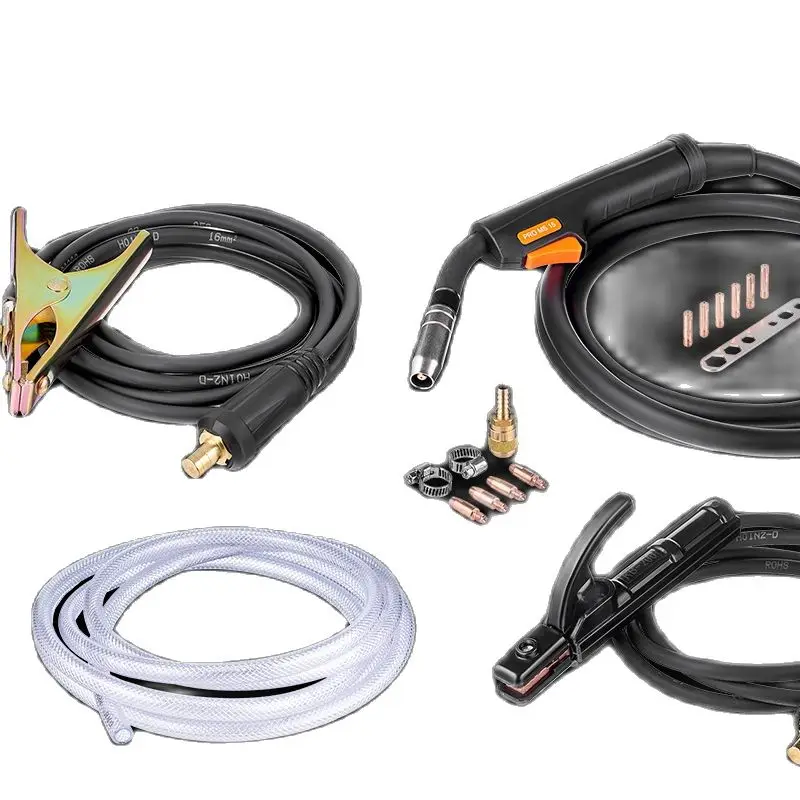

• Inverter welding machine-1 PCs

• Burner pro Ms 15, 3 M1 PCs

• Electrode holder assembly 200 A, 2 m-1 pc

• Ground terminal assembly 200 A, 3 M-1 pc

• Set ЗИП-1 PCs

• Passport and operating Guide-1 pc.
