Item Description

The AR0134 module is a 1/3 inch 1.2MP global shutter monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

Note:

Please note that camera module only can be used together with Arducam USB shield.

Feature

• 1/3" optical format

• 1.2MP 1280 x 960 AR0134 global shutter sensor

• 3.75 x 3.75 u Pixel size

• 54fps at full resolution

• 5.3V/lux-sec responsivity

• 64dB dynamic range

• single 3.3V power input

• Parallel camera interface

• Default M12 mount 6mm LS-6020 lens

Application

• Security

• High dynamic range imaging

• Unattended surveillance

• Stereo vision

• Machine vision

• Automation

Package Including

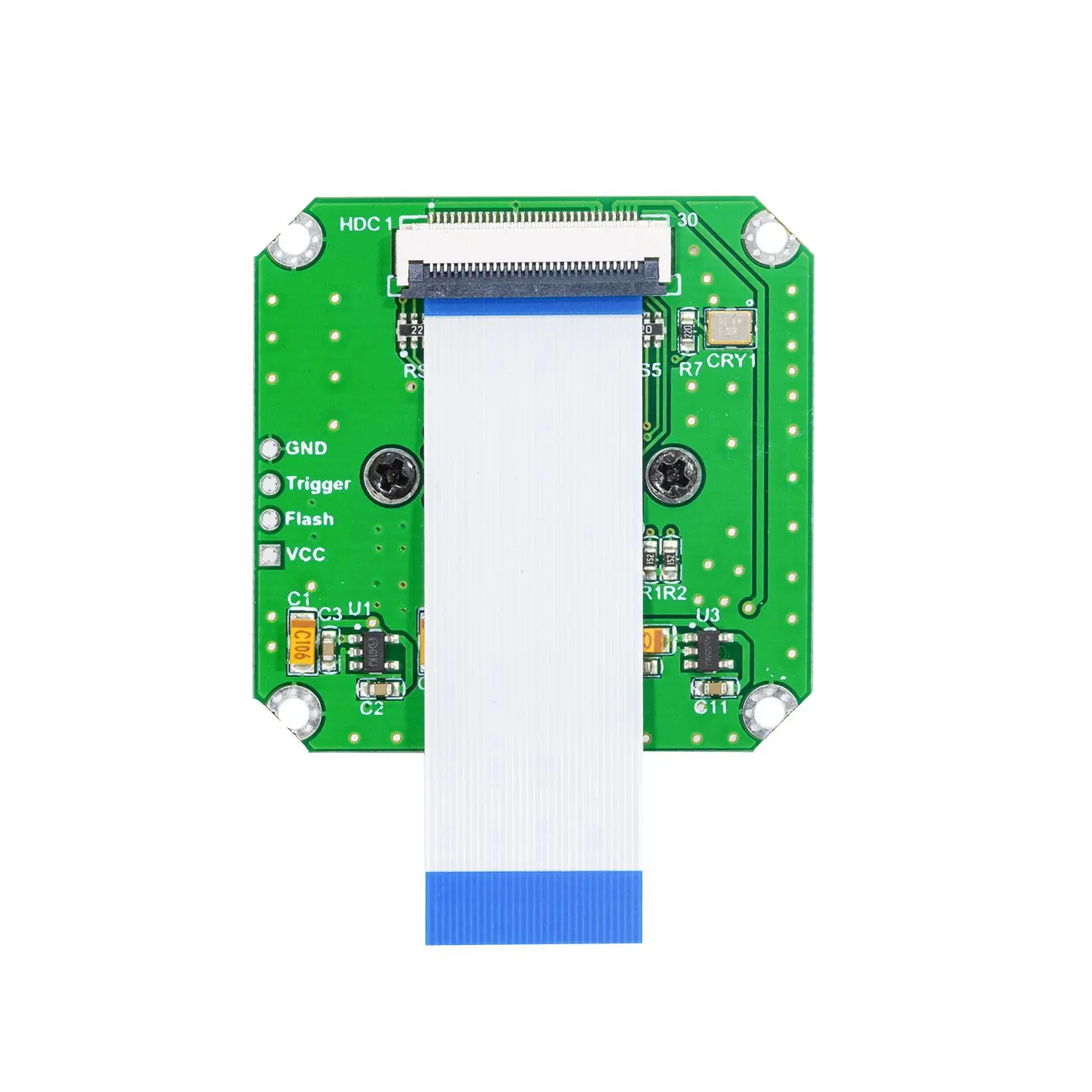

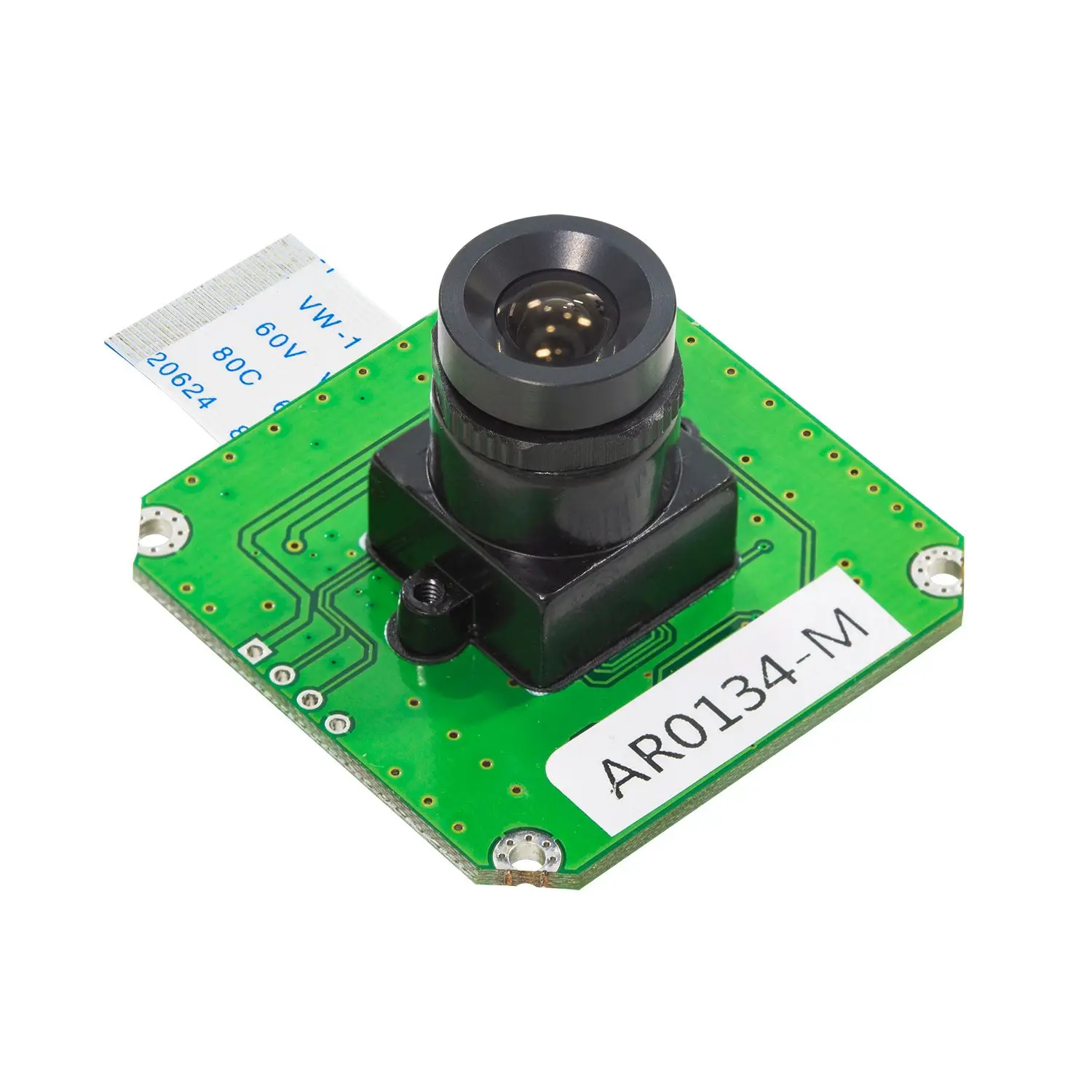

1 pcs Arducam CMOS AR0134 1/3-Inch 1.2MP monochrome Camera Module

Additional Resources:

• User Guide – Arducam 1.2MP AR0134 Monochrome M12 Camera Breakout Board

• Sensor Datasheet – AR0134

• Arducam Documentation – Arducam Camera Breakout Board

• Github – Arducam USB Camera Shield

• Video – Global Shutter Camera Module

• Blog – Arducam USB Camera Shield

• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
