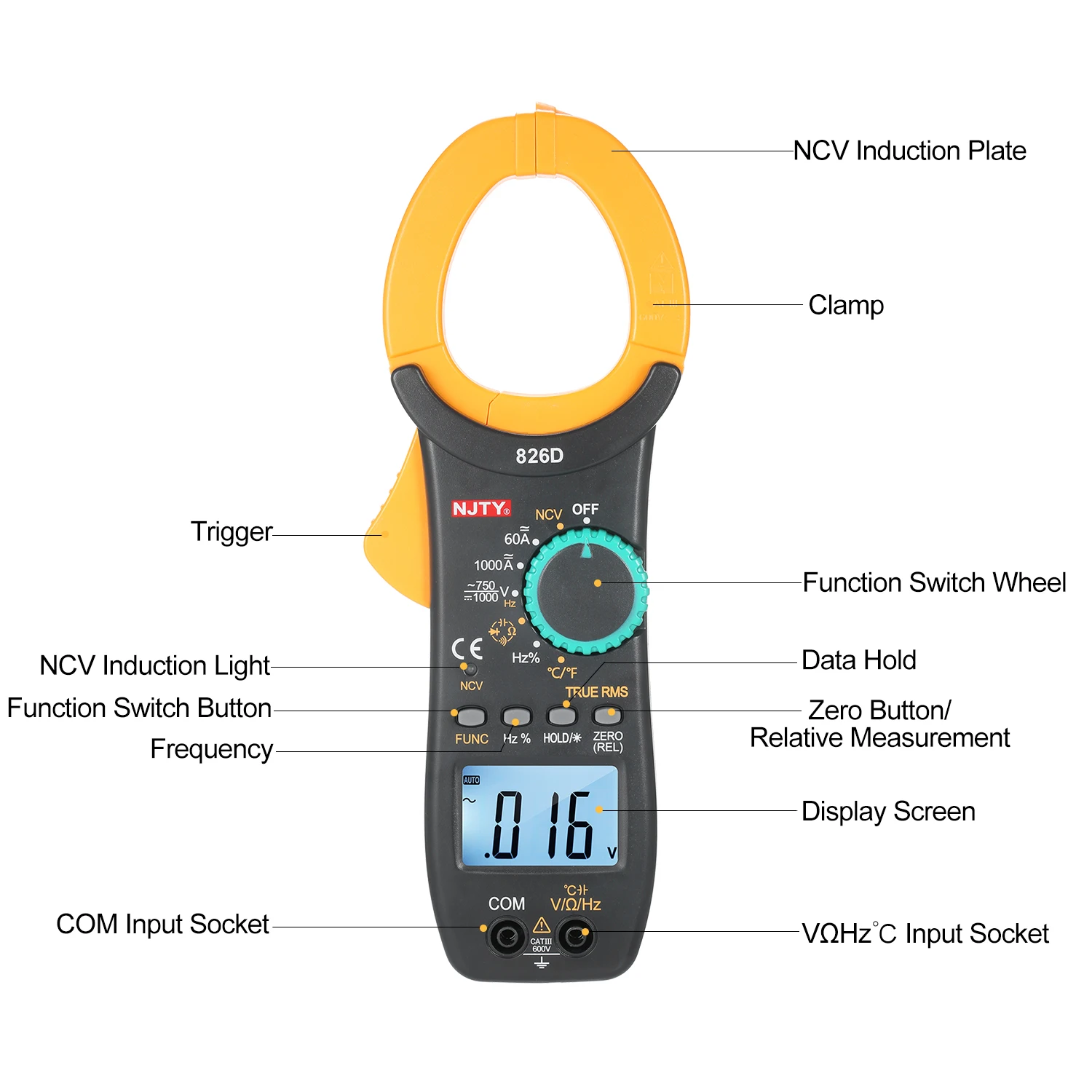

826D

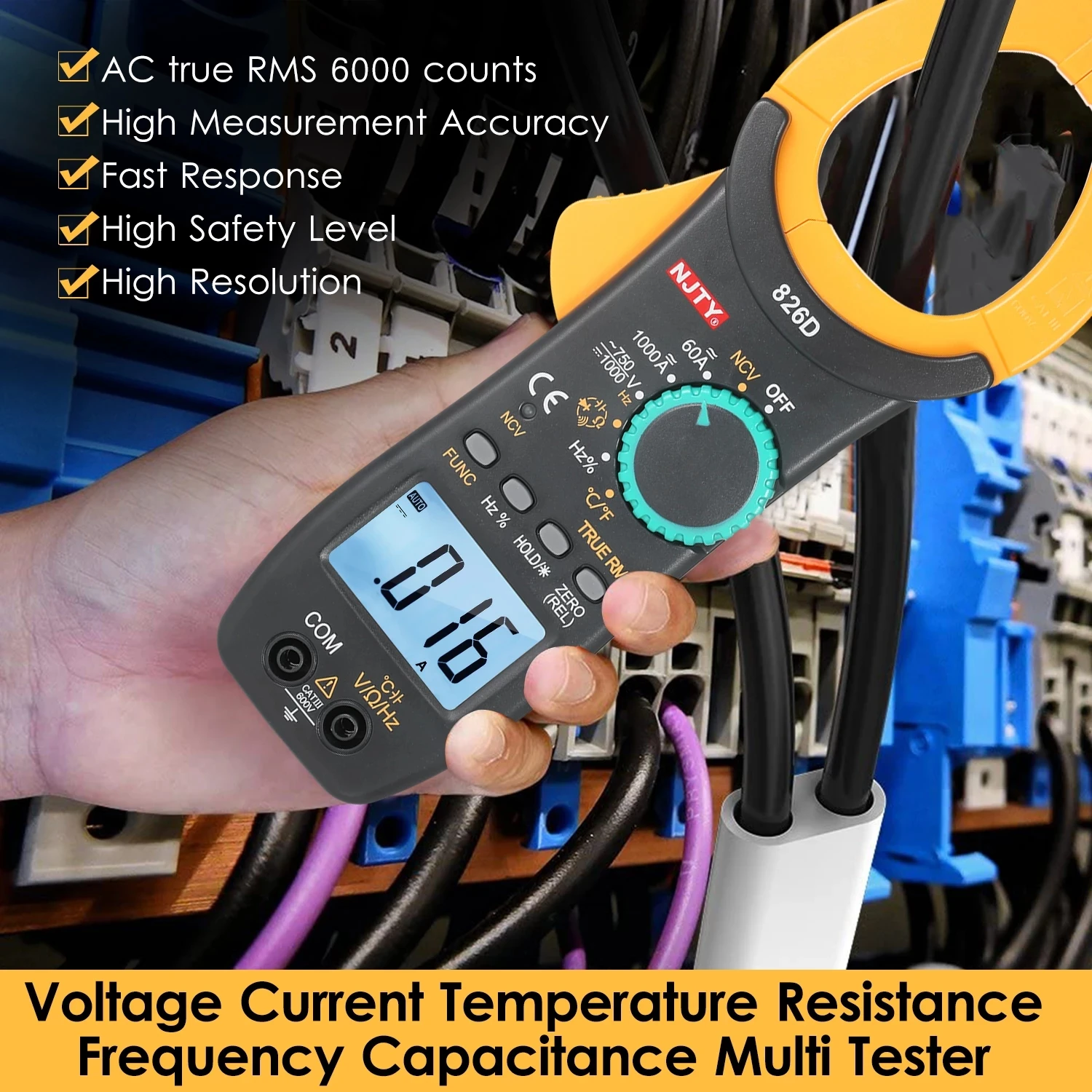

With a friendly man-machine interface, the appearance of the entire instrument is aesthetically pleasing, the circuit design is safe and reliable, which is suitable for various industrial applications. It has many measurement functions including DC and AC current, DC and AC voltage, resistance, frequency, capacitance, temperature, diodes and buzzer, thus it can meet the needs of various application groups such as professional engineers and maintenance engineers.

Features:

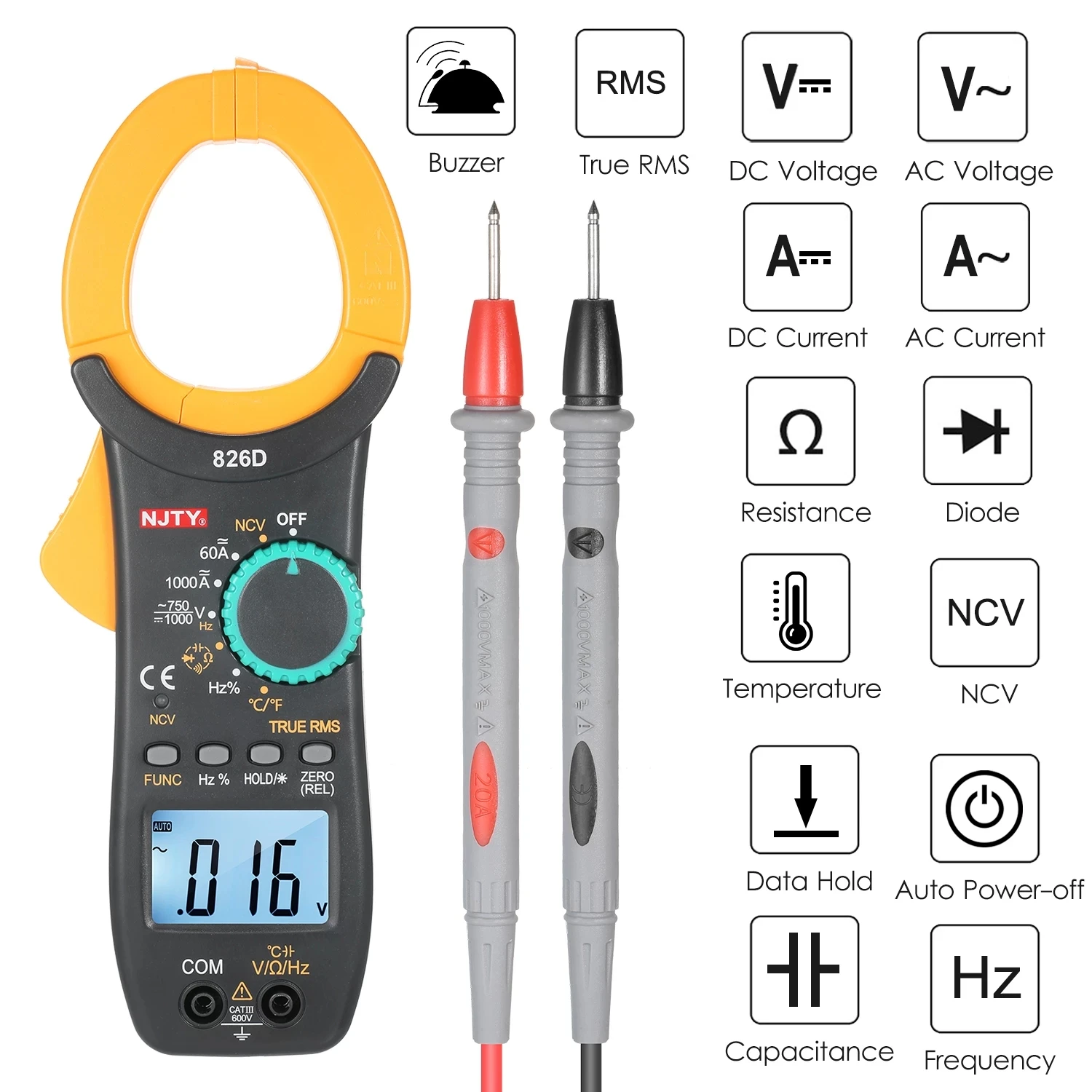

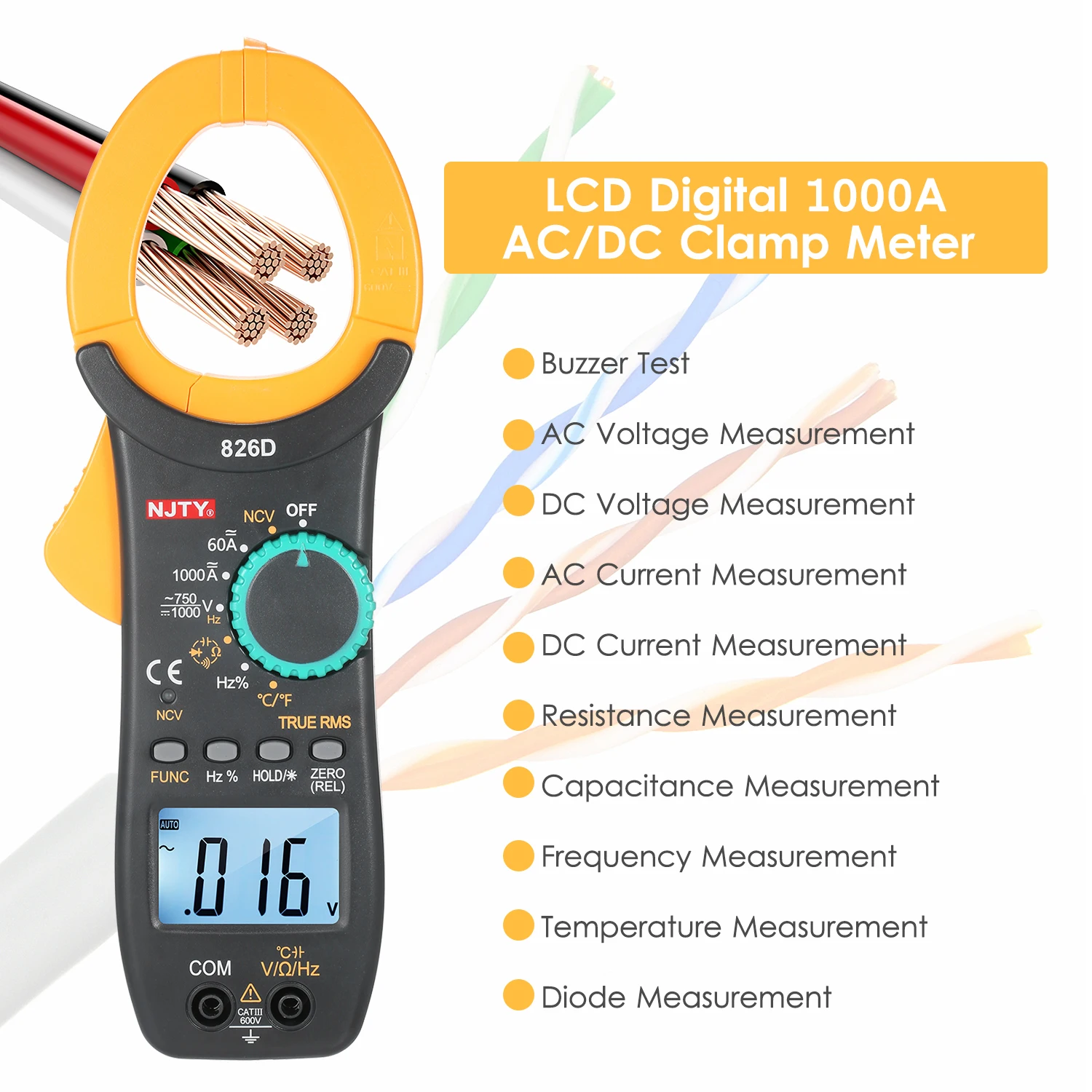

Multiple Functions: the clamp meter can be used to measure DC/AC current, DC/AC voltage, temperature(℃/℉), resistance, frequency, capacitance, diodes and buzzer.

Safety Operation: the product is designed in accordance with the safety standards for electronic measuring instrument. Comply with safety standards of IEC61010-1 and 600V CAT Ⅲ and pollution degree 2.

Low Power Consumption: powered by 2pcs AA batteries, with low battery indicator and 15 minutes auto off functions to save power.

NCV Test: simply place the sensing area of the clamp head close to the object to be tested (such as power distribution boards, wiring boards, and places with strong electric fields, etc.), once the AC electric field or voltage is induced, the NCV LED will flash continuously and quickly, and the buzzer will beep synchronously.

AC Live Wire Judgement: set the gear position rotary switch to "NCV" gear, then insert any red or black test lead into the live wire jack, the NCV LED will flash continuously and quickly, and the buzzer will beep simultaneously.

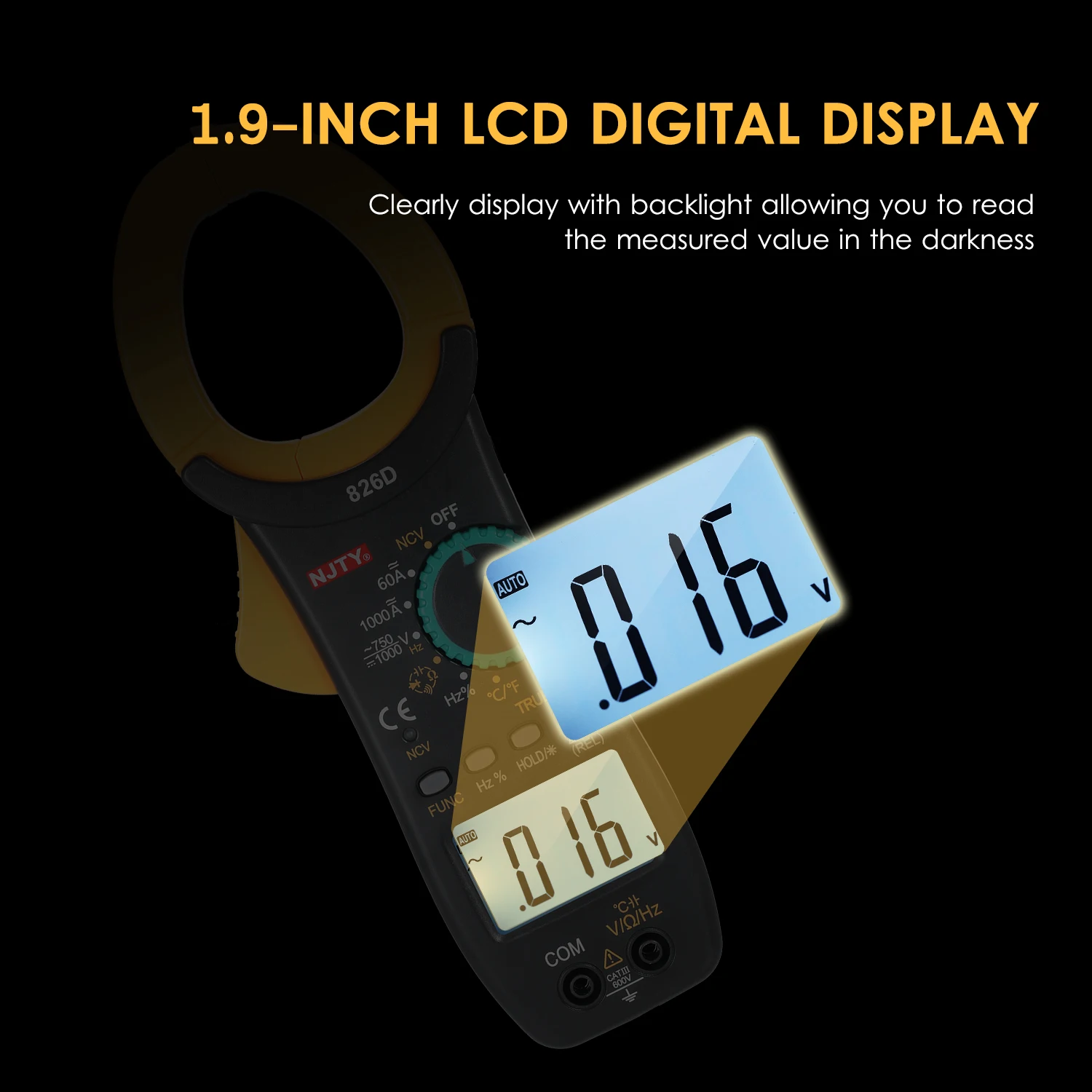

Clearly Display: 1.9-inch LCD screen with a backlight, allowing you to check the measurement display in a dark place.

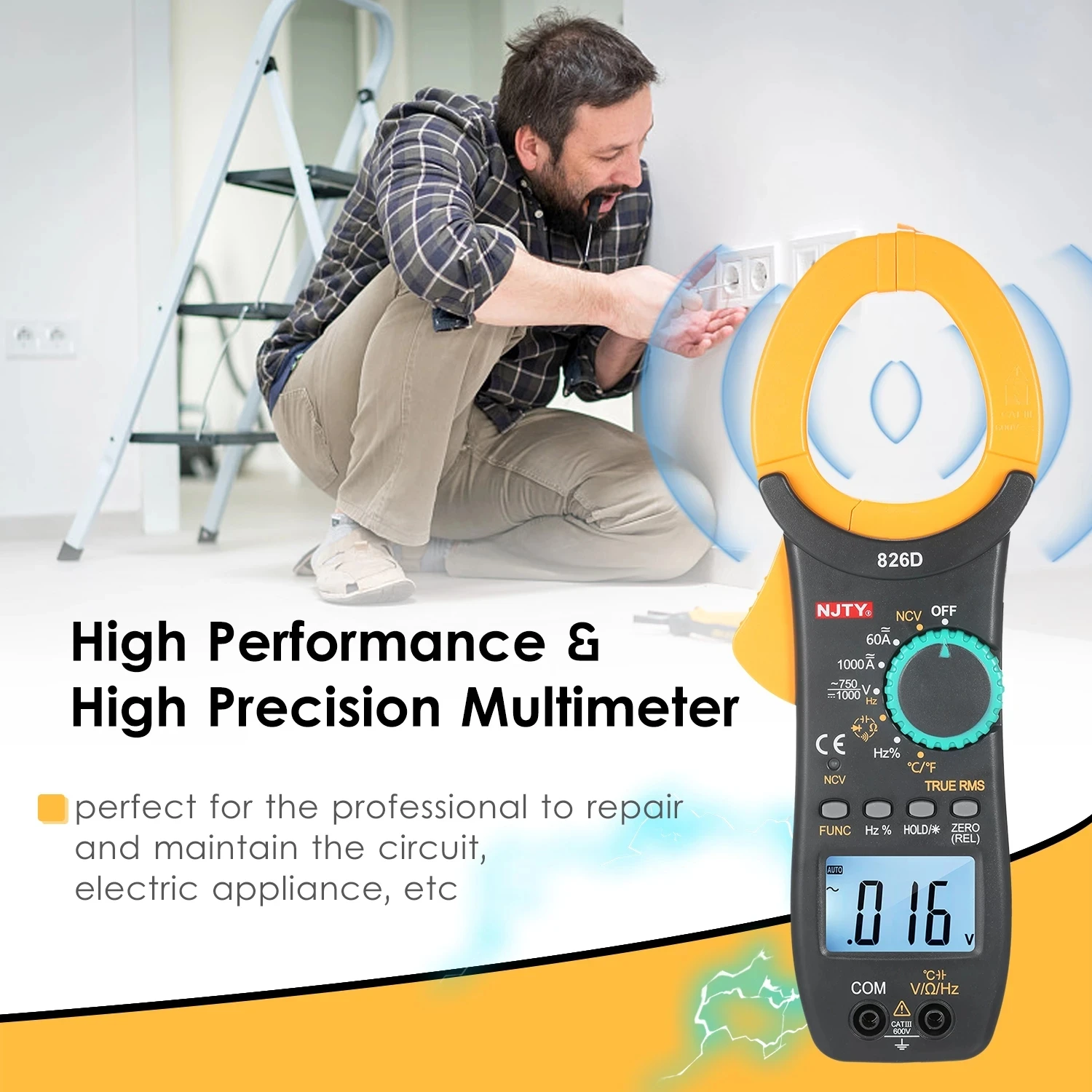

Practical Applications: with high measurement accuracy, fast response, and high safety level, and no change in long-term use in accuracy, perfectly for apply in electric engineering and electrical appliance repairing areas.

Specifications:

DC Voltage Range: 600mV/6V/60V±(0.5rdg+5dgt), 600V/1000V±(0.8%rdg+5dgt)
DC Voltage Resolution: 0.1mV/1mV/10mV/100mV/1V
AC Voltage Range: 6V/60V±(1%rdg+5dgt), 600V/750V±(1.2%rdg+5dgt)
AC Voltage Resolution: 1mV/10mV/100mV/1V
DC Current Range: 60A/600A/1000A±(3%rdg+5dgt)
DC Current Resolution: 10mA/100mA/1A
AC Current Range: 60A/600A/1000A±(2.5%rdg+5dgt)
AC Current Resolution: 10mA/100mA/1A
Temperature Range: -55~1300℃(-67~2372℉)±(1.0%+5)rdg
Temperature Resolution: 1℃(1℉)
Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(0.8%rdg+5dgt), 60MΩ±(1.2%rdg+5dgt)
Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
Frequency Range: 60Hz/600Hz/6kHz/60kHz/600kHz/10MHz±(1.5%rdg+5dgt)
Frequency Resolution: 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz
Capacitance Range: 6nF/60nF/600nF/6μF/60μF/600μF/6mF±(4.0%rdg+5dgt), 100mF±(5.0%rdg+5dgt)
Capacitance Resolution: 1pF/10pF/100pF/1nF/10nF/100nF/0.1μF/0.001mF



Material: ABS
Range: Auto ranging
Display: 6000 counts display
Safety Standard: 600V CAT II, pollution grade: 2
Conversion Rate: Approx. 3s/second
Test or Calibrate Surrounding Temperature: 20℃±2℃
The Biggest Voltage Between Measurement End and Ground: 1000DCV, 750ACV

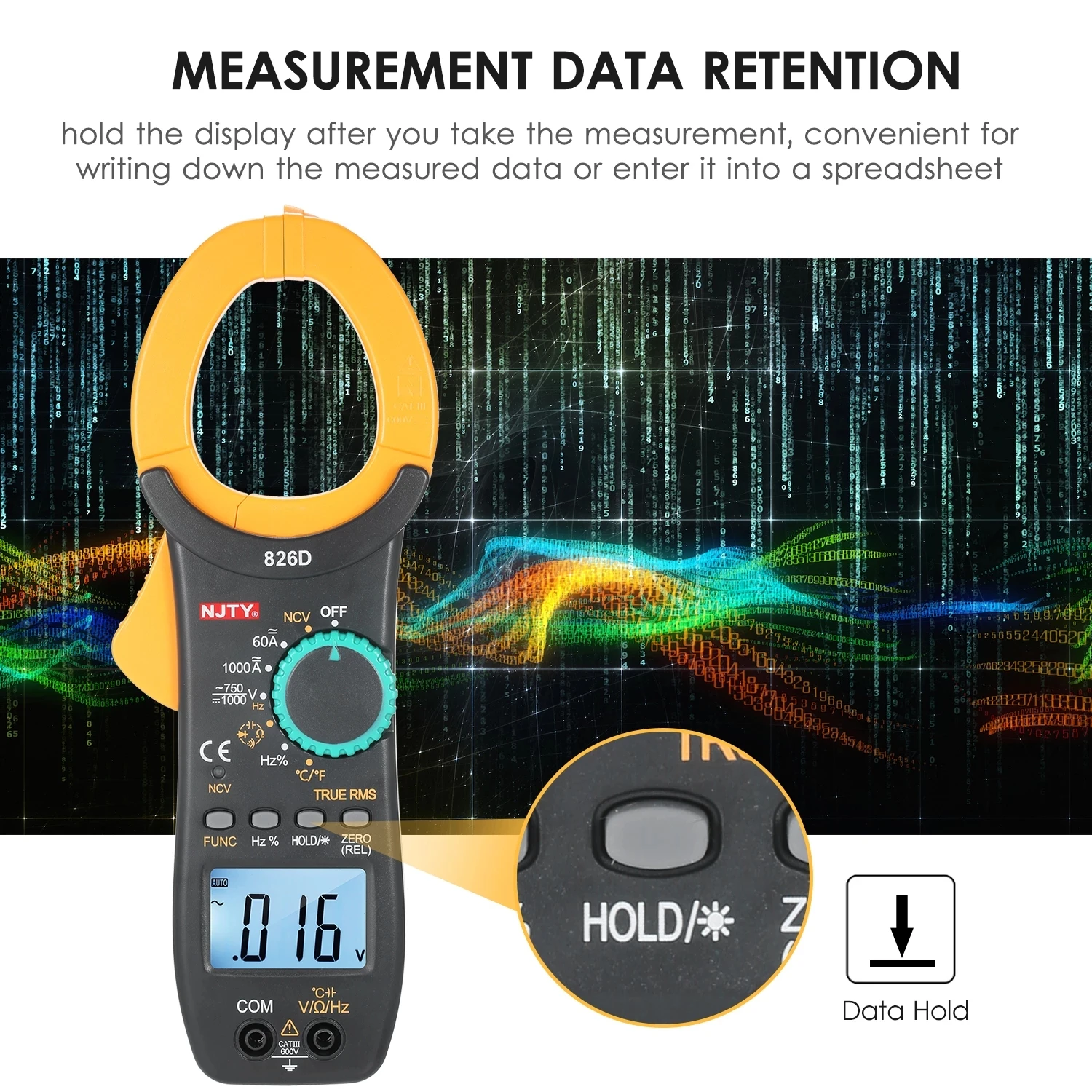

Data Hold Function: Yes
Auto Power-off: 15 minutes
Overload: "OL" displayed
Altitude: <2000m
Working Temperature: 0~40℃ (<80%RH, not considered <10℃)
Storage Temperature: -10~60℃ (<70%RH, take off battery)
Power Supply: 2 * 1.5V AA battery (NOT included)

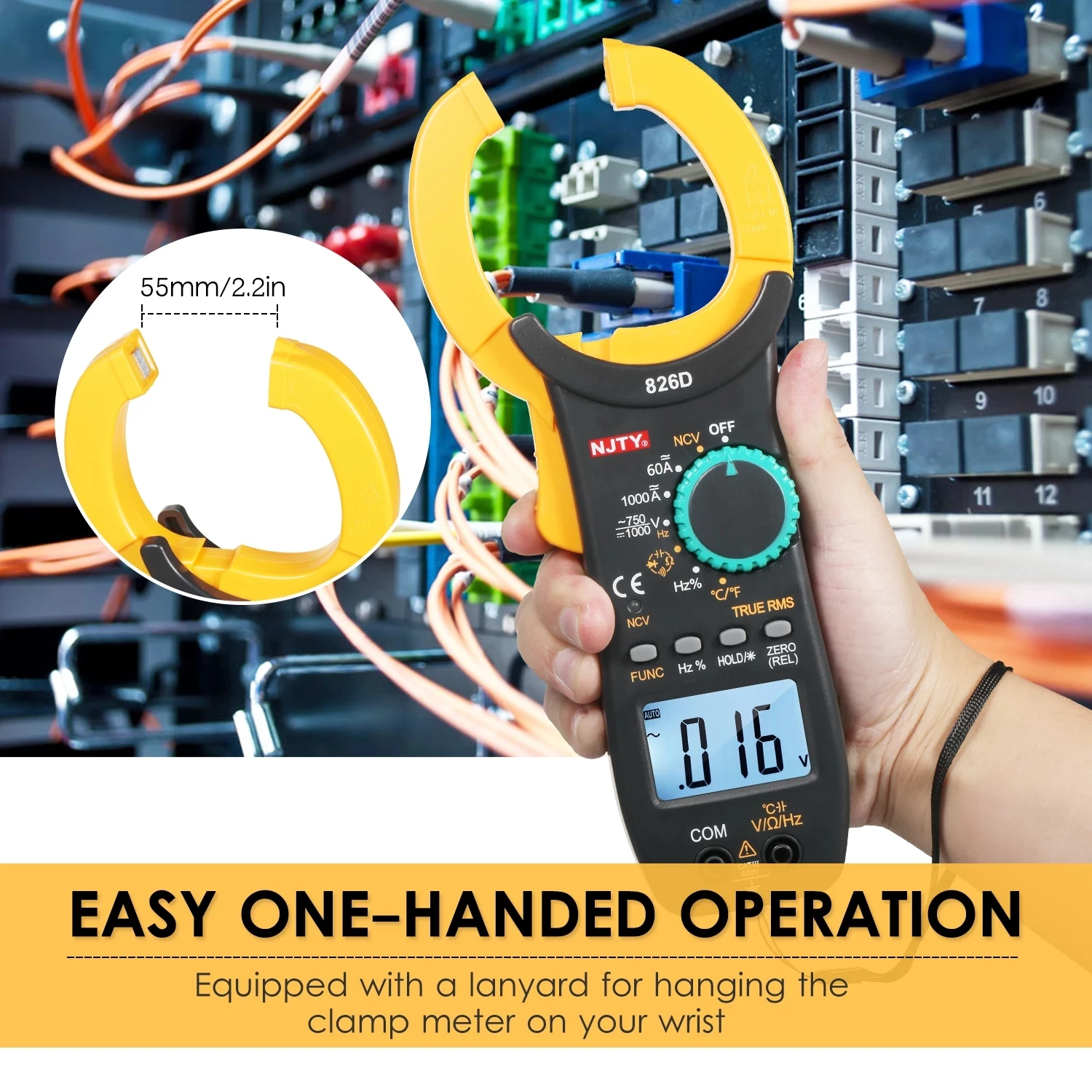

Clamp Open Size: 55mm / 2.17in
Item Size: 245 * 85 * 35mm / 9.65 * 3.35 * 1.38in
Item Weight: 311g / 10.96oz
Package Weight: 532g / 18.79oz
Package Size: 26.5 * 14 * 4.8cm / 10.43 * 5.51 * 1.89in

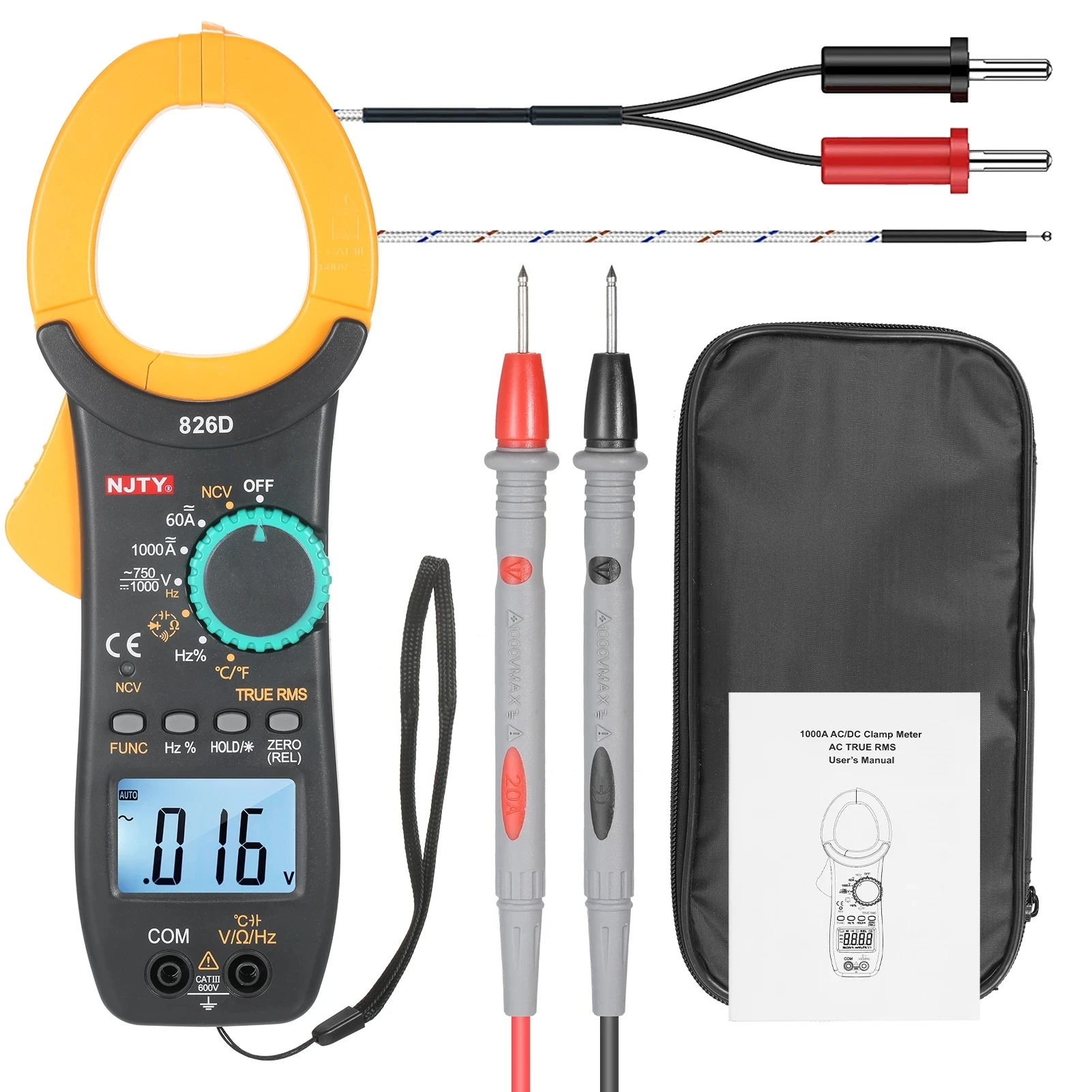

Packing List:

1 * Clamp Meter
1 * Temperature Probe
1 * Storage Pouch
2 * Test Lead
1 * Manual (English)
