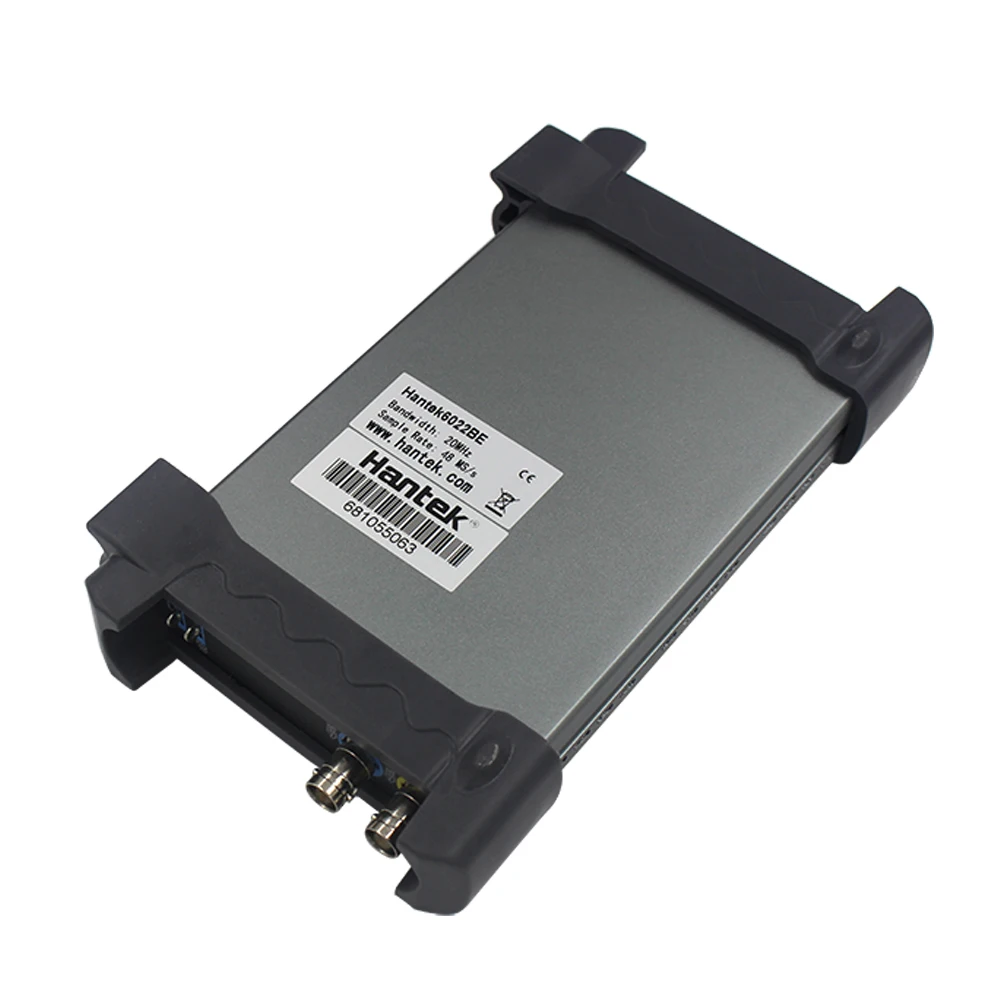

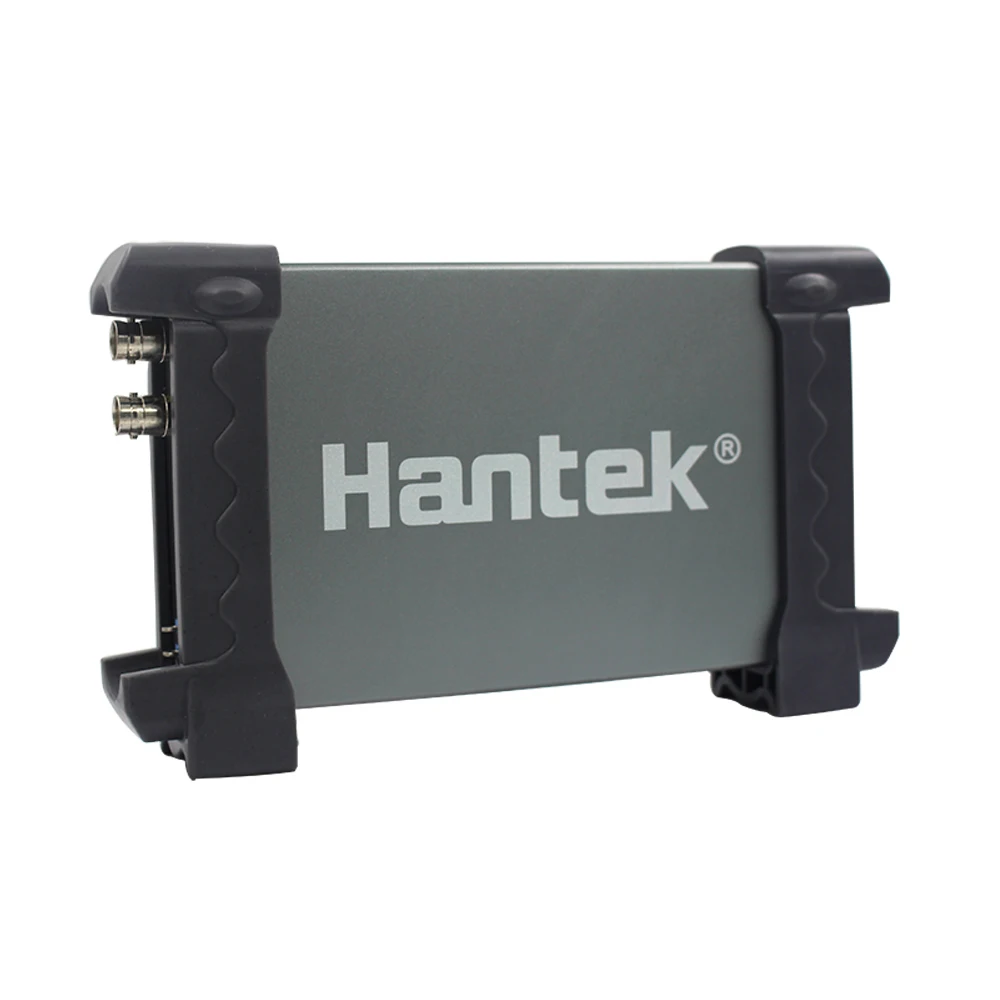

Hantek 6022BE 6022BL ПК USB Портативный Цифровой Осциллограф Ручной Хранения 2 Канала 20 МГц 48 МСа/с Осцилоскоп Вкл.

Description

Hantek 6022BL PC USB virtual oscilloscope Hantek 20MHz(2CH) 48MSa/s 16CH Logic USB PC virtual oscilloscope Logic Analyzer

Friendly Tips:  the difference between 6022BE and 6022BL is that the 6022BL with 16Channels Logic Analyzer Car-detector , 6022BE without

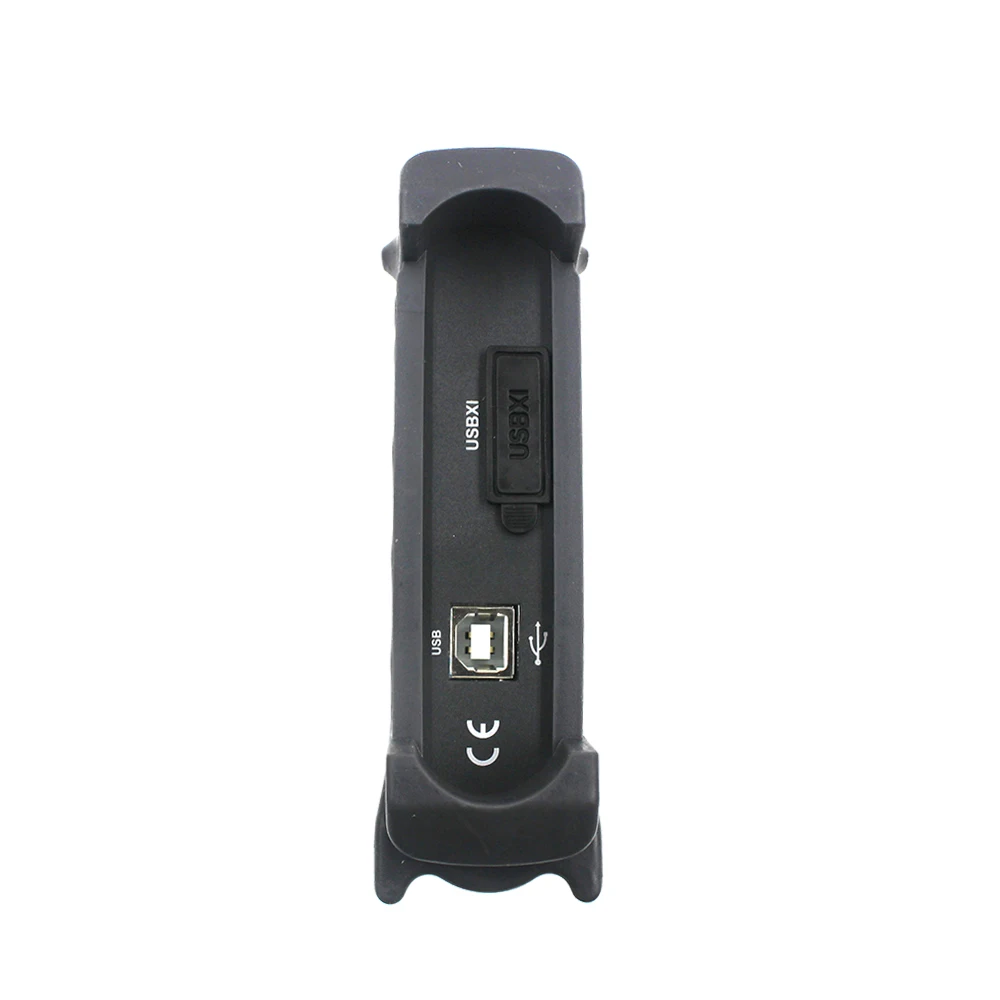

• Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument. USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance, be used easily on business. Dimensions (mm):205(L) x120(W) x35(H), be carried easily. High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth. Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA. 23 measurement functions, PASS/FAIL Check, be suitable for technical application. Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT One computer can connect many DSO, extend channel easily. Labview\VB\VC Second Design instance.

Parameters

Hantek 6022BE:

Hantek 6022BL:

Model                  Hantek6022BL

Oscilloscope Features

Bandwidth                         20MHz
Channel                             2(Digital)+16(Logic)
Sample Rate                     48MSa/s
Memory Depth                   1M
Rise Time                           17.5ns
Time Base Precision       50ppm
Time Base Range           4ns/div-1h/div (Step by1-2-4)
Input Impendence            1M 25pF
Input Sensitivity                10mV/div-5V/div
Vertical Resolution           8Bit
Vertical Position Range    10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe;
                                              1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe
DC Accuracy                       3%
Bandwidth Limited             20MHz
Trigger Type                         Edge, Alternative
Trigger Source                   CH1, CH2, EXT, EXT/10

Math                                             +,-,x,÷,FFT, Invert
Cursor Measurement        Cross, Trace, Horizontal, Vertical
Auto Measurement                 Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,

                                                   Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Logic Analyzer Features

Channel               16
Max. Impendance      1M(C=7.5pF)
Max. Voltage          0V~5.5V
Max. Sample            48M
Bandwidth             10MHz
Compatible Input        TTL, LVTTL, CMOS
Memory Depth             1M/CH

General Features

Power                  USB Port
Dimensions           205mm x120mm x 35mm
Weight              0.382KG
Standard Probe       2 x PP80

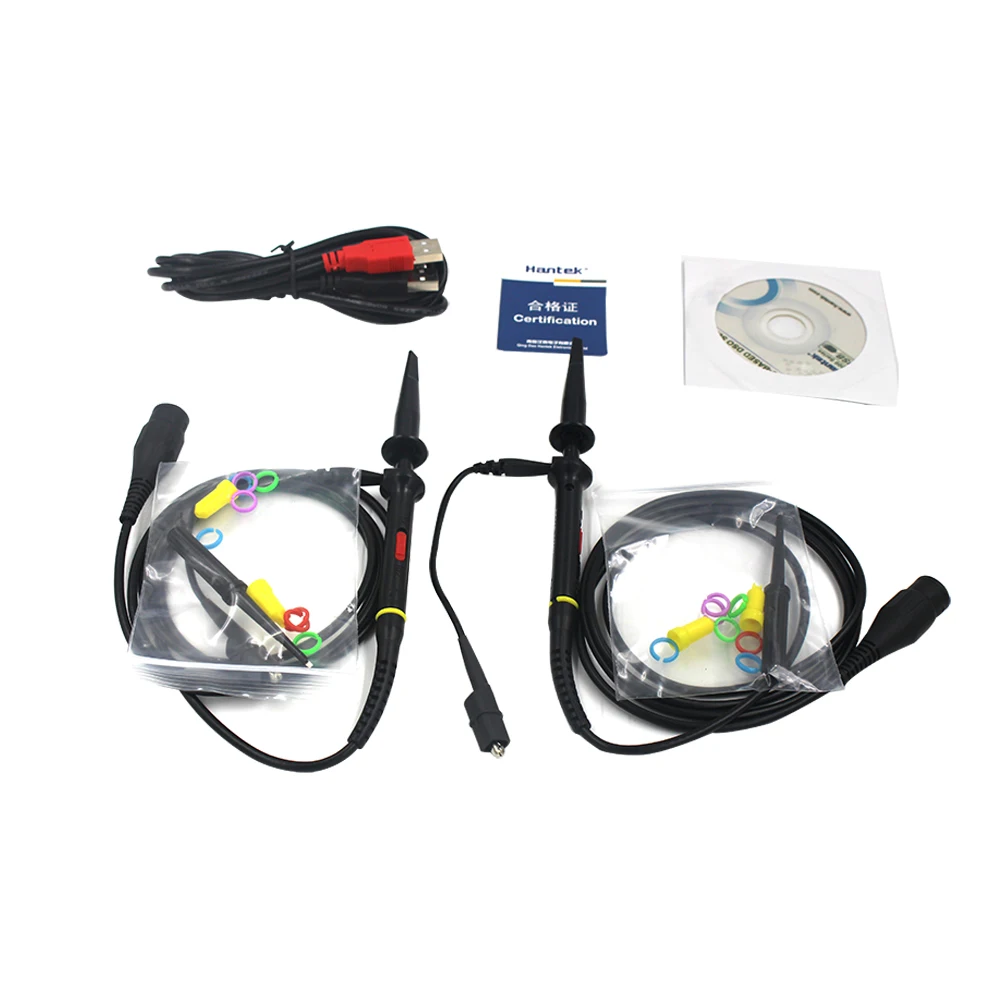

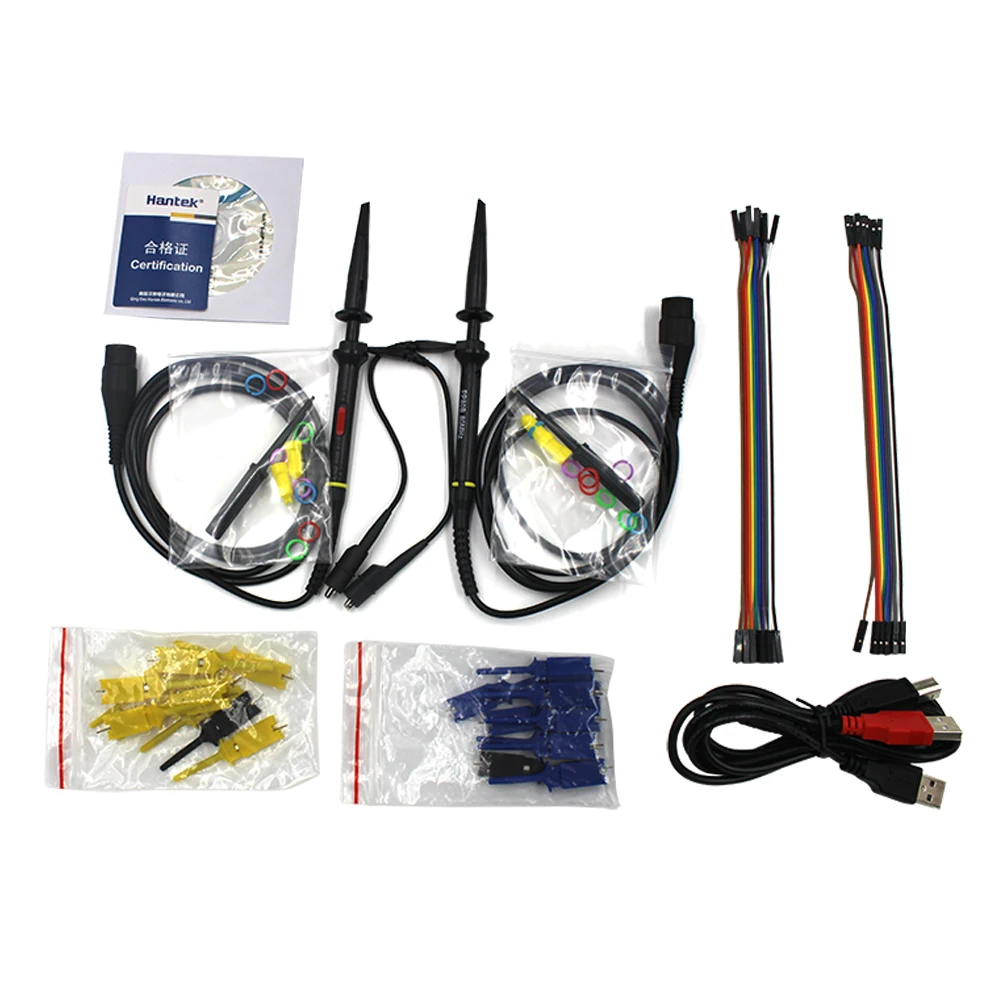

Pacakge including:

1 * 6022BL oscilloscope

2 * Oscilloscope probe

1 * USB cable

1 * jumper clip set (color is random)

2 * jumper cable

1 * CD(manual etc.)

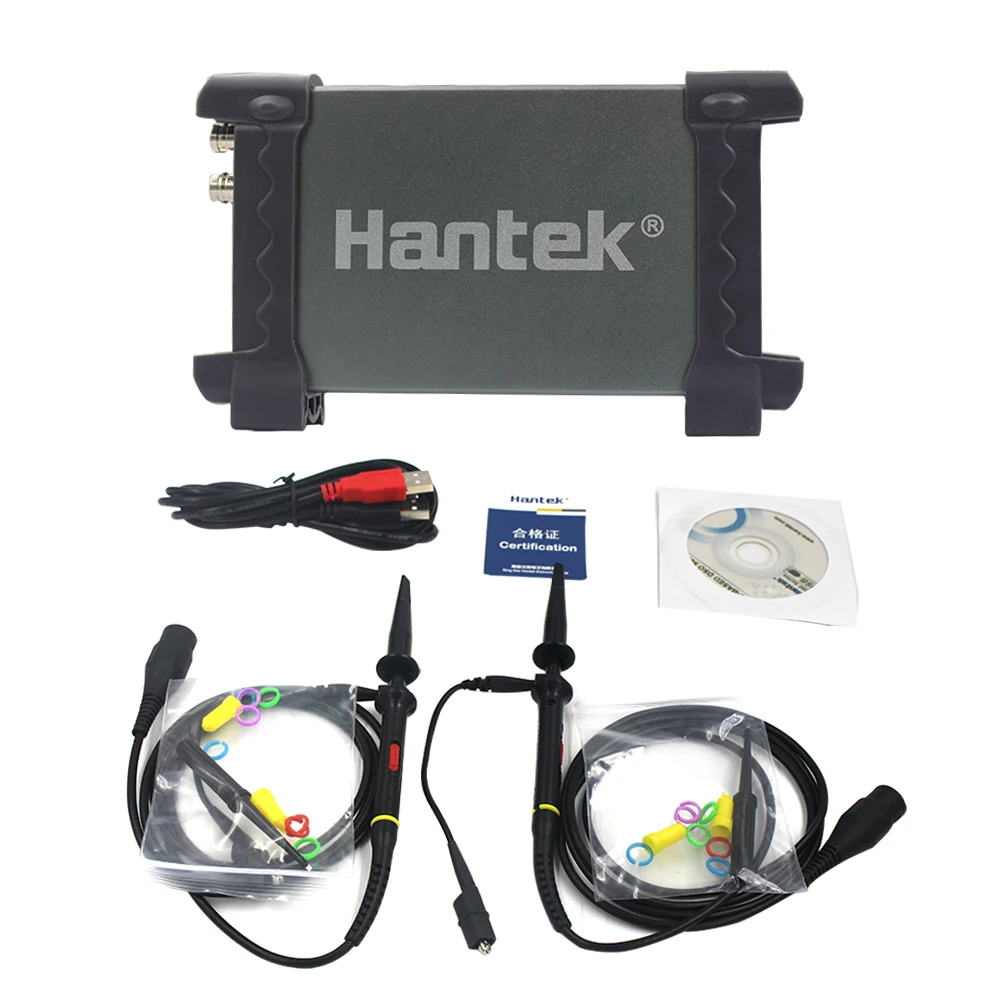

Package including

1 * 6022BL oscilloscope

2 * Oscilloscope probe

1 * USB cable

1 * jumper clip set (color is random)

2 * jumper cable

1 * CD(manual etc.)

6022BL

6022BE
