AERDU Genuine 14.8V 32Ah 4S10P 18650 Rechargeable Lithium Battery Pack 3200mAh Cells 560W FOR Electric Scooters Ebike Motorcycle |

AERDU Genuine 14.8V 32Ah 4S10P 18650 Rechargeable Lithium Battery Pack 3200mAh Cells 560W FOR Electric Scooters Ebike Motorcycle |

Specifications

Model: AED-148320

Cell type: AED-32P(18650 3200mAh)

Cell count: 40 pieces(4S10P)

Nominal voltage: 14.8V/16.8V

Typical capacity: 32Ah/470Wh

Rated power: 560Watt

Output voltage range: 11.2V-16.8V

Discharge cut-off voltage: 11.2V

Charge cut-off voltage: 16.8V

Charge method: CC-CV

Charge current limit: 5A

Charge temperature: 0-45 ° C

Discharge temperature: -10-60 ℃

BMS work current: Discharge 50A and Charge 5A

BMS type: separate port,with balance

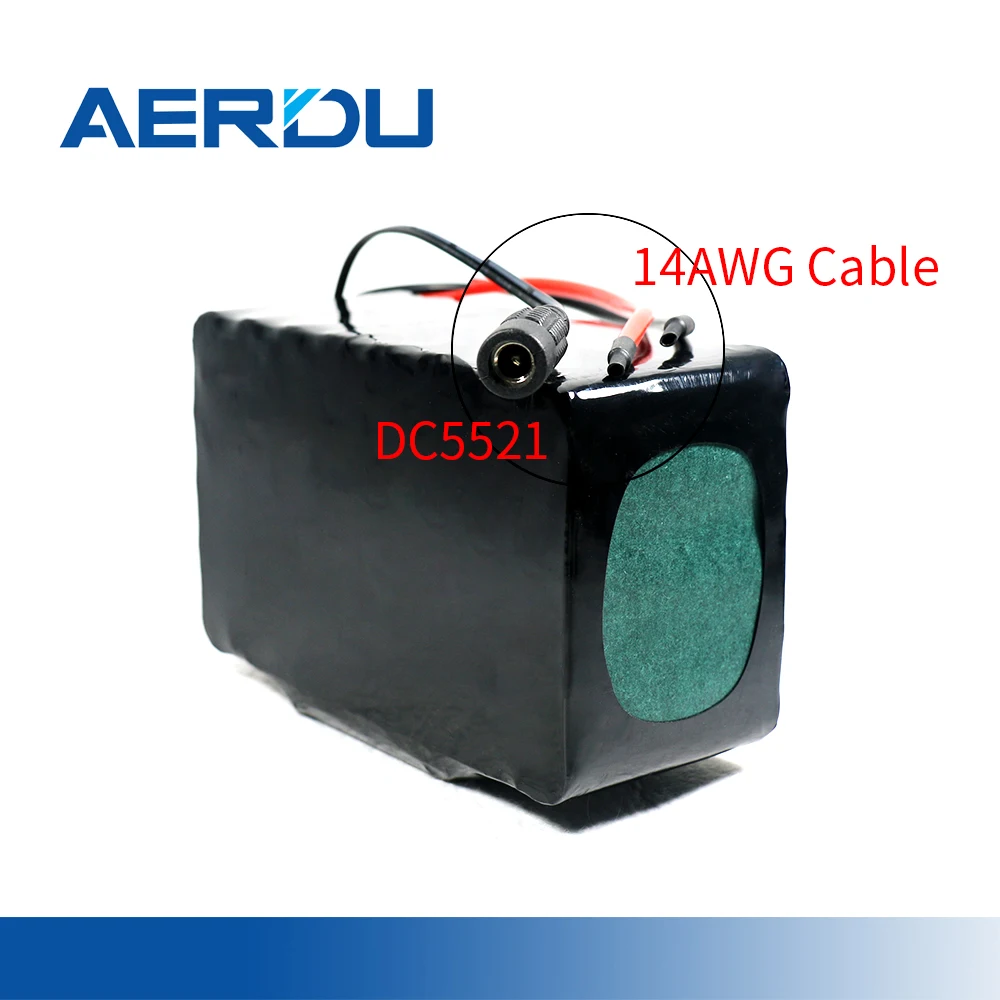

Connector: 14AWG Cable for discharge and DC 5521 for charge

Package: heat shrinkable PVC, random color

Storage temperature: -20-45 ° C (3 months)

Cycle life: 80% DOD after 500 cycles

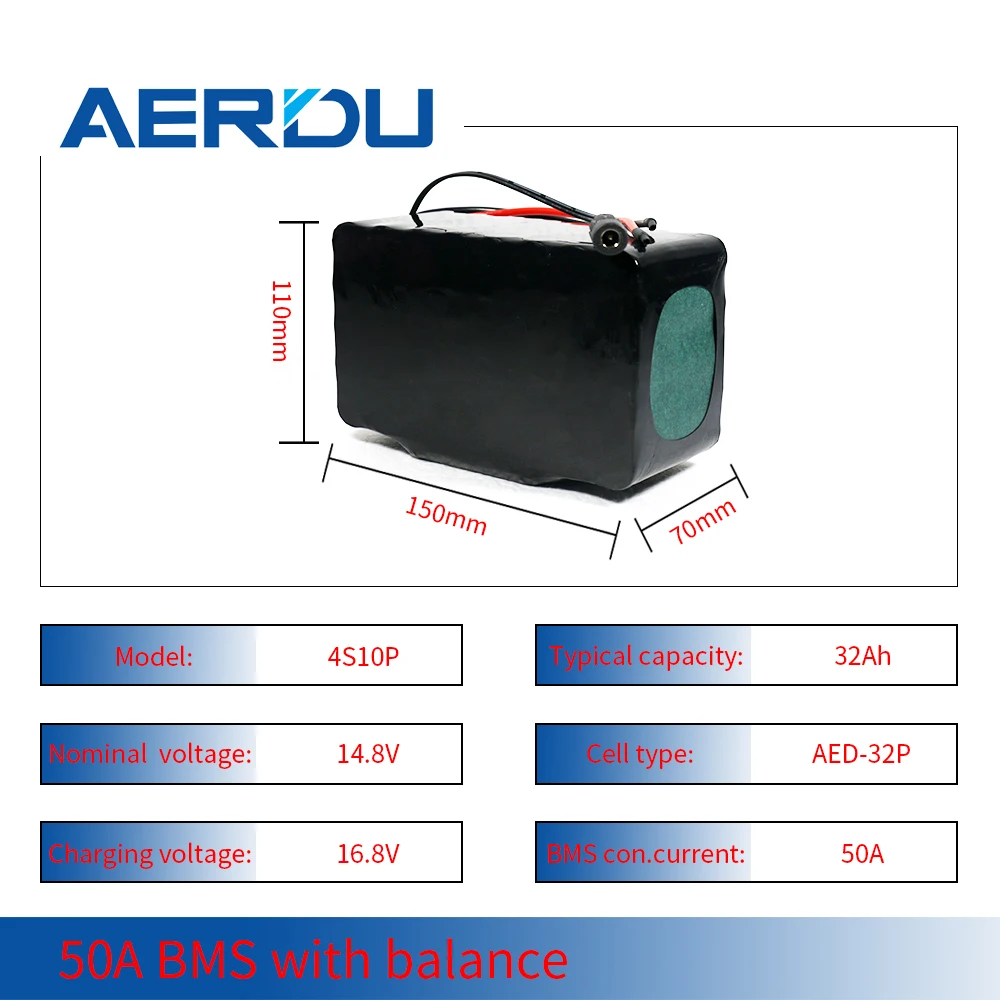

Size: 150*110*70mm(±3mm)

Weight: 2000g(±50g)

We can customize the battery pack according to your requirements. If you need to customize it, please contact the store customer service, thank you.

Warranty

* Period: 1year

* Coverage: Only Cells, other part are not covered by the warranty.

* Warranty restrictions:Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.

*Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.

* Some countries support 15-day free local return service,If you are not satisfied with the product, please return it within 15 days.

About shipping

Shipping list:

1 pcs battery pack

Shipping reference time:

Default Standard shipping(Postal parcel)

 15-60 working days(Different timeliness in different regions)

This time is for reference only, and the actual transportation time shall prevail.

If you need faster shipping service Or have questions about transportation, please contact store customer service.

Attention!

*The default price does not include duty and tax,Except for special instructions. If you have any questions, please contact the store customer service.

* The weight and size data are obtained by manual measurement and may be subject to deviation,please refer to the actual product..

*The packaging and appearance of the product will be updated and iterated, and may be changed without notice. The image is for reference only, please refer to the actual product.

* The description performance parameter data comes from the AERDU laboratory,Please refer to the actual result.The actual test results will be affected by the test conditions (such as temperature, Heat loss,wire loss, test equipment accuracy, test parameters, etc.). Please perform multiple tests and take the average of the results to reduce the deviation.

*Usually we accept The temperature is 25 degrees Celsius, and the deviation between the pure resistance discharge test results within the description performance parameters and the description data is about 10% is normal .

*Battery is a dangerous product. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions And protective measures when using the battery.
