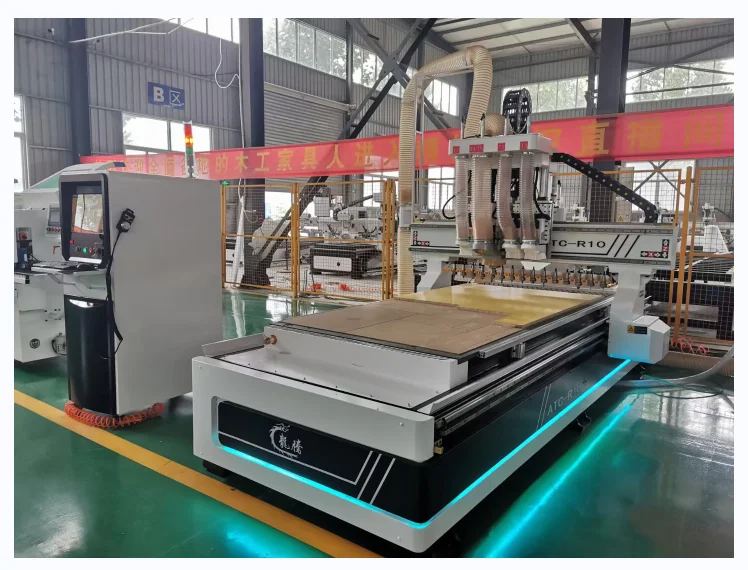

R10 Israel hot sale furniture drilling nesting router large low price 3d machine cabinet making auto |

---

Product Description

Cabinet door making atc multi heads wood cnc router 1325 12 tools linear atc cnc router with four heads Israel hot sale furniture drilling nesting cnc router large low price cnc router 3d machine cabinet making auto
Product Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
All the configurations and table size can be customized according to your requirements.

Descriptions	Parameters
Model	JCUT R10
Working area	1220*2440*200mm (Customizable)
Tool magazine	12 (8-16) position servo inline auto tool changer magazine with tool sensor
Table	Vacuum table with 7.5kw/380V pump, super adsorption
Spindle	6kw*4 spindles
Spindle speed	0-24000RPM
Motor and driver	Dorna 1500W servo motor and driver (Yaskawa, Leadshine for optional)
X, Y axis	X, Y axis adopt HICK 1.5m helical rack
Z axis	Z axis adopt TBI -2510 ball screw
Linear rail	X, Y, Z axis adopt 30 linear rail
Control system	Taiwan LNC/Syntec control system
Inverter	Hpmont 11kw inverter
Reducer	France Motovario reducer
Oil lubrication system	Automatic oil lubrication system
Dust collector	5.5kw/380V dust collector with double bag
Auto unloading	Fully automatic tile horizontal push blanking with auxiliary aluminum bar stopper function
Accuracy	±0.02mm
Voltage	380V (Customizable)
Machine body	Heavy 3.5m machine body, sealing metal plate structure with thick gantry
Machine size	3600*2200*1950mm
Net weight	2800kg

Details Images

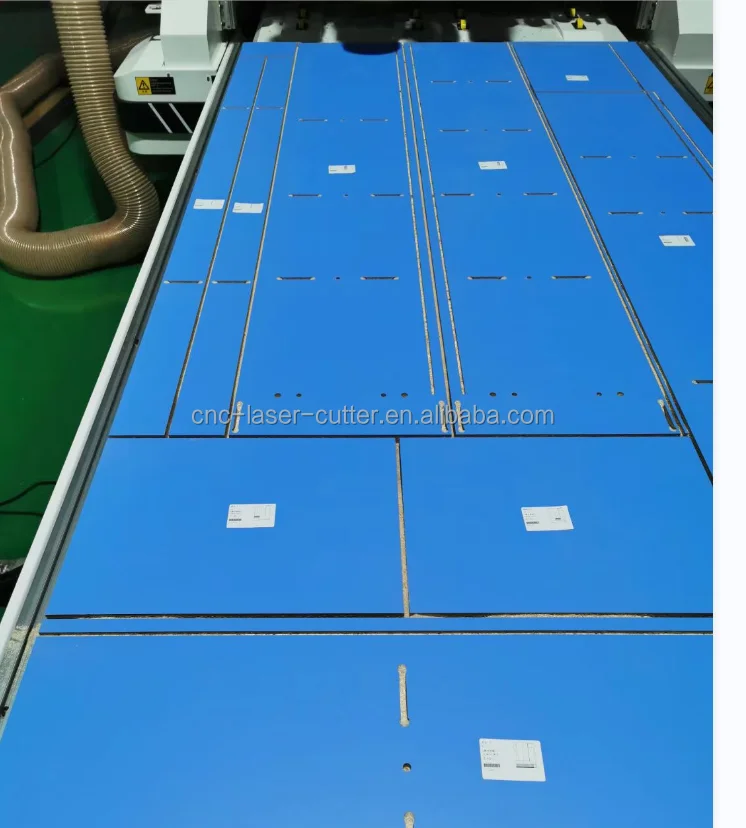

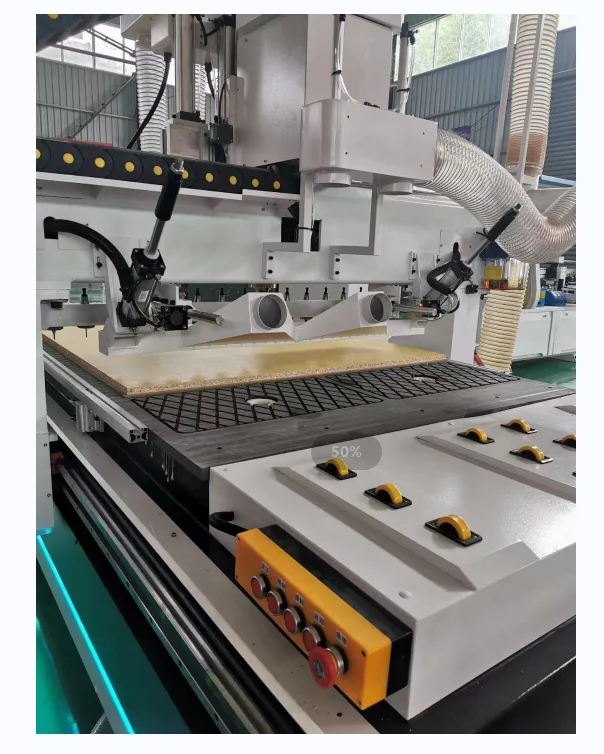

Vacuum table

Patent design 50MM adsorption caliber, PVC pipe connection sealing good, plate do not run.Adding the auto push function

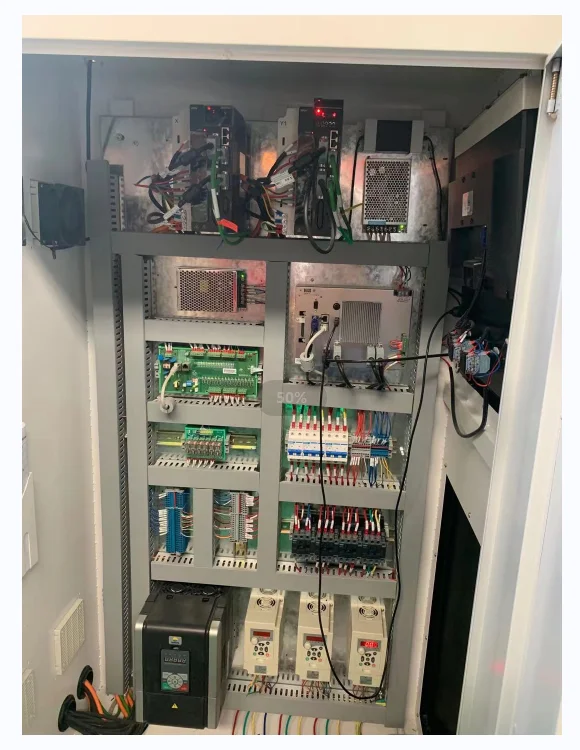

Independent Control Box

Independent control box with LED Display Screw

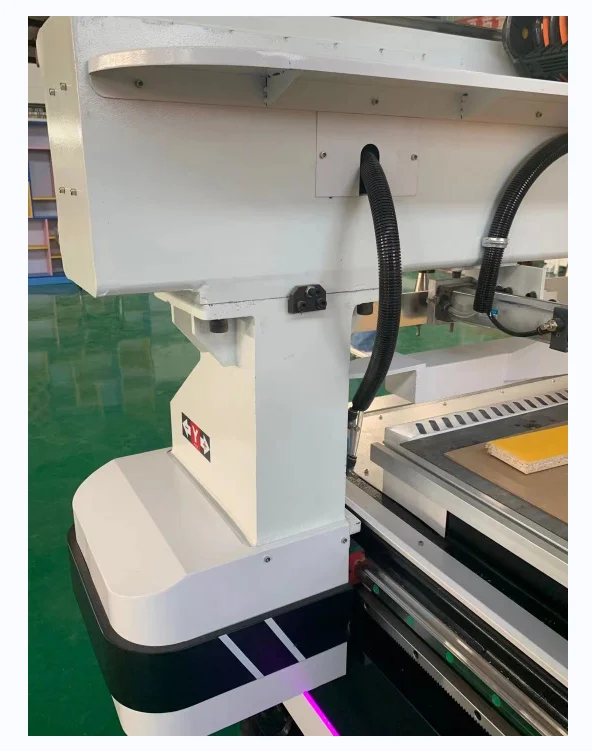

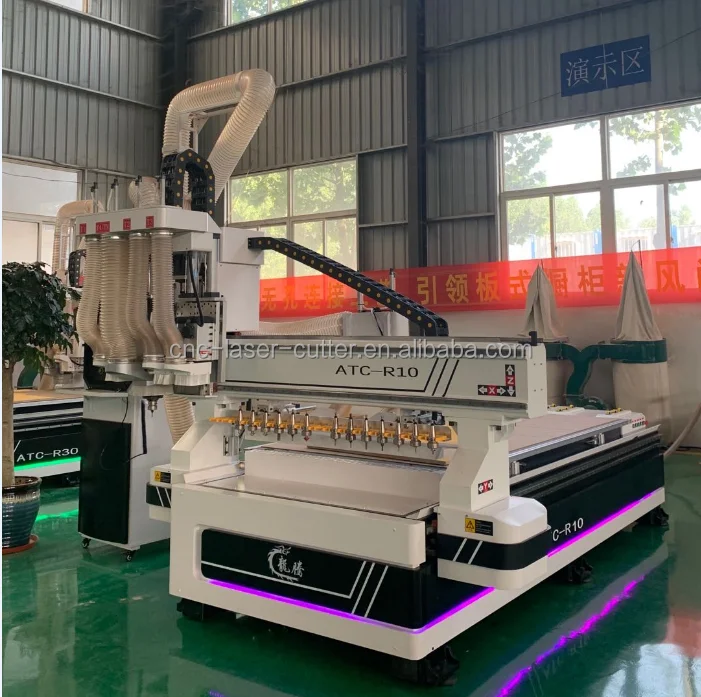

Machine Structure

Heavy Machine Structure

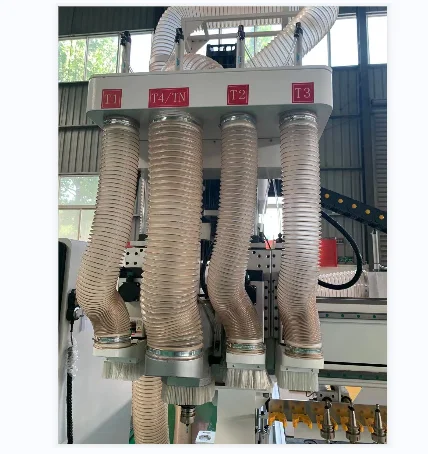

Machine Spindles

6KW*4 Four Spindles

Motor

Pure 1500W servo motor

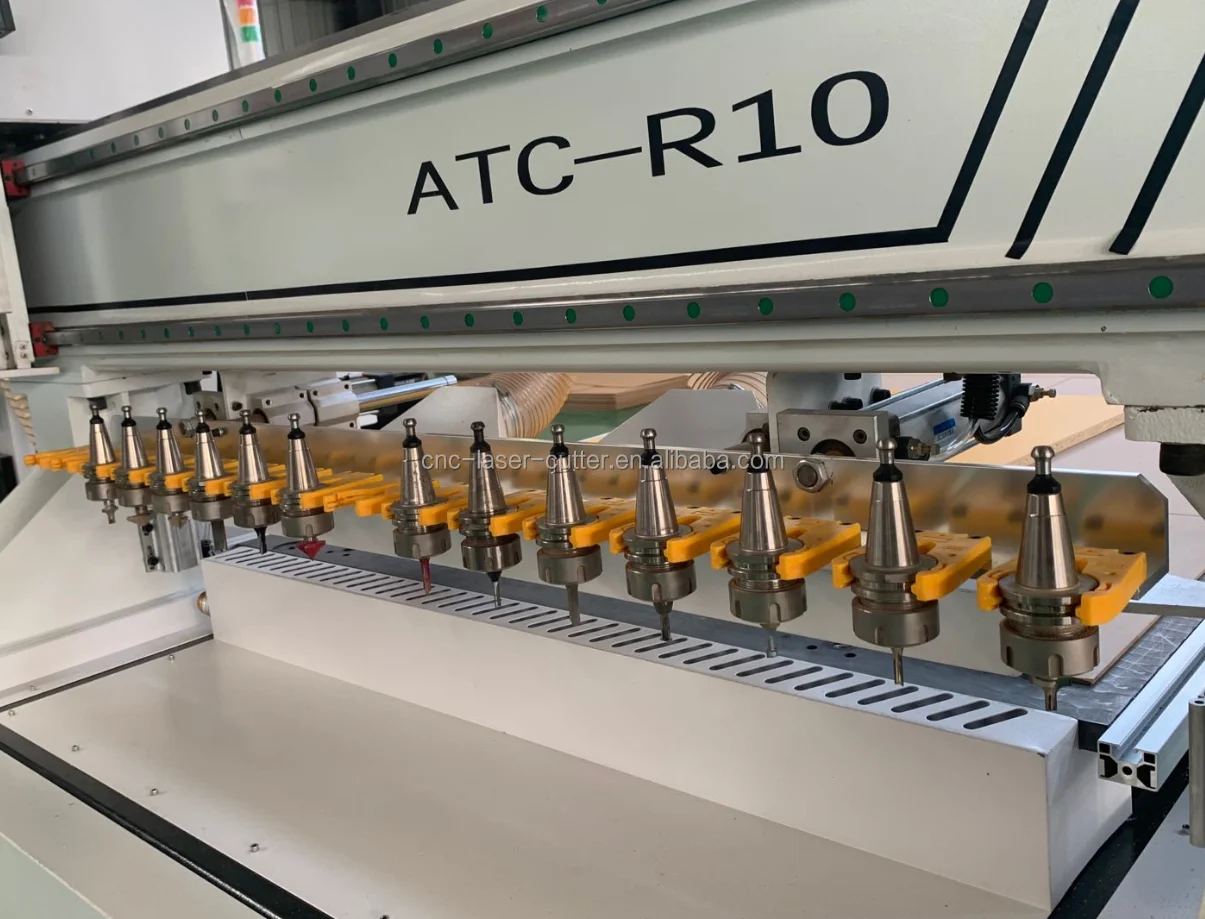

Tool Magazine

12 tools position,Tool Magazine (8-16 tools ) Samples Product packaging

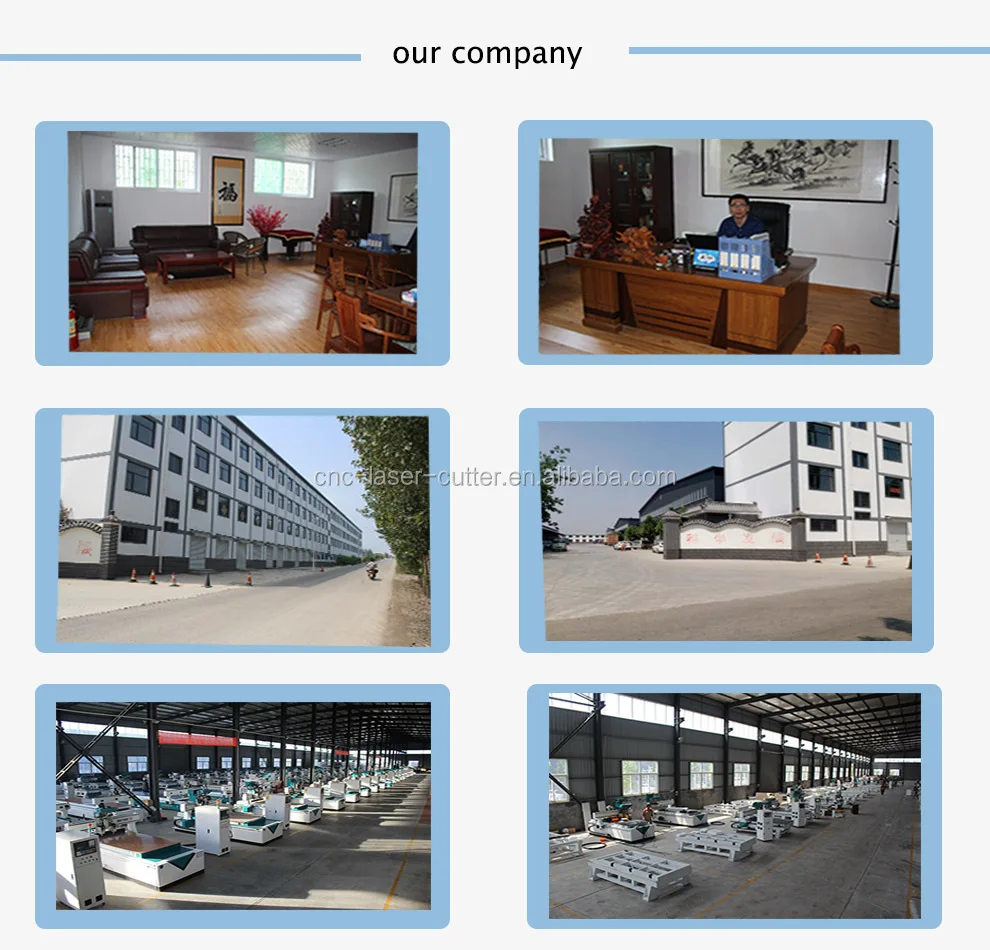

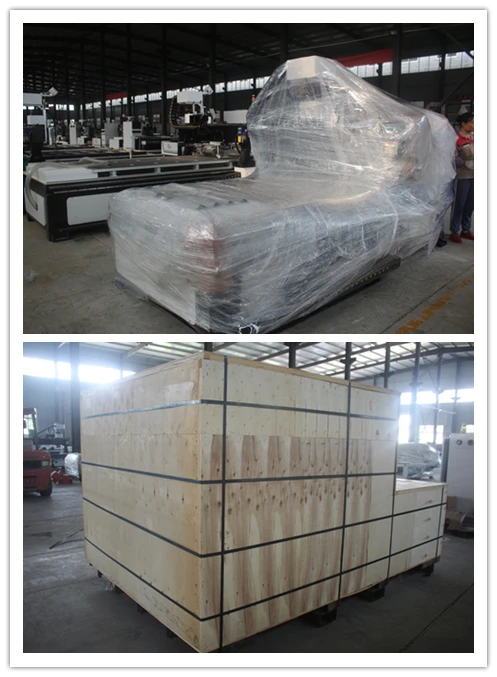

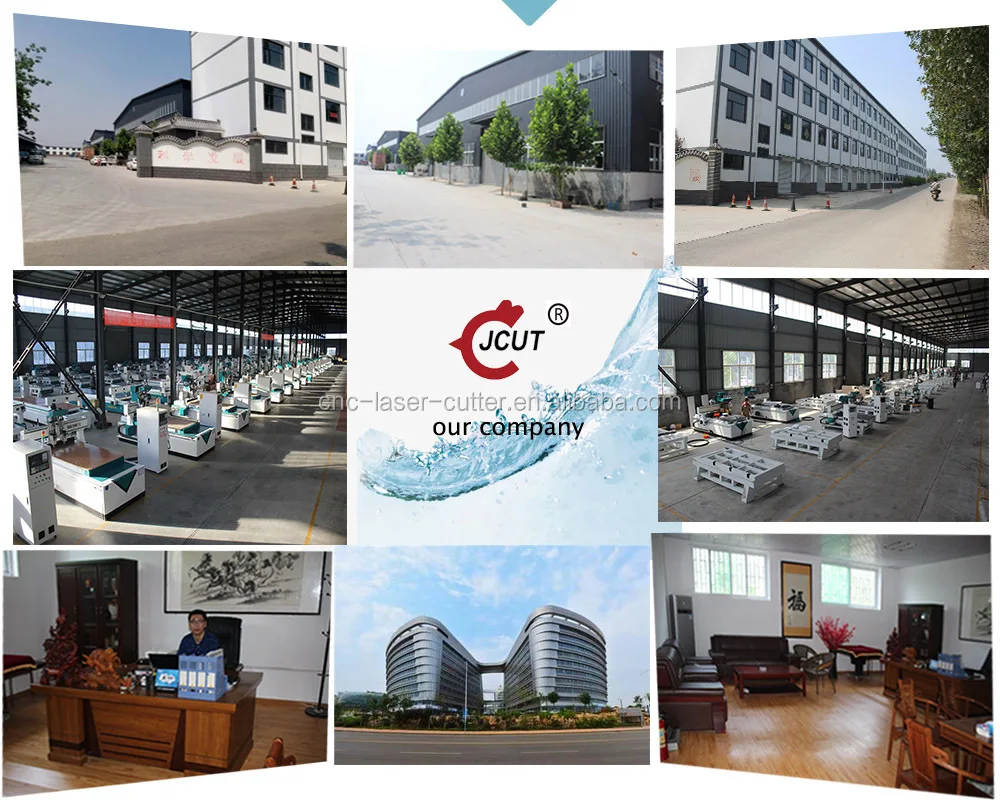

Packaging: Wooden box Shipping: About 10-15 days after confirm the order Certifications Company Profile JINAN JCUT CNC EQUIPMENT CO., LTD is located in Jinan, Shandong, China. Our company was established in 2008.
We are professional CNC router machine, laser cutting&engraving machine and plasma cutting machine manufacturer. Our machine mainly used for advertising, woodworking, steel cutting and stone processing industries.
After several years' development, JCUT products are used by over 50,000 companies, schools, government offices in more than 30 countries. For instance, countries and area like USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on. FAQ Q1: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.

Q2: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q3 :How can I trust your company and your products?
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.

Q4.If machine have any problem after I ordered it, what could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24 hours service from phone and Skype.

Q5. Can I visit your factory?
Yes! We greatly welcome customers to visit our factory!

Q6. What's your date of delivery?
For standard machine, about 10~15 working days; For customized machine, about 20 working day.

Q7. MOQ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Recommend Products
