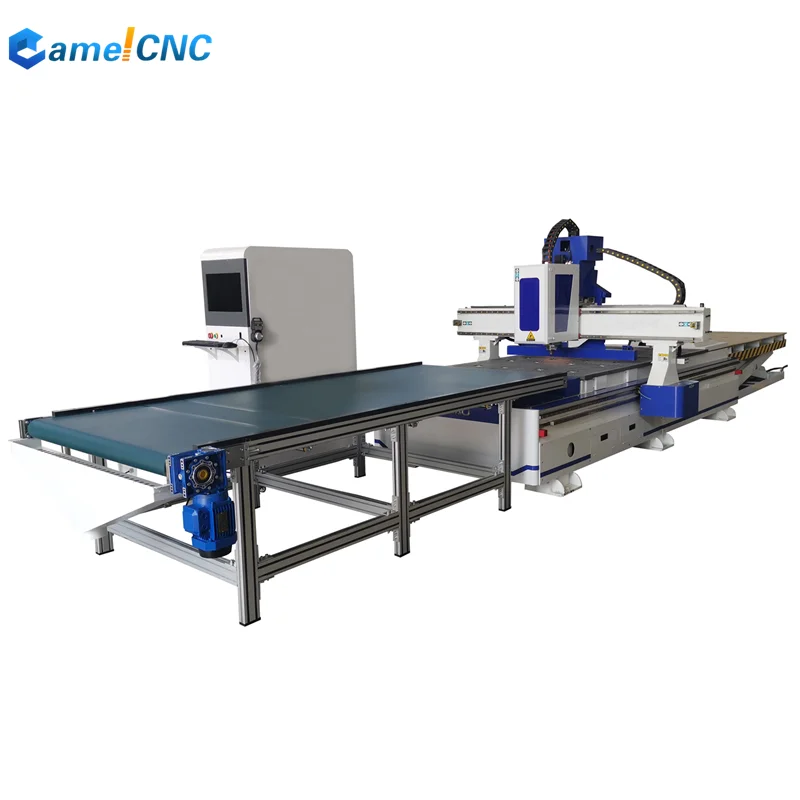

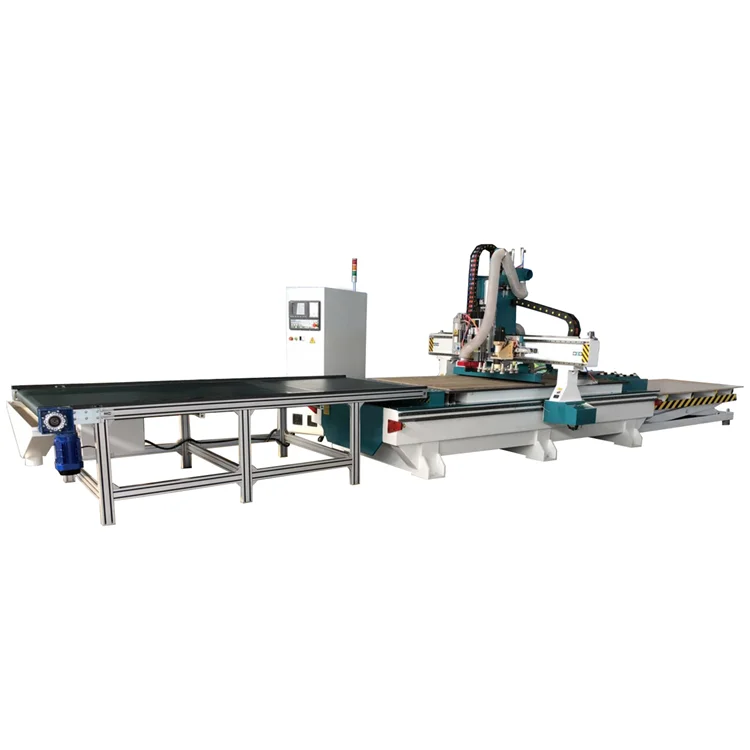

Jinan router 4x8ft 5x10ft wooden panel furniture automatic production line nesting machine price |

---

Product Description Jinan cnc router 4x8ft 5x10ft wooden panel furniture automatic production line cnc nesting machine price Specification

Specifications of cnc nesting machine:

1.Heavy steel welding bed structure and cast iron gantry makes machine with very long working life and high precision.(Random error: 0.01MM/200MM) 2.Professional Taiwan LNC control system makes machine suitable for complicated processes such as panel furniture line, cabinet, wood door and sliding door. Support power outage memory operating continuously, the machine process runs more smoothly. 3.12 tools of auto tool changer magazine, no need to change knife manually which makes machine could finish various complex process rapidly and efficient processing. 4.Powerful Leadshine servo motor ensures high speed running of the machine. 5.High precision mechanical design, high quality machine accessories minimize failure rate. 6. 5.5kW vacuum pump, electric multi-partition vacuum adsorption platform, super absorptive power. 7. 5+4 original HQD drilling package. Drilling all kinds of holes fast and accurate. Details Images

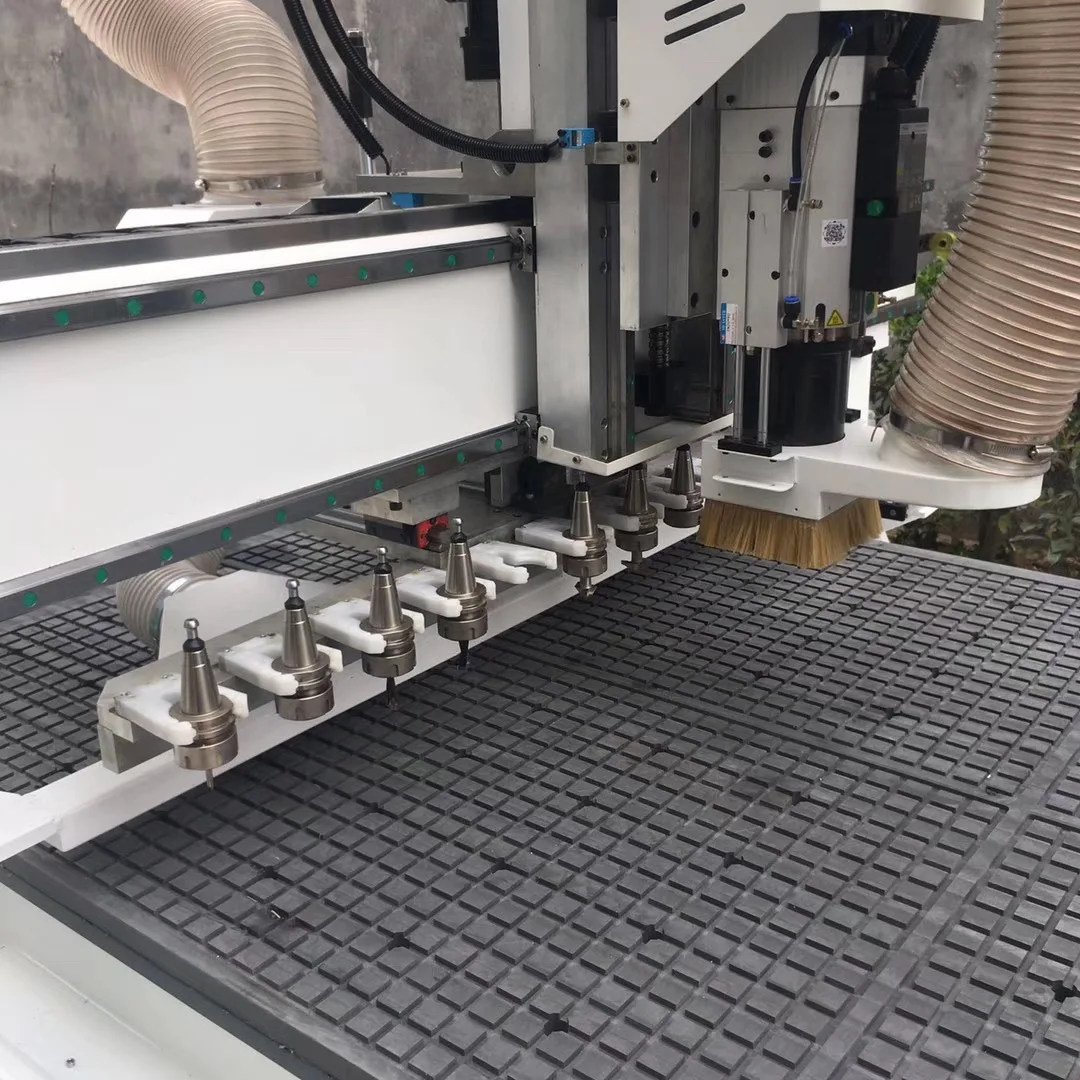

Moving auto tool change magazine

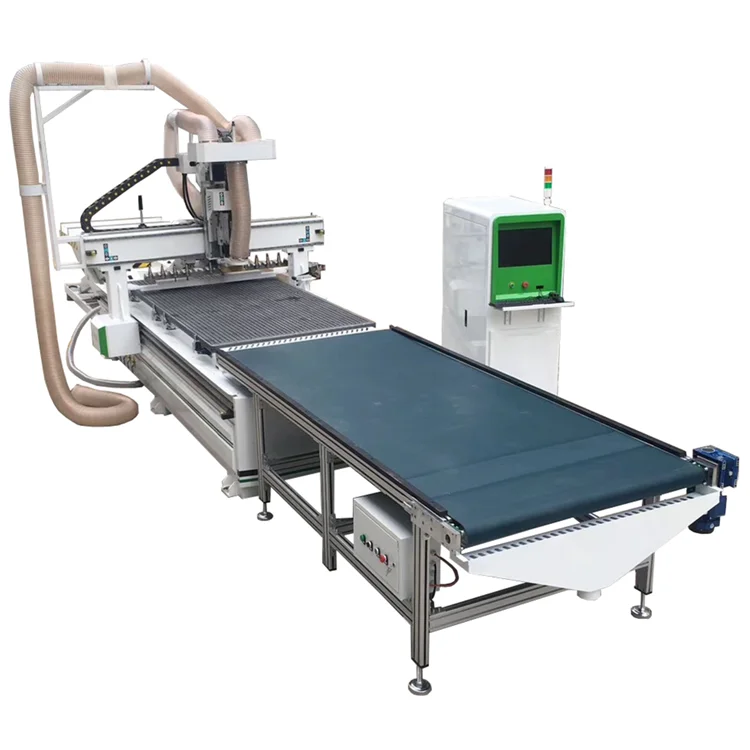

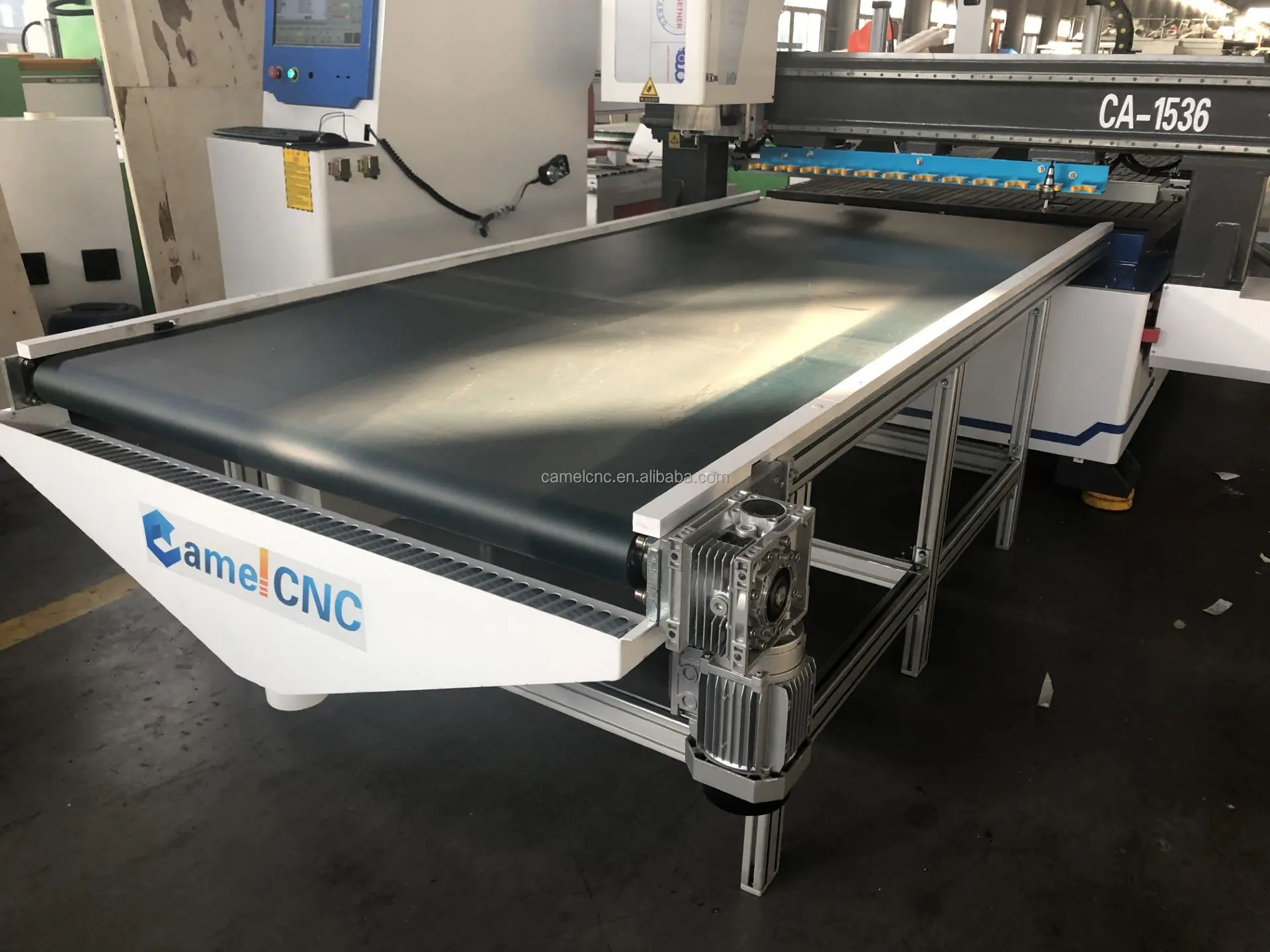

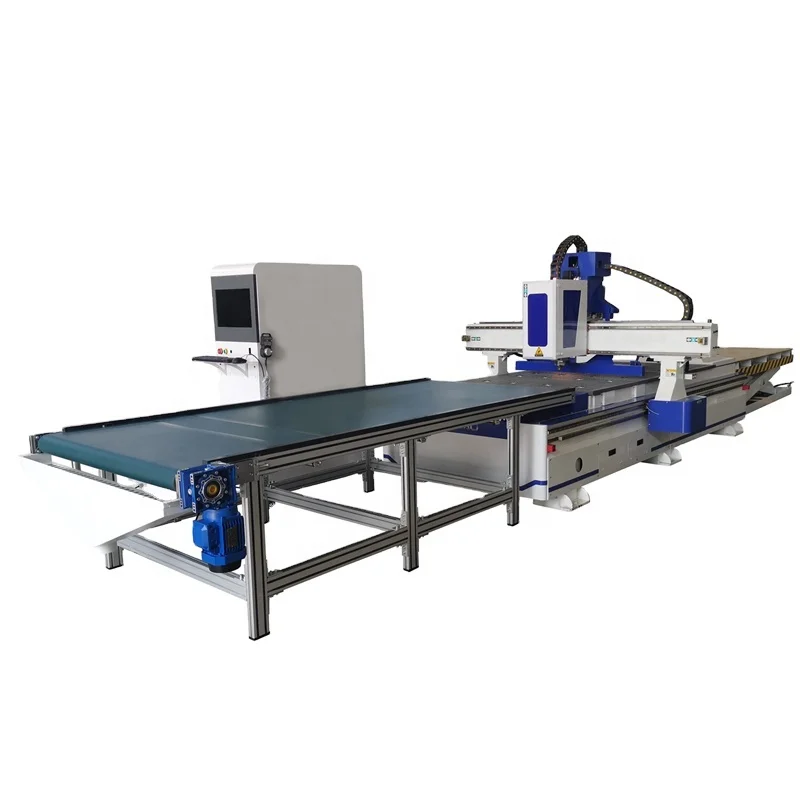

Auto Unloading platform

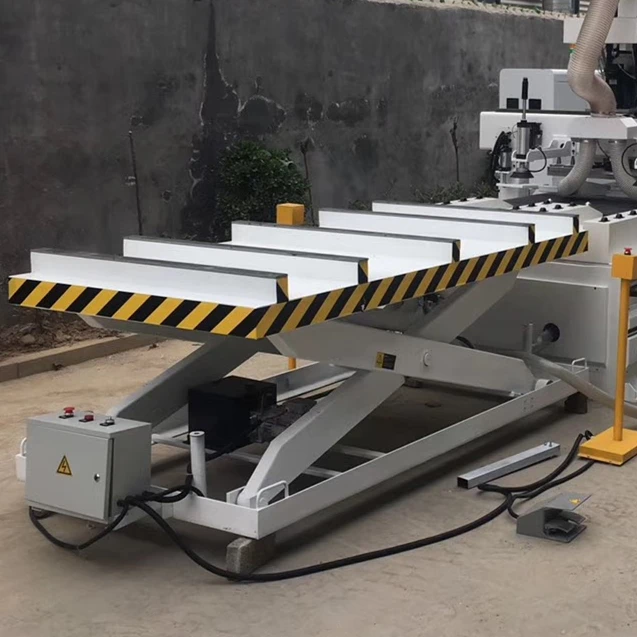

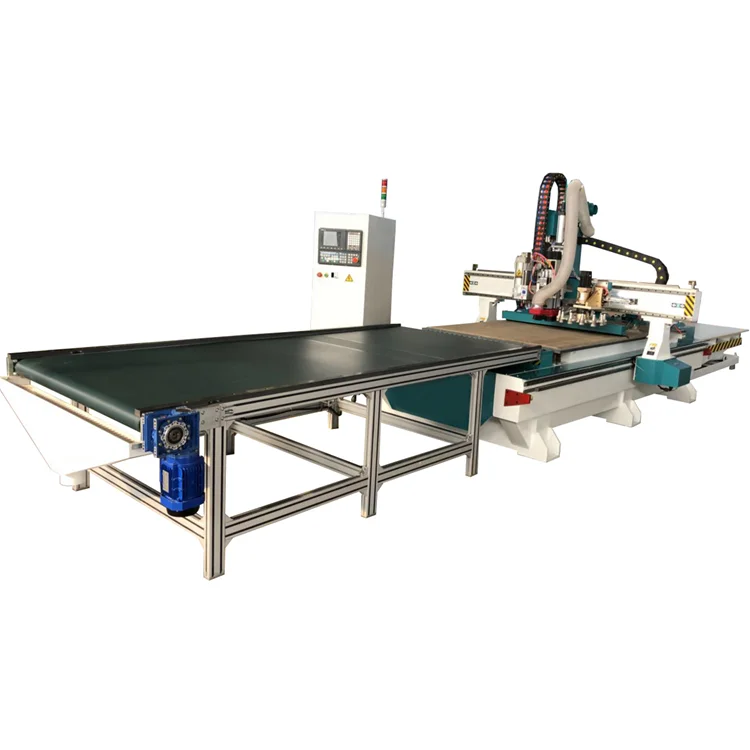

Auto loading platform

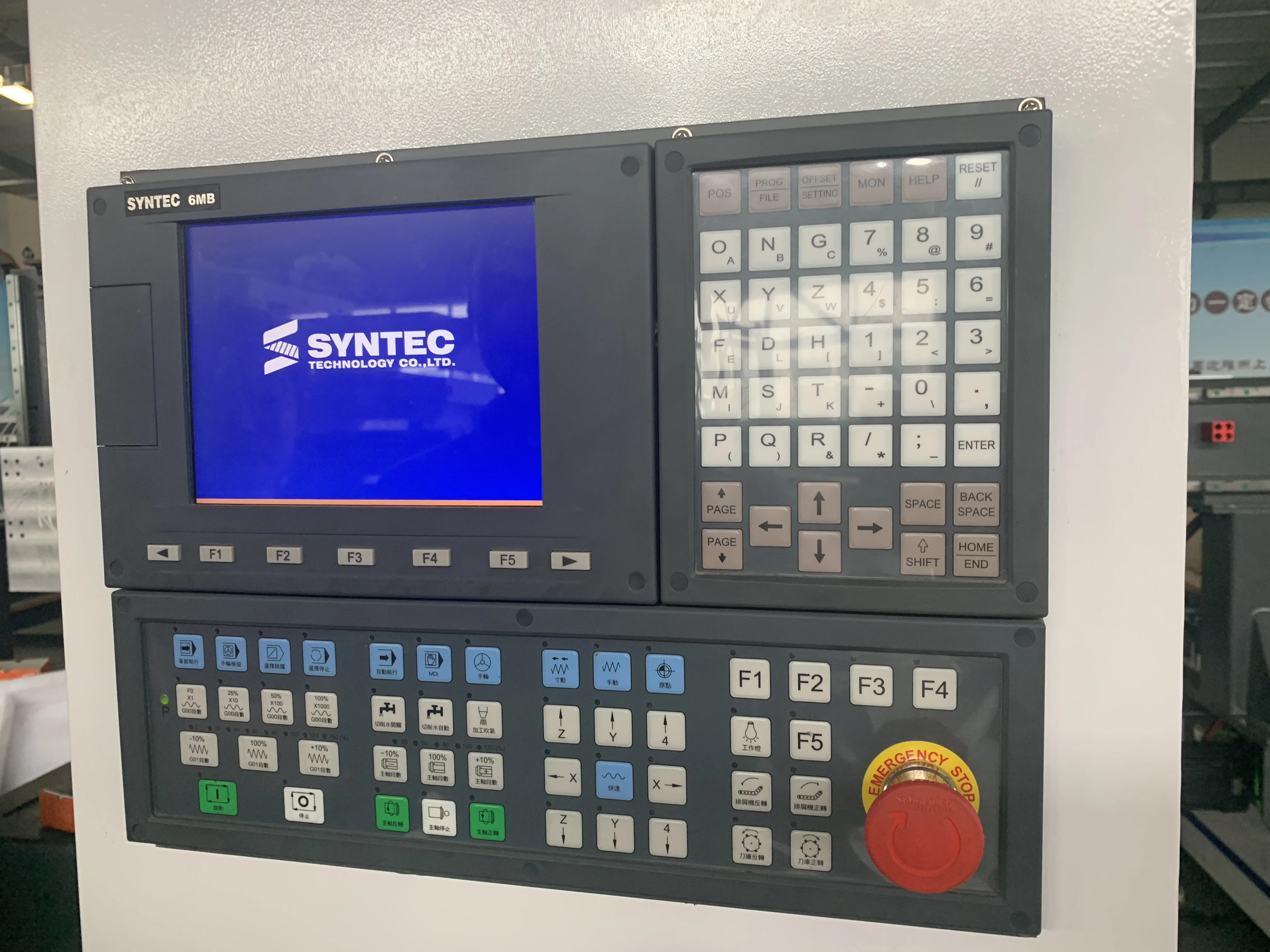

Syntec 6MB controller

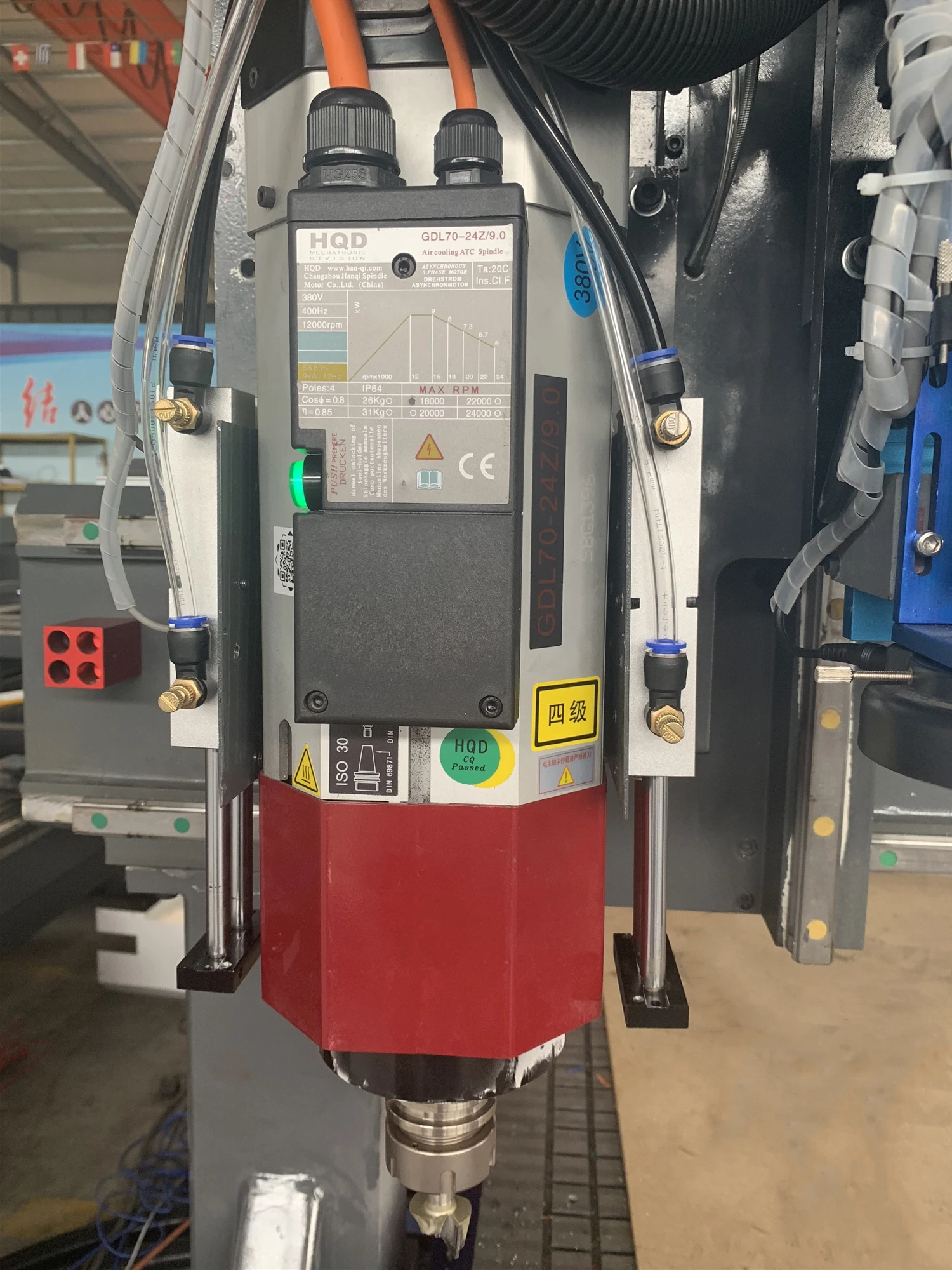

9kw HQD air cooled spindle

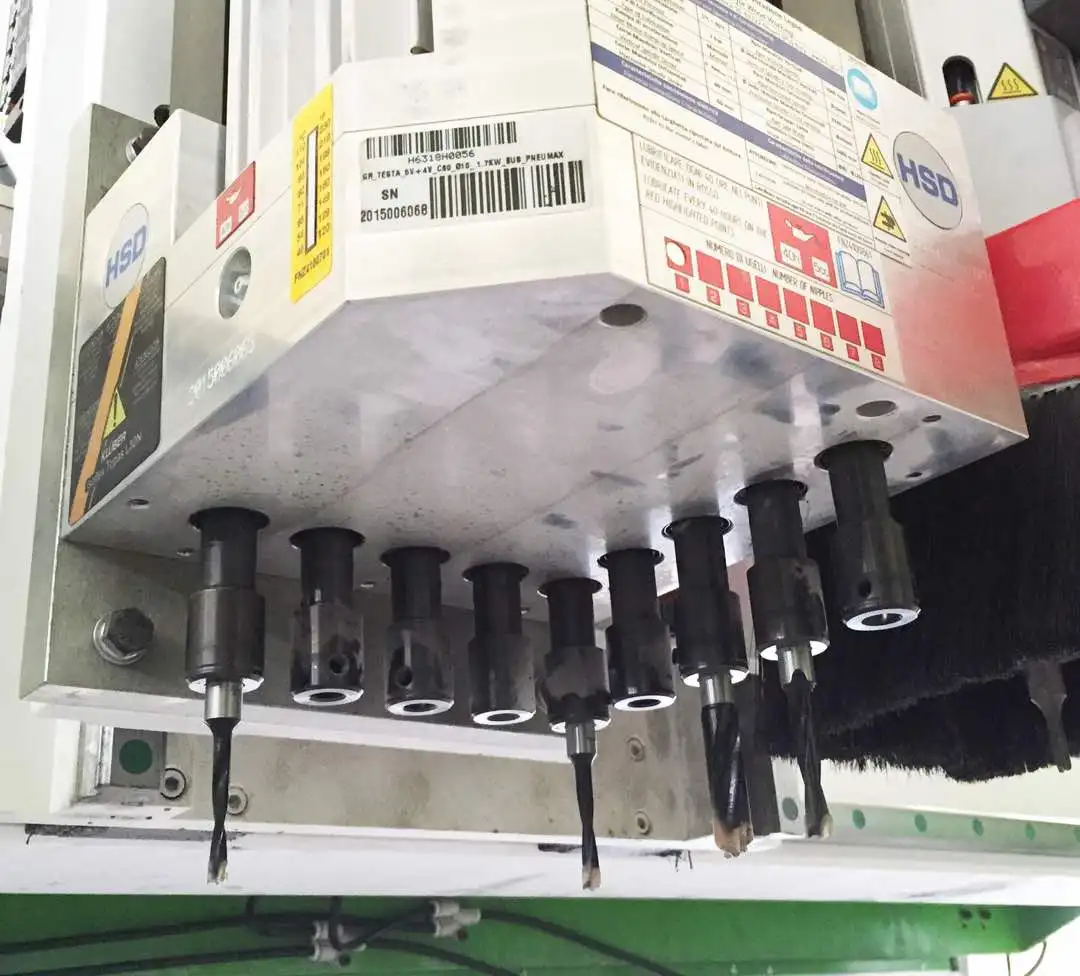

Boring head for drilling

Technical Parameter

Name	Specification
X,Y,Z Working Area	1300X2500X200mm
Table Size	1755X3340mm
X,Y,Z,Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z,Repositioning Positioning Accuracy	±0.05mm
Guide Rail	Taiwan TE Square Rail with X,Y,Z axis
XY Z Transmission	Gear rack with X and Y axis Imported Ball Screw with Z axis
Spindle Motor	HQD 9kw Air cooling spindle special for tool changer
Max. Speed	0-45000mm/min
Max. Working Speed	0-25000mm/min
Spindle Speed	0-24000RPM
Working Voltage	AC220V/380V, 50/60Hz
Command	G Code, *uoo, *mmg, *plt
Inverter	11KW Fuling inverter
Control System	Taiwan LNC control system
Typeset Software	ARTCAM(can support any G-code software)
Servo	Leadshine 1000w pure servo motor and drive
Tools cooling	OIL sprayer pump
Lathe Table	Vacuum table with 8 sections +6 vacuum cups
Vacuum Pump	5.5KW VACUUM Pump
Tool Magazine	12pcs ISO30 tool holder
Dust Collector	3.0KW
Tool sensor	TOOL SENSOR
Collet	ER32
X,Y Working Delicacy	<0.01mm
Software	Ucancam, Artcam,JDpaint

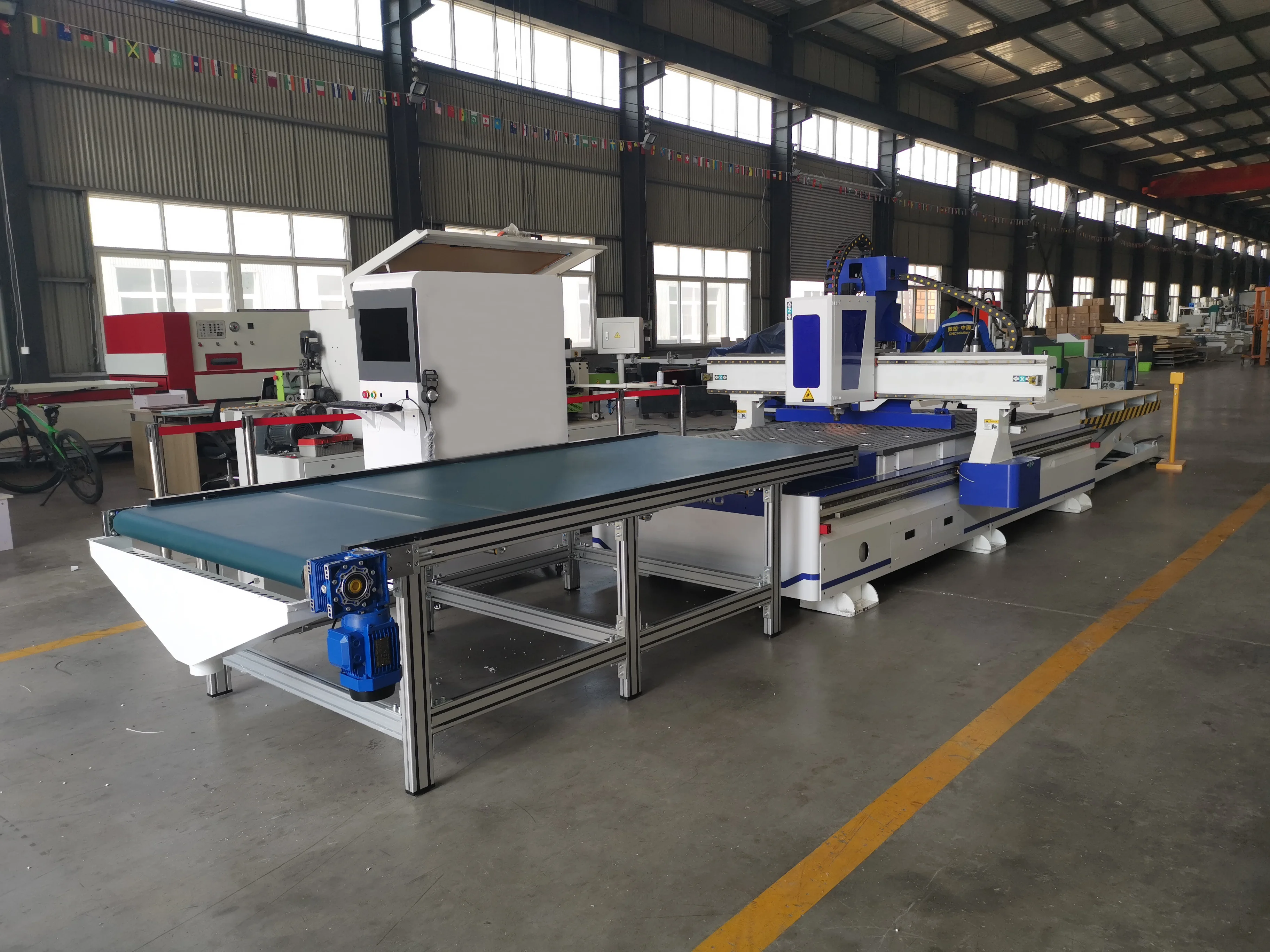

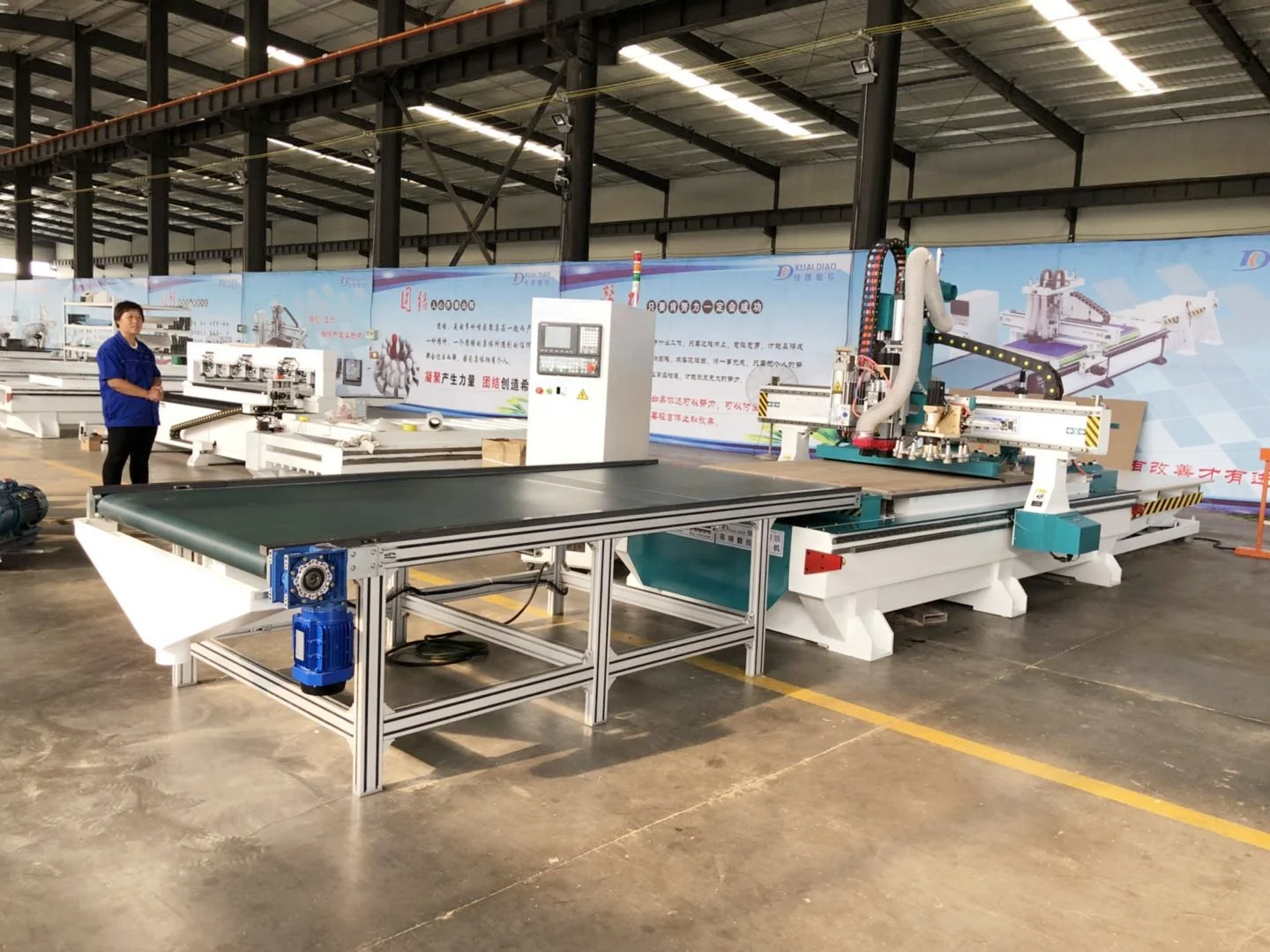

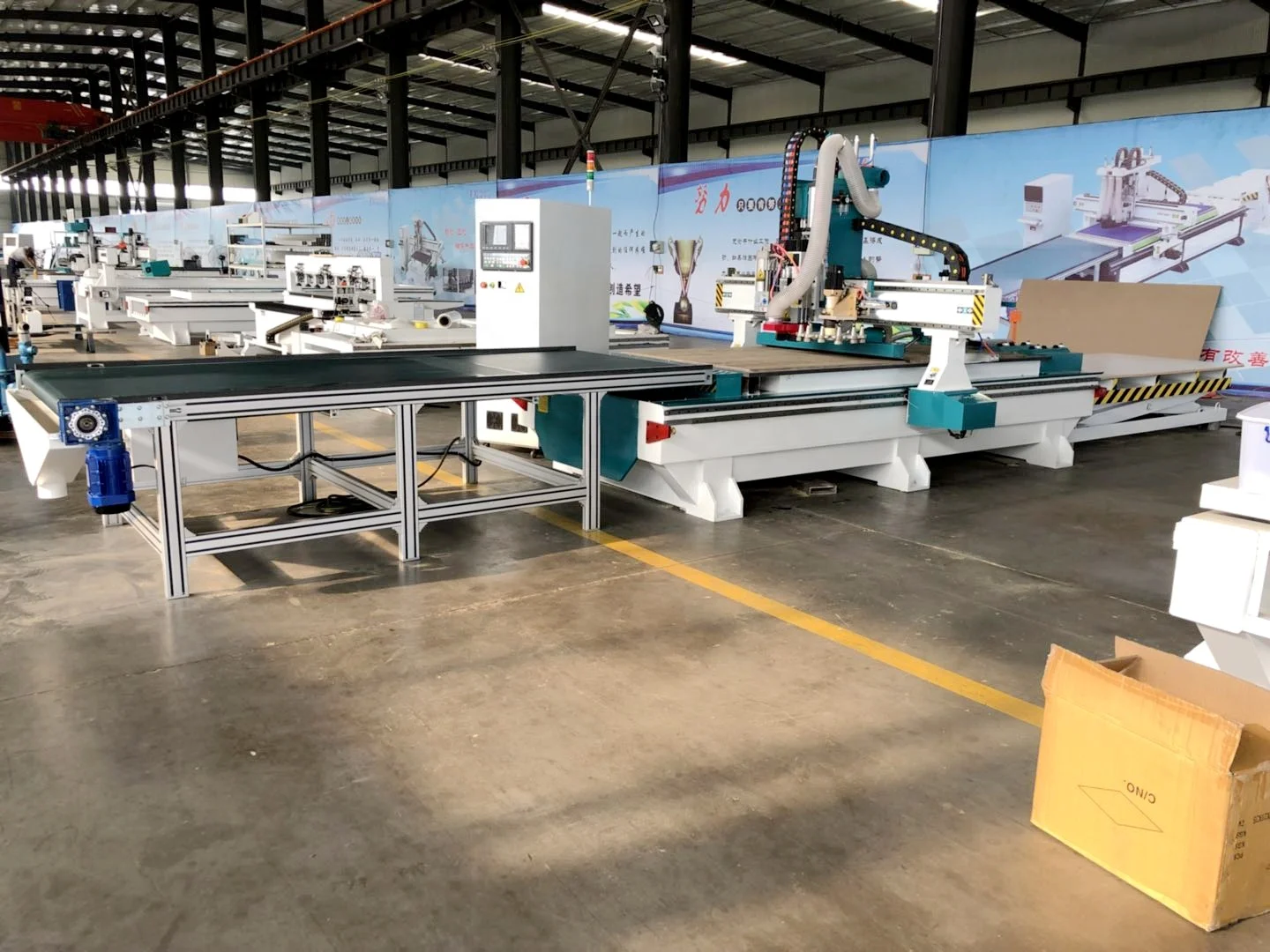

Machine In Factory Application

Application of cnc nesting machine:

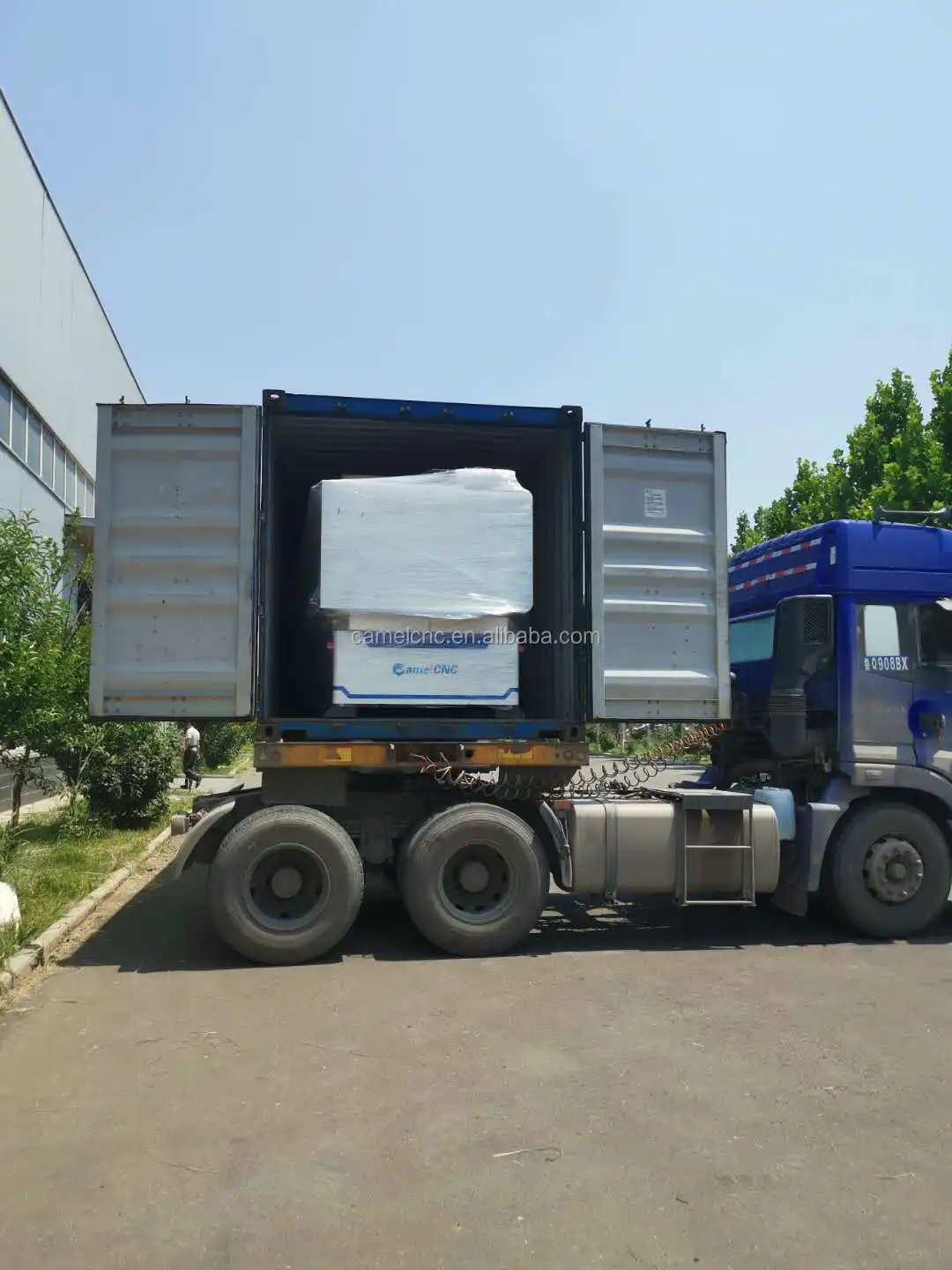

Panel furniture, cabinet wardrobes, office furniture, custom furniture. Wardrobe cabinet, cabinet cabinet, computer desk, panel furniture, office furniture, wooden speakers, wooden kitchen utensils, etc. All kinds of panel furniture, such as plane cutting, milling, chamfering, punching, engraving and other auxiliary processing. Samples: Packing & Delivery Step1: water proof wrapping film with foam protection in each corner.

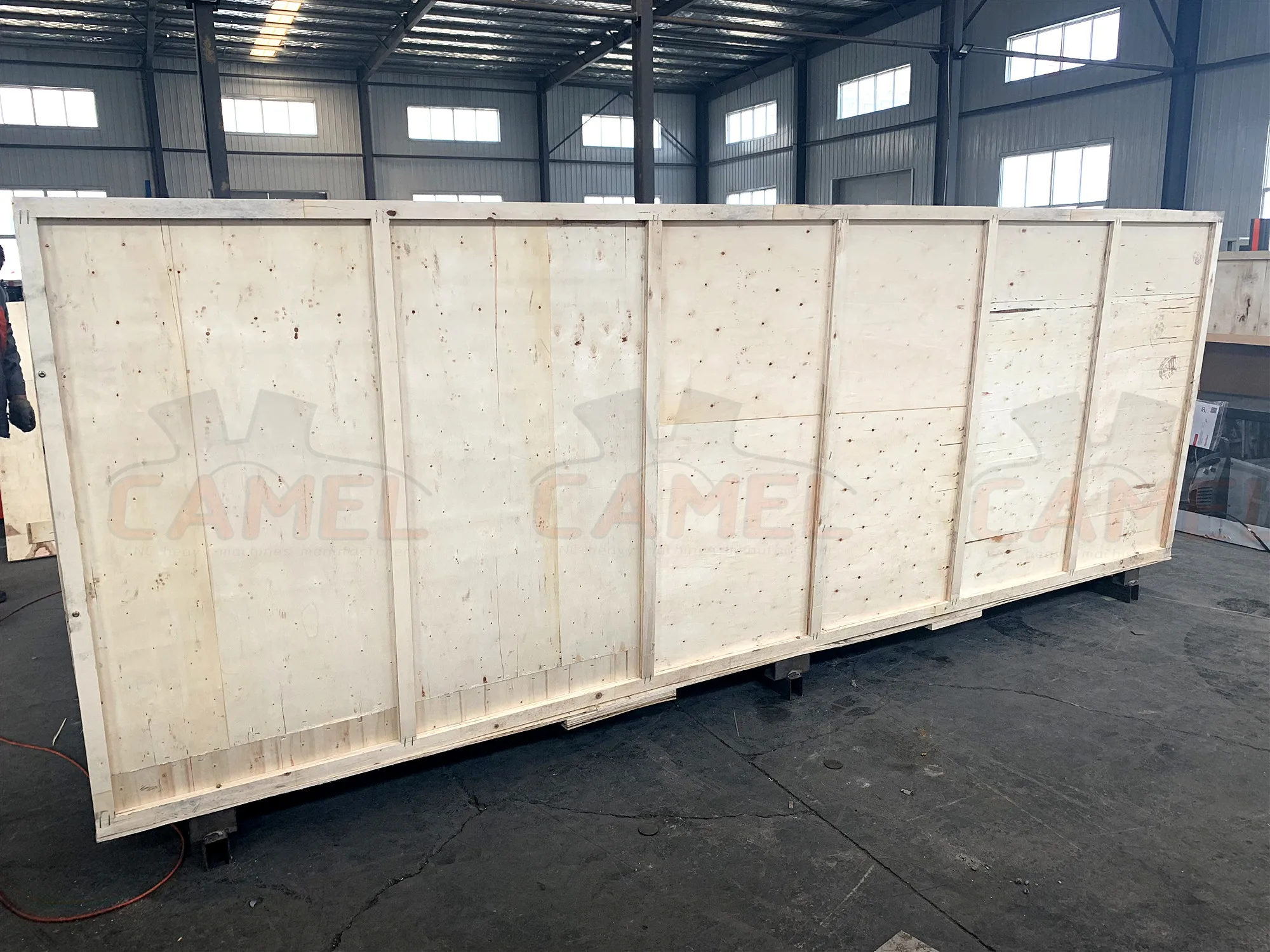

Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Company Profile

RFQ:

Q1: How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.

Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by “Team
viewer”online, with telephone or Skype explain.

Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the standard configuration to you first.

Q4: What is the guarantee? In case the machine break down?
The machine has 3 year guarantee, fail parts will be replaced for free if the machine under "normal operation".

Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial invoice, B/L, and other certificates
required by clients.

Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be 20 - 30 working days.

Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.

Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange the shipment by yourself.
