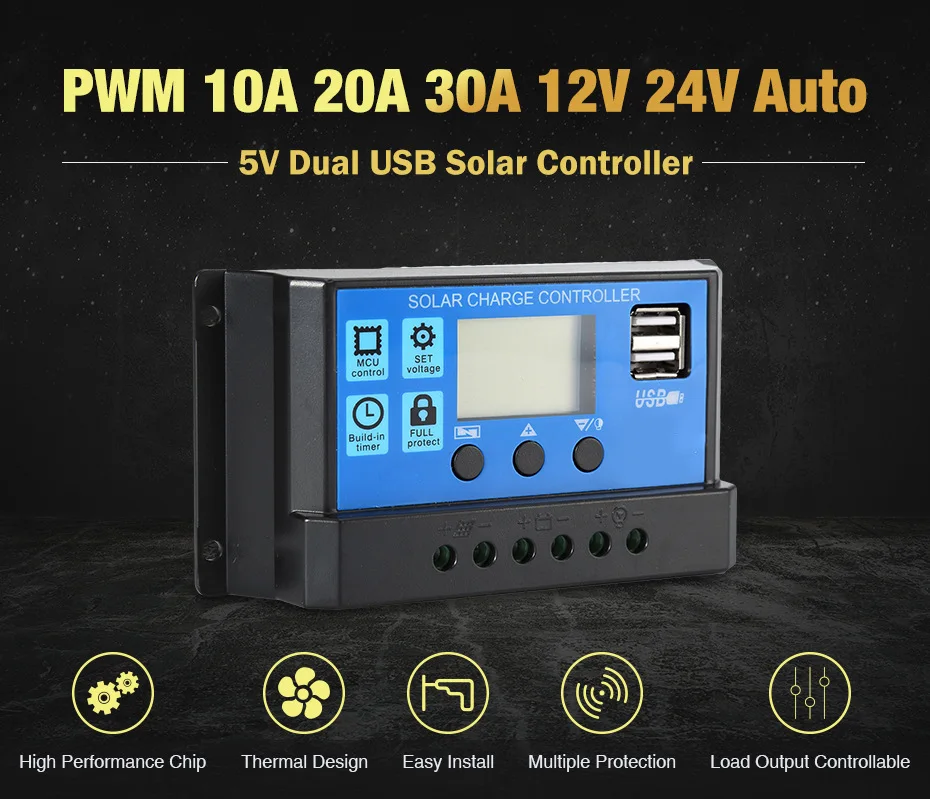

Контроллер заряда солнечной батареи 10/20/30A 12/24V режимы Auto PWM LCD DualUSB 5V Выход
Характеристики
10 А-100 А MPPT Солнечный контроллер PWM зарядное устройство 12 В 24 в автоматический
История изменения цены
*Текущая стоимость 2589.34 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 3288.97 руб. | 3354.86 руб. | 3321 руб. |
| Jan-19-2026 | 2667.49 руб. | 2720.78 руб. | 2693.5 руб. |
| Dec-19-2025 | 3236.96 руб. | 3301.45 руб. | 3268.5 руб. |
| Nov-19-2025 | 3210.91 руб. | 3274.98 руб. | 3242 руб. |
| Oct-19-2025 | 2563.55 руб. | 2614.12 руб. | 2588.5 руб. |
| Sep-19-2025 | 3159.56 руб. | 3222.13 руб. | 3190.5 руб. |
| Aug-19-2025 | 3133.9 руб. | 3196.43 руб. | 3164.5 руб. |
| Jul-19-2025 | 3107.34 руб. | 3169.8 руб. | 3138 руб. |
Описание товара
>>Safety instructions
1. Before the first installation, please make sure the battery has enough voltage to enable the controller to recognize the battery type.
2. Battery cables should be as short as possible to minimize losses.
3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL
It does not apply to NiMH, Li-ion or other batteries.
4. The charge regulator is only suitable for regulating solar modules. Do not connect other charging sources to the charge regulator.
This is the new solar controller which fully meets the requirements of your home PV system (including home lighting system). It can recongize 12V and 24V lead-acid colloidal batteries automatically

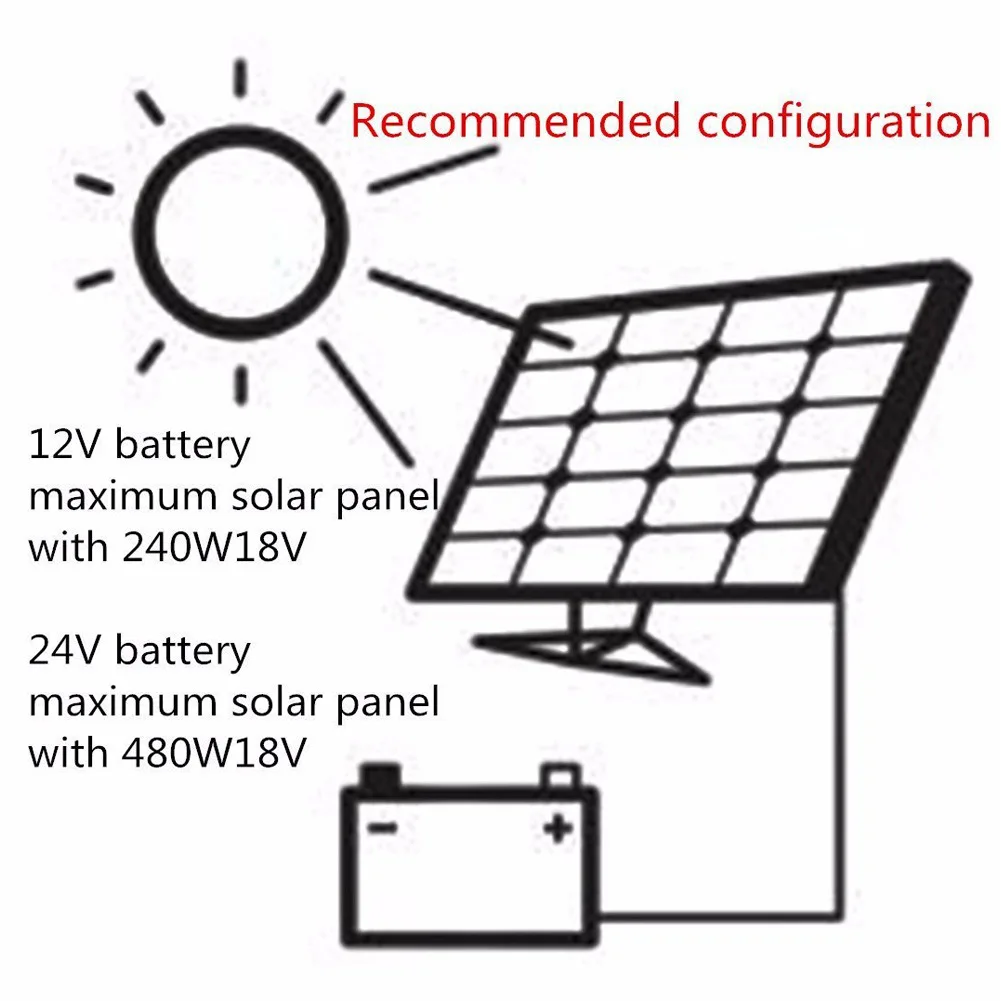

If your battery is 12V, the maximum solar panel input is 25V 120W
If your battery is 24V, the maximum solar panel input is 50V 240W
⭐20A.If your battery is 12V, the maximum solar panel input is 25V 240W
If your battery is 24V, the maximum solar panel input is 50V 480W
⭐30AIf your battery is 12V, the maximum solar panel input is 25V 360W
If your battery is 24V, the maximum solar panel input is 50V 720W
⭐40AIf your battery is 12V, the maximum solar panel input is 25V 480W
If your battery is 24V, the maximum solar panel input is 50V 960W
⭐50AIf your battery is 12V, the maximum solar panel input is 25V 600W
If your battery is 24V, the maximum solar panel input is 50V 1200W
⭐60A
If your battery is 12V, the maximum solar panel input is 25V 720W
If your battery is 24V, the maximum solar panel input is 50V 1440W
⭐70A
If your battery is 12V, the maximum solar panel input is 25V 840W
If your battery is 24V, the maximum solar panel input is 50V 1680W
⭐80AIf your battery is 12V, the maximum solar panel input is 25V 960W
If your battery is 24V, the maximum solar panel input is 50V 1920W
⭐90AIf your battery is 12V, the maximum solar panel input is 25V 1080W
If your battery is 24V, the maximum solar panel input is 50V 2160W
⭐100AIf your battery is 12V, the maximum solar panel input is 25V 1200W
If your battery is 24V, the maximum solar panel input is 50V 2400W
Specifications.
Rated voltage: 12V 24V auto
Maximum PV voltage: 50V
With timer and light sensor, can be used for solar lighting system.
Only for off-grid PV solar system.
For 10A 12V PV system: 120W solar panel, 12V lead-acid battery, 21V for maximum input voltage
For 20A 24V PV system: 240W solar panel, 24V lead-acid battery, 42V for maximum input voltage
>>Product Features
1. Built-in industrial microcontroller.
2. One button setting, digital display, automatic memory function.
3. Fully 4-stage PWM charging management.
4. Built-in short circuit protection, open circuit protection, reverse connection protection, overload protection.
5. Double MOSFET reverse current protection, low heat generation.

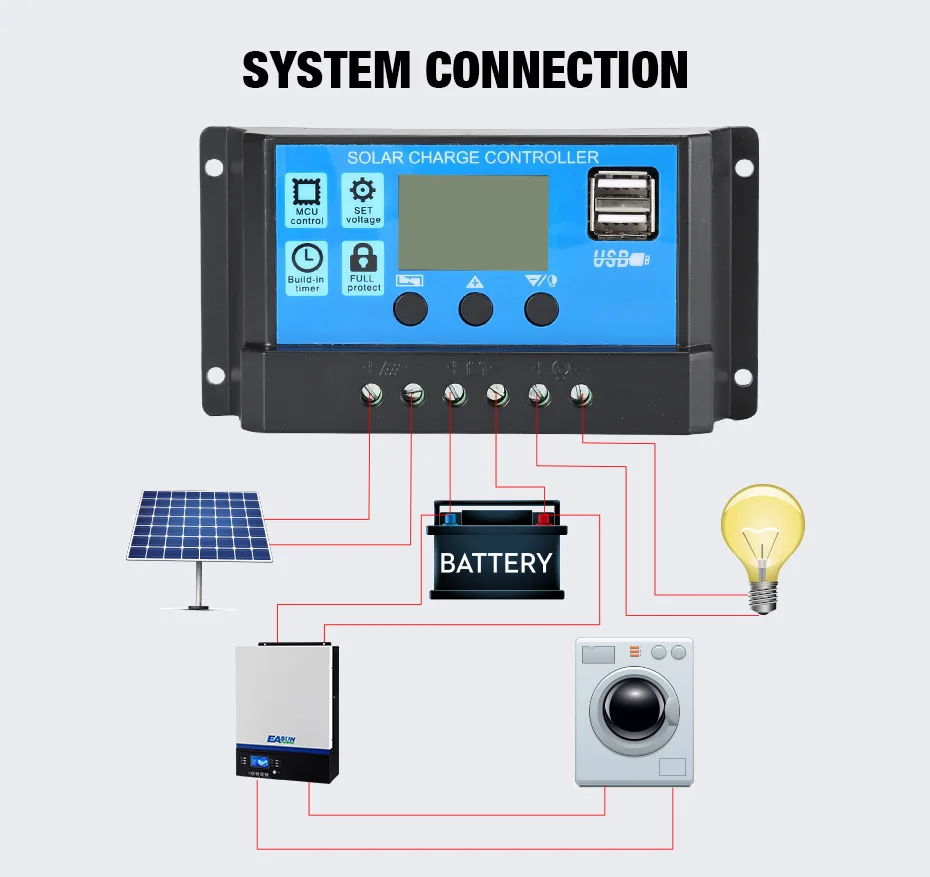

>>System Connection
1.1. Connect the battery to the charge regulator-positive and negative. If 12V battery is detected, it will show 1; if 24V battery is detected, it will show 2
2. Connect the PV modules to the regulator - positive and negative.
3. Connect the user to the charge regulator - positive and negative.
The reverse order applies when uninstalling!
Improper sequence sequence will damage the controller!
>>Function
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging. 3. Prevent the battery from over-discharging. 4. Prevent the battery from reverse charging to solar panels during nights. 5. Reverse Polarity Protection for Battery 6. Reverse Polarity Protection for Solar Panels 7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working. 8. Thunder protection 9. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃ condition, locked by the CPU procedure, cannot adjust.) 10. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.>>Product Features
1. Industrial-grade master chip, 16 AD sampling accuracy, temperature, charging current, discharge current accurate real-time display, power generation at a glance. 2. Automatic focusing MPPT tracking charging, high charging efficiency, non-stop detection during charging, bidirectional focusing tracking. 3. Large-screen LCD display, adjustable charging and discharging parameters. UItra-wide charge and discharge adjustable, as long as you understand the characteristics of the battery set its corresponding charging parameters, you can charge a battery. When the output is off, the time can be adjusted, which is more convenient. (on the market, there is no point adjustment) 4. Acomplete three-phase charge management, effectively protect the battery, the battery is more durable. 5. Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection protection,when the fault is eliminated, the controller automatically recovers, does not damage the device. 6. Bidirectional MoS tube anti-backflow circuit, high-power charging mode, ultra-low heat. 7. R5. 0 solar charging DC plug, R5. 0 DC lamp output DC plug, convenient connection.>>Specifications
1. Rated voltage: 12/24V 2. Rated current: 30/40/50/60/100A 3：Maximum PV voltage: 50V 4. Max. PV input power: 750W(12V) / 1200W(24V) 5.System voltage: 12 / 24V adaptive6.Rated charging current: 30A | 40A | 50A| 60A | 100A
7.Rated discharge current: 10A | 20A | 20A | 30A | 30A
8.Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36V solar panel
9.Floating Charge Voltage : 13.7 V ( Default, Adjustable )
10.Discharge cut-off voltage::10.7 V ( default, adjustable )
11.Discharge recovery voltage: 12.6 V ( default, adjustable )
12.Standby current :10mA
13.USB Output : 5V / 2A MAX
14.Operating temperature:- 35 - 60 Note:It is high quality compatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
