R16JF Key A+E PCI Express 4.0 x1 to Mini PCIe M.2 WiFi Signal Extension Cable mPCIe Minipcie PCIE 1x Riser Card Adapter |

R16JF Key A+E PCI Express 4.0 x1 to Mini PCIe M.2 WiFi Signal Extension Cable mPCIe Minipcie PCIE 1x Riser Card Adapter |

ADT factory direct sales, excellent product performance, super good reputation products, 100% full inspection power test delivery.

Item model number: R16JF 4.0

Product name: mini-PCIe to PCI-E X1 signal cable

Wire length: 3-100cm

Speed Bandwidth: PCIe 3.0/4.0

Product function: industrial control server equipment connection, PCIe signal high-speed transmission

Restrictions on use: It is only for professional engineers to designate the purchase. It is not suitable for general purposes and cannot be used. Ordinary buyers should not buy it.

Procurement Tip: Be sure to buy 1~2 samples to test and verify that they are correct before purchasing in large quantities.

Friendly reminder: This product has many compatibility problems. Improper assembly or improper operation will burn your device. Only professional engineers designate the purchase. This product is non-refundable and non-replaceable, please consider and confirm before placing an order. This product has many restrictions, does not support mSATA, does not support WWAN, only supports mPCIe cards with PCIE channels

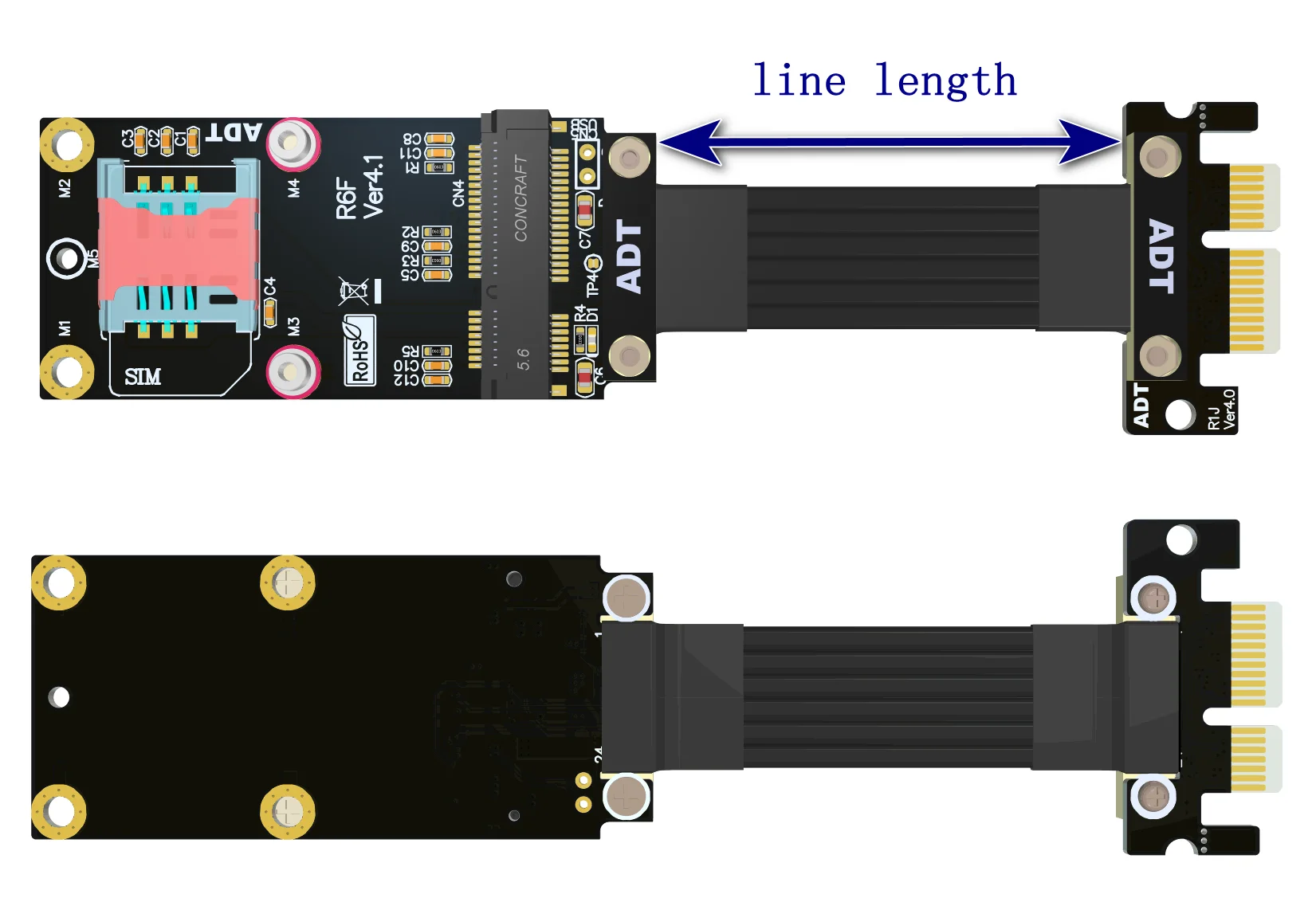

Length description: The length of the wire in our shop is the part of the single-finger wire, excluding PCB and connectors. Refer to the following figure for the dimension of the line with a length of 5cm.

R16 series product model description:

Model Gold finger and connector interface direction Product application

R16JF 4.0 x1 gold finger straight male to mini-PCIe connector on-board female seat mPCIe network card adapter

Product advantages:

one. Wire advantages, using German patented imported wires, using Taiwan imported connectors, supporting PCIe 3.0/4.0 full-speed stable transfer

two. Line length advantage, from 3 cm to 1 meter can be customized

three. The differential signal has no via hole design, there is no signal attenuation interference problem of parasitic capacitance and parasitic inductance, and there is no CAF micro-short circuit phenomenon, and the product is durable

Four. The product is made of high-quality materials, the PCB workmanship is precise, the thickness of the copper material is thickened to 1oz, the gold-plated content of the gold finger is sufficient, and the gold-plated foot has good electrical conductivity, which can reduce the blue screen of crash caused by the increase of oxidation and rust resistance.

five. The wire used for the product is very durable. It is protected by a PCB gasket with a thickness of 3mm at the metal welding point, and the screw and hexagonal nut are fastened. Nail drop problem. The wire can be bent or folded without affecting the use.

six. PCB dwarf and fat design, dwarf will not be stuck to the graphics card, fat and long design makes the board easier to install, reducing the chance of damage.
