RDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting Equipment



Сохраните в закладки:

Цена:357.59RUB
*Стоимость могла изменится

Количество:


Новое поступление

BoutiqueHouse Store

BoutiqueHouse Store

Магазина BoutiqueHouse Store работает с 04.06.2020. его рейтинг составлет 89.55 баллов из 100. В избранное добавили 907 покупателя. Средний рейтинг торваров продавца 4.6 в продаже представленно 9600 наименований товаров, успешно доставлено 9574 заказов. 4030 покупателей оставили отзывы о продавце.

Характеристики

RDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting Equipment

История изменения цены

*Текущая стоимость 357.59 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Feb-20-2026 453.21 руб. 462.57 руб. 457.5 руб.
Jan-20-2026 368.74 руб. 375.32 руб. 371.5 руб.
Dec-20-2025 446.35 руб. 455.62 руб. 450.5 руб.
Nov-20-2025 443.74 руб. 452.57 руб. 447.5 руб.
Oct-20-2025 353.88 руб. 360.86 руб. 356.5 руб.
Sep-20-2025 436.48 руб. 445.94 руб. 440.5 руб.
Aug-20-2025 432.64 руб. 441.37 руб. 436.5 руб.
Jul-20-2025 428.92 руб. 437.37 руб. 432.5 руб.

Описание товара

RDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting EquipmentRDA5807 2 Channel Stereo FM Radio Module Receiver Board 76.0Mhz-108.0Mhz | & TV Broadcasting Equipment


Description

产品信息


Support dropshipping and wholesaling.

100% Original and with free after-sale warranty.

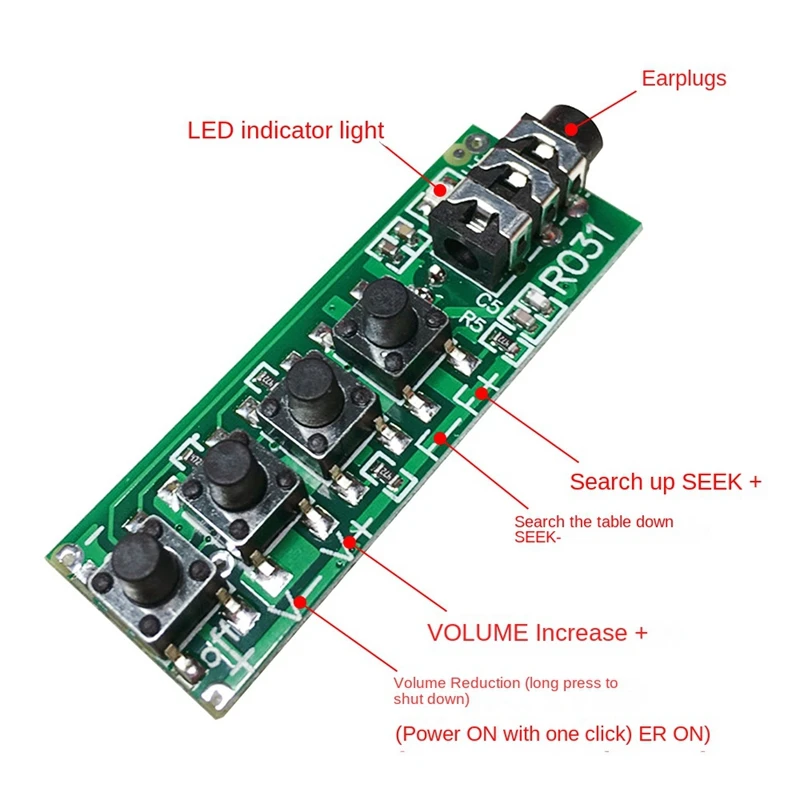

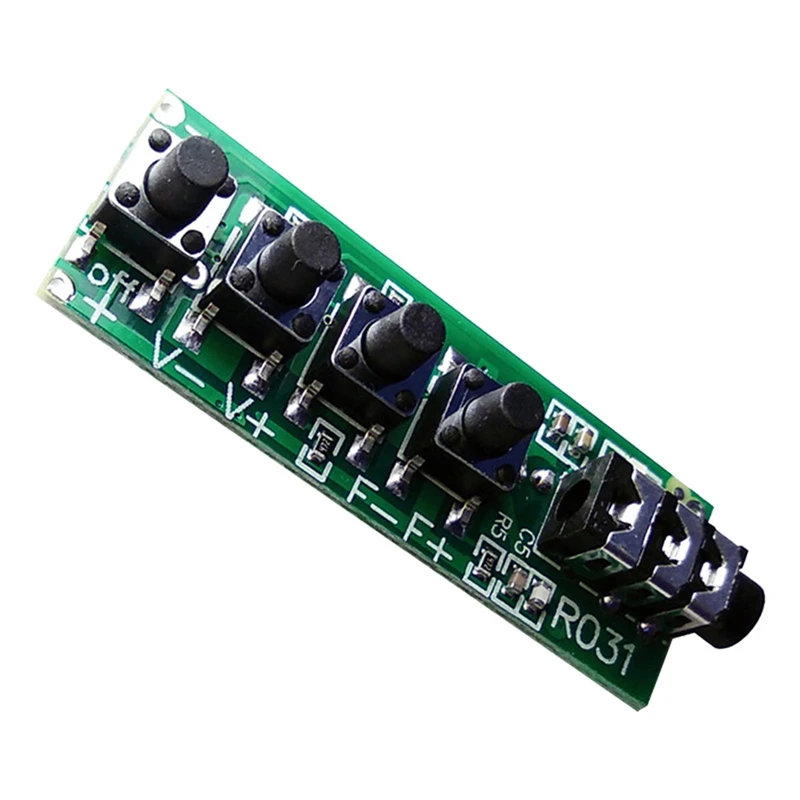

Instructions: 1. Short press the F+ button to search for the station upwards. After searching the station, it will stop and play the station. Press and hold the F+ button and the receiving frequency is incremented by 0.1MHz.
2. Short press the F- button to search for the radio downwards. After searching the station, it will stop and play the station. Press and hold the F- button and the receiving frequency is decremented by 0.1MHz.
3. Short press the V+ button, the volume will increase by one level, and the maximum volume position is 8. Press and hold the V+ button to restore the factory default parameters, frequency 99MHz, volume level 6 .
4. Short press the V- button to decrease the volume by one level, the minimum level is 0 (mute). Press and hold the V- button to turn it off.
5. After shut down, press any key to turn it on.

6. Without the button operation, the backlight will go out after 30 seconds, the peripheral circuits will go to sleep.
7. After the light is off, press any key to wake up the relevant circuit, the light and the screen resume display. This time the button is non-functional, only the wake-up function, after the light is on, each button has the corresponding function.
8. The headphone jack is an audio output, and the headphone cable is also used as an antenna, standard 3.5mm size, can directly drive the common 32 ohm earplugs.
Notice:
1. The positive and negative poles cannot be reversed.
2. The headphone jack is a 3.5mm standard two-channel stereo interface, 3-sections, plug-in type
Power Supply: DC 3V-12V
Working Current: 24mA
Shutdown Current: 30uA
Receiving Frequency Range: 76.0MHz~108.0MHz
Sensitivity: 1.3uV
Volume: 9 levels, level 0 muted, level 8 maximum sound
Output: Directly drive universal earbuds.
Board Size: 45mm x 16mm (L x W)
Frequency and volume have power-off memory function.
In the off state, press any key to turn it on, long press V- button to shut down.
Style: Portable
Type: FM
color:As shown
Material:PC+Metal

Package Contents:
1 x FM Receiver Board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
