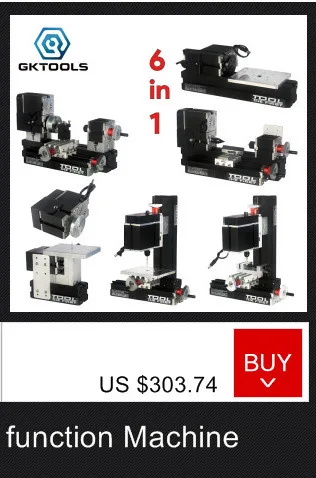

Basic Mini Multi-function Machine
|
|
|
![]()
![]() ![]()
|
|
The parts in the kit can be assembled into 6 kinds of machines with different function- jigsaw, wood turning lathe, metal lathe, milling machine, drilling machine, sanding machine, only one kind of machine can be assembled each time.
|
|
1. Motor speed :20,000rpm/min(optional choice 12,000rpm/min)
2. Input voltage/current/power:12VDC/2A/24W
Switching power input:AC110V-240V
3. Jigsaw working table size:90mm*90mm
4. Maximum working material diameter of metal lathe and woodturning lathe:50mm
5. Working material length of metal lathe and woodturning lathe:135mm
6. Axis X travel:30
7. Collets:1-6mm
8. Drilling working table size: 123*100mm
9. Maximum workpiece size clamped by machine vice:30mm 10. Maximum workpiece diameter clamped by three-jaw chuck:50mm
11. All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids. Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts.
|
|
|
|
|
![]()
|
|
Feature:
|
|
1.With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contacts. Motor blade and gear are made of metal.
2. Allow straight-line cutting and curve cutting.
3. Machine color is made up of red and black.
|
|
Technical parameters:
|
|
Working table size
|
90mm*90mm
|
|
Maximum working material thickness
|
solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.
|
|
Certificate Transformer passed
|
CE,UL |
|
Working material
|
Wood, Engineering plastic, soft metal(aluminum, copper etc.) |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
Metal Lathe Machine(Z20002)
|
|
|
![]()
|
|
Feature:
|
|
1. Working material: wood, and engineering plastic , soft metal etc.
2. Machine color is made up of red and black.
3. Motor blade and gear are made of metal.
|
|
Technical parameters:
|
|
Maximum working material diameter
|
20mm
|
|
Working material length
|
135mm
|
|
Certificate Transformer passed
|
CE,UL |
|
Working material
|
wood, engineering plastic, soft metal(aluminum, copper etc.) |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
Wood-turning Tool(Z20003)
|
|
|
![]()
|
|
Feature:
|
|
1. Softwood, hardwood can be processed.
2. Workpieces can be clamped by three-jaw chuck or collets(1-6mm).
3. center height-25mm, distance between center- 135mm.
|
|
Technical parameters:
|
|
Maximum working material diameter
|
45mm
|
|
Working material length
|
135mm
|
|
Working material
|
wood, engineering plastic, soft metal(copper, aluminum etc.). |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
|
![]()
|
|
Feature:
|
|
1. Working material: wood board, plywood, soft meta(aluminum ,copper etc.),engineering plastic.
2. Machine color is made up of red and black.
3. Easy operation, it can be used to drill and grind by hand, and it can drill holes with equal ratio on the workpiece within 180 degrees by using dividing plate.
|
|
Technical parameters:
|
|
Slider travel
|
30mm,50mm
|
|
Collets
|
1-6mm
|
|
Working table size
|
123*100mm |
|
Working material
|
wood board, plywood, soft meta(aluminum ,copper etc.),engineering plastic. |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
|
![]()
|
|
Feature:
|
|
1.The machine can be operated in X,Y,Z three dimensional space, can be assembled into vertical milling machine, horizontal milling machine and hand-held milling machine.
2.Milling cutter, with two edges, is dangerous, so people should be guided by teachers when using it.
3. Machine color is made up of red and black.
|
|
Technical parameters:
|
|
Slider travel
|
30mm,50mm
|
|
Collets
|
1-6mm
|
|
Working material size clamped by machine vice
|
30mm |
|
Working material
|
wood, engineering plastic, soft metal(aluminum, copper etc.) |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
|
![]()
|
|
Feature:
|
|
1.The left side of the machine has a small grinding wheel with a wheel guard.
2.The machine can be used to polish , grin. If needed, we use the machine by hand to grind under any angle.
3. Center height 25mm, sanding paper:100# ( optional) choose different sanding paper according different work pieces and workpieces surface. Machine color is made up of red and black.
|
|
Technical parameters:
|
|
Working table size
|
123 * 100mm
|
|
Working material
|
wood, engineer plastic, soft metal(aluminum ,copper etc.) |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
Hand Held Machine(Z10001)
|
|
|
![]()
|
|
Feature:
|
|
1.Equipped with 7 standard grinding tools, widely used, variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller , grinder, miller.
2. Machine color is made up of red and black.
|
|
Technical parameters:
|
|
Motor speed
|
20,000rpm/min ,motor and gear are made of metal.
|
|
Input voltage/current/power
|
12V DC/2A/24W
|
|
Working material
|
wood, engineer plastic, soft metal(aluminum ,copper etc.) |
|
The transformer has over-current protection, over-voltage protection, over heating protection.
|
|
|
|
