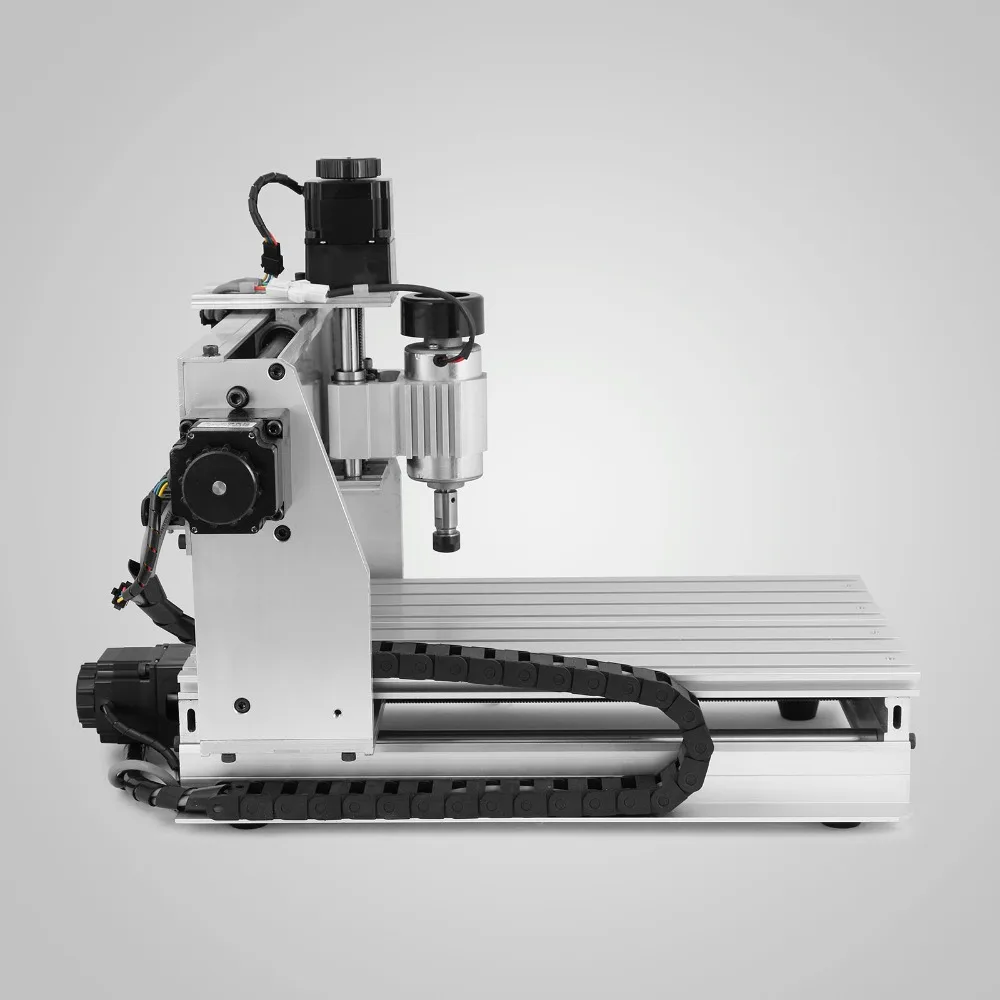

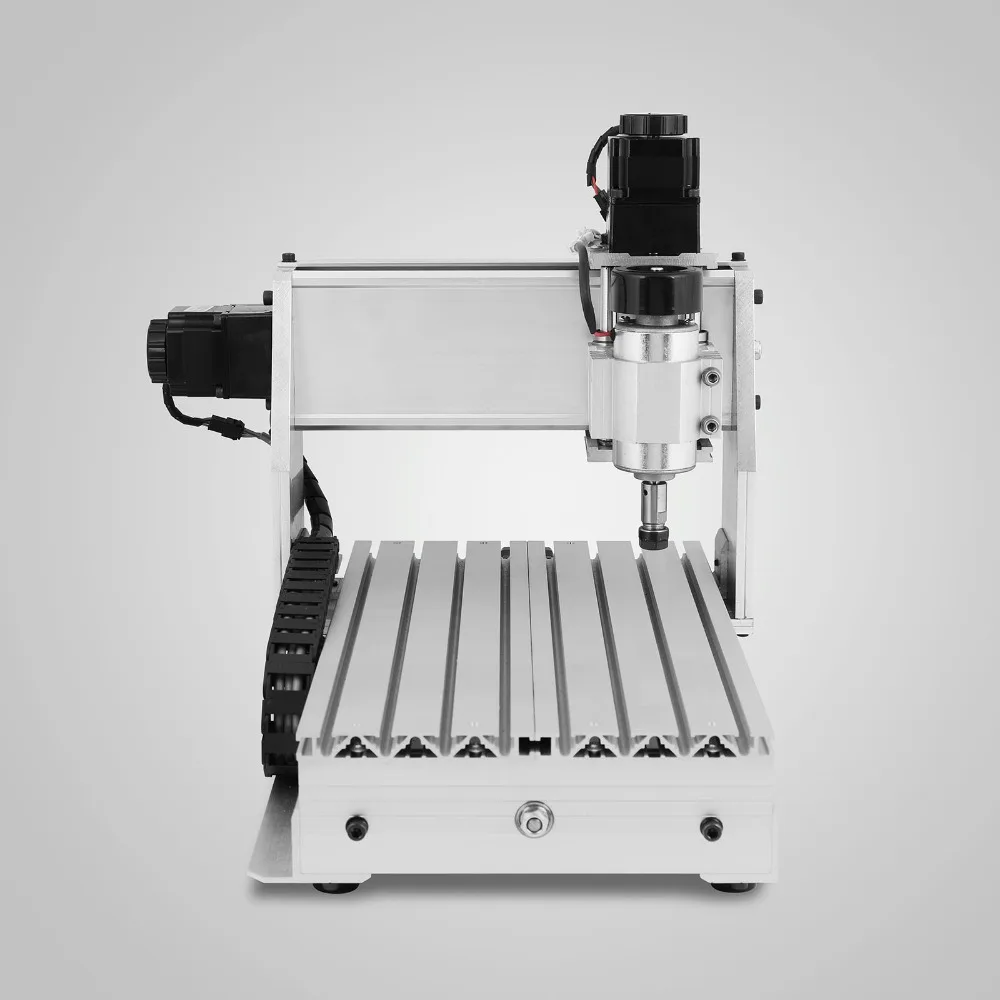

CNCShop CNC Router CNC Engraver Engraving Machine Cutting Machine 3020T 4th Axis Carving Tools Artwork Milling Woodworking

For eu customers: we sent this machine to you from our EU warehouse, door to door , no customs taxes

Introduction

CNC3020 is suitable for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes. CNC3020 is a desktop CNC machine and designed for processing Industrial or Hobby Prototype Building,Building Model Making,PCB,Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.

How to use

2.Make sure that your computer has a on-board parallel port output.

3.Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

Features

• With four axis(rotary axis) and tailstock
• Simple operation and installation
• More steady and strong equiped with aluminum alloy frame materials
• Can be controlled only by desktop computer,not suitable for laptop
• Mach 3 software is simple and intelligent
• Can control the engraving more precise
• Emergency stop button enhance security
• Large 3D engraving in soft wood,MDF board,native wood,PVC,Acrylic we suggest use one or two spiral flute ball bits.
• Can engraving much more materials by spiral flute bits,such as metal,steel,MDF board,solid wood,composite board plywood,stone
• Spindle motor knob is useful for small positioning adjustment ,with steady and strong support structure.
• Cover plates reducing pollution for the screws and shafts.
• The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
• The chrome shafts is not easy to deform,suitable for long time use.
• Flexible coupling can be used for high torque transmission.
• High Precision Stepping motor makes engraving more precise .
• 2 years Free warranty

Technical

3020T triaxial engraving machine part parameters:

1. Effective working travel：200(X)mm*300(Y)mm*50(Z)mm
2. Shape dimension：550x400*350mm
3. Max.workpiece dimension：200mm*300mm＜65mm
4. Work table dimension：200mm*300mm*15mm
5. Carving deepth: 55mm
6. Frame materials：aluminum alloy 6063 and 6061
7. Driving units X axis:1204 trapezoidal screws
8. Driving units Y axis:1204 trapezoidal screws
9. Driving units Z axis:1204 trapezoidal screws
10. Sliding units X axis:Dia.13mm chrome plate shafts
11. Sliding units Yaxis:Dia.16mm chrome plate shafts
12. Sliding units Z axis:Dia.12mm chrome plate shafts
13. Stepping motor type:57 two-phase 1.45A-2A
14. Spindle motor:200w dc motor，NEW
15. Principal axis collet:ER11/3.175 mm
16. Spindle speed:300 ~ 8000rpm/min (PWM stepless speed regulation)
17. Repeat accuracy:0.05mm
18. Empty line speed:0-2500mm/min (16 subdivided driving down)
19. Spindle precision:radial beat acuities 0.03 mm
20. Control unit:triaxial one-piece drive + ring variable power + PWM speed
21. Carving Instructions:G code/TAB files/nc file/NCC files
22. Communication interface:through parallel connection with computer
23. Software environment:Windows 2000 / xp
24. Carving speed:0-2000mm/min (different materials differ)
25. Machine weight:24KG

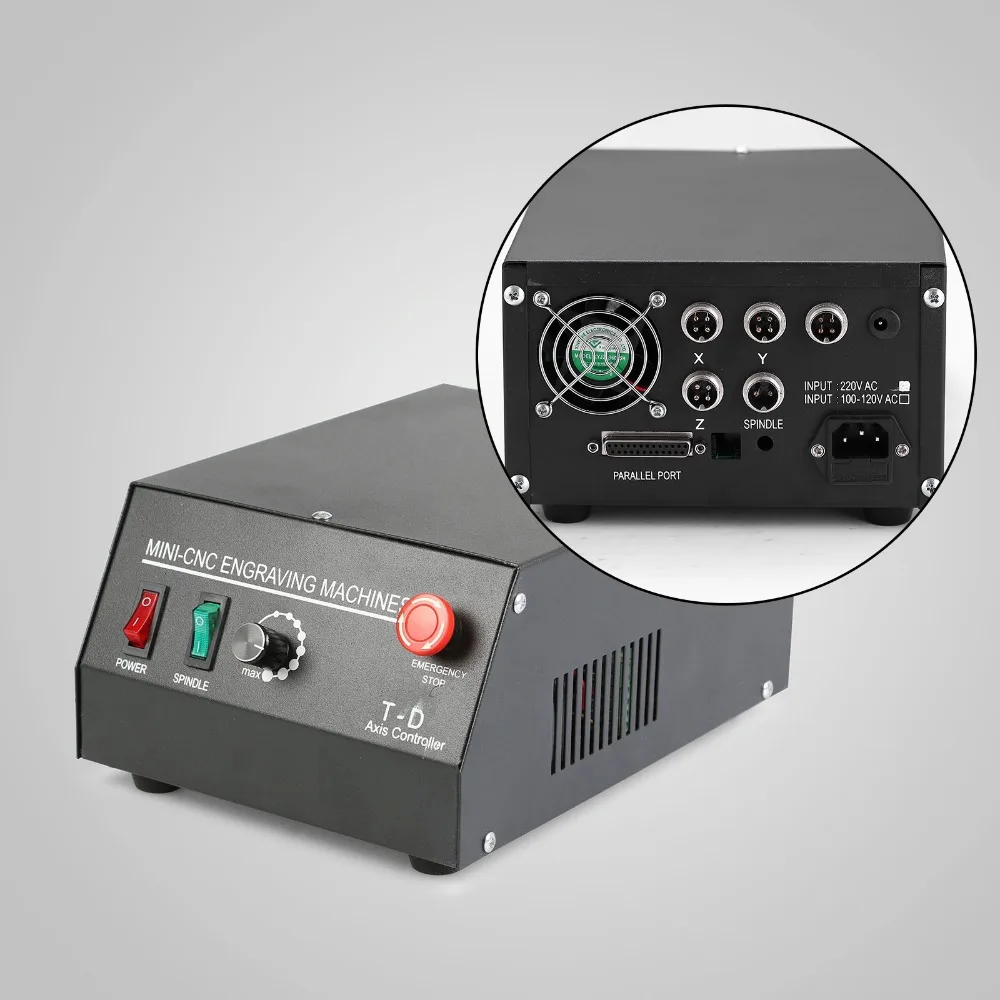

Control box parameters:

1. Operating Voltage:AC110V or AC220V  50/60Hz(we also stock USA.UK.EU.AU.plugs and 110V-240V power version for the country all over the world.)
2. Control unit:2.5A stepping motor driver plus adjustable spindle speed controller
3. Computer connection:on board palrallel port
4. Command code:G code
5. Acceptable software:Mach3,EMC2
6. Protection:Emergency stop button

Packing List

1× Engraving machine

1× Control box
1× Parallel cable
1× Power cable(we also stock 110V-220V power version and USA.UK.EU.AU.plugs for the country all over the world.)
1× Tool box and tools
4× Axis motors
1pcs rotary axis and tailstock
