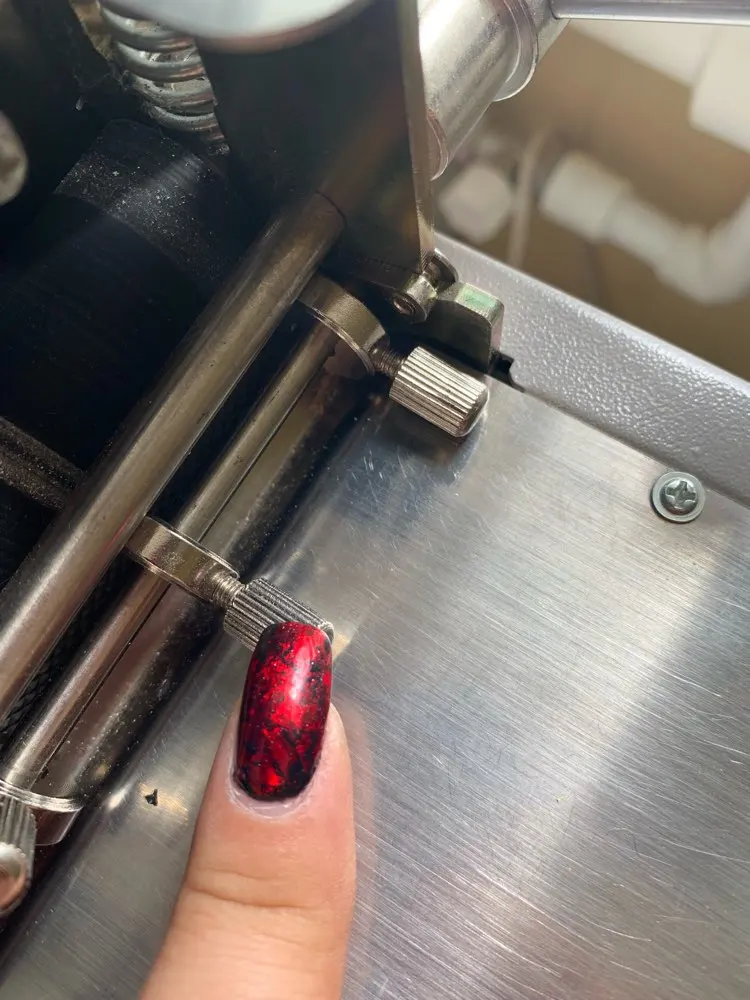

Автоматический разделительный винт для резки меди ПВХ кожаной ленты |
999,60 руб.
Новое поступление
XINCHENG 800W New portable EDM-8C of sparking erosion machine small hole drilling | Инструменты
195 588,20 руб.
40Pcs Plasma Cutting Torch Consumable Extended Long Cutter Kit 40A Pt31 Tip Electrode Nozzle | Инструменты
Adjustable Precision Vise for EDM CMP-801/CMP-801-150 | Инструменты
US $1,995.00
EDM-800C small and light portable clamp edm machine broken tap remover drilling cutting low precision |
US $1,580.00 - 1,708.00
5 axis waterjet cutting machine for metal stone glass with 720 degree 3D specially | Инструменты
MW402811N 3054736 Pully B для проволоки soчлен EDM | Инструменты
10 540,80 руб.
Steel Shaft Coupler Coupling for Three Phase Asynchronous Motor OD58 Length60mm Wire Cut Machine | Инструменты
US $14.37
EDM-Broken-Tap-Remover
Магазина EDM-Broken-Tap-Remover работает с 09.07.2015. его рейтинг составлет 100 баллов из 100. В избранное добавили 136 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 2735 наименований товаров, успешно доставлено 40 заказов. 12 покупателей оставили отзывы о продавце.
Характеристики
How to center a drill remove broken stud edm spark erosion machine tap burner |
История изменения цены
*Текущая стоимость 216 127,80 - 233 381,70 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-18-2026 | 274481.90 руб. | 279971.19 руб. | 277226 руб. |
| Jan-18-2026 | 222611.54 руб. | 227063.85 руб. | 224837 руб. |
| Dec-18-2025 | 270159.99 руб. | 275562.75 руб. | 272860.5 руб. |
| Nov-18-2025 | 267997.17 руб. | 273357.52 руб. | 270677 руб. |
| Oct-18-2025 | 213966.23 руб. | 218245.49 руб. | 216105.5 руб. |
| Sep-18-2025 | 263675.89 руб. | 268949.11 руб. | 266312 руб. |
| Aug-18-2025 | 261514.83 руб. | 266744.81 руб. | 264129 руб. |
| Jul-18-2025 | 259352.45 руб. | 264539.64 руб. | 261945.5 руб. |
Описание товара
How to center a drill to remove broken stud edm spark erosion machine tap burner
China,America and Russia warehouse fast delivery within 24 hours
Removing Size M2~M36
Cost only $2570+free shipping by DHL/TNT/FEDEX/UPS
No damange to the threads and work pieces!
Features:
- Input power 3000W
- Light, small, portable, and compact design allows the SFX-4000B tap remover to be moved and used anywhere in the shop.
- High speed and efficiency at a low cost.
- Simple set up and operation allows easy removal of taps anywhere.
- Power source choices 100V/110V/120V/200V/230V/240V, 1PHASE, 50HZ/60HZ
- Dielectric Machine uses ordinary tap water as dielectric liquid.
- Electrodes Uses any brass rod or tube as an electrode.(ø1,ø2,ø3,ø4,ø5,ø6,ø8,ø9,ø10,ø11,ø13,ø16,ø18 )
- Note: ø1~ø11 are round brass rod, ø13,ø16,ø18 are hexagonal brass rod)
- Small size and magnetic base allow machining even on large work pieces.
- Removes taps with no damage or stress to the work piece.
- Additional applications include cutting tungsten carbide or any other conductive material.
- Auto Feed
- Depth setting (stops at a specific depth)
- Selectable arcing timer
- Auto retract
- Swiveling work head
- Alarm messages: depth arrival, arcing, over-temp.
Specification:
| Stepper Current | Yes |
| Depth setting, auto reatract and alarm | Yes |
| Accessories storage | One-in-Box |
| Input Power | 3000w |
| Electrode chuck diameter | 2~13 mm |
| Working Liquid | Tap water |
| Max Process Depth of spindle servo | 70mm |
| Short Hole Processing Speed | 2mm/min |
| Power Box Size | 420*220*370 mm |
| Model and size of working head | DK8 300*50*50 mm |
| Packing Size | 528*325*460 mm |
| Net Weight | 22 Kg |
Advantage: One of the big advantages of using the SFX Portable EDM machine is it's portability. Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Without the Portable EDM, broken bolts or taps may require removal of the engine head or block in a car or truck in order to extract the broken piece. Additionally, the SFX Portable EDM machine will work in any directions, ie, upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.
![1[,,].jpg](http://sc02.alicdn.com/kf/HTB1bv8flH_I8KJjy1Xaq6zsxpXa0/200646759/HTB1bv8flH_I8KJjy1Xaq6zsxpXa0.jpg)
![3[CE,ISO].jpg](http://sc01.alicdn.com/kf/HTB1ESGYlrYI8KJjy0Faq6zAiVXaC/200646759/HTB1ESGYlrYI8KJjy0Faq6zAiVXaC.jpg)
![5[].jpg](http://sc01.alicdn.com/kf/HTB1NVKBl_vI8KJjSspjq6AgjXXaL/200646759/HTB1NVKBl_vI8KJjSspjq6AgjXXaL.jpg)
![6.[]2.jpg](http://sc01.alicdn.com/kf/HTB1iLzCdAfb_uJkSnhJq6zdDVXaf/200646759/HTB1iLzCdAfb_uJkSnhJq6zdDVXaf.jpg)
Firstly, the products will go through a thorough quality test to enure 100% running in perfection before delivery.
Secondly, the warranty is 1 year. During this period, we would repair the machine for free including the new parts needed for repair.
Note:Man-made damage is out of warranty coverage
![7.[FAQ].jpg](http://sc01.alicdn.com/kf/HTB1BeHuejgy_uJjSZKzq6z_jXXaX/200646759/HTB1BeHuejgy_uJjSZKzq6z_jXXaX.jpg)
1.How big size can your machine remove?
-Usually,our SFX-4000B can remove M2 to M36 taps,screws,studs,drills,drifts,etc.
-So far the largest size is M48 we've removed with sheet electrode.
2. How long will it take to remove one tap?
-It depends on the size of the broken taps;The processing speed is 1~2mm/min normally.
10~20 minutes to solve your broken taps headache.
3.Can I use it to process blind hole or via?
-Yes, the processing depth can be set(stop at a specific depth) and the working head can auto retract and alarm when bottoming.
4. Can I use it for wire-electrode cutting or drilling?
-Yes, but please note it is not high precision equipment which has a +0.3mm tolerance.
5.Do you have any other payment terms?
-Yes, Paypal, T/T,etc is available. Please kindly tell us the term you'd like to pay, we will try to meet customers' demands as much as we can.
6.Contact information:
-QQ: 3241589355
-Skype: 86 13592083781
-E-mail: brokentapremover(at)gmail.com
