KNTECH KNZD-06 Lound Speacker Help Piont Handsfree Emergency Phone with Speed Dial/One Key Call for Hospital Sliver |

KNTECH KNZD-06 Lound Speacker Help Piont Handsfree Emergency Phone with Speed Dial/One Key Call for Hospital Sliver |

KNTECH KNZD-06 Lound Speacker Help Piont Handsfree Emergency Help Phone with Speed Dial/One Key Call for Hospital,Sliver

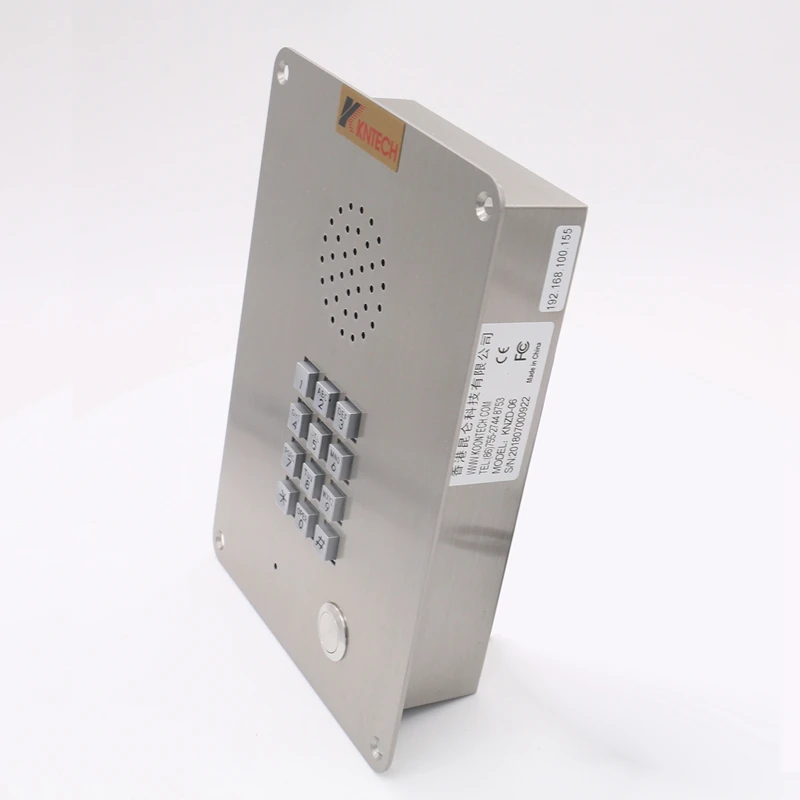

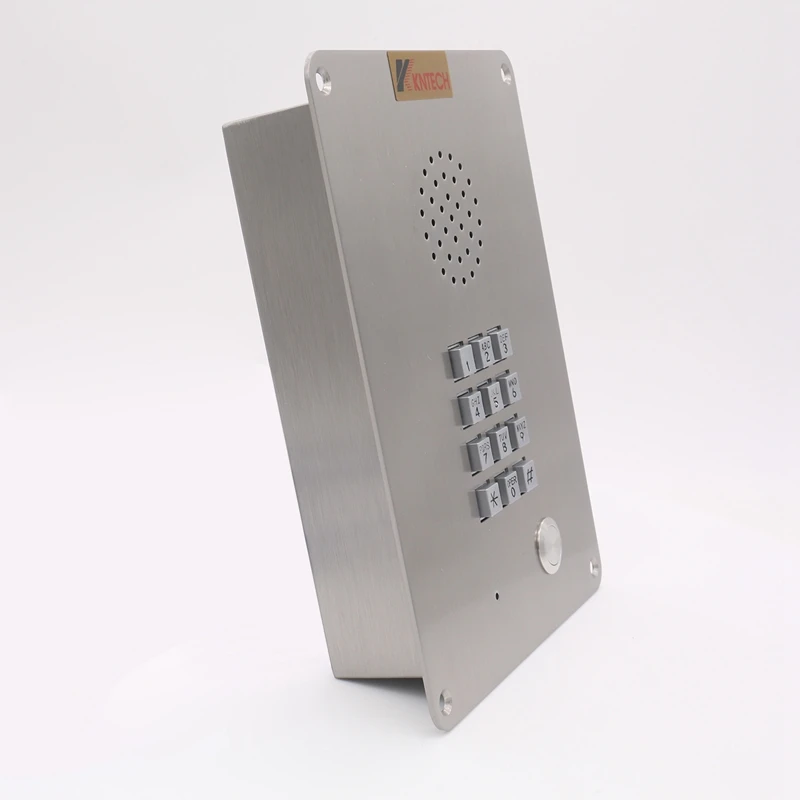

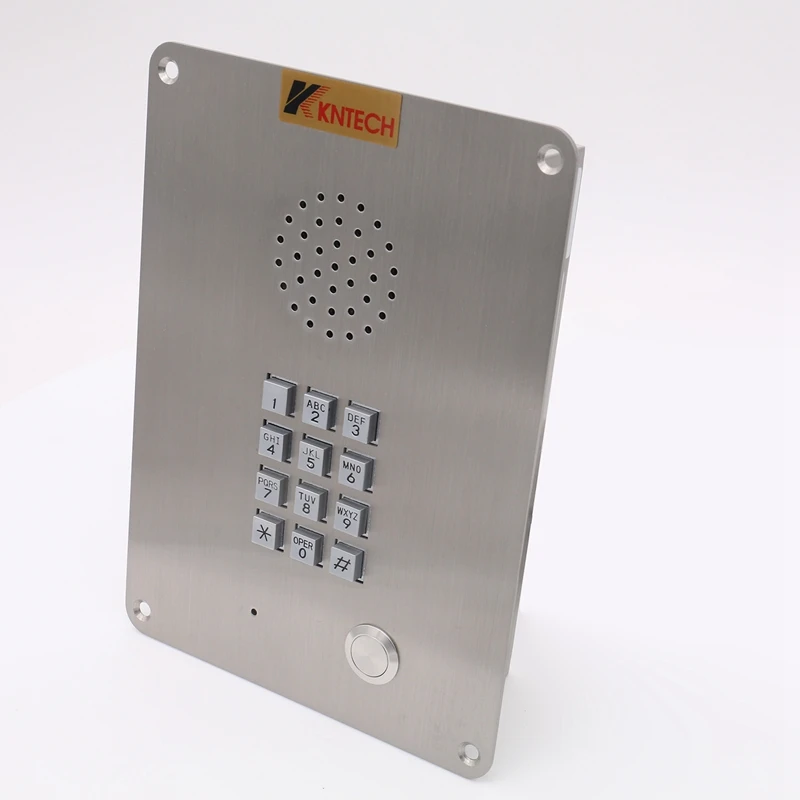

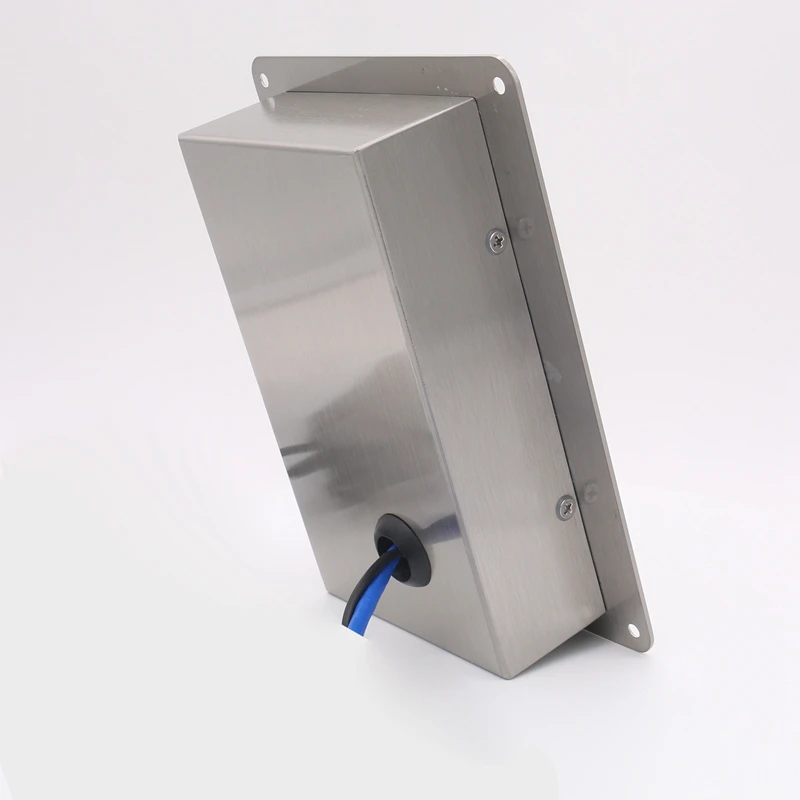

KNZD-06 Clean room Telephone

We specializing in the production and sales of Anti-explosion telephone set stainless steel railway telephone for railway or metro with CE certification ,Each kind of specification waterproof telephone

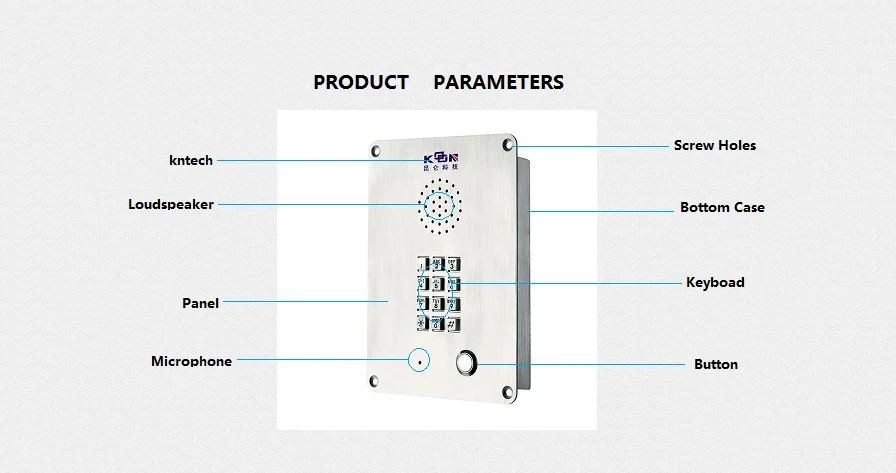

Descrption:

1. Stainless steel 304 body, vandal & tamper-resistant hardware, easy Installation.

2. Waterproof rating IP55 dust proof.

3. Metal keypad keep waterproof and dusty proof.

4. Stainless steel button, double loudspeaker.

5. Lightening protection to ITU-T recommendation K.21.

6. POE power supply or DC12V.

7. Temperature range from -40 degree to +70 degree.

8. Support echo cancellation.

9. Remote software upgrade, configuration and monitoring.

Specifiction:

VoIP SIP2.0 telephone

DTMF dialing

MTBF:100000hours

MTTR: 2 hours

Free dial(maximum length of each number is 16 digits)

Communication: Full duplex 2-way hands-free communication Call Control Signaling:VOIP SIP Info(DTMF), RFC2833(DTMF)

Power:Power over Ethernet, IEEE802.3af, Class 0

Local power, 12VDC,Idle 2W, Max 10W

Auxiliary Contacts:1 Aux Output, dry contact

Contact Ratings. Load: Resistive load

Rated load:0.3 A at 125 VAC; 1 A at 30 VDC

Rated carry current:1A

Max.switching voltage:125 VAC,60VDC

Max.switching current:1A

Audio Codes:G.711, G.722, G.729

Network:10/100 BaseTX Ethernet, RJ45

connectors, Cat5e or better

IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP

LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)

Programming:Non-volatile flash memory programming and configuration through Web GUI Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED

Echo cancellation code:G.167/G.168

Installation

Packaging:

Unit size:210*150*60mm Unit: N.W:1.3KG

1pcs packing box size: 280*110*220mm Unit N.W:1.3KG Unit G.W:1.5KG

4pcs in 1 outer Carton box: size: 430*280*200mm N.W:5.2KG G.W:8.44KG

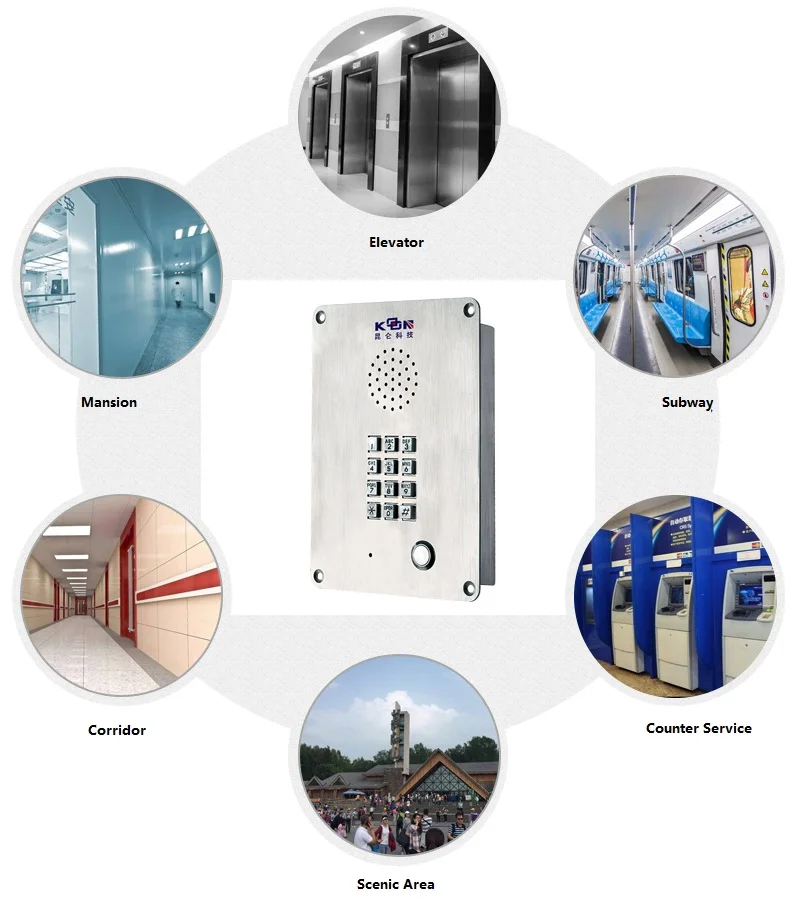

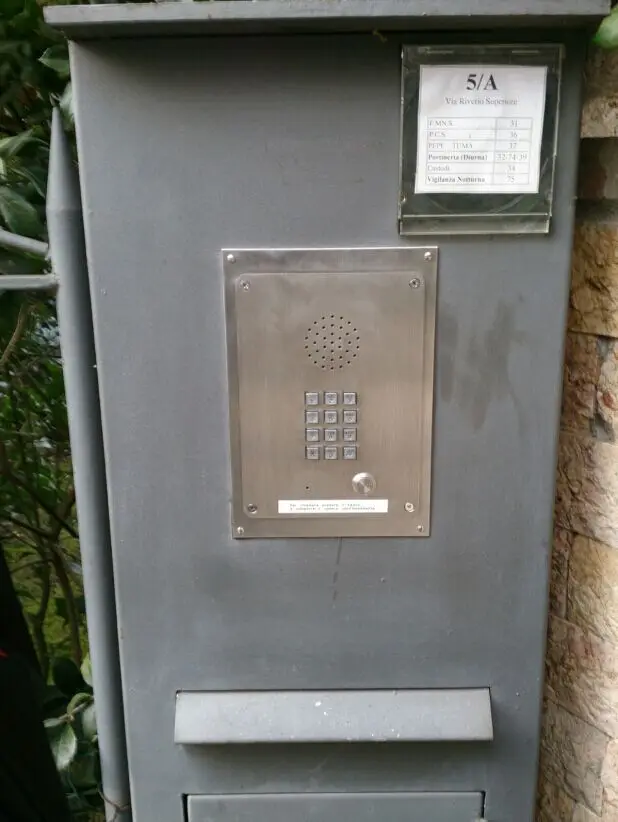

Applications：

Our Company

HONGKONG KOON TECHNOLOGY LIMITED is dedicated to engaging in R&D, manufacturing and sales of various types of exclusive emergency communication systems.

Products include IPPBX PAGA system, industrial SOS IP telephone, help call station, SIP intercom, as well as large network management command systems such as TR069, SNMP Modbus TCP protocol SIP applied in metro, tunnel, airports, petrochemicals, metallurgy, nuclear, power, marine, ship building, bridge, mine, and special industry.
