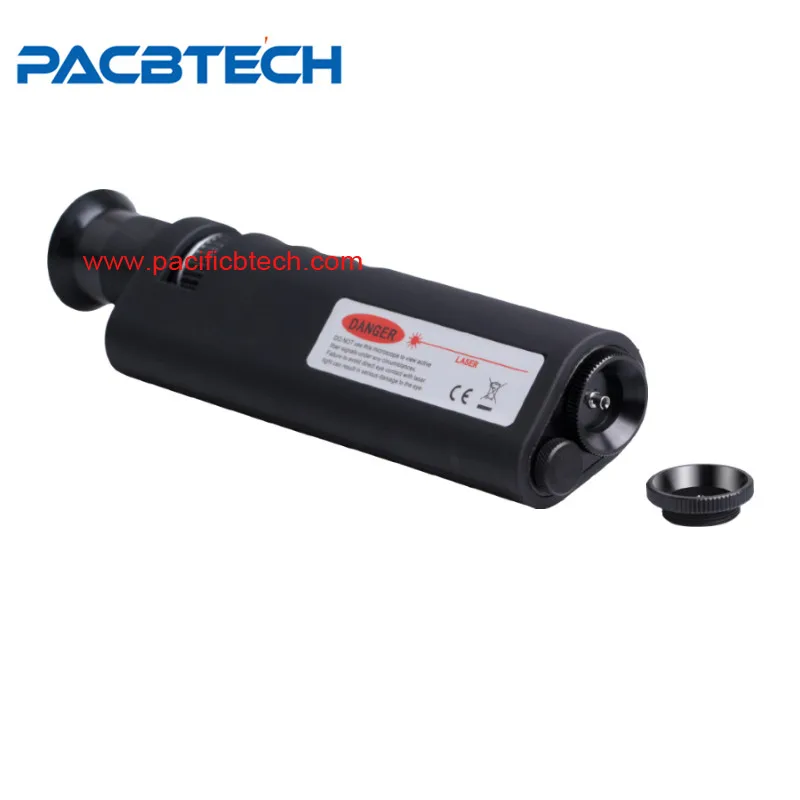

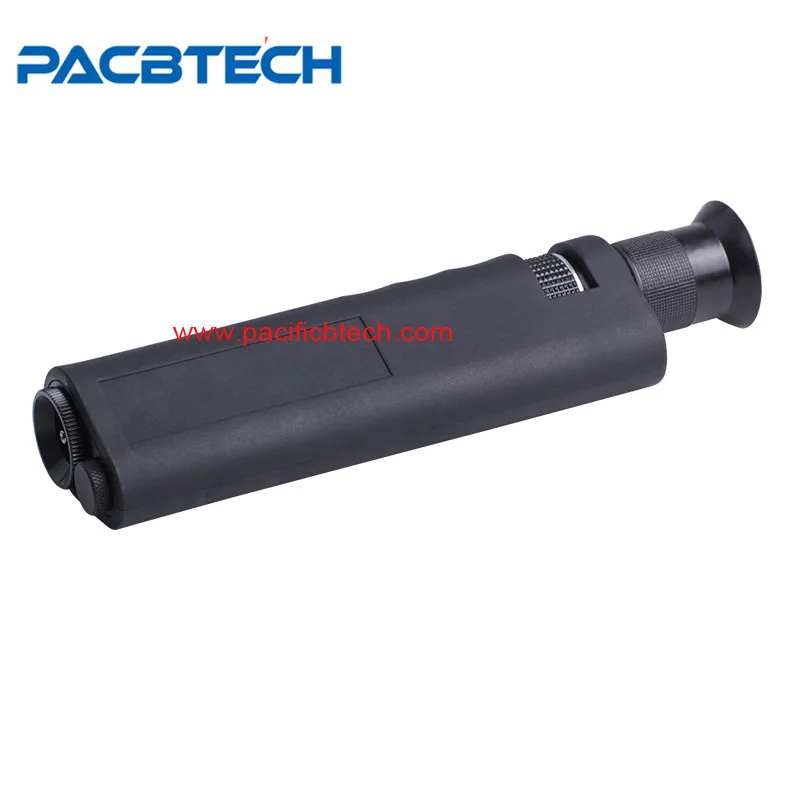

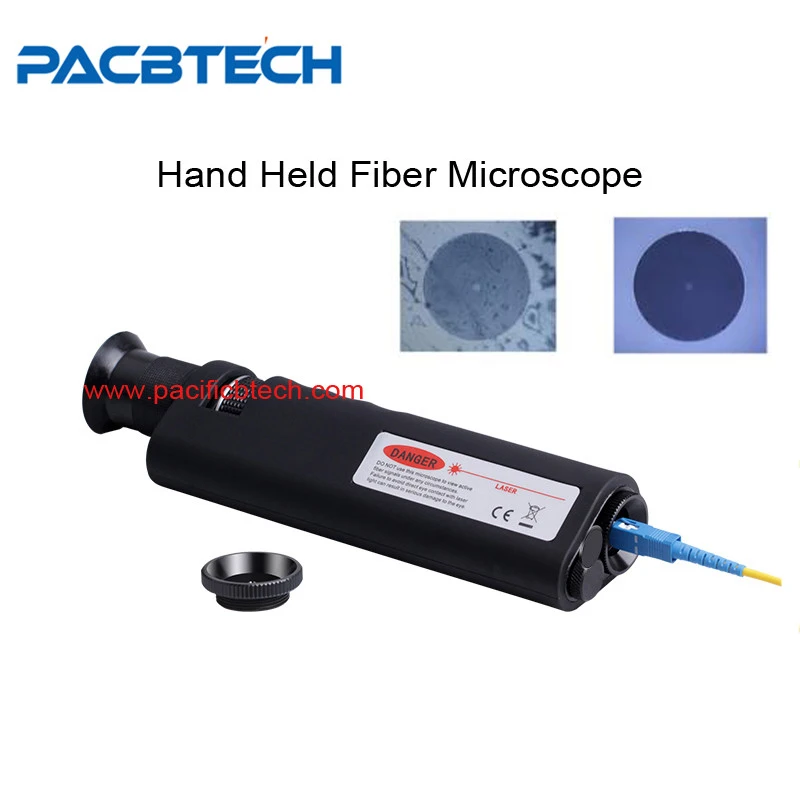

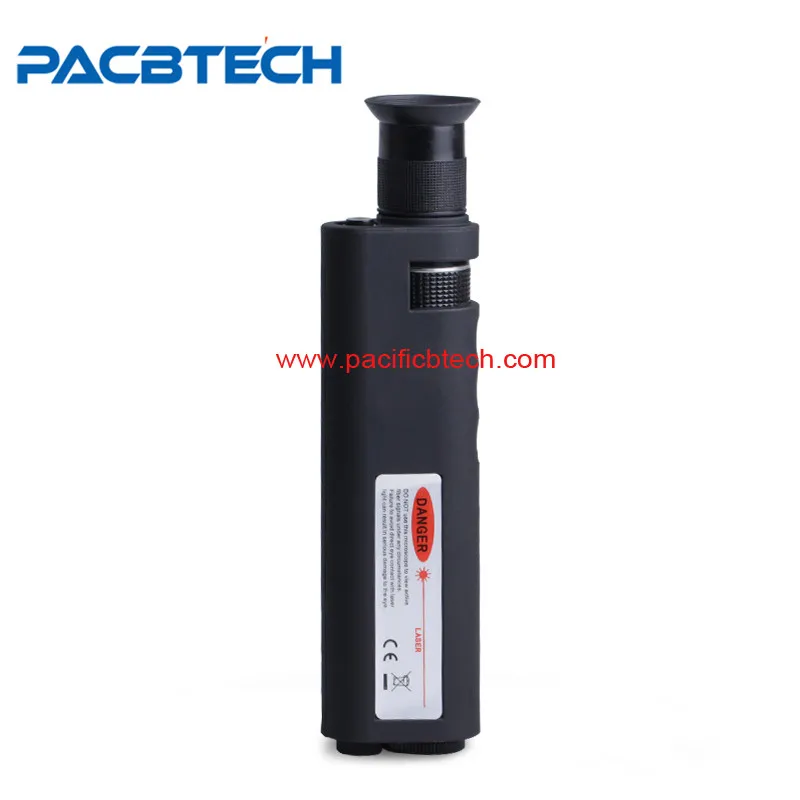

The HW-Series Hand Held Fiber Microscope utilize a white LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. For critical examination of polish quality. We strongly recommend the KL-Series Hand Held Fiber Microscope.

Specifications:

Optical Magnification: 200X, , 400X

Power Requirements: 3 “AAA” alkaline batteries

LED:Rated life: 10000hrs

Weight: 0.6kg

Size: 225mm/8.76 “Length x 32mm/1.25” Diameter

Controls: Momentary on/off switch; Fine-Focus control

Laser Safety Filter: Built-in

Adapter interface: Use interchangeable, presented universal or dedicated adapters.

Order Information :

HW-200       200X    Fiber Microscope with universal “slip-grip” adapter

HW-400       400X    Fiber Microscope with universal “slip-grip” adapter

Operation Step:

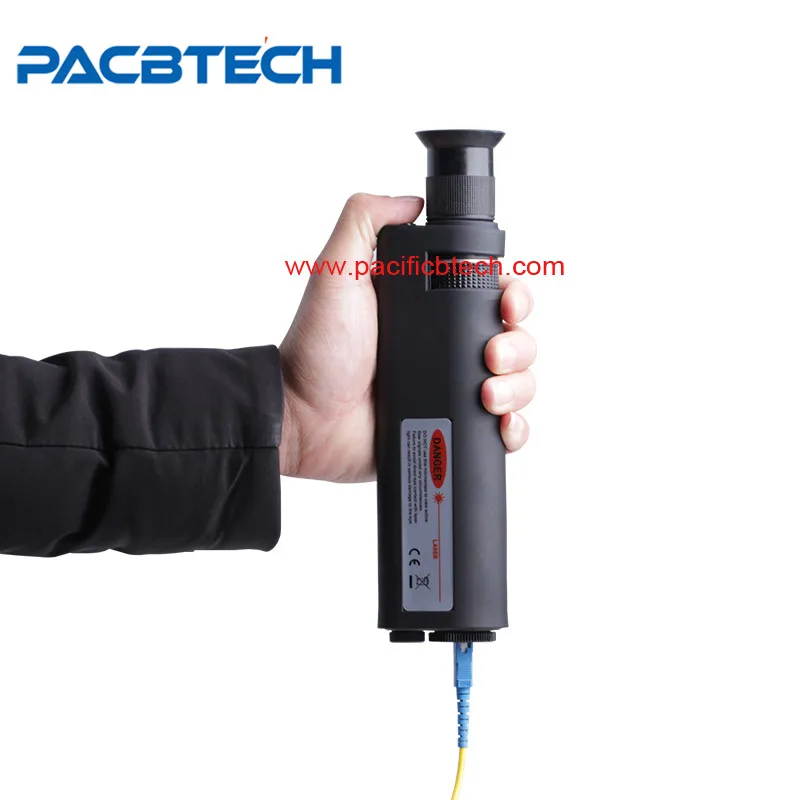

Step 1. Input the Fiber which will be checked into the Fiber Insert Entrance, insert another fiber connector into the light source entrance.

Step 2. See from the eyepiece and press on the on/off LED switch（Illumination)

Step 3. Adjust the focus control. just to find the clearest viewing.

Guarantee Terms:

All products from company are warranted to be free of all defects in material and workmanship for a period of 12 months from the date of delivery. The warranty does not apply to any instrument which has become worn, defective, damage or broken due to abuse, miuse, tampering or unauthorized repair. Under this warranty, we will repair or replace, without charge to the purchaser, any part of which upon our examination appears to be defective in material or workmanship.

How to choose between the CL-Series and the OL-Series ?

Both series of our Hand Held Fiber Microscope provide excellent views of the ferrule end face. We recommend 400x magnification foe single-mode and 200x magnification for muti-mode:

(1)if you frequantly termiate fiber and have received professional training, you are probably best served our CL-Series Microscope.

(2)If you only occasionally termiate fiber, and are unsure, you might consider the OL-Series.

Laser Safety: Optical Inspection Microscope

Fiber Inspection Microscopes are equipped with potent laser safety filter. Without such protection, users take danerous risks.

We have just completed a laser safety study for its line of hand held fiber termination inspection microscope. So we have a built-in laser attenuation filter. It decrease the dangerous risks to the users.

The following is the simple inner structure for the Fiber Inspection Microscope:

Our HW(V) and OL(V) Series optical microscope are equipped with IR attenuation filters that may help in preventing eye damage in cases of accidental live fiber viewing. The filter we install will provide over 35 dBm of attenuation at 1310nm and 1550nm. In addition, it will provide over 20.5 dBm of attenuation at 850nm, 1550nm.

For 1310nm and 1550nm laser sources up to +15 dBm we feel our microscope will provide a sufficient safety backup in cases of accidental viewing. Beyond this power level, and in particular when using saystems incorporating Raman Amplification, we suggest you utilize our Video Inspection Microscope. These systems provide the highest level of safety assurance during microscope analysis since the video camera will be looking at the fiber-not your eye. For systems with such high-power lasers, we feel this added level of assurance is required.

DO NOT use any of our Fiber Inspection Microscope to VIEW ACTIVE fiber signals under ANY circumstances. Active fiber signals contain high-powered laser light, it can do much harm to the eyes. So we must avoid contracting with the laster lightninh direct eyes. The failure to avoid direct eyes contact with laser light can result in serious damage to the eye, Especially, our Hand Held Fiber Inspection Microscope may magnify the laser light in active fiber singals; direct eye contact with magnified laser light should be avoid. Lasers safety filters, are used in our Hand Held Fiber Inspection Microscope, are no substitute for practicing good lasers safety. If you are unfamiliar with laser safety practice, please ask the information from the distributors or seek out professional training. There are many capable trainers working in the fiber optic filed who can help.
