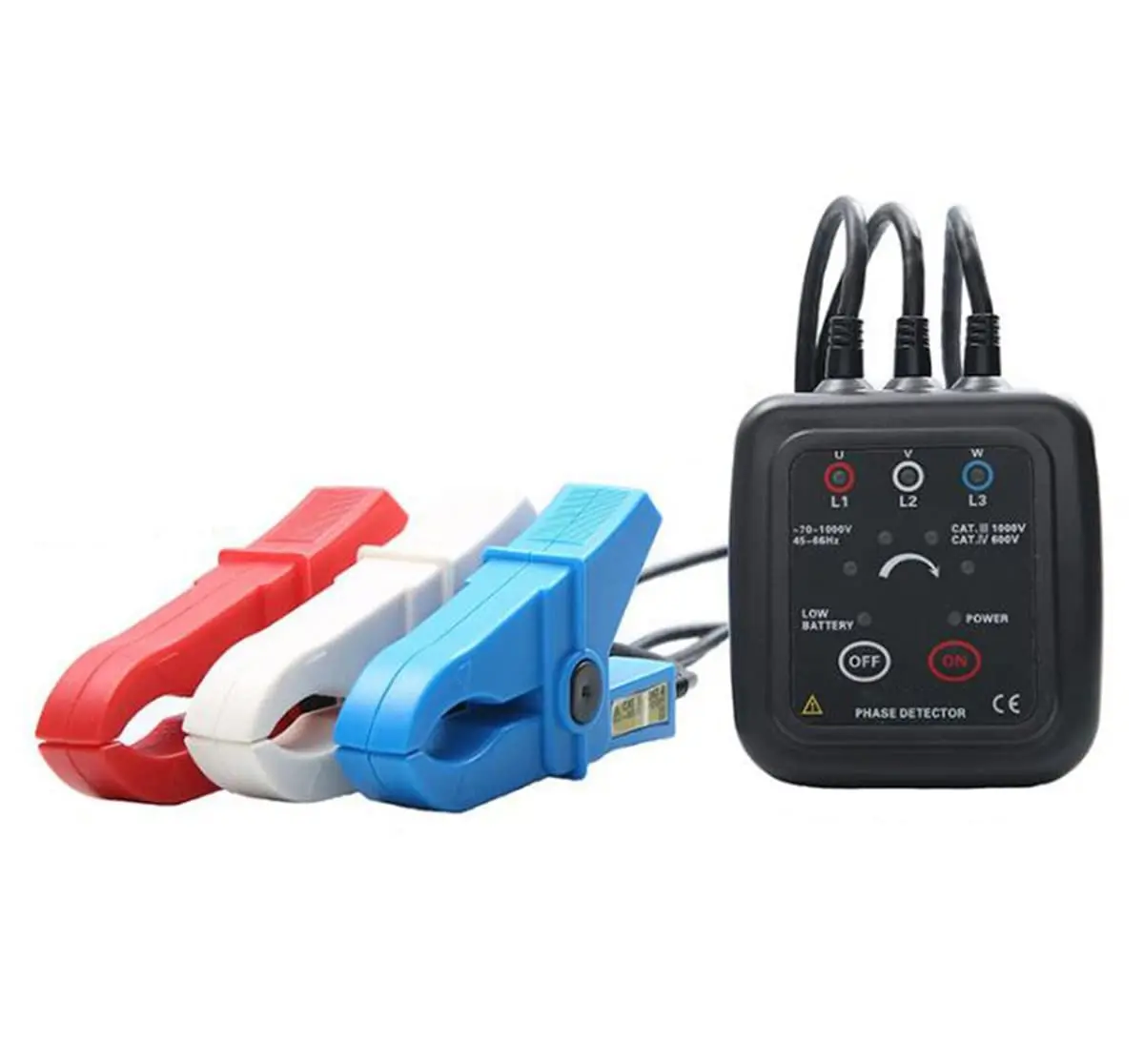

ETCR1000D Бесконтактный детектор последовательности фаз с измерением диаметра провода с зажимом от 10 мм до 40 мм и поиском места обрыва.

Power Supply

DC3V AA Mn batteries (LR6) ×2 PCS(not included)

Clamp Wire Size

Diameter Φ10mm~Φ40mm

Live Voltage Range

AC70~1000V

Auto Power off

After 5 minutes, the meter automatically cut off power supply.

Working Temperature

-10~50℃; below 80%rh

Storage Temperature

-20~60℃; below 90%rh

LED Display

[Positive phase sequence] the four phase-sequence lamps blink in order (clockwise)

[Negative phase sequence] the four phase-sequence lamps blink in order (counterclockwise)

[live-voltage indication] L1, L2, L3 lamps light up

[Default phase] L1/L2/L3 lamp is off

[Open circuit] L1/L2/L3 lamp is off

Beep

[Positive phase sequence]Intermittent, short beeps;

[Negative phase sequence]Continuous long beeps

Battery check

After power on the POWER indicator light; low battery LOWBATTERY light

magnetic force

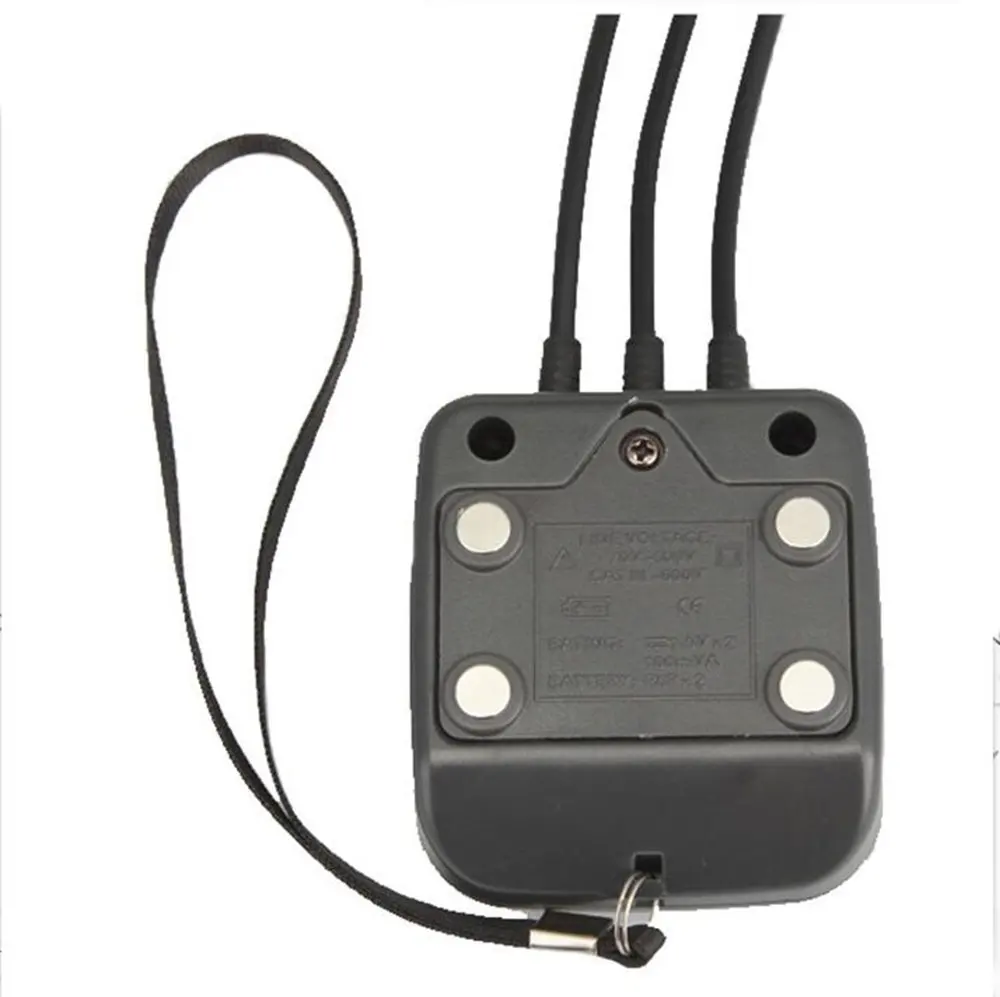

The back of the instrument with four magnets, hanging on the distribution box, can withstand 800g quality

Clamp Lead Length

0.6m

Maximum Measured Voltage

AC1000V

Dielectric Strength

5.4kVrms

Maximum rated Power

300mVA

Safety Provisions

EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT Ⅲ(600V)

Meter Weight

200g

Meter Dimension

Width, height, thickness 70mm×75mm×30mm
