250W DC24V 12000rpm Brushless Spindle Motor 0.25N.m Bracket Driver Tachometer power supply For Mini engraving machine spindle drill hole Deburring

High speed brushless motorized spindle parameters:

Spindle motor: new brushless DC motor (original imported NSK bearing)

Model: LD42WS-250W

Working Voltage: 24VDC requires brushless driver and motor to operate

Current: 10A

功率：250W

Speed: 12000 rpm

Torsion: 0.250 (N.m)

Insulation Resistance: > 2 MHz

Insulation dielectric strength: 400V

Insulation Class: B

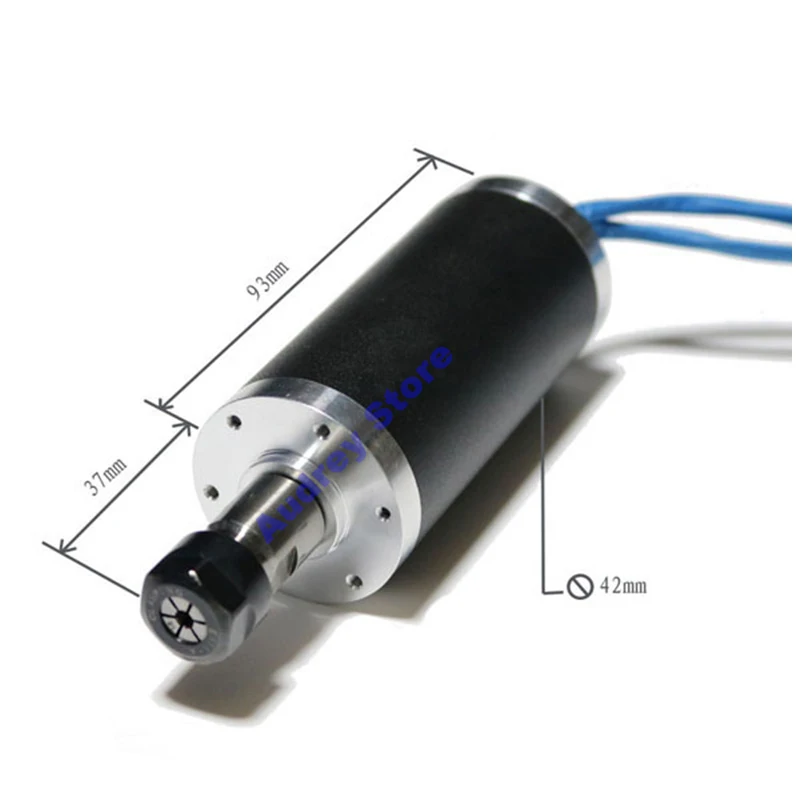

Diameter: 42mm

The length of the clamp head is 37mm.

The diameter of the clamp head is 16 mm.

Total length of motor: 130mm (including clamping position and motor)

Net spindle weight: 0.65KG

The radial jump of the spindle is about 0.01-0.03.

Accuracy: 0.03mm

Size of chuck: ER11

Weight: 0.65 kg

Usage: It can be used for carving metal or non-metal materials.

Features: High speed, low noise, low heat, can work for a long time.

Driving characteristics:

1. Current loop design, high low-speed torque, smooth operation;

2. High torque, high speed output, maximum speed up to 20000rpm/min (depending on motor speed);

3. With pulse speed output, the motor speed can be observed at any time.

4. Speed regulation mode: 0-5V analog and 10 Hz-300 Hz PWM speed regulation, convenient for users to use;

5. Input of start-stop enabling control signal and direction signal;

6. Over-current, over-voltage, stop-up and phase-out protection functions.

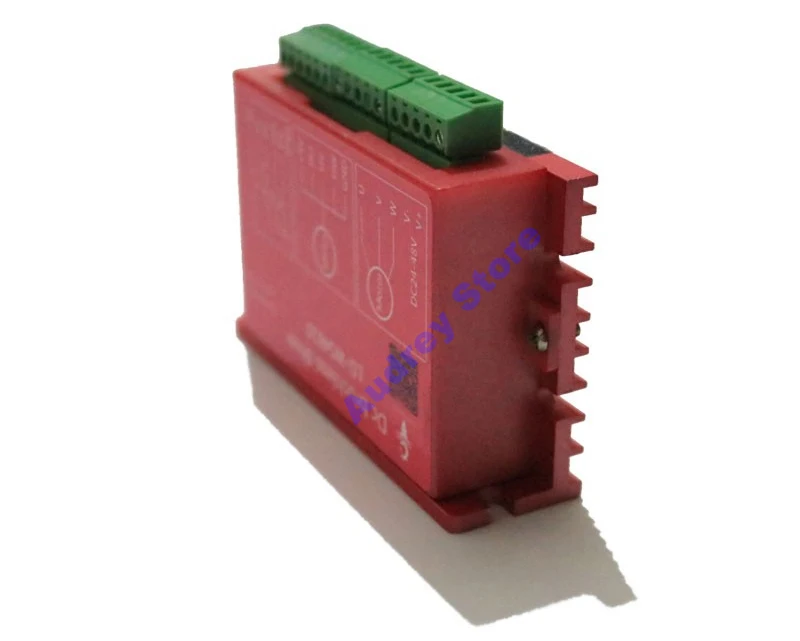

LD-WS4810 DC brushless motor driver uses large-scale integrated circuits to replace the original hardware design.

It has higher anti-interference and fast response performance.

This product is suitable for driving peak current below 5A.

Any low-voltage three-phase DC brushless motor with or without Hall sensor whose power supply voltage is less than DC18V~50V (panel nominal DC24V~48V).

Products are used in knitting equipment, medical equipment, food packaging machinery, electric tools and a series of electrical automation control fields.

Functional overview:

The default mode of standard factory is square-wave Hall-free open-loop mode, which can be written into different programs according to the needs of different customers to realize the closed-loop control of square-wave Hall-free speed, square-wave Hall-free control, square-wave Hall-free speed closed-loop control and other control modes.

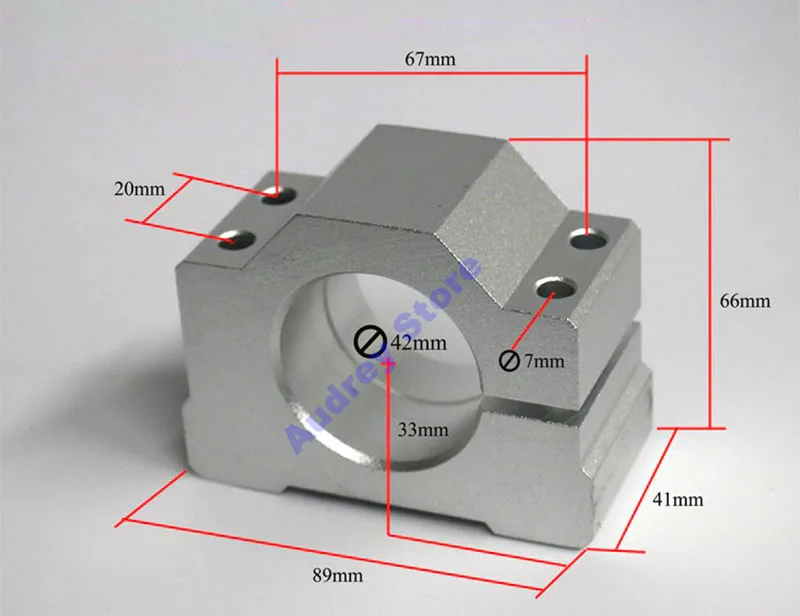

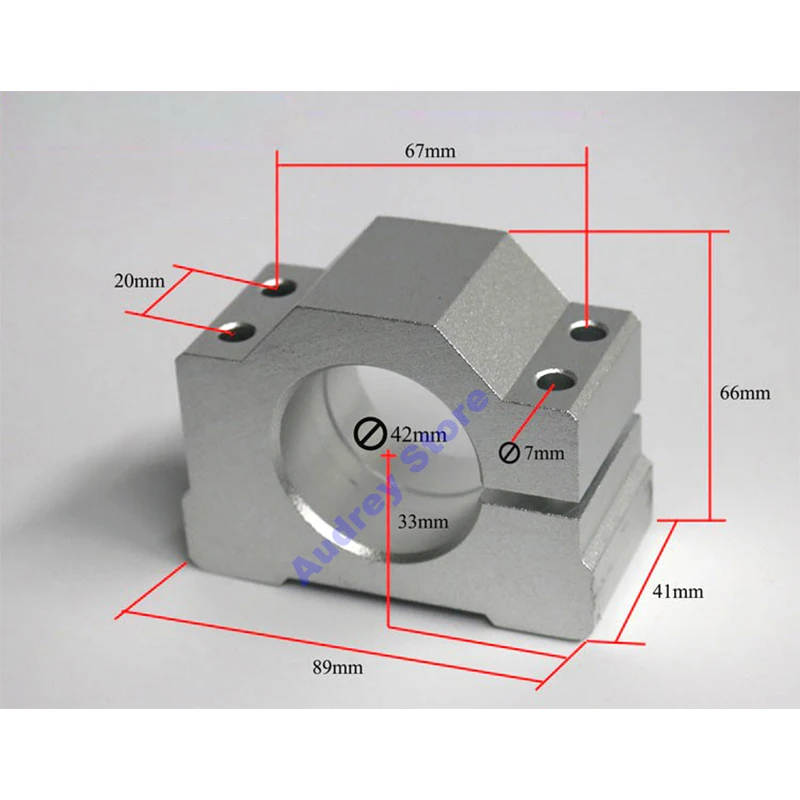

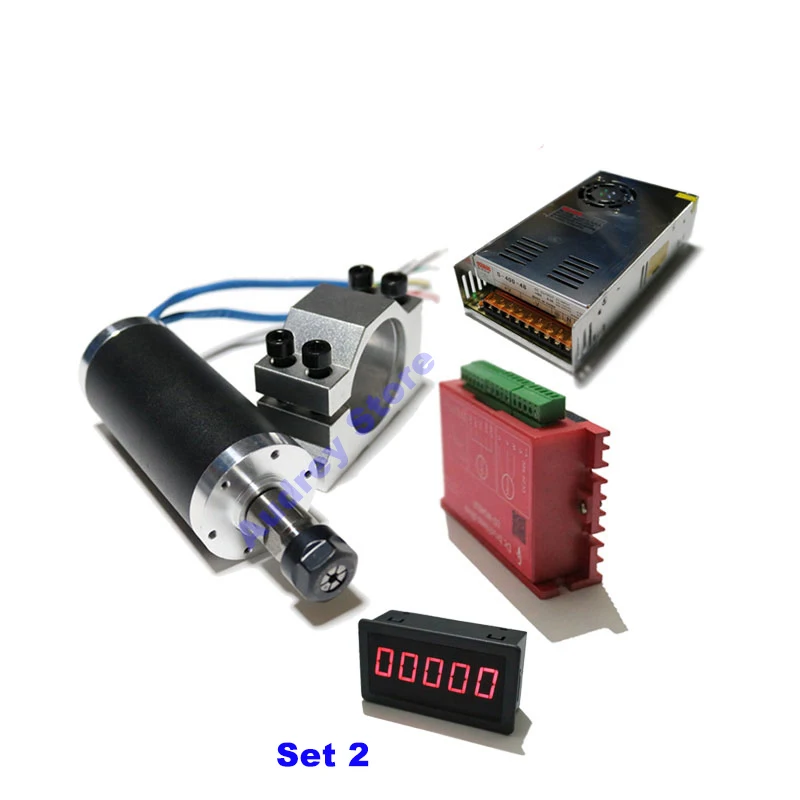

Packing lsit:  motor 1pc + bracket 1pc + driver 1pc + tachometer 1pc + power supply 1pc
