Автомобильный толщиномер Fe/NFe LS223 измеритель толщины покрытия автомобиля с щупом
История изменения цены
*Текущая стоимость 29 789,10 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-20-2026 | 37832.96 руб. | 38589.32 руб. | 38210.5 руб. |
| Jan-20-2026 | 30683.25 руб. | 31297.76 руб. | 30990 руб. |
| Dec-20-2025 | 37236.16 руб. | 37981.96 руб. | 37608.5 руб. |
| Nov-20-2025 | 36938.43 руб. | 37677.99 руб. | 37307.5 руб. |
| Oct-20-2025 | 29491.26 руб. | 30081.72 руб. | 29786 руб. |
| Sep-20-2025 | 36343.71 руб. | 37070.4 руб. | 36706.5 руб. |
| Aug-20-2025 | 36045.32 руб. | 36766.83 руб. | 36405.5 руб. |
| Jul-20-2025 | 35747.12 руб. | 36462.77 руб. | 36104.5 руб. |
Описание товара
Fe/NFe Type Car paint Coating Thickness Gauge Tester Meter LS223 With F5N3 probe 0 to5000um Range For copper steel pain t

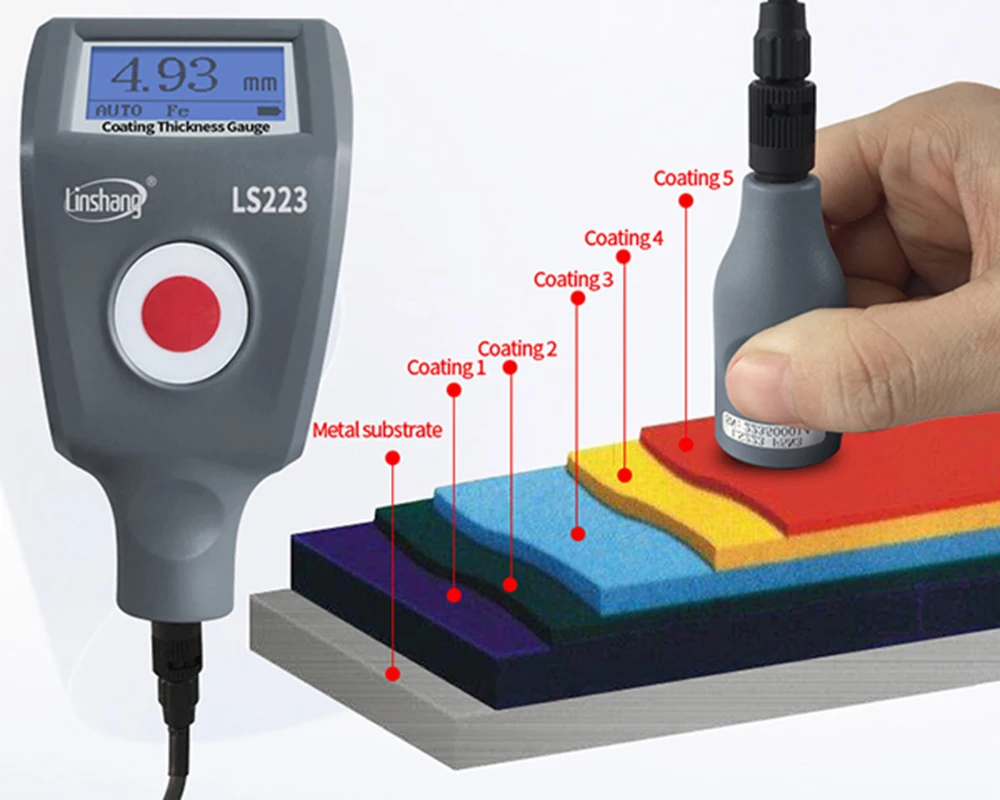

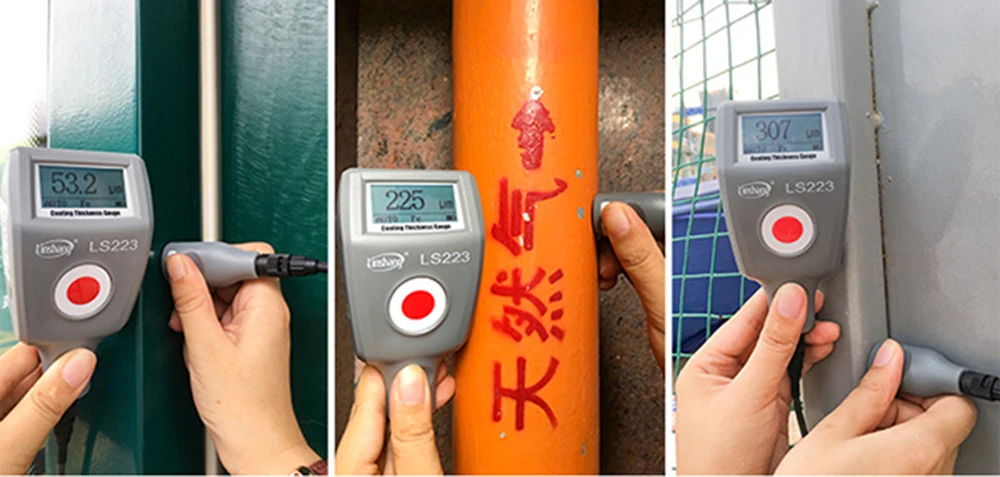

The LS223 Coating thickness gauge is split type instrument, the measuring range of F5N3 probe is 0.0-5000μm. It can be used not only to measure non-magnetic coatings such as paint, varnish, enamel, chrome and galvanizing on ferromagnetism metal substrates such as steel or iron, but also measure Non-conductive coatings such as paint, anodized layers or ceramic on non-magnetic metal substrates such as copper, aluminum, die cast zinc, brass etc.
Standards for the product:
GB/T 4956-2003 Non-magnetic Coatings on Magnetic Substrates-Measurement of Coating Thickness-Magnetic Method
GB/T 4957-2003 Non-conductive Coatings on Non-magnetic Basis Metals-Measurement of Coating Thickness-Eddy CurrentDIN EN ISO 2808 Paints and Varnishes-Determination of Film Thickness
JJG-818-2005 Verification Regulation of Magnetic and Eddy Current Measuring Instrument for Coating Thickness
Features:
1. Wear-proof ruby probe tip for long-term use.
2. No calibration, just zero adjustment.Only one button, easy to operate
3. With temperature compensation function and digitalizing analog signal function,these sensors are unsusceptible to interference and provide an excellent measuring accuracy
4. The measuring range is 0.0-5000μm
5. . The gauge automatically identify the substrate and switch measurement mode rapidly,"Fe", "NFe", "Fe/NFe" three measurement modes can be set. Chinese and English languages can be easily switched
6. With external cable probe, two different measuring range can be easily changed between 3mm and 5mm.
Specification :
| Parameter | LS223 Coating Thickness Gauge |
| Probe tip | Ruby fixed |

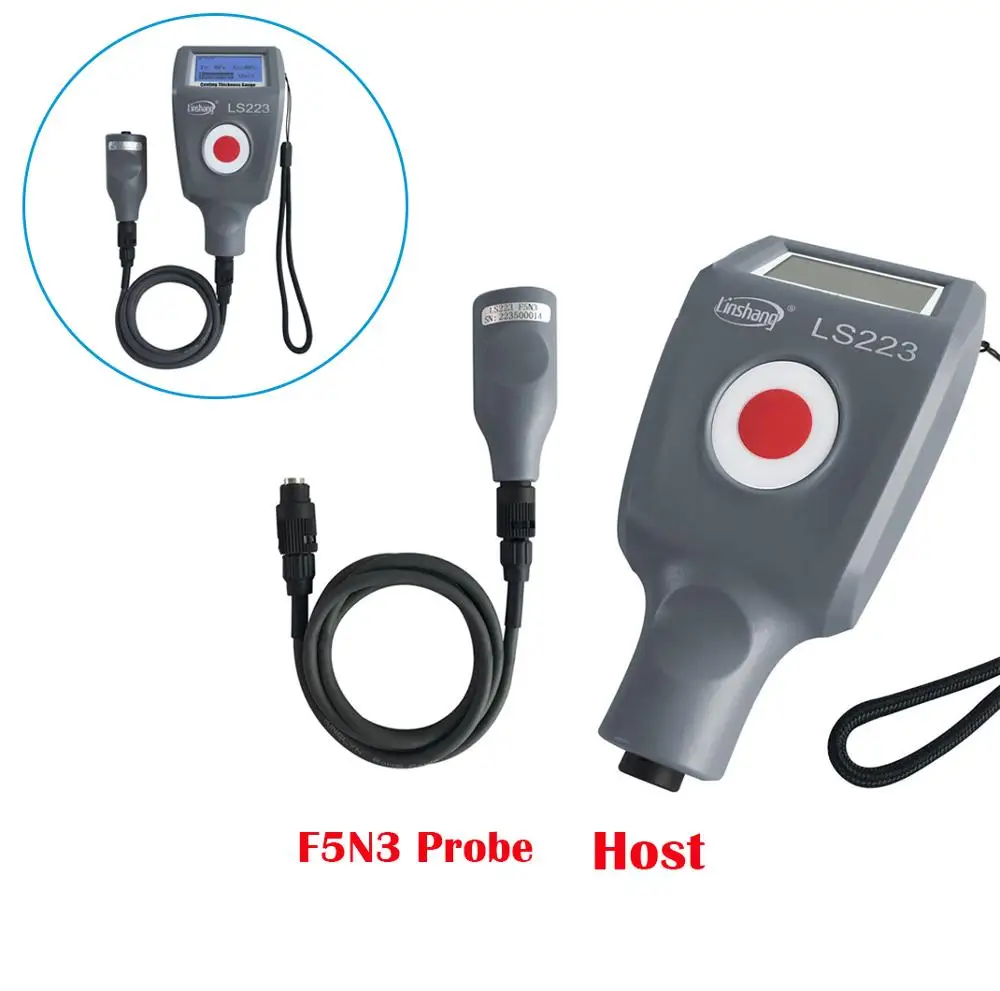

| Probe type | F5N3 prbe |
| Measuring principle | Fe:Hall Effect / NFe: Eddy curren |
| Measuring rang | Fe:0.0-5000μm NFe:0.0-3000μm |
| Resolution |
0.1μm:(0μm-99.9μm) |
| Accuracy |
≤±(3% reading+2μm):0-3000μm |
| Unit | μm / mil |
| Measuring interval | 0.5s |
| Minimum measuring area | Ø = 25mm |
| Minimum curvature | Convex:5mm / Concave:25mm |
| Minimum substrate thickness | Fe:0.2mm / NFe:0.05mm |
| Display | 128×64 dot matrix LCD |
| Power supply | 2*1.5V AAA alkaline battery(not included) |
| Range of operation temperature | 0℃-50℃ |
| Storage temperature range | -20℃-60℃ |

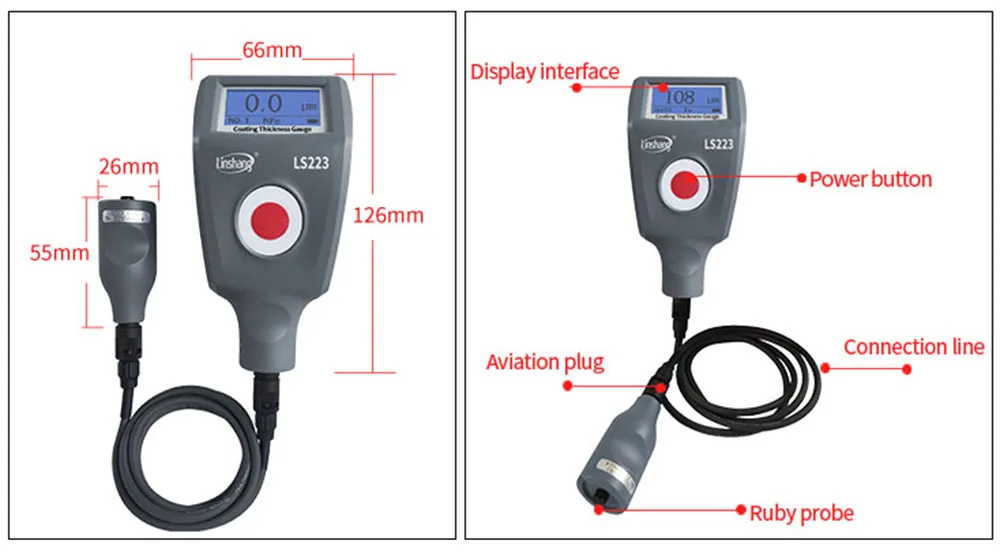

| Host size | 126*66*35 mm |
| Probe size | 22*26*55 mm |
| Weight(with battery) | 160 g |

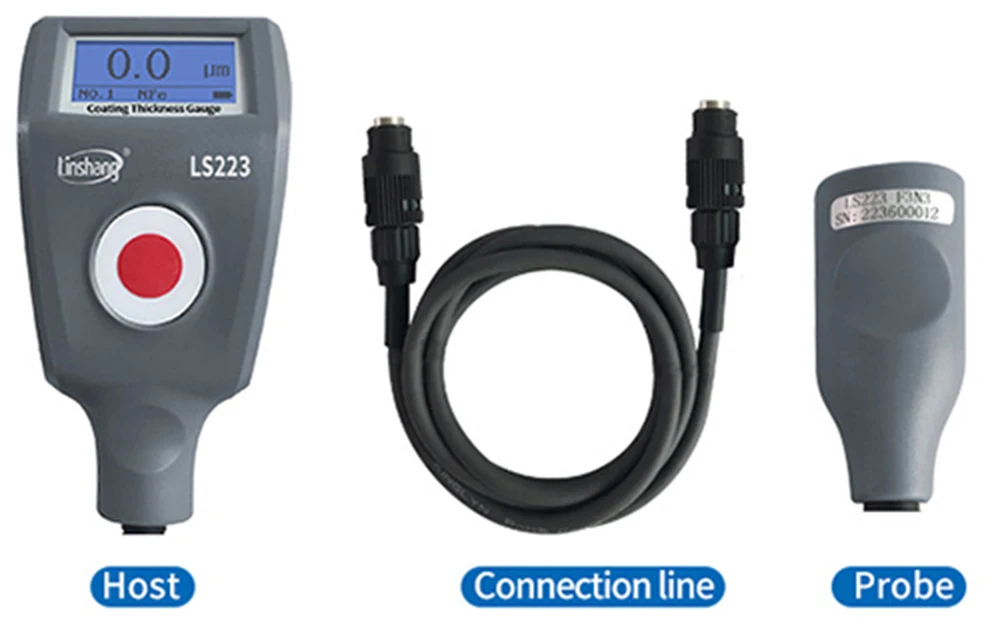

Packing list :
| No. | Item | Quantity | Unit |
| 1 | LS223 Coating Thickness Gauge | 1 | Set |
| 2 | Fe plate of zero adjustment | 1 | Pcs |
| 3 | NFe plate of zero adjustment | 1 | Pcs |
| 4 | Standard film | 1 | Pcs |
| 5 | Instruction manual | 1 | Pcs |
| 6 | Certificate/Warranty card | 1 | Pcs |
