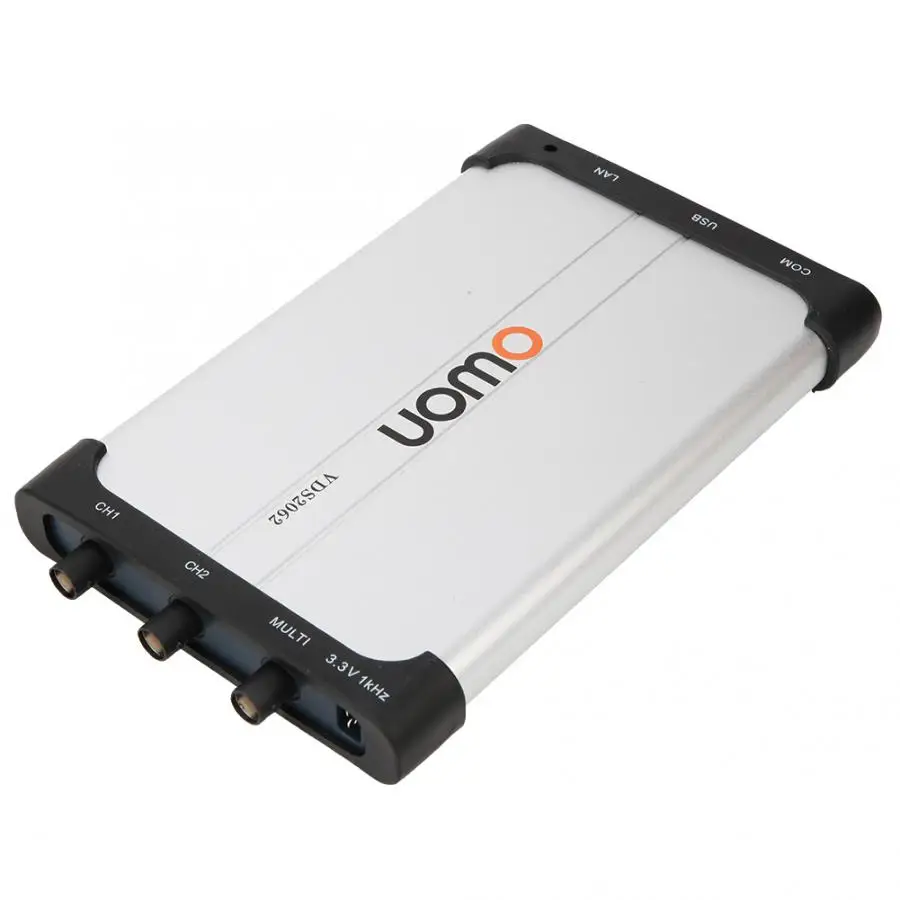

Owon VDS2062 60 МГц 2 канальный Виртуальный USB осциллограф 1 GSa/s

Owon VDS2062 60MHz 2 Channel 1 GSa/s Virtual USB Oscilloscope

Features:
1. Multiple functions: Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record, FFT spectrum analyzer and play function.

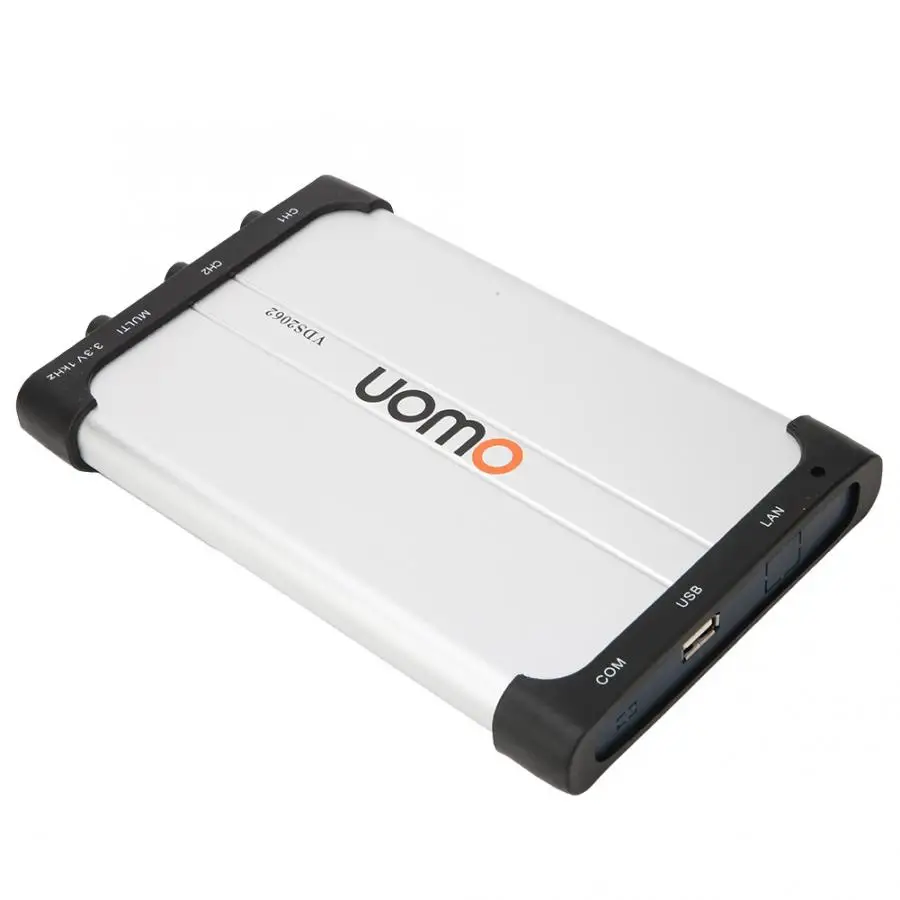

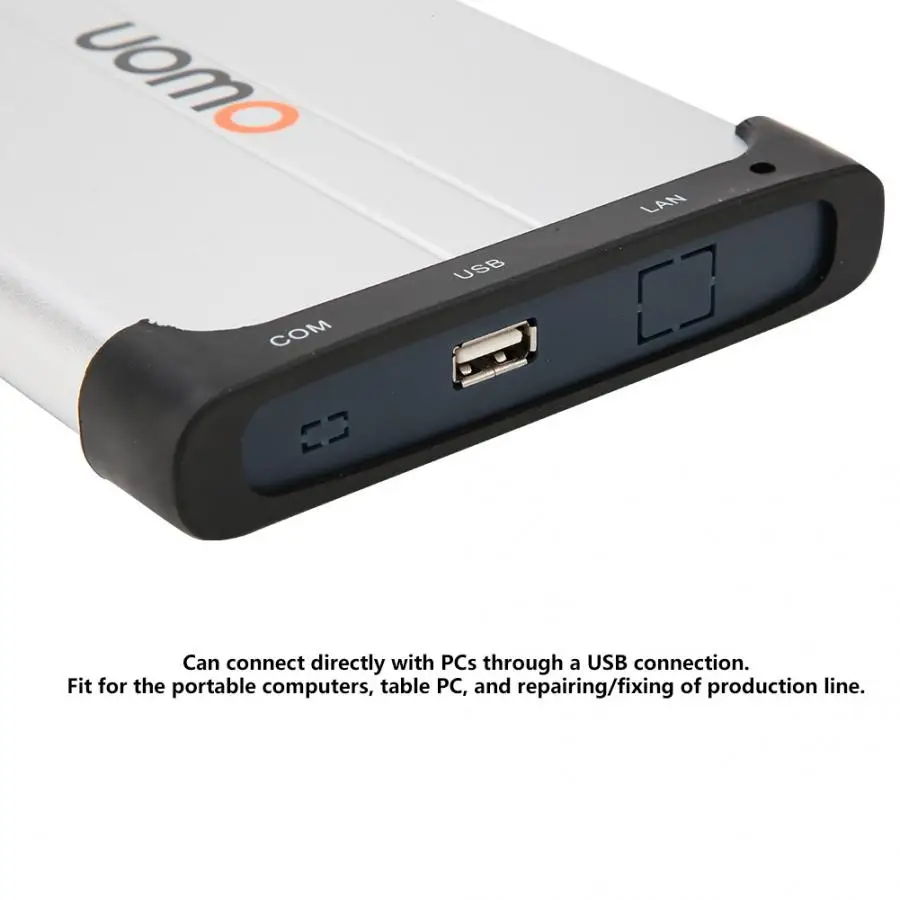

2. The Owon VDS2062 2 channel virtual oscilloscope is an oscilloscope that can connect directly with PCs through a USB connection.
3. Good mechanical design with small size which is easy for carrying.
4. Accommodates users with 60 MHz of bandwidth, 1 GSa/s real-time sample rate, and multiple trigger modes - edge, video, slope, pulse, and alternate. Its USB powering facilitates mobile tests under powerless conditions.
5. Fit for the portable computers, table PC, and repairing/fixing of production line.

Specification:
Item Type: Oscilloscope
Material: ABS + PVC

Model	VDS2062
Bandwidth	60MHZ
Channel	2+1 (multi)
Sample Rate	1GSa/s
Horizontal Scale (s/div)	2ns/div-100s/div, step by 1-2-5
Rise Time	≤5.8 ns
Record Length	10M
Input Coupling	DC, AC, GND
Input Impedance	1MΩ±2%, in parallel with10pF±5pF
Channels Isolation	50Hz : 100 : 1, 10MHz : 40 : 1
Max Input Voltage	40V (PK - PK) (DC+AC, PK - PK)
DC Gain Accuracy	±3%
DC Accuracy	Average≥16: ±(3% reading + 0.05div) forT
Probe Attenuation Factor	1x, 10x, 100x, 1000x
LF Respond (AC, -3dB)	≥10Hz (at input, AC coupling, -3dB)
Sampling Rate / Relay Time  Accuracy	150ps
Interpolation	sin(x) / x
Interval (T) Accuracy (full bandwidth)	Single: ± (1 interval time + 100ppm x reading + 0.6ns), Average >16: ±(1 interval time + 100ppmxreading + 0.4ns)
Vertical Resolution (A/D)	8 bits (2 channelssimultaneously)
Vertical Sensitivity	2mV/div-5V/div
Trigger Type	Edge, Pulse, Video, Slope, Alternate
Trigger Mode	Auto, Normal, Single
Trigger Level	±5 divisions fromscreen center
Acquisition Mode	Sample, Detect, and Average
Line / Field Frequency (video)	NTSC, PAL, and SECAM standard
Cursor Measurement	V andT between cursors
Automatic Measurement	Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, Delay A-B, Delay A-B, +Width,        -Width, +Duty, -Duty
Waveform Math	+, -, invert, FFT
Lissajous Figure	Bandwidth: full bandwidth
Communication Interface	USB 2.0, LAN (optional)
Multi-function  Interface	Signal Type: synchronized input / output, Pass / Fail , external trigger input
Level Standard	TTL
Power Supply	5.0V/1.5A
Power Consumption	≤6.5W

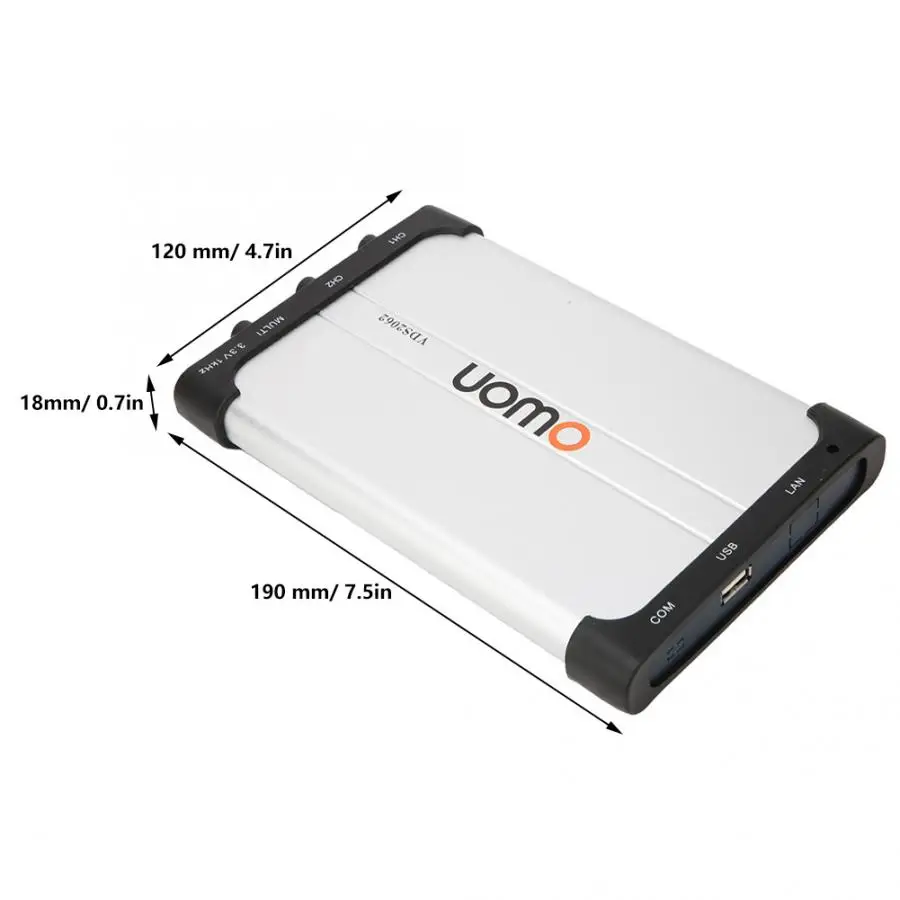

Dimensions (W x H x D)	190 x 120 x 18 (mm) / 7.5 x 4.7 x 0.7in
Weight (without package)	About 781g / 27.54oz

Package List:
1 x Oscilloscope
1 x Instruction
1 x CD
1 x USB Cable
2 x Probe
2 Set x Probe Adjustment
