*The total shopping amount of the whole store is full158Yuan parcel post non remote，Supplementary freight in remote areas。

***Inventory is1Time，Please confirm with the merchant whether there is stock

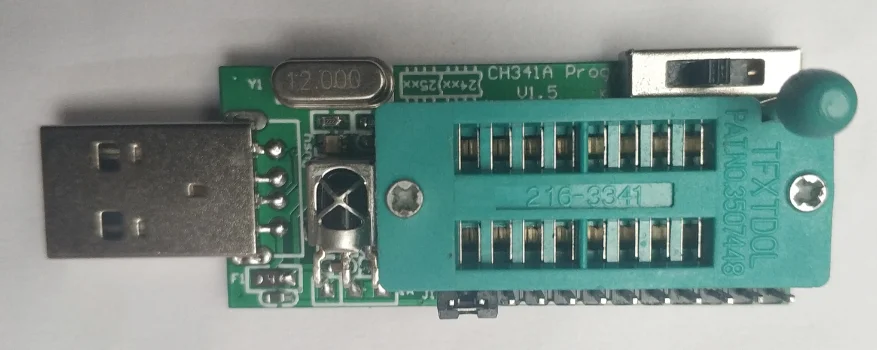

ch341aThe programmerv1.6edition

*Integrated dedicated level conversion chip，Direct reading and writing5v，3.3v，2.5v，1.8vChip

*Integrated infrared code measuring module

*Support burning24class、25/26class、 93class、45class、95Class chip，We also supportkb9010 kb9012 kb9016 kb9018 kb9022ofecData reading and writing

*Open source software，You can add your own chip type，Or software source code，Don't get stuck by others

*TTLCan support to1.8vlevel，Suitable for special occasions

*Read write status light、TTLStatus light

*supportTTLSelf inspection

*Support to open ASUS directlycapfile

batch10Set share95fracture，50More than one set9fracture，100Set above85fracture，Bulk orders may delay delivery，Excuse me。

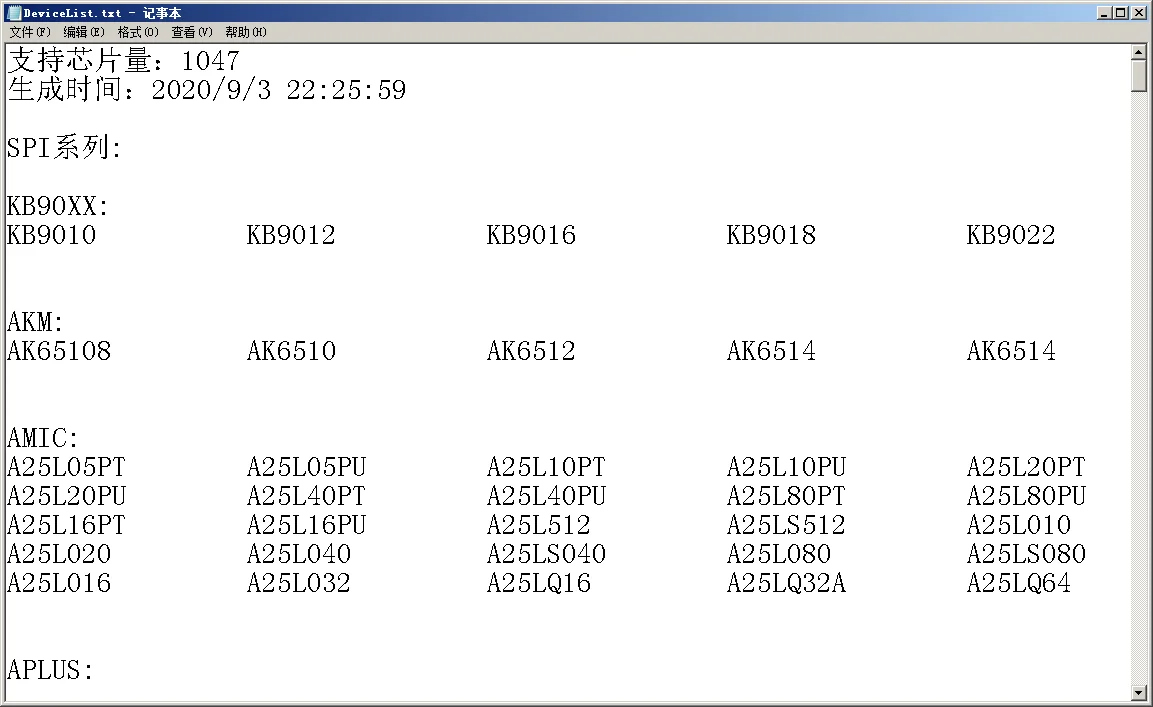

The support list is out，See for yourself，Still adding，Copy the link in parentheses to the browser（http://www.diybcq.com/thread-144983-1-1.html）

(source: DIYProgrammer network)

instructions//pan.baidu.com/s/14HjrQIK5fSUdn1UQ-Qo-JA

Now support64Mofspi，asMX25L51245GZ，Continue adding later（You have something you don't support25Chips can be sent for testing）

other341The programmer does not support93，95，45What about the burning of the chip

The main design of the programmer is very Mini，The function is not simple，No saving，Tangible materials

It is more convenient to use toggle switch to switch voltage，Just dial it

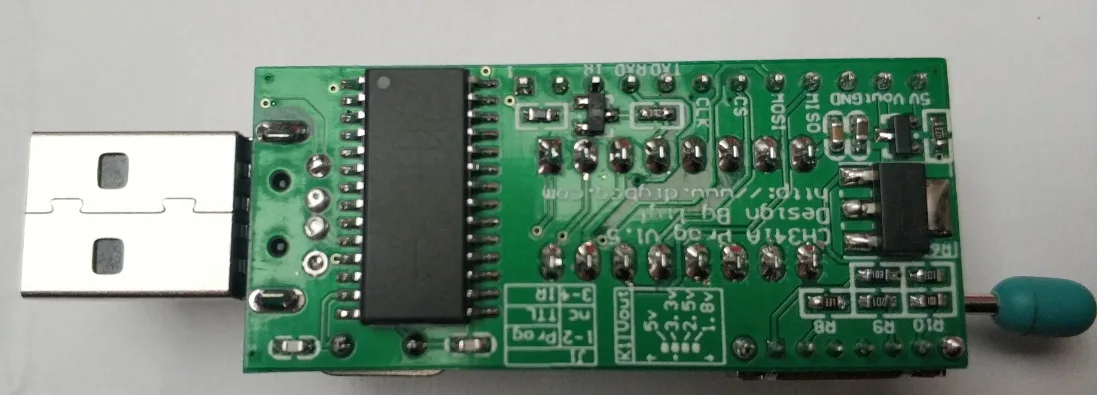

Small board figure，Packed with parts，Adjustable voltage stabilizing chip with high current，Can output5v，3.3v，2.5v，1.8vIsovoltage，Just turn the next switch

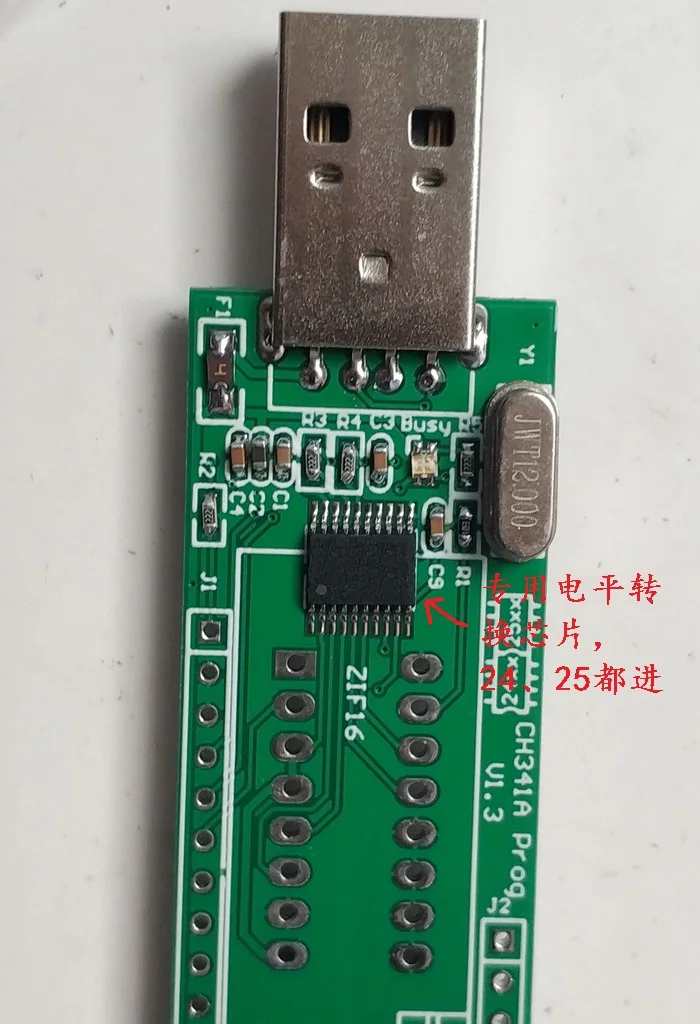

It is realized by a special level conversion chip，Stable and reliable，take24、25All functions of the are converted，Ensure stable reading and writing without error

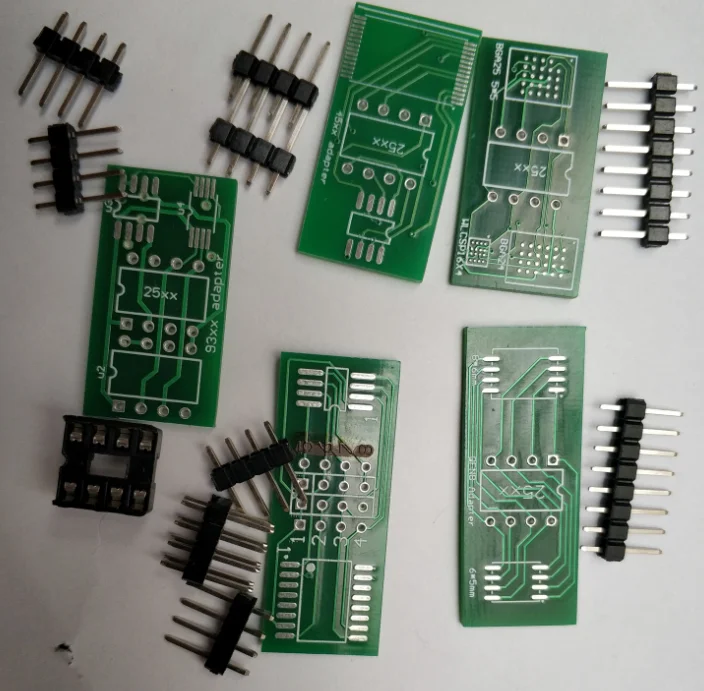

Directly equipped with a full set of adapter plates：currencysopAdapter plate、93、45、bga24etc.

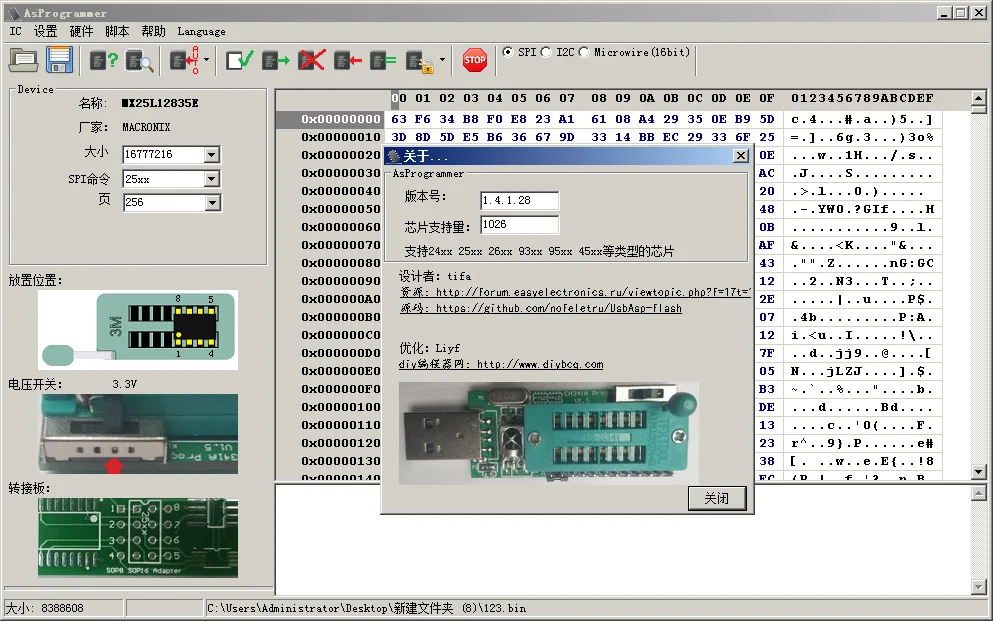

Mainly use our own optimizedAsProgrammerSoftware，More in line with everyone's usage habits，Support to64MChip，You can also add chip support yourself。25Chip one key identification is better。A full set of tutorials and video tutorials are also available。

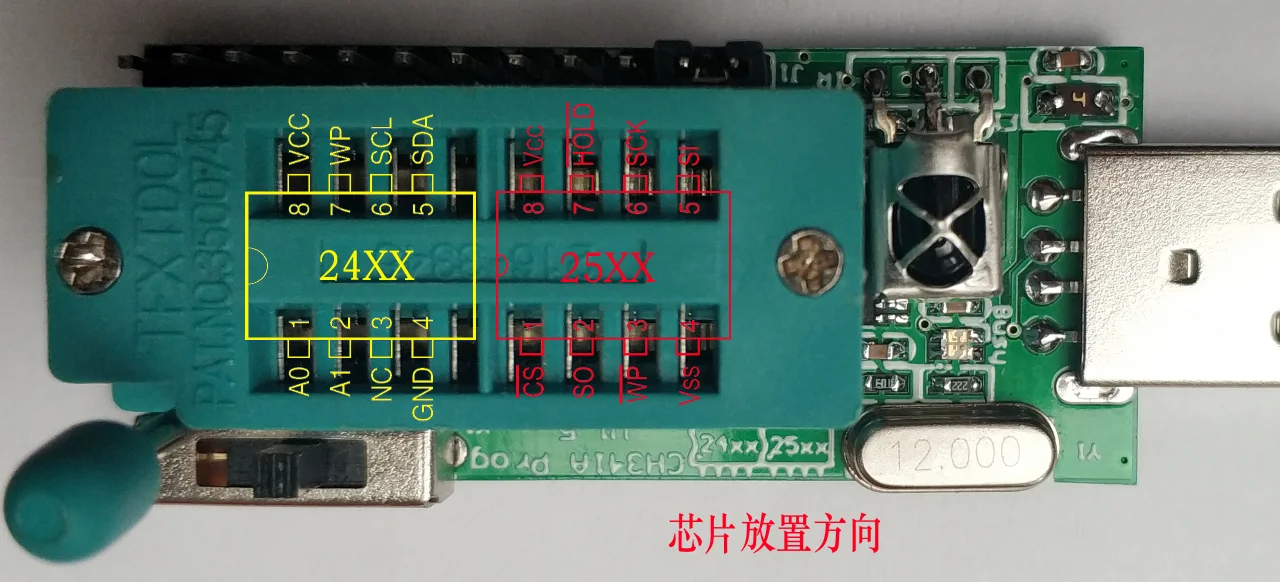

Support exceeds 1000，The software directly prompts the chip placement position，Voltage switch and adapter board used，More convenient。

The programmer is still improving，Many materials are website updates，Please check the website step by step

CH341AProgrammer data summaryhttp://www.diybcq.com/thread-144131-1-1.html

Integrated infrared code measuring function。It is convenient to read the remote control code by following the instructions。

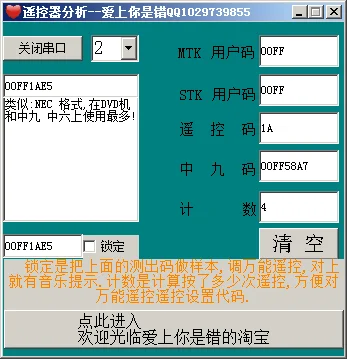

Run code measuring software，set up341Serial port number of，Click to open the serial port，The remote controller can be automatically recognized as long as it is within the range of the receiving head，Display and sound prompts at the same time。

Programmer shipping list

ch341aThe programmer 1block

24 25Universal adapter kit 1set

93Adapter plate kit 1set

45Adapter plate kit 1set

qfn8Adapter plate kit 1set

bga24Adapter plate kit 1set

Software network transmission

See the website for the tutorial
