Specification:

• Brand new

• Model: DRV8825

• Maximum Supply Voltage: 45V

• Six Different Step Resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step

Feature:

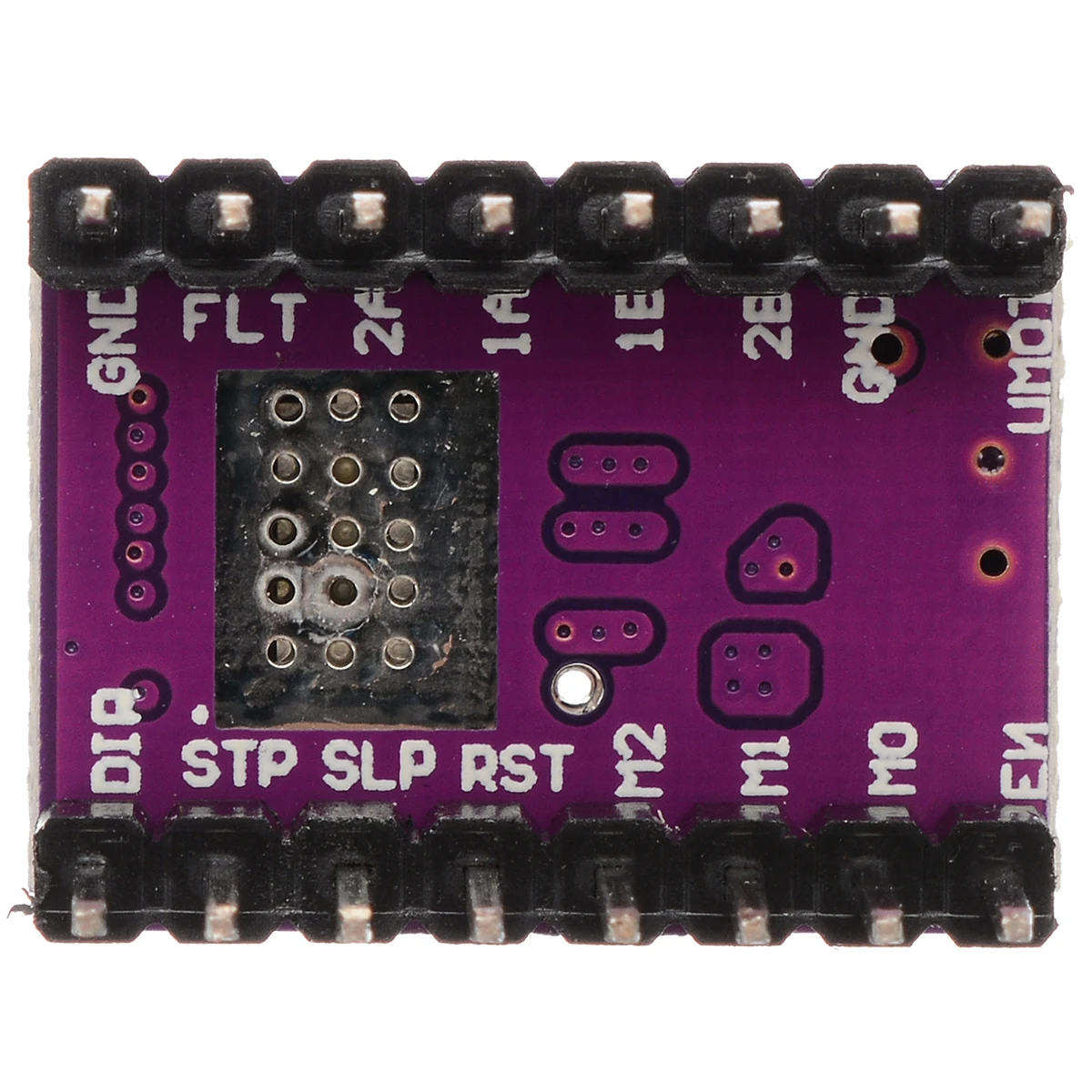

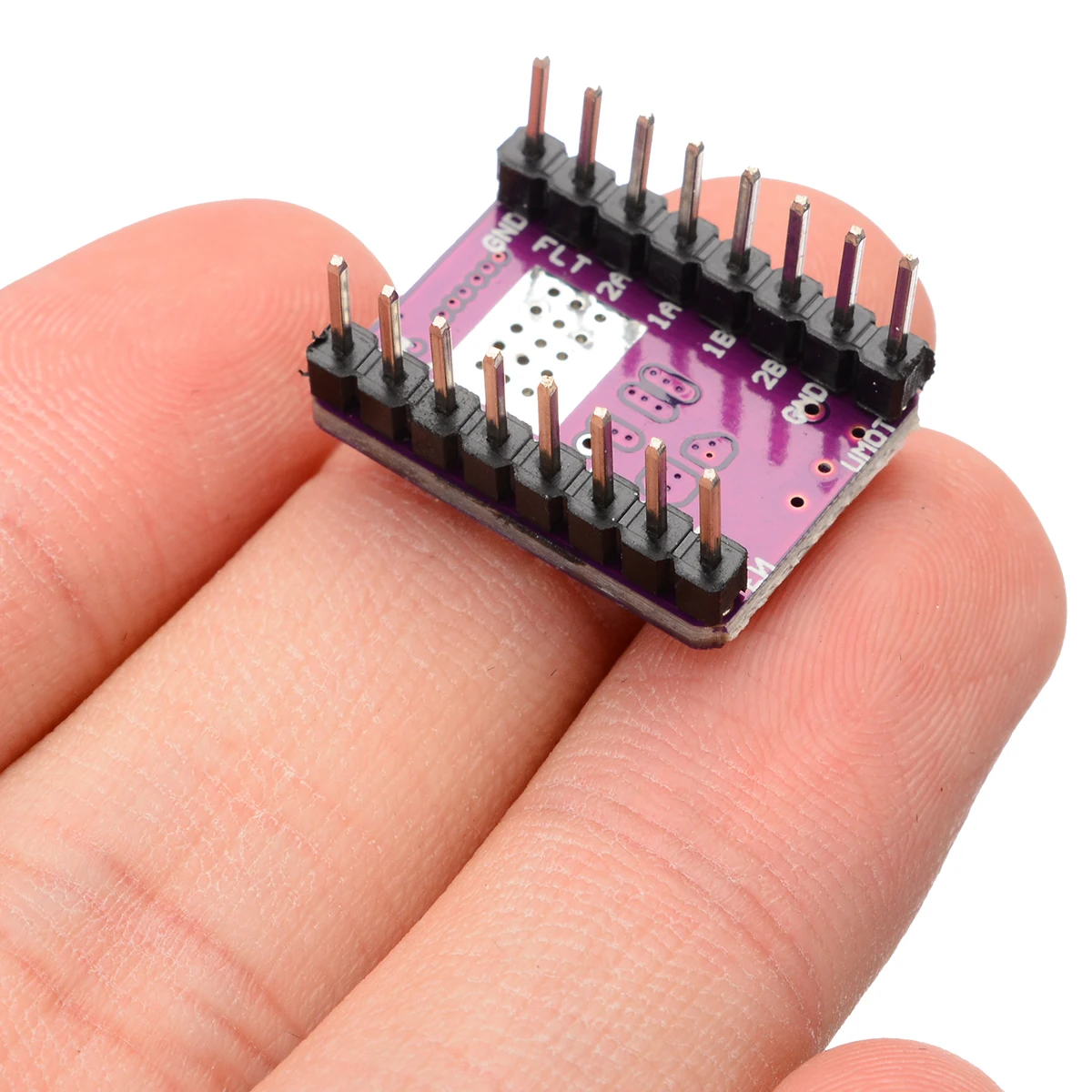

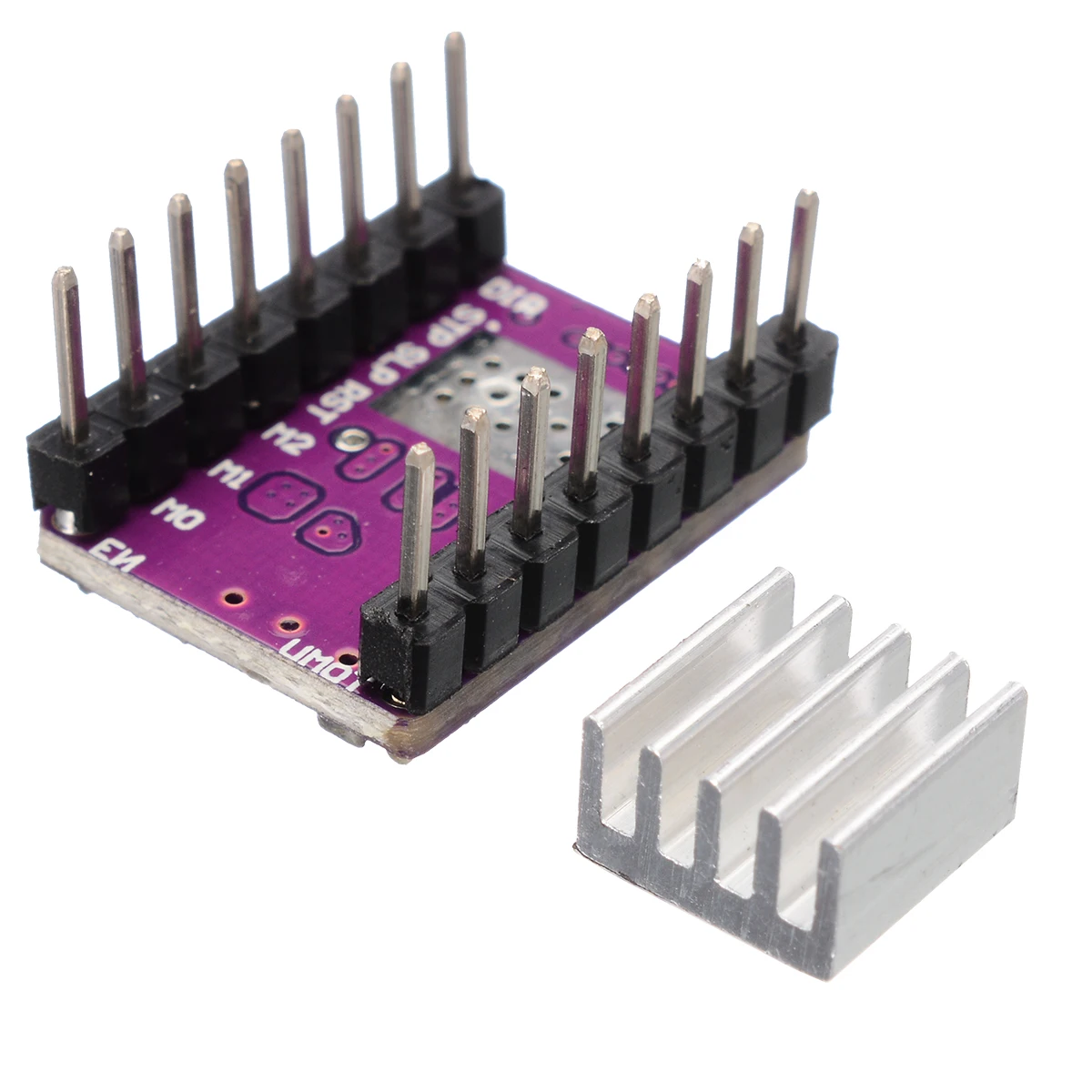

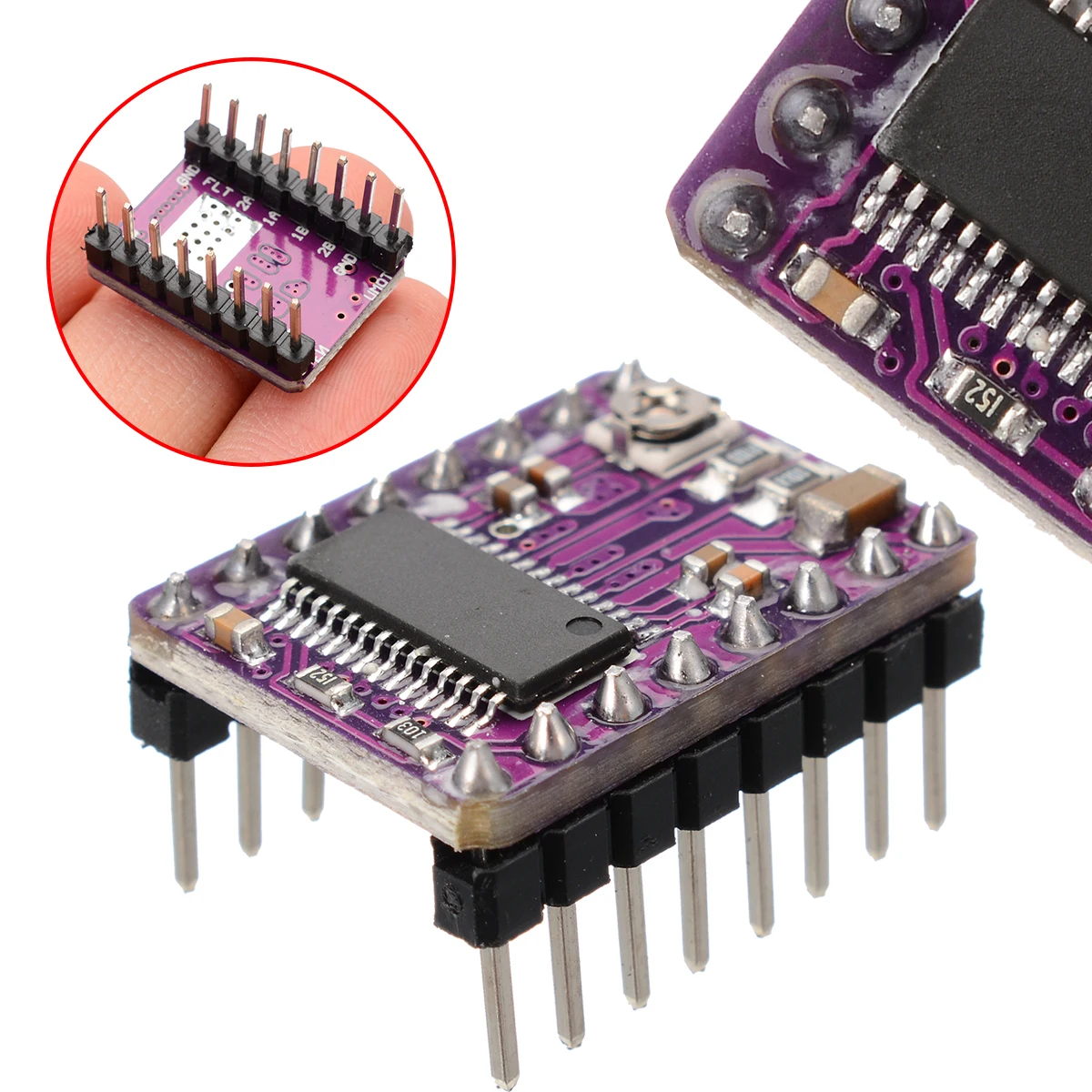

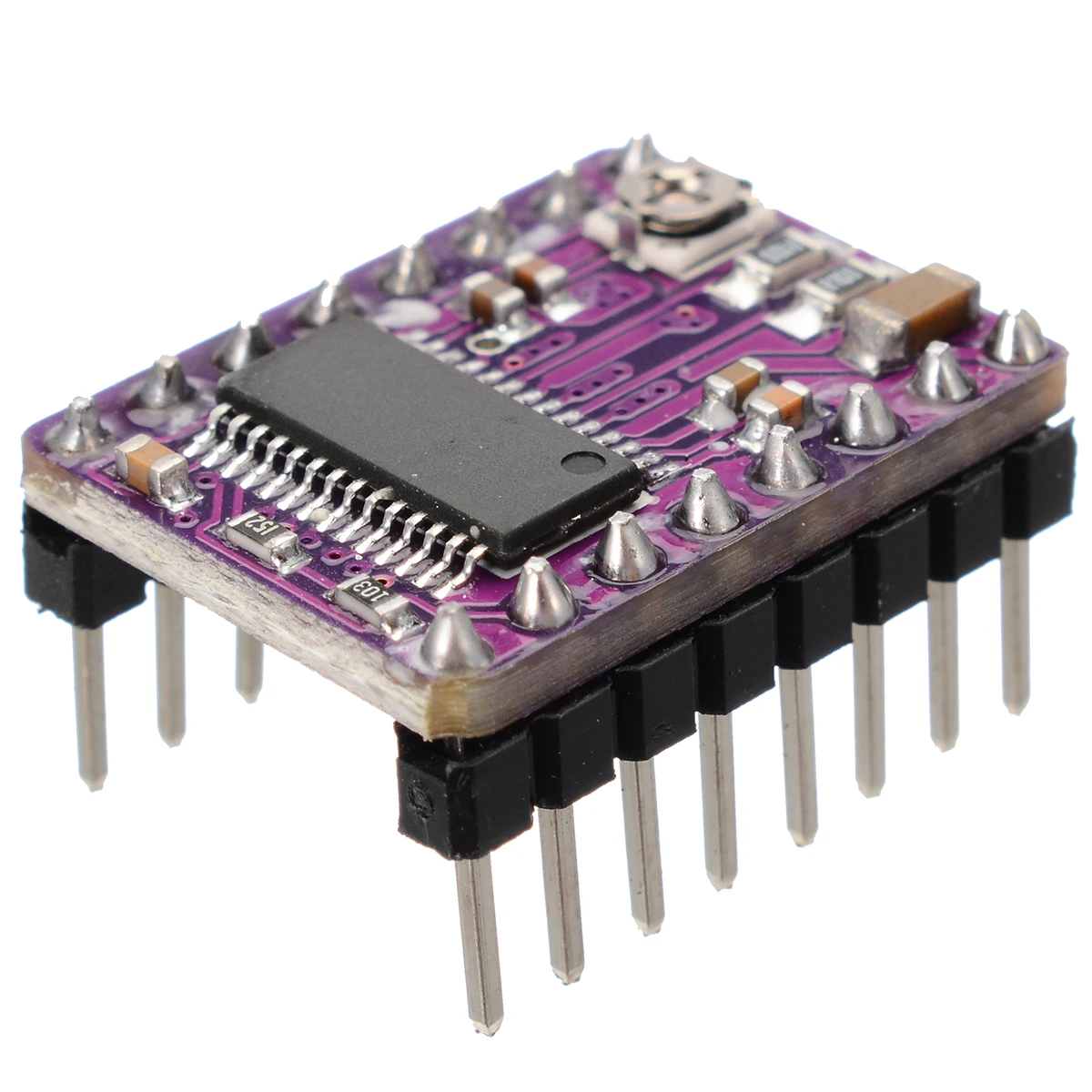

• The DRV8825 stepper motor driver carrier is a breakout board for TI's DRV8825 micro stepping bipolar stepper motor driver.

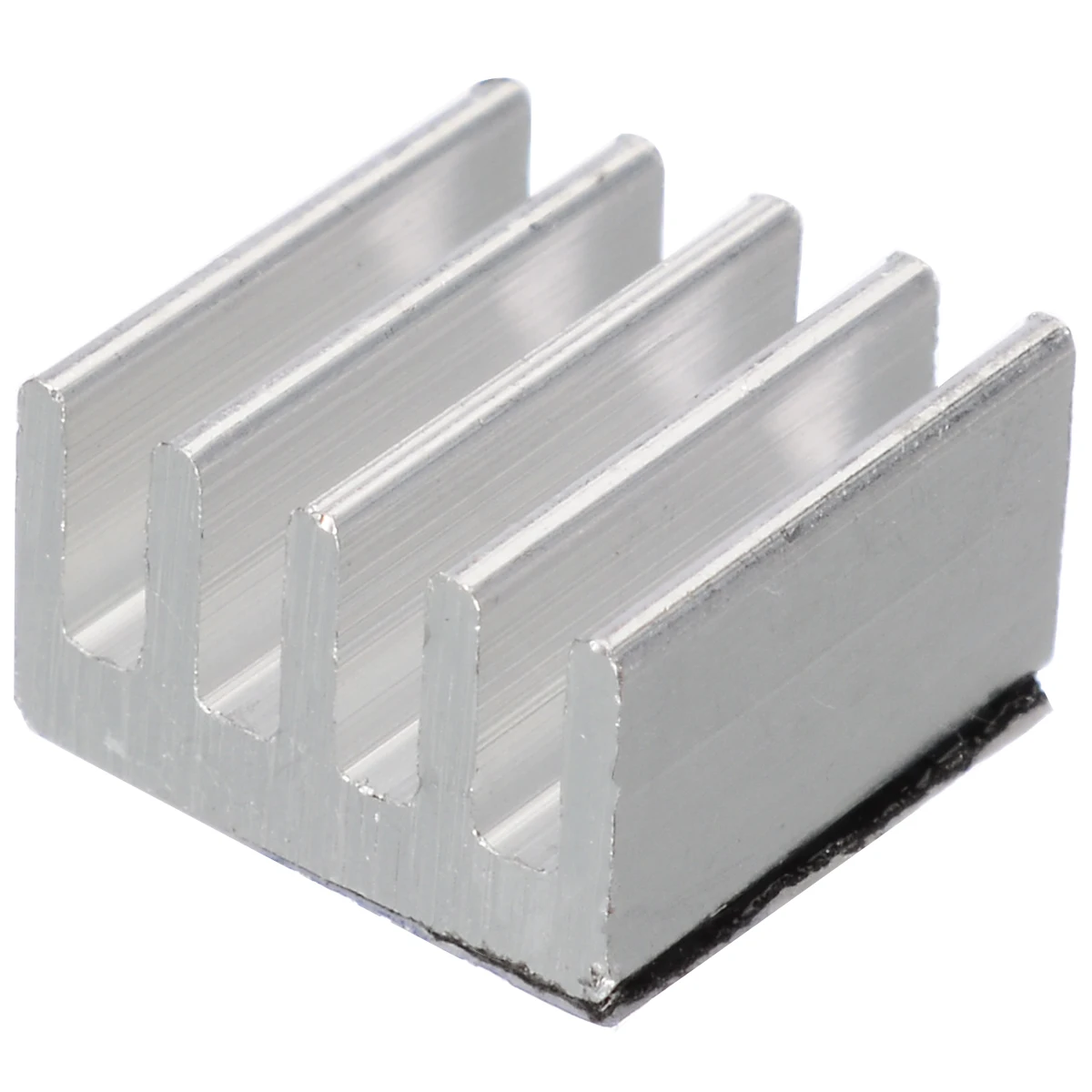

• Operates from 8.2~45V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

• Simple step and direction control interface.

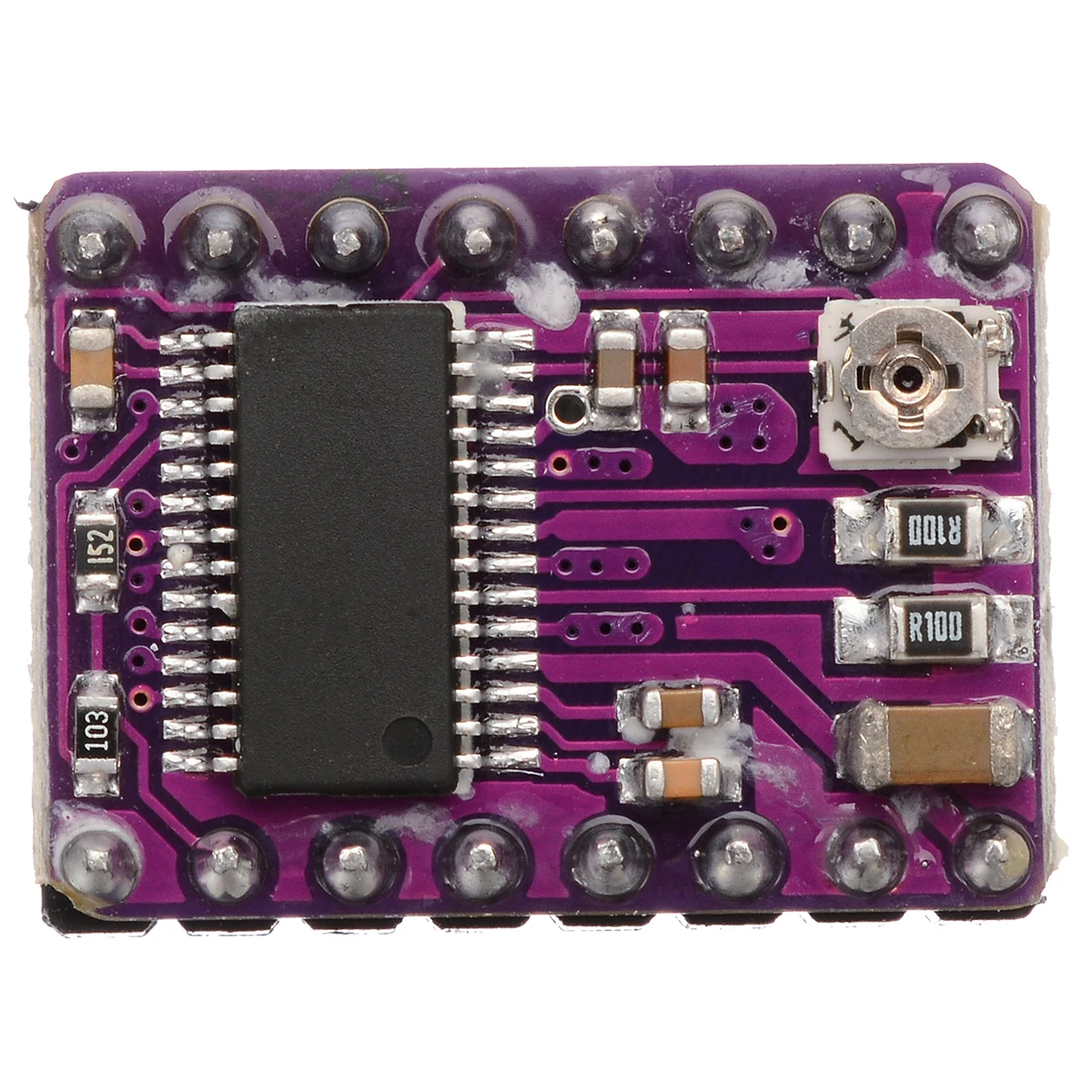

• Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates.

• Built-in regulator (no external logic voltage supply needed).

• Can interface directly with 3.3V and 5V systems.

• Over-current and over-temperature protection, under-voltage lockout.

• Short-to-ground and shorted-load protection.

• Fine workmanship and good performance.

• Easy to use.

• Long service life.

Package included:

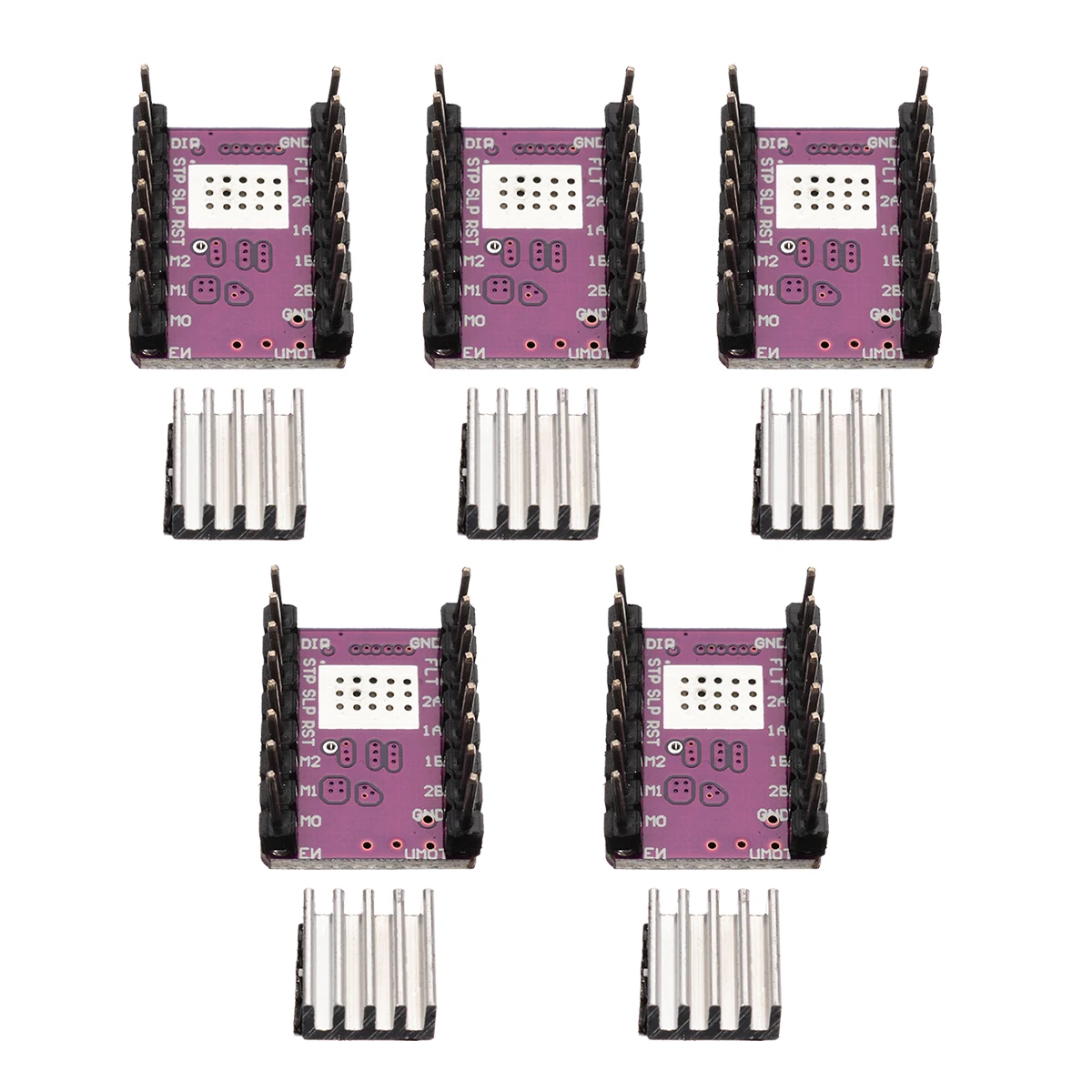

• 5 sets x Stepper Motor Driver Module

Note:

• Please allow a little size errors due to manual measurement.

• Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
